AT210R-AEMNK (1996)
Toyota Corona
Production
Jan 1996
-
Oct 1998
Engine
4AFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9601- )AT210

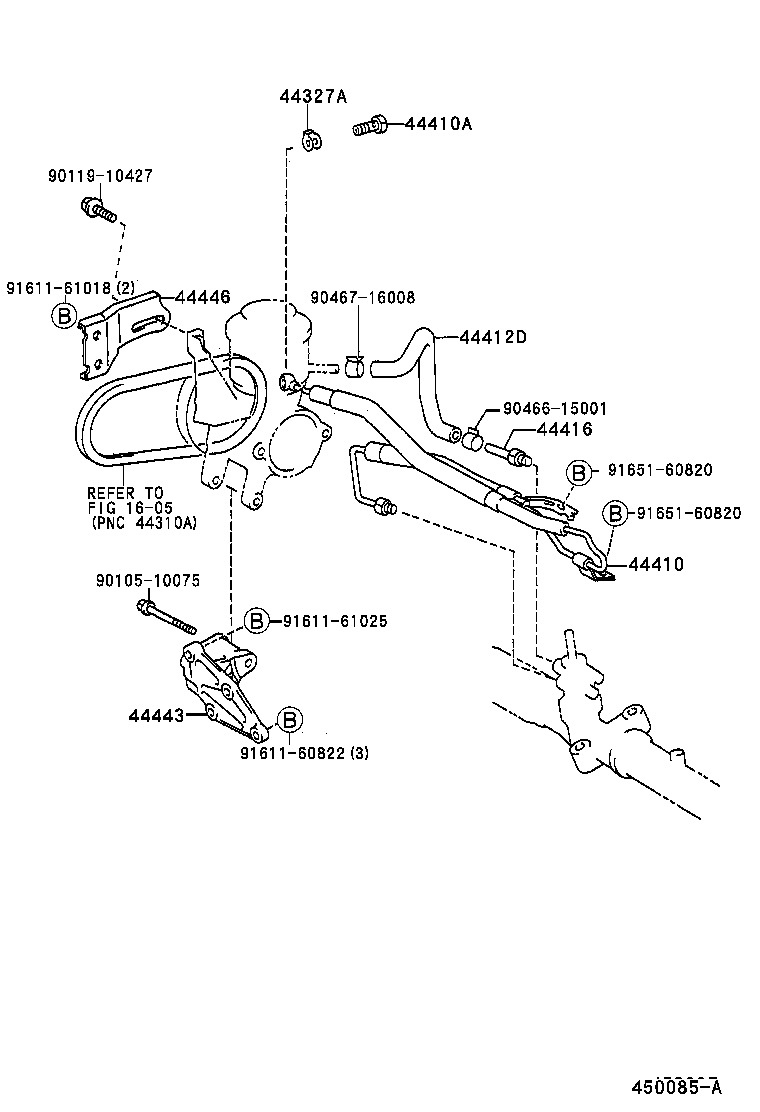

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
AT210,ST210 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-2B160 |
AT210 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16008 |
AT210,ST210 |
1 | ||
| 44412D - HOSE, RETURN, NO.1 | ||||
| 44412-20190 |
AT210 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-20220 |
AT210,ST210 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-12050 |
AT210 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-12060 |
AT210 |
1 | ||
| Common parts | ||||
| 90105-10075 | ||||
| 90119-10427 | ||||
| 90466-15001 | ||||
| 90467-16008 | ||||
| 91611-60822 | ||||
| 91611-61018 | ||||
| 91611-61025 | ||||
| 91651-60820 | ||||
| Linked diagrams | ||||
| 1605 | ||||
