AE95R-CWMXKQ (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1995
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )

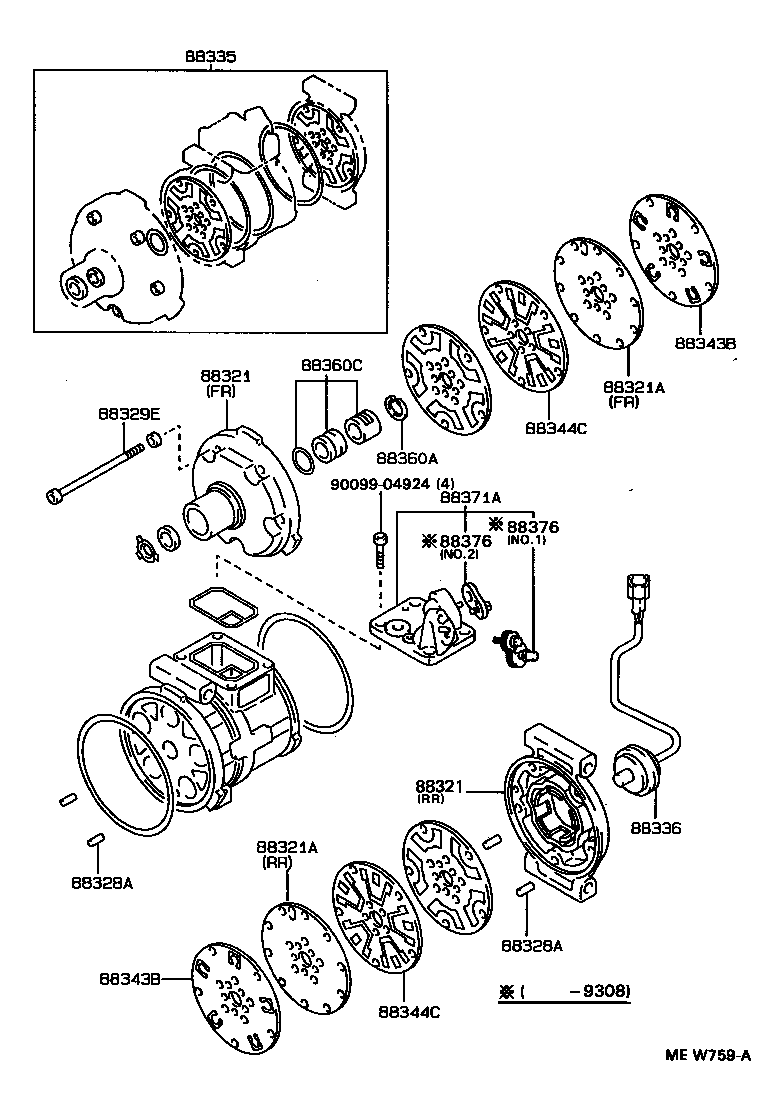

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14021 |
AE95 FR |
1 | ||
| 88322-14020 |
AE95 RR |
1 | ||
| 88321-32010 |
AE95 FR |
1 | ||
| 88322-32040 |
AE95 RR |
1 | ||
| 88321 - HEAD, COOLER COMPRESSOR CYLINDER | ||||
| 88321-14021 |
AE95 FR |
1 | ||
| 88322-14020 |
AE95 RR |
1 | ||
| 88321-32010 |
AE95 FR |
1 | ||
| 88322-32040 |
AE95 RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14020 |
AE95 RR |
1 | ||
| 88341-14020 |
AE95 FR |
1 | ||
| 88341-22010 |
AE95 FR |
1 | ||
| 88342-22010 |
AE95 RR |
1 | ||
| 88321A - PLATE SUB-ASSY, VALVE | ||||
| 88342-14020 |
AE95 RR |
1 | ||
| 88341-14020 |
AE95 FR |
1 | ||
| 88341-22010 |
AE95 FR |
1 | ||
| 88342-22010 |
AE95 RR |
1 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
AE95 |
4 | ||
| 88328A - PIN, COMPRESSOR | ||||
| 90099-08058 |
AE95 |
4 | ||
| 88329E - BOLT, COMPRESSOR, NO.1 | ||||
| 90099-04370 |
AE95 |
5 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-14010 |
AE95 |
1 | ||
| 88335-2B010 |
AE95 |
1 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
AE95 |
2 | ||
| 88343B - REED, SUCTION VALVE | ||||
| 88343-14020 |
AE95 |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
AE95 |
2 | ||
| 88344-14020 |
AE95 |
2 | ||
| 88344C - REED, DISCHARGE VALVE | ||||
| 88344-22010 |
AE95 |
2 | ||
| 88344-14020 |
AE95 |
2 | ||
| 88360A - RING, COMPRESSOR SEAL PLATE SNAP | ||||
| 90096-90022 |
AE95 |
1 | ||
| 88360C - SEAL ASSY, SHAFT | ||||
| 88360-2B010 |
AE95 |
1 | ||
| 88360-14030 |
AE95 |
1 | ||
| 88371A - VALVE, SUCTION | ||||
| 88371-1A010 |
AE95 |
1 | ||
| 88371-12340 |
AE95..ARL |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-28010 |
AE95..ARL NO.1 |
1 | ||
| 88376-28020 |
AE95..ARL NO.2 |
1 | ||
| 88376 - CAP, BLIND | ||||
| 88376-28010 |
AE95..ARL NO.1 |
1 | ||
| 88376-28020 |
AE95..ARL NO.2 |
1 | ||
| Common parts | ||||
| 90099-04924 | ||||
(9009- )

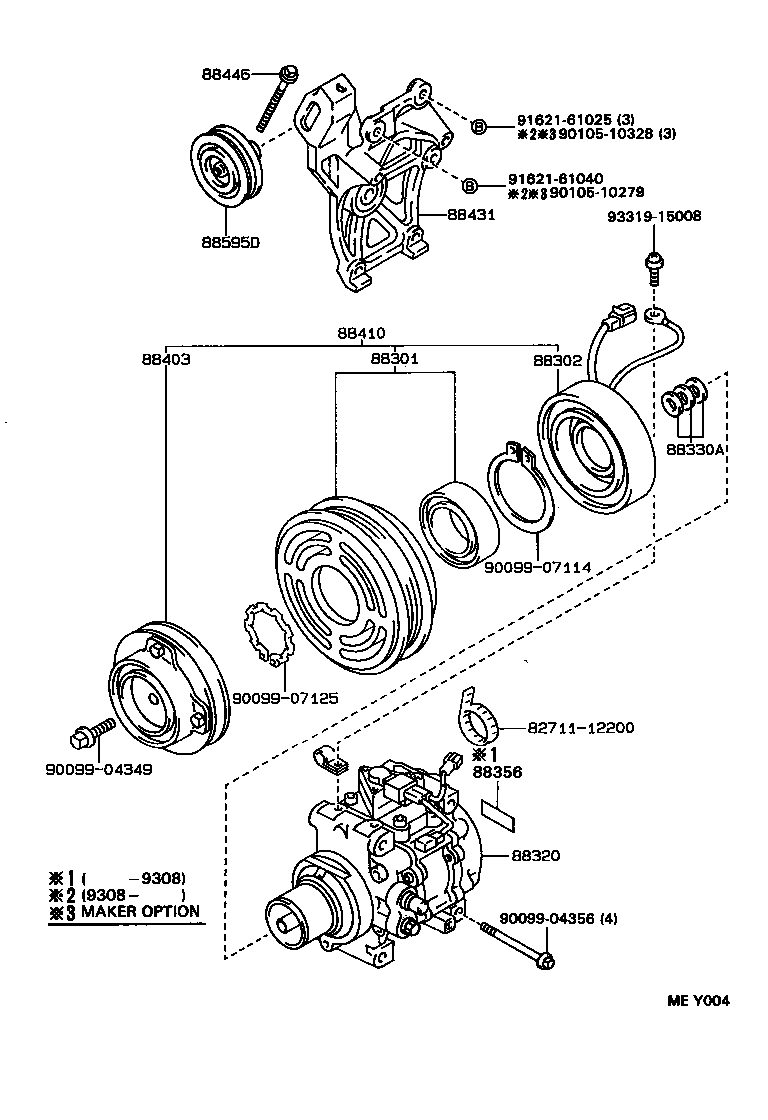

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-1A060 |
AE95 |
1 | ||
| 88412-12190 |
AE95..ARL |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-12150 |
AE95..ARL |
1 | ||
| 88411-12150 |
AE95 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-12520 |
AE95..ARL |
1 | ||
| 88320-1A420 |
AE95 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 90099-01553 |
AE95 T=0.1 |
1 | ||
| 90099-01555 |
AE95 T=0.5 |
1 | ||
| 90099-01554 |
AE95 T=0.3 |
1 | ||
| 88356 - LABEL, COMPRESSOR CAUTION | ||||
| 88356-12010 |
AE95 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-16011 |
AE95 |
1 | ||
| 88403-30290 |
AE95 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-12330 |
AE95..ARL |
1 | ||
| 88410-1A160 |
AE95..ARL |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-12380 |
AE95 |
1 | ||
| 88446 - BOLT, IDLE PULLEY | ||||
| 88446-12030 |
AE95 |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-17010 |
AE95 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90099-04349 | ||||
| 90099-04356 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 90105-10279 | ||||
| 90105-10328 | ||||
| 91621-61025 | ||||
| 91621-61040 | ||||
| 93319-15008 | ||||
