AE95R-CWMXKQ (1990)
Toyota Corolla Wagon
Production
Sep 1990
-
Aug 1995
Engine
4AFE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9009- )RHD

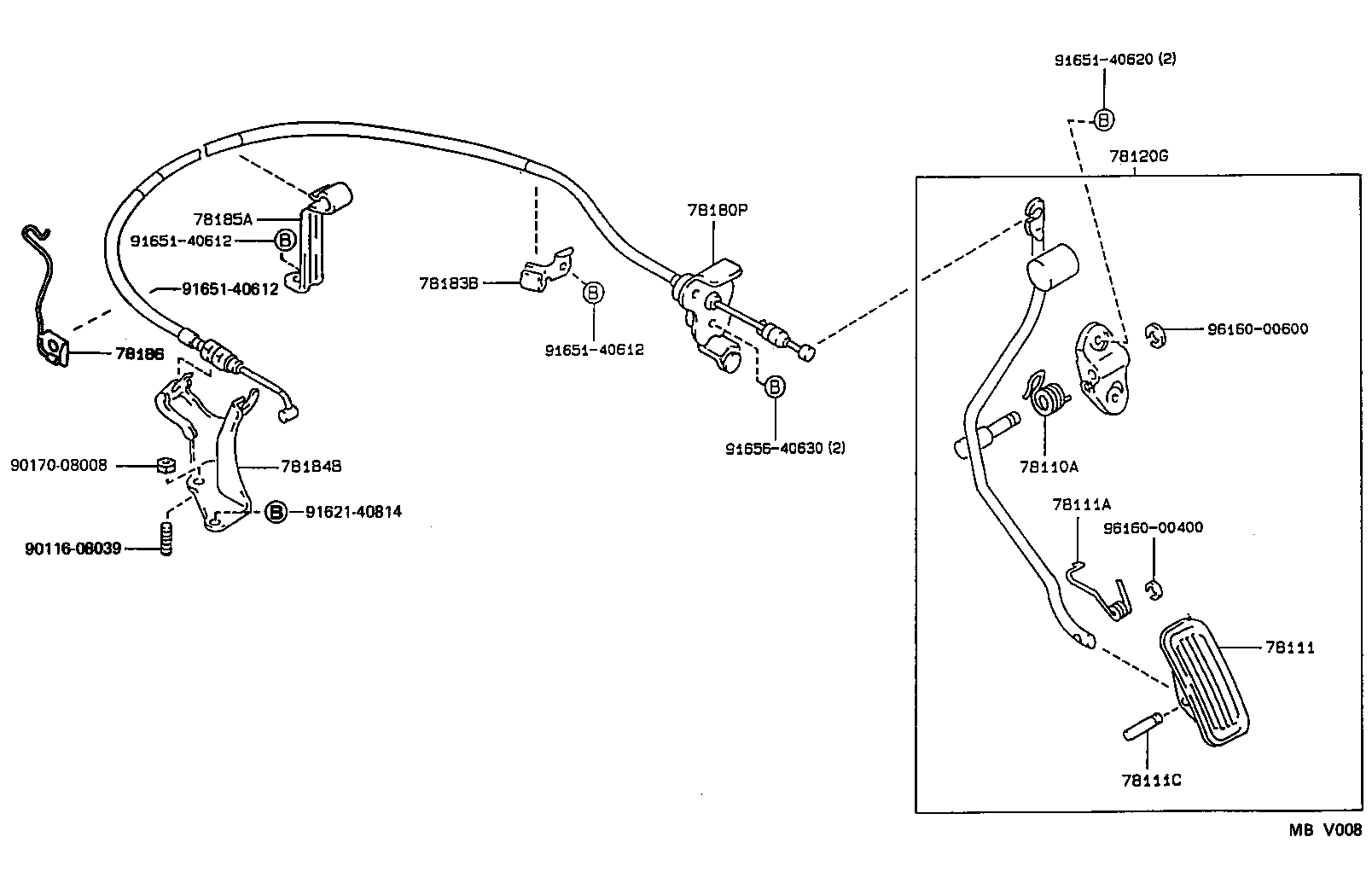

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18025 |
AE95 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32010 |
AE95 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-20056 |
AE95 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
AE95 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-12080 |
AE95..RHD |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-1A081 |
AE95..ARL |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-12100 |
AE95..RHD |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-12220 |
AE95..ARL |
1 | ||
| Common parts | ||||
| 90116-08039 | ||||
| 90170-08008 | ||||
| 91621-40814 | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 91656-40630 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
