AE95R-CWMXKQ (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1995
Engine 4AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9009- )RHD

Click highlighted areas on diagram

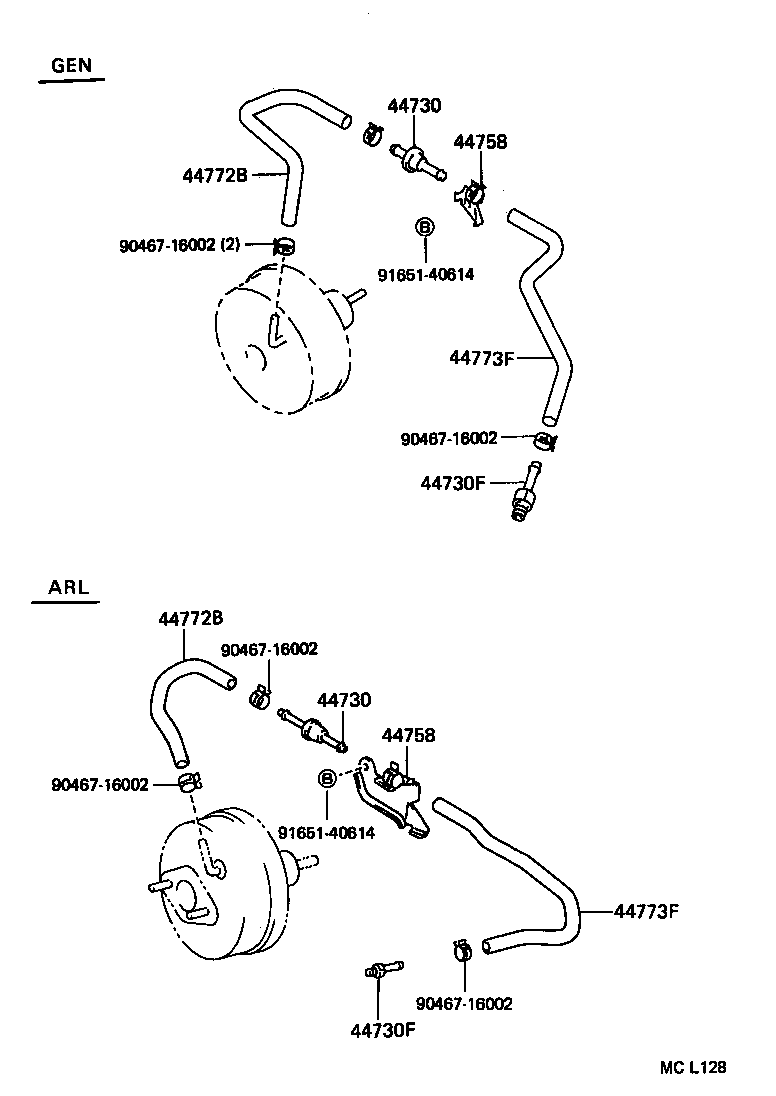

diagram 44730 44730 44730F 44730F 44758 44758 44772B 44772B 44773F 44773F 9046716002 9046716002 9046716002 9046716002 9046716002 9165140614 9165140614
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AE95..RHD

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

AE95..RHD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

AE95..ARL

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

AE95..ARL

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-12280

AE95..ARL

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-12280

AE95..ARL

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12400

AE95..ARL

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12400

AE95..ARL

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-12450

AE95..ARL

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-12450

AE95..ARL

 1
Common parts
90467-16002
91651-40614

ILLUST NO. 1 OF 2(9009- )ARL

Click highlighted areas on diagram

diagram 04443 44606E 44610 44621V 44629 44635B 44642 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-12590

AE95..ARL

 1
44606E - ROD SUB-ASSY, BRAKE BOOSTER PISTON
44606-12520

AE95..ARL

 1
44610 - BOOSTER ASSY, BRAKE
44610-12730

AE95..ARL

 1
44610-1A760

AE95..ARL

 1
44621V - SEAL, BOOSTER BODY
44621-28120

AE95..ARL

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

AE95..ARL

 1
44635B - KEY, VALVE STOPPER
44635-28120

AE95..ARL

 1
44642 - PISTON, BRAKE BOOSTER
44642-32030

AE95..ARL

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

AE95

 1
Common parts
90179-08038
