AE95R-CWMDU (1990)
Toyota Corolla Wagon

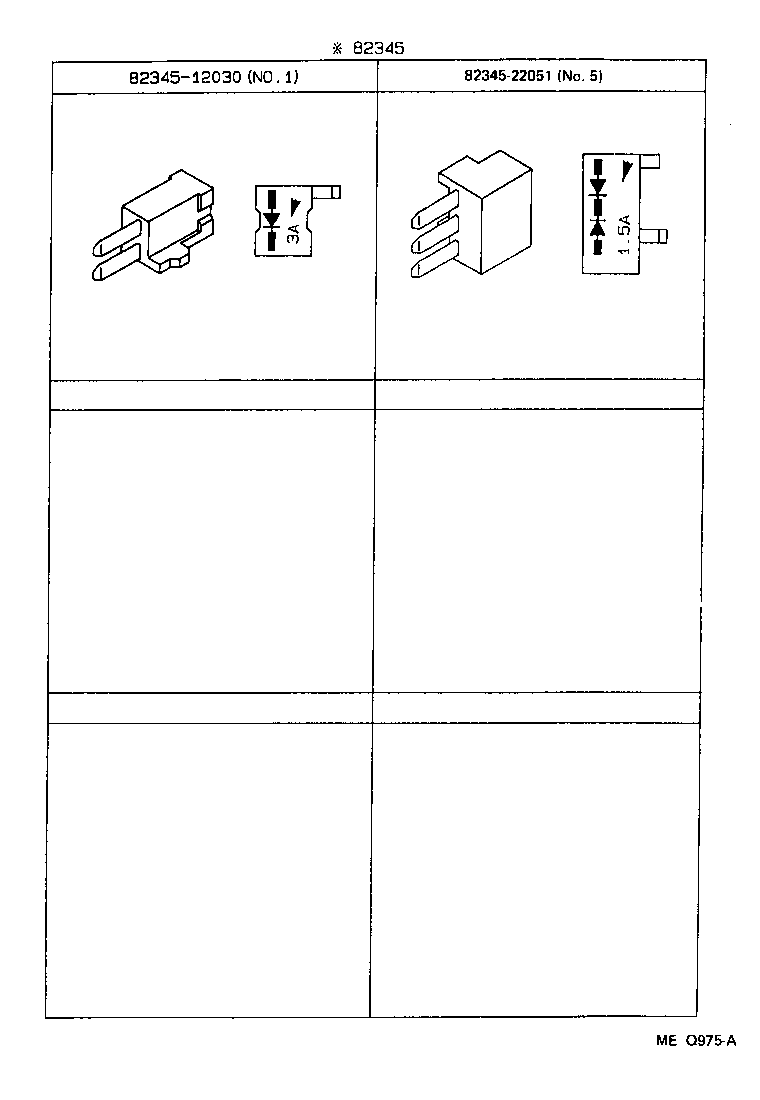

ILLUST NO. 3 OF 5(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12030 |
AE95 NO.1 |
1 | ||
| Common parts | ||||
| 82345-12030 | ||||
| 82345-22051 | ||||

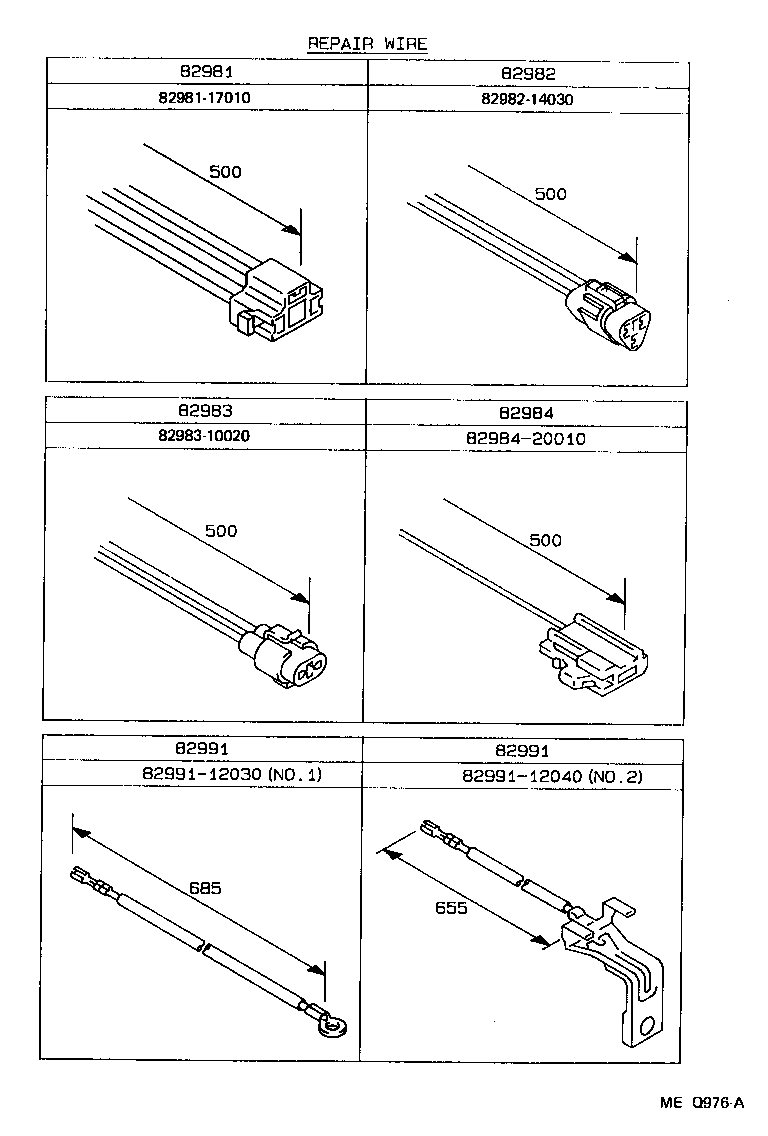

ILLUST NO. 4 OF 5(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-17010 |
AE95 |
1 | ||
| 82982 - WIRE, CLEARANCE LAMP REPAIR | ||||
| 82982-14030 |
AE95 |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-10020 |
AE95 |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-20010 |
AE95 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12040 |
AE95 NO.2 |
1 | ||
| 82991-12030 |
AE95 NO.1 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12040 |
AE95 NO.2 |
1 | ||
| 82991-12030 |
AE95 NO.1 |
1 | ||
| Common parts | ||||
| 82981-17010 | ||||
| 82982-14030 | ||||
| 82983-10020 | ||||
| 82984-20010 | ||||
| 82991-12030 | ||||
| 82991-12040 | ||||

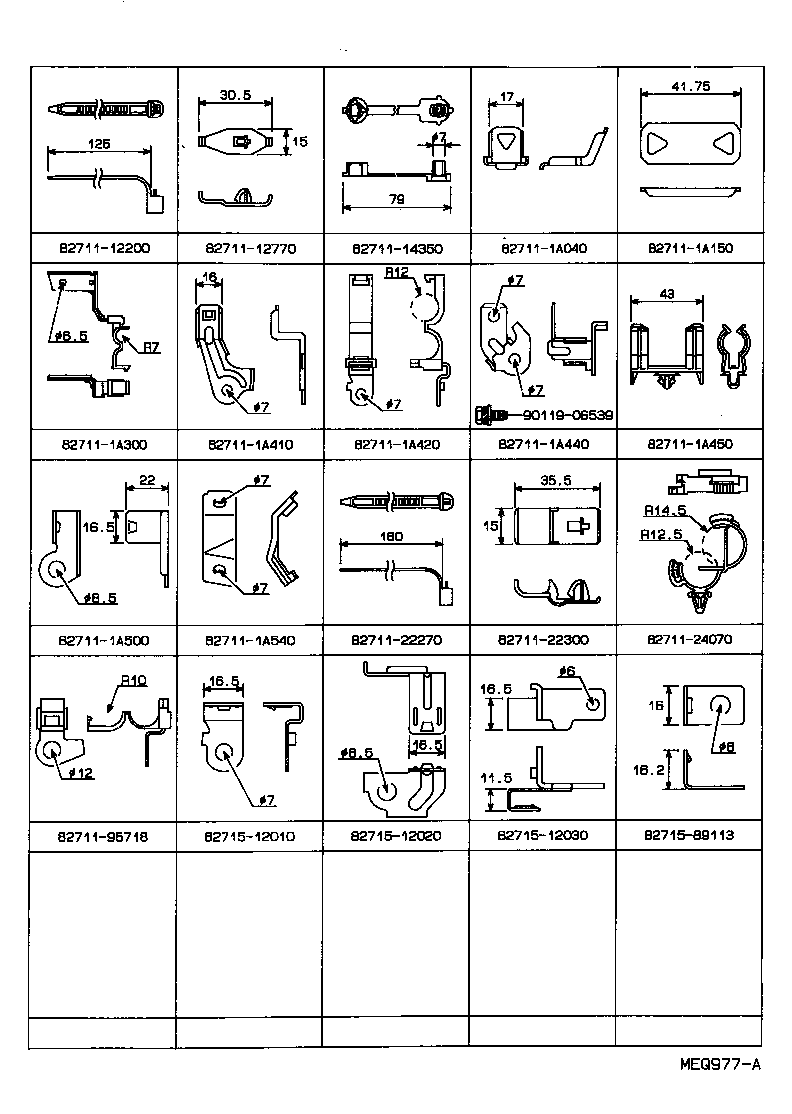

ILLUST NO. 5 OF 5(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12770 | ||||
| 82711-14350 | ||||
| 82711-1A040 | ||||
| 82711-1A150 | ||||
| 82711-1A300 | ||||
| 82711-1A410 | ||||
| 82711-1A420 | ||||
| 82711-1A440 | ||||
| 82711-1A450 | ||||
| 82711-1A500 | ||||
| 82711-1A540 | ||||
| 82711-22270 | ||||
| 82711-22300 | ||||
| 82711-24070 | ||||
| 82711-95718 | ||||
| 82715-12010 | ||||
| 82715-12020 | ||||
| 82715-12030 | ||||
| 82715-89113 | ||||
| 90119-06539 | ||||
ILLUST NO. 1 OF 5(9009- )GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AE95..GEN NO.1 |
1 | ||
| 90980-07206 |
AE95..GEN NO.1 |
2 | ||
| 90980-07299 |
AE95 NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AE95..GEN NO.1 |
1 | ||
| 90980-07206 |
AE95..GEN NO.1 |
2 | ||
| 90980-07299 |
AE95 NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07206 |
AE95..GEN NO.1 |
1 | ||
| 90980-07206 |
AE95..GEN NO.1 |
2 | ||
| 90980-07299 |
AE95 NO.2 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1A830 |
AE95..RHD..GEN |
1 | ||
| 82111-1A841 |
AE95..RHD..GEN W(AIR CONDITIONER) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-12040 |
AE95 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-1E790 |
AE95..RHD..GEN |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12170 |
AE95..GEN BATTERY=34B19L OR 32C24L |
1 | ||
| 82123-12160 |
AE95..GEN |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-13700 |
AE95..RHD..GEN |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-12070 |
AE95..SR5;AE95..RHD..GEN |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
AE95 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08188 |
AE95 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08246 |
AE95 100A,TERM.:MALE,BLUE |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
AE95 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08188 |
AE95 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08246 |
AE95 100A,TERM.:MALE,BLUE |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
AE95 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08188 |
AE95 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08246 |
AE95 100A,TERM.:MALE,BLUE |
1 | ||
| 82345 - DIODE | ||||
| 82345-12030 |
AE95 NO.1 |
1 | ||
| 82625 - TERMINAL, FUSIBLE LINK | ||||
| 82625-12020 |
AE95..GEN |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12070 |
AE95..RHD |
1 | ||
| 82672 - COVER, JUNKTION BLOCK | ||||
| 82672-12081 |
AE95..RHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE95 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
AE95 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE95 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-32010 |
AE95 |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-12700 |
AE95 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
AE95 |
1 | ||
| Common parts | ||||
| 90105-06028 | ||||
| 90105-08096 | ||||
| 90105-10122 | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 90119-06390 | ||||
| 90119-08063 | ||||
| 90167-45011 | ||||
| 90179-06132 | ||||
| 91611-60812 | ||||
| 91656-40620 | ||||
| Linked diagrams | ||||
| 8401 | ||||

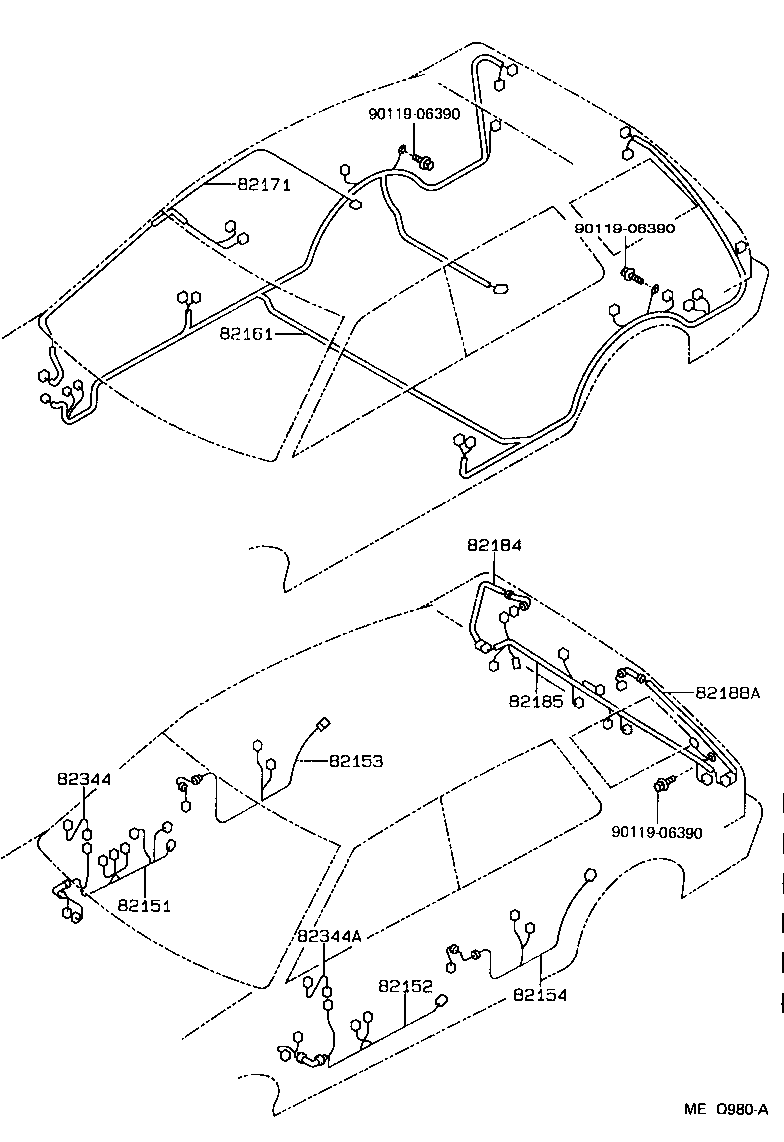

ILLUST NO. 2 OF 5(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12740 |
AE95..RHD..GEN W(*EL) |
1 | ||
| 82151-12600 |
AE95..RHD..GEN W(*PW & *EL) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-12510 |
AE95..RHD..GEN W(*PW & *EL) |
1 | ||
| 82152-12650 |
AE95..RHD..GEN W(*EL) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12140 |
AE95..GEN;AE95..SR5 W(*EL) |
1 | ||
| 82153-12140 |
AE95..GEN W(*EL) |
1 | ||
| 82153-12150 |
AE95..GEN W(*PW & *EL) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-12140 |
AE95..GEN;AE95..SR5 W(*EL) |
1 | ||
| 82154-12150 |
AE95..GEN W(*PW & *EL) |
1 | ||
| 82154-12140 |
AE95..GEN W(*EL) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-1H280 |
AE95..RHD..GEN W(*EL) |
1 | ||
| 82161-1H260 |
AE95..RHD..GEN |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12400 |
AE95..RHD |
1 | ||
| 82171-13070 |
AE95..RHD W(MOON ROOF & ROOF TAIL) |
1 | ||
| 82171-13060 |
AE95..RHD W(ROOF TAIL) |
1 | ||
| 82171-13060 |
AE95..RHD |
1 | ||
| 82171-13070 |
AE95..RHD W(MOON ROOF) |
1 | ||
| 82171-12410 |
AE95..RHD W(MOON ROOF) |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-12280 |
AE95 |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-13160 |
AE95..GEN W(BACK DOOR GARNISH) |
1 | ||
| 82185-13130 |
AE95..XL |
1 | ||
| 82185-13190 |
AE95..GEN W(BACK DOOR GARNISH & *BDEL) |
1 | ||
| 82185-13180 |
AE95..GEN;AE95..SR5 W(*BDEL) |
1 | ||
| 82185-13130 |
AE95 |
1 | ||
| 82185-13180 |
AE95..GEN W(*BDEL) |
1 | ||
| 82188A - WIRE, BACK DOOR, NO.3 | ||||
| 82188-12010 |
AE95 |
1 | ||
| 82188-12010 |
AE95..XL |
1 | ||
| 82188-12020 |
AE95..GEN;AE95..SR5 W(*BDEL) |
1 | ||
| 82188-12020 |
AE95..GEN W(*BDEL) |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
