AE95L-CWMDU (1990)
Toyota Corolla Wagon

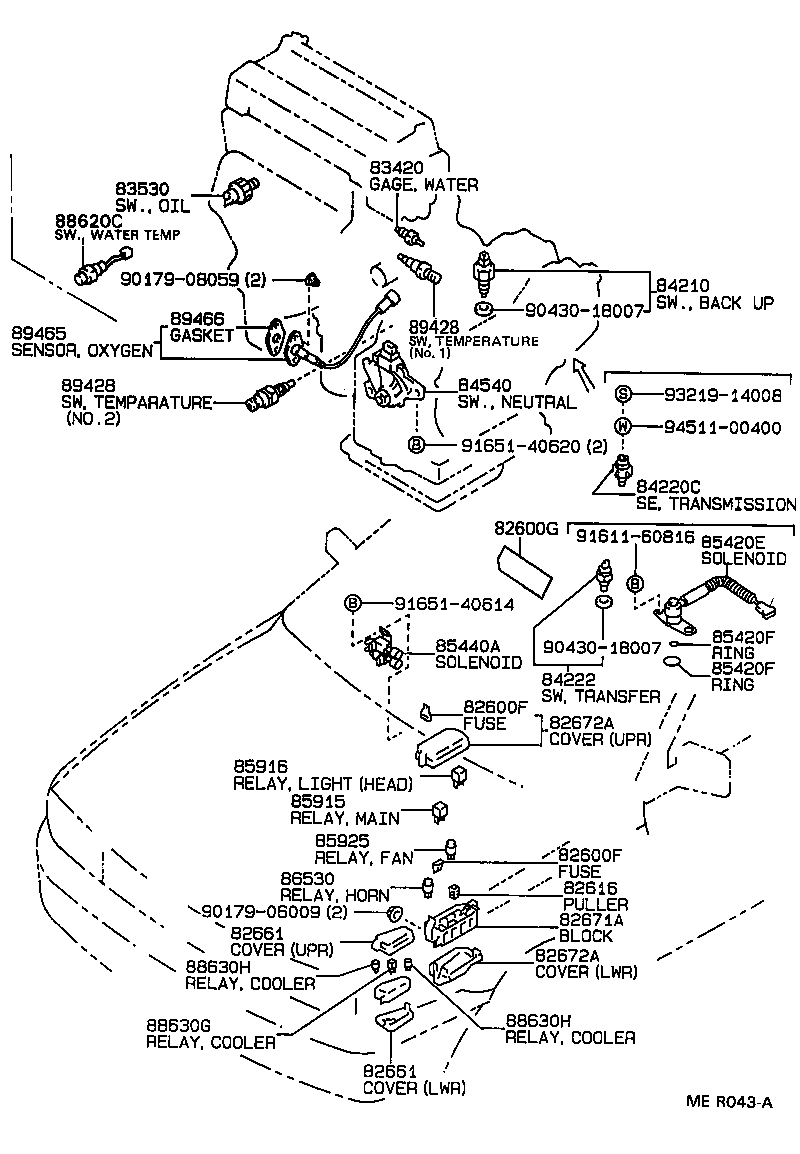

ILLUST NO. 1 OF 4(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE95 30A,GREEN |
1 | ||
| 90982-09002 |
AE95 10A |
3 | ||
| 90982-09004 |
AE95 20A,YELLOW |
1 | ||
| 90982-09003 |
AE95 15A |
4 | ||
| 90982-09005 |
AE95 7.5A |
3 | ||
| 90982-09003 |
AE95..GEN 15A |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE95 30A,GREEN |
1 | ||
| 90982-09002 |
AE95 10A |
3 | ||
| 90982-09004 |
AE95 20A,YELLOW |
1 | ||
| 90982-09003 |
AE95 15A |
4 | ||
| 90982-09005 |
AE95 7.5A |
3 | ||
| 90982-09003 |
AE95..GEN 15A |
2 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82685-12010 |
AE95 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE95 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12160 |
AE95 LWR |
1 | ||
| 82661-12140 |
AE95 UPR |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12160 |
AE95 LWR |
1 | ||
| 82661-12140 |
AE95 UPR |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-12050 |
AE95..GEN |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12070 |
AE95 LWR |
1 | ||
| 82672-12140 |
AE95..GEN UPR |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-12070 |
AE95 LWR |
1 | ||
| 82672-12140 |
AE95..GEN UPR |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
AE95 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30051 |
AE95 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
AE95..5F |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-12010 |
AE95..5F |
1 | ||
| 85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL | ||||
| 85440-12010 |
AE95..5F |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE95 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
AE95 NIPPONDENSO,TAIL |
1 | ||
| 90987-02002 |
AE95 MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE95 HEAD |
1 | ||
| 85925 - RELAY, RADIATOR FAN | ||||
| 90987-03001 |
AE95 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
AE95 MARUKO |
1 | ||
| 90987-02004 |
AE95 NIPPONDENSO |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 88630-32010 |
AE95 |
1 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE95 |
2 | ||
| 88630H - RELAY ASSY, COOLER | ||||
| 90987-02004 |
AE95 |
2 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15011 |
AE95 NO.1 |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15011 |
AE95 NO.1 |
1 | ||
| Common parts | ||||
| 90179-06009 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 91611-60816 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 93219-14008 | ||||
| 94511-00400 | ||||

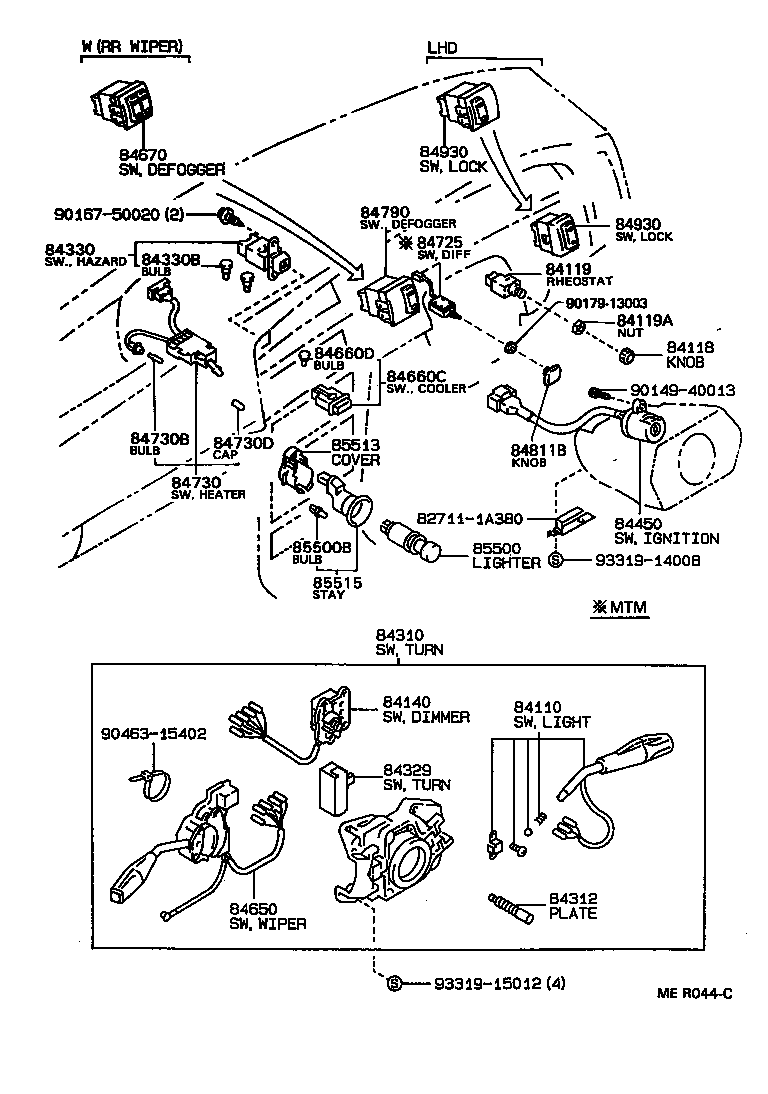

ILLUST NO. 2 OF 4(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80001 |
AE95..LHD MATSUSHITA |
1 | ||
| 84112-80002 |
AE95..LHD TOKAIRIKA |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12070 |
AE95 |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-20082 |
AE95 |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
AE95 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12250 |
AE95..LHD MATSUSHITA |
1 | ||
| 84140-12260 |
AE95..LHD TOKAIRIKA |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-1A440 |
AE95..LHD |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
AE95 TOKAIRIKA |
1 | ||
| 84312-12050 |
AE95 MATSUSHITA |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12030 |
AE95..LHD |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12300 |
AE95..LHD |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
AE95..GEN 14V 0.84W |
1 | ||
| 84999-10320 |
AE95 14V 0.84W |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12150 |
AE95 |
1 | ||
| 84450-12150 |
AE95..LHD;AE95..ARL |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-1A050 |
AE95..LHD TOKAIRIKA |
1 | ||
| 84652-1A030 |
AE95..LHD MATSUSHITA |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12130 |
AE95..LHD |
1 | ||
| 84660-12130 |
AE95..LHD |
1 | ||
| 84725 - SWITCH, CENTER DIFFERENTIAL LOCK | ||||
| 84725-13010 |
AE95..5F |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12270 |
AE95..LHD |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE95 14V 1.4W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10100 |
AE95 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12290J0 |
AE95..GEN DARK BLUE,TRIM8# |
1 | ||
| 84790-12290J0 |
AE95..LHD DARK BLUE,TRIM8# |
1 | ||
| 84790-12290B1 |
AE95..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 84811B - KNOB, DIFFERENTIAL LOCK SWITCH | ||||
| 84811-13020 |
AE95..5F |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1207003 |
AE95..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1207004 |
AE95..LHD DARK BLUE,TRIM8# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1207003 |
AE95..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1207004 |
AE95..LHD DARK BLUE,TRIM8# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-10120 |
AE95 |
1 | ||
| 85500-12250 |
AE95 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10230 |
AE95 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
AE95 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-12010 |
AE95 |
1 | ||
| Common parts | ||||
| 82711-1A380 | ||||
| 90149-40013 | ||||
| 90167-50020 | ||||
| 90179-13003 | ||||
| 90463-15402 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||

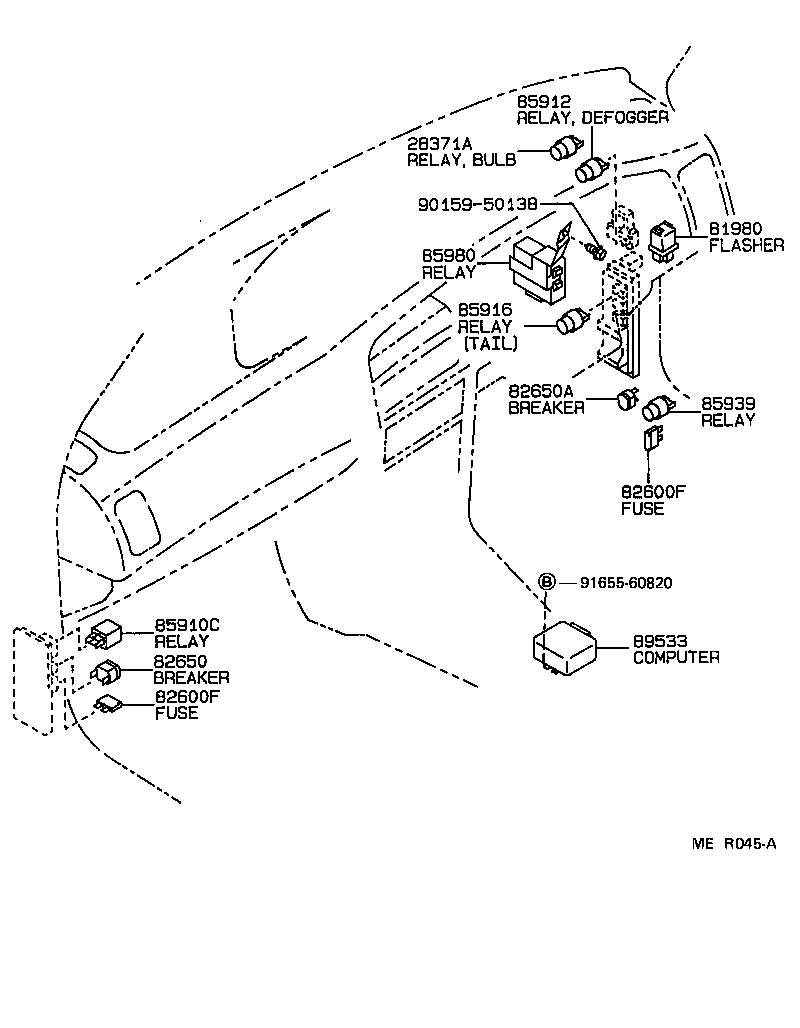

ILLUST NO. 3 OF 4(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
AE95 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE95 30A,GREEN |
1 | ||
| 90982-09002 |
AE95 10A |
3 | ||
| 90982-09004 |
AE95 20A,YELLOW |
1 | ||
| 90982-09003 |
AE95 15A |
4 | ||
| 90982-09005 |
AE95 7.5A |
3 | ||
| 90982-09003 |
AE95..GEN 15A |
2 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE95 30A,GREEN |
1 | ||
| 90982-09002 |
AE95 10A |
3 | ||
| 90982-09004 |
AE95 20A,YELLOW |
1 | ||
| 90982-09003 |
AE95 15A |
4 | ||
| 90982-09005 |
AE95 7.5A |
3 | ||
| 90982-09003 |
AE95..GEN 15A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE95 30A |
1 | ||
| 82650A - BREAKER ASSY, WIRING CIRCUIT, NO.2 | ||||
| 82650-20011 |
AE95..GEN;AE95..SR5 30A |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
AE95 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
AE95..LHD MARUKO |
1 | ||
| 90987-02004 |
AE95..LHD NIPPONDENSO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02004 |
AE95 NIPPONDENSO,TAIL |
1 | ||
| 90987-02002 |
AE95 MARUKO,TAIL |
1 | ||
| 90987-02006 |
AE95 HEAD |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02002 |
AE95..GEN;AE95..SR5 MARUKO |
1 | ||
| 90987-02004 |
AE95..GEN;AE95..SR5 NIPPONDENSO |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-12030 |
AE95..LHD |
1 | ||
| Common parts | ||||
| 90159-50138 | ||||
| 91655-60820 | ||||

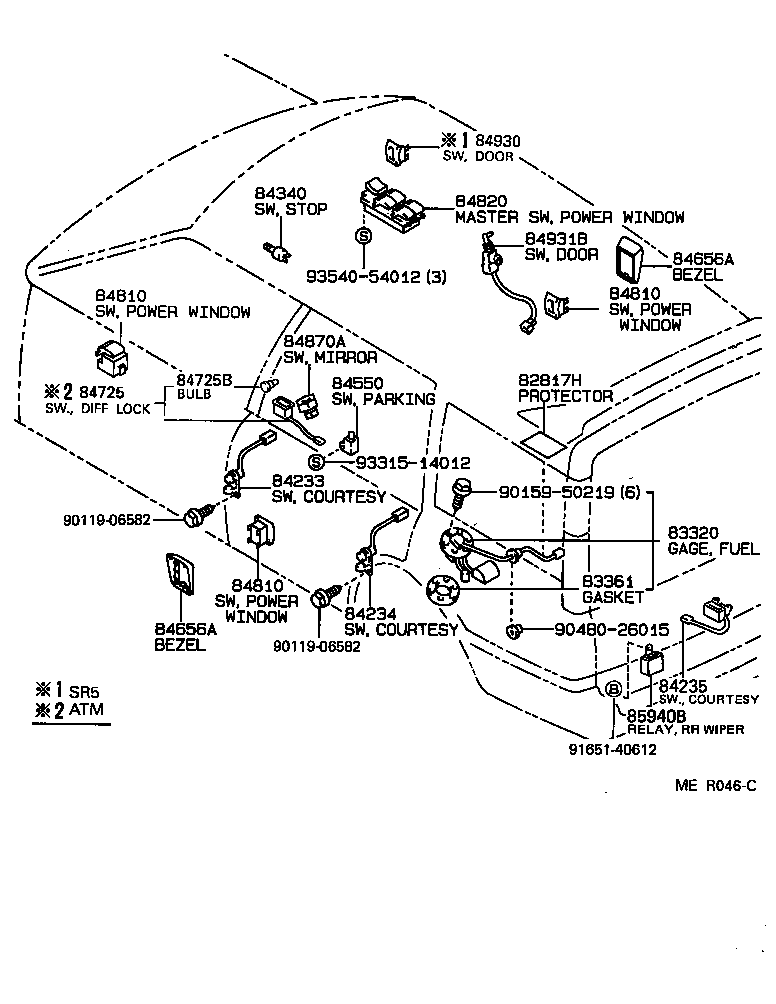

ILLUST NO. 4 OF 4(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-12840 |
AE95 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80093 |
AE95..GEN |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
AE95 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12060 |
AE95 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12060 |
AE95 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84230-16020 |
AE95 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32050 |
AE95 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
AE95 |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12010J0 |
AE95..GEN DARK BLUE,TRIM8# |
2 | ||
| 84656-12010J0 |
AE95..LHD DARK BLUE,TRIM8# |
2 | ||
| 84656-12010B1 |
AE95..GEN SHADOW GRAY,TRIM1# |
2 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-12010J0 |
AE95..GEN DARK BLUE,TRIM8# |
2 | ||
| 84656-12010J0 |
AE95..LHD DARK BLUE,TRIM8# |
2 | ||
| 84656-12010B1 |
AE95..GEN SHADOW GRAY,TRIM1# |
2 | ||
| 84725 - SWITCH, CENTER DIFFERENTIAL LOCK | ||||
| 84725-13010 |
AE95..5F |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12060J0 |
AE95..GEN DARK BLUE,TRIM8#,RR |
2 | ||
| 84810-32070 |
AE95..GEN;AE95..SR5 FR |
1 | ||
| 84810-12060J0 |
AE95..LHD DARK BLUE,TRIM8#,RR |
2 | ||
| 84810-12060B1 |
AE95..GEN SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12060J0 |
AE95..GEN DARK BLUE,TRIM8#,RR |
2 | ||
| 84810-32070 |
AE95..GEN;AE95..SR5 FR |
1 | ||
| 84810-12060J0 |
AE95..LHD DARK BLUE,TRIM8#,RR |
2 | ||
| 84810-12060B1 |
AE95..GEN SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12060J0 |
AE95..GEN DARK BLUE,TRIM8#,RR |
2 | ||
| 84810-32070 |
AE95..GEN;AE95..SR5 FR |
1 | ||
| 84810-12060J0 |
AE95..LHD DARK BLUE,TRIM8#,RR |
2 | ||
| 84810-12060B1 |
AE95..GEN SHADOW GRAY,TRIM1#,RR |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12241 |
AE95..LHD |
1 | ||
| 84820-12240 |
AE95..LHD |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-1207003 |
AE95..LHD SHADOW GRAY,TRIM1# |
1 | ||
| 84930-1207004 |
AE95..LHD DARK BLUE,TRIM8# |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-19015 |
AE95..GEN |
1 | ||
| 85940B - RELAY ASSY, REAR WIPER | ||||
| 85940-12030 |
AE95 |
1 | ||
| 85940-12031 |
AE95 |
1 | ||
| Common parts | ||||
| 90119-06582 | ||||
| 90159-50219 | ||||
| 90480-26015 | ||||
| 91651-40612 | ||||
| 93315-14012 | ||||
| 93540-54012 | ||||
