AE95L-CWMDU (1990)
Toyota Corolla Wagon

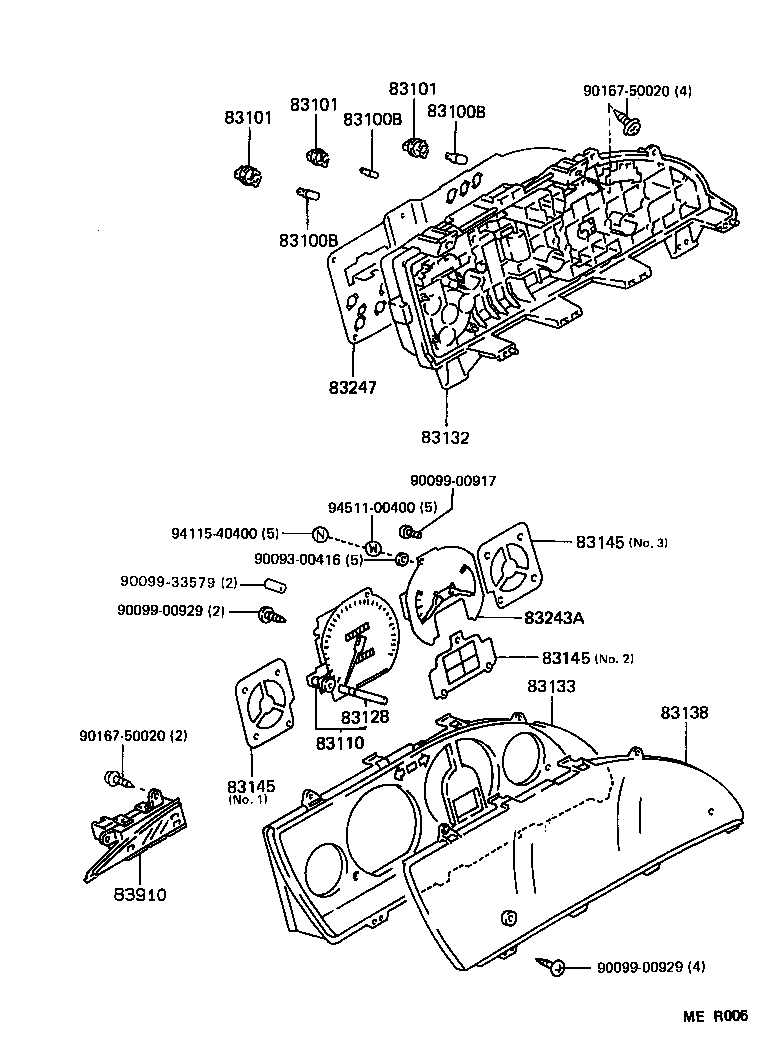

ILLUST NO. 1 OF 2(9009- )XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-12030 |
AE95 12V 3.4W,BLUE CAP |
3 | ||
| 99132-12034 |
AE95..LHD 12V 3.4W |
7 | ||
| 83101-20080 |
AE95..LHD 12V 1.4W,W(SOCKET) |
1 | ||
| 99132-12034 |
AE95..LHD 12V 3.4W |
1 | ||
| 90981-11018 |
AE95..LHD 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AE95..GEN 12V 3.4W |
1 | ||
| 90981-11018 |
AE95..LHD 12V 1.2W W/O SOCKET |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-12030 |
AE95 12V 3.4W,BLUE CAP |
3 | ||
| 99132-12034 |
AE95..LHD 12V 3.4W |
7 | ||
| 83101-20080 |
AE95..LHD 12V 1.4W,W(SOCKET) |
1 | ||
| 99132-12034 |
AE95..LHD 12V 3.4W |
1 | ||
| 90981-11018 |
AE95..LHD 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AE95..GEN 12V 3.4W |
1 | ||
| 90981-11018 |
AE95..LHD 12V 1.2W W/O SOCKET |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-12030 |
AE95 12V 3.4W,BLUE CAP |
3 | ||
| 99132-12034 |
AE95..LHD 12V 3.4W |
7 | ||
| 83101-20080 |
AE95..LHD 12V 1.4W,W(SOCKET) |
1 | ||
| 99132-12034 |
AE95..LHD 12V 3.4W |
1 | ||
| 90981-11018 |
AE95..LHD 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AE95..GEN 12V 3.4W |
1 | ||
| 90981-11018 |
AE95..LHD 12V 1.2W W/O SOCKET |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE95..LHD 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE95..LHD 12V 1.4W BULB |
3 | ||
| 83101-14040 |
AE95..LHD 12V 1.4W BULB |
7 | ||
| 83101-14030 |
AE95..GEN 12V 3.4W BULB |
4 | ||
| 83101-14030 |
AE95..LHD 12V 3.4W BULB |
10 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE95..LHD 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE95..LHD 12V 1.4W BULB |
3 | ||
| 83101-14040 |
AE95..LHD 12V 1.4W BULB |
7 | ||
| 83101-14030 |
AE95..GEN 12V 3.4W BULB |
4 | ||
| 83101-14030 |
AE95..LHD 12V 3.4W BULB |
10 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE95..LHD 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE95..LHD 12V 1.4W BULB |
3 | ||
| 83101-14040 |
AE95..LHD 12V 1.4W BULB |
7 | ||
| 83101-14030 |
AE95..GEN 12V 3.4W BULB |
4 | ||
| 83101-14030 |
AE95..LHD 12V 3.4W BULB |
10 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1E361 |
AE95..LHD W(TACHOMETER) |
1 | ||
| 83110-1E341 |
AE95..LHD |
1 | ||
| 83110-1E351 |
AE95..LHD MILE/KM |
1 | ||
| 83110-1E371 |
AE95..LHD MILE/KM & W(TACHOMETER) |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-14630 |
AE95 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A270 |
AE95..LHD W(TACHOMETER) |
1 | ||
| 83132-1A230 |
AE95..LHD |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-13130 |
AE95..LHD W(TACHOMETER) |
1 | ||
| 83133-1A750 |
AE95..LHD |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1A030 |
AE95..LHD |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-13410 |
AE95..LHD NO.1 |
1 | ||
| 83145-1E650 |
AE95..LHD NO.3 |
1 | ||
| 83145-1E750 |
AE95..LHD NO.2 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-13410 |
AE95..LHD NO.1 |
1 | ||
| 83145-1E650 |
AE95..LHD NO.3 |
1 | ||
| 83145-1E750 |
AE95..LHD NO.2 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-13410 |
AE95..LHD NO.1 |
1 | ||
| 83145-1E650 |
AE95..LHD NO.3 |
1 | ||
| 83145-1E750 |
AE95..LHD NO.2 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-1A251 |
AE95..LHD W(TACHOMETER) |
1 | ||
| 83243-1A631 |
AE95..LHD |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-13810 |
AE95..LHD |
1 | ||
| 83247-13750 |
AE95..LHD W(TACHOMETER) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12410 |
AE95..LHD |
1 | ||
| Common parts | ||||
| 90093-00416 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-33579 | ||||
| 90167-50020 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||

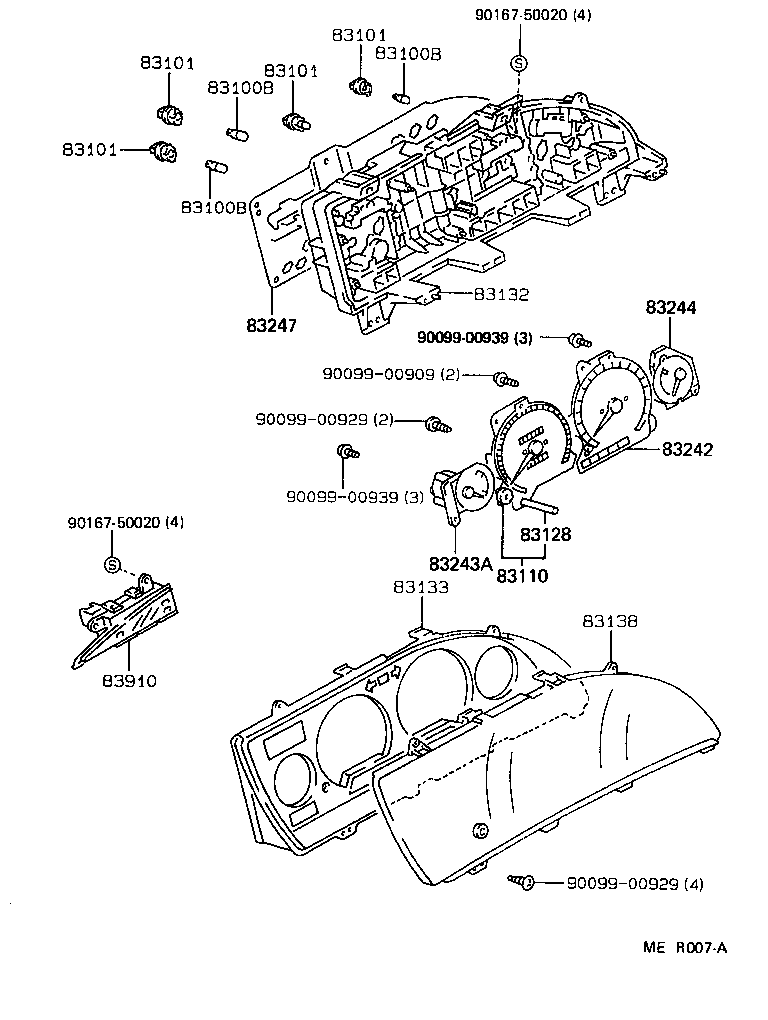

ILLUST NO. 1 OF 2(9009- )
W(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-12030 |
AE95 12V 3.4W,BLUE CAP |
3 | ||
| 99132-12034 |
AE95..LHD 12V 3.4W |
7 | ||
| 83101-20080 |
AE95..LHD 12V 1.4W,W(SOCKET) |
1 | ||
| 99132-12034 |
AE95..LHD 12V 3.4W |
1 | ||
| 90981-11018 |
AE95..LHD 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AE95..GEN 12V 3.4W |
1 | ||
| 90981-11018 |
AE95..LHD 12V 1.2W W/O SOCKET |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-12030 |
AE95 12V 3.4W,BLUE CAP |
3 | ||
| 99132-12034 |
AE95..LHD 12V 3.4W |
7 | ||
| 83101-20080 |
AE95..LHD 12V 1.4W,W(SOCKET) |
1 | ||
| 99132-12034 |
AE95..LHD 12V 3.4W |
1 | ||
| 90981-11018 |
AE95..LHD 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AE95..GEN 12V 3.4W |
1 | ||
| 90981-11018 |
AE95..LHD 12V 1.2W W/O SOCKET |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-12030 |
AE95 12V 3.4W,BLUE CAP |
3 | ||
| 99132-12034 |
AE95..LHD 12V 3.4W |
7 | ||
| 83101-20080 |
AE95..LHD 12V 1.4W,W(SOCKET) |
1 | ||
| 99132-12034 |
AE95..LHD 12V 3.4W |
1 | ||
| 90981-11018 |
AE95..LHD 12V 1.2W W/O SOCKET |
7 | ||
| 99132-12034 |
AE95..GEN 12V 3.4W |
1 | ||
| 90981-11018 |
AE95..LHD 12V 1.2W W/O SOCKET |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE95..LHD 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE95..LHD 12V 1.4W BULB |
3 | ||
| 83101-14040 |
AE95..LHD 12V 1.4W BULB |
7 | ||
| 83101-14030 |
AE95..GEN 12V 3.4W BULB |
4 | ||
| 83101-14030 |
AE95..LHD 12V 3.4W BULB |
10 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE95..LHD 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE95..LHD 12V 1.4W BULB |
3 | ||
| 83101-14040 |
AE95..LHD 12V 1.4W BULB |
7 | ||
| 83101-14030 |
AE95..GEN 12V 3.4W BULB |
4 | ||
| 83101-14030 |
AE95..LHD 12V 3.4W BULB |
10 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE95..LHD 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE95..LHD 12V 1.4W BULB |
3 | ||
| 83101-14040 |
AE95..LHD 12V 1.4W BULB |
7 | ||
| 83101-14030 |
AE95..GEN 12V 3.4W BULB |
4 | ||
| 83101-14030 |
AE95..LHD 12V 3.4W BULB |
10 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE95..LHD 12V 3.4W BULB |
4 | ||
| 83101-14040 |
AE95..LHD 12V 1.4W BULB |
3 | ||
| 83101-14040 |
AE95..LHD 12V 1.4W BULB |
7 | ||
| 83101-14030 |
AE95..GEN 12V 3.4W BULB |
4 | ||
| 83101-14030 |
AE95..LHD 12V 3.4W BULB |
10 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1E361 |
AE95..LHD W(TACHOMETER) |
1 | ||
| 83110-1E341 |
AE95..LHD |
1 | ||
| 83110-1E351 |
AE95..LHD MILE/KM |
1 | ||
| 83110-1E371 |
AE95..LHD MILE/KM & W(TACHOMETER) |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-14630 |
AE95 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1A270 |
AE95..LHD W(TACHOMETER) |
1 | ||
| 83132-1A230 |
AE95..LHD |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-13130 |
AE95..LHD W(TACHOMETER) |
1 | ||
| 83133-1A750 |
AE95..LHD |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-1A030 |
AE95..LHD |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1E051 |
AE95..LHD |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-1A251 |
AE95..LHD W(TACHOMETER) |
1 | ||
| 83243-1A631 |
AE95..LHD |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A691 |
AE95..LHD MIDDLE EAST SPEC & W(TACHOMETER) |
1 | ||
| 83244-1A671 |
AE95..LHD W(TACHOMETER) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-13810 |
AE95..LHD |
1 | ||
| 83247-13750 |
AE95..LHD W(TACHOMETER) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12410 |
AE95..LHD |
1 | ||
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90167-50020 | ||||

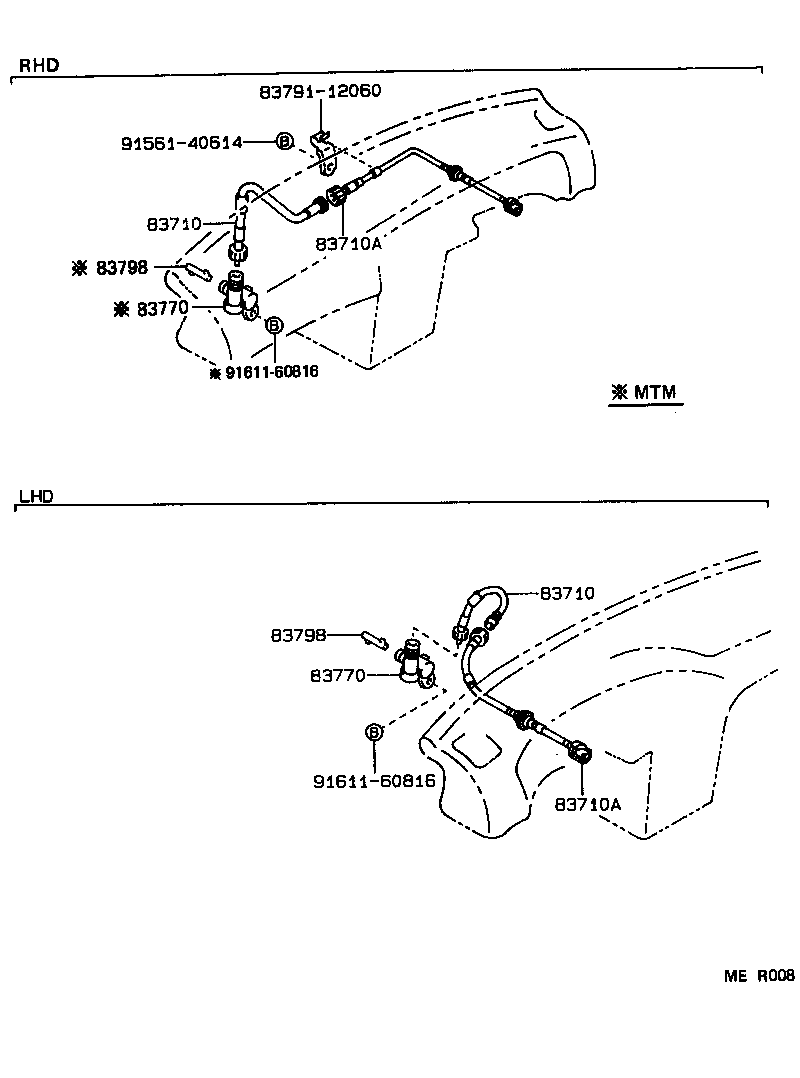

ILLUST NO. 2 OF 2(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12581 |
AE95..5F |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12581 |
AE95..5F |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-12640 |
AE95..LHD |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-12640 |
AE95..LHD |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-17010 |
AE95..5F |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-17010 |
AE95..5F |
1 | ||
| 83798 - KEY, SPEEDOMETER CABLE ADAPTER | ||||
| 83798-17010 |
AE95..5F |
1 | ||
| 83798 - KEY, SPEEDOMETER CABLE ADAPTER | ||||
| 83798-17010 |
AE95..5F |
1 | ||
| Common parts | ||||
| 83791-12060 | ||||
| 91561-40614 | ||||
| 91611-60816 | ||||
