AE95L-CWMDU (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1995
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

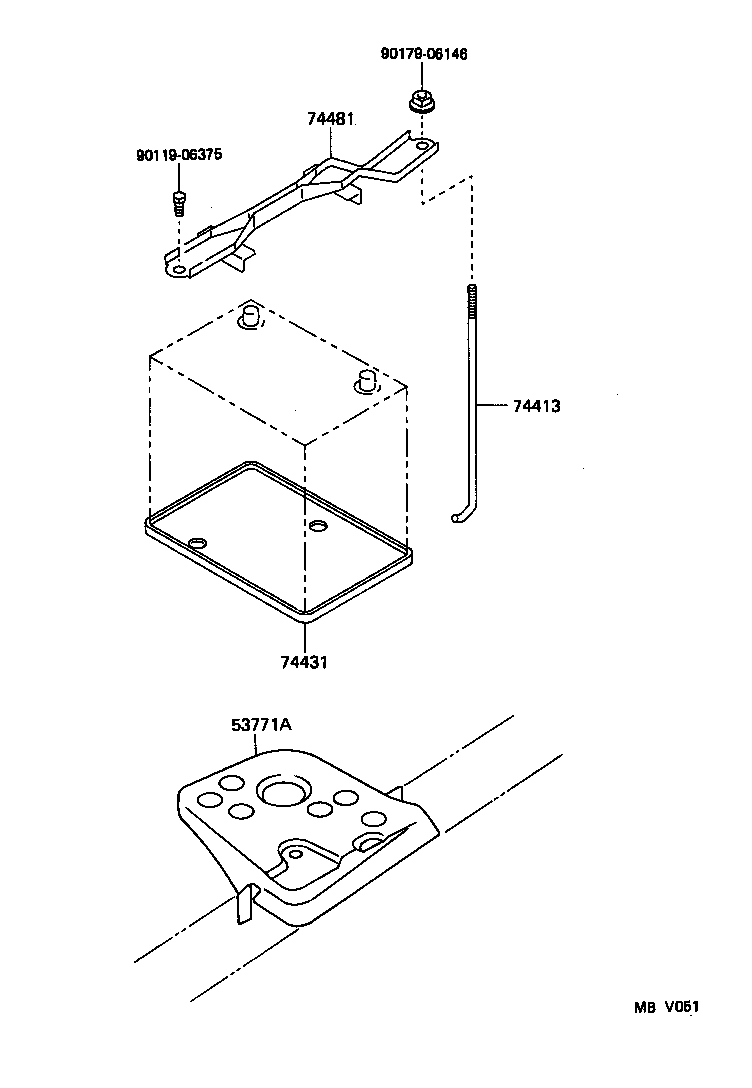

Click highlighted areas on diagram

diagram 53771A 74413 74431 74481 9011906375 9017906146
Part # Description Qty Price
53771A - SUPPORT, BATTERY CARRIER
53771-12100

AE95

 1
74413 - BOLT, BATTERY CLAMP
74451-12050

AE95

 1
74431 - TRAY, BATTERY
74431-14020

AE95..GEN

32C24L 40AH(N40L)

 1
74431-14010

AE95

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-12260

AE95..GEN

32C24L 40AH(N40L)

 1
74404-12250

AE95

 1
Common parts
90119-06375
90179-06146
