AE95L-CWMDU (1990)
Toyota Corolla Wagon

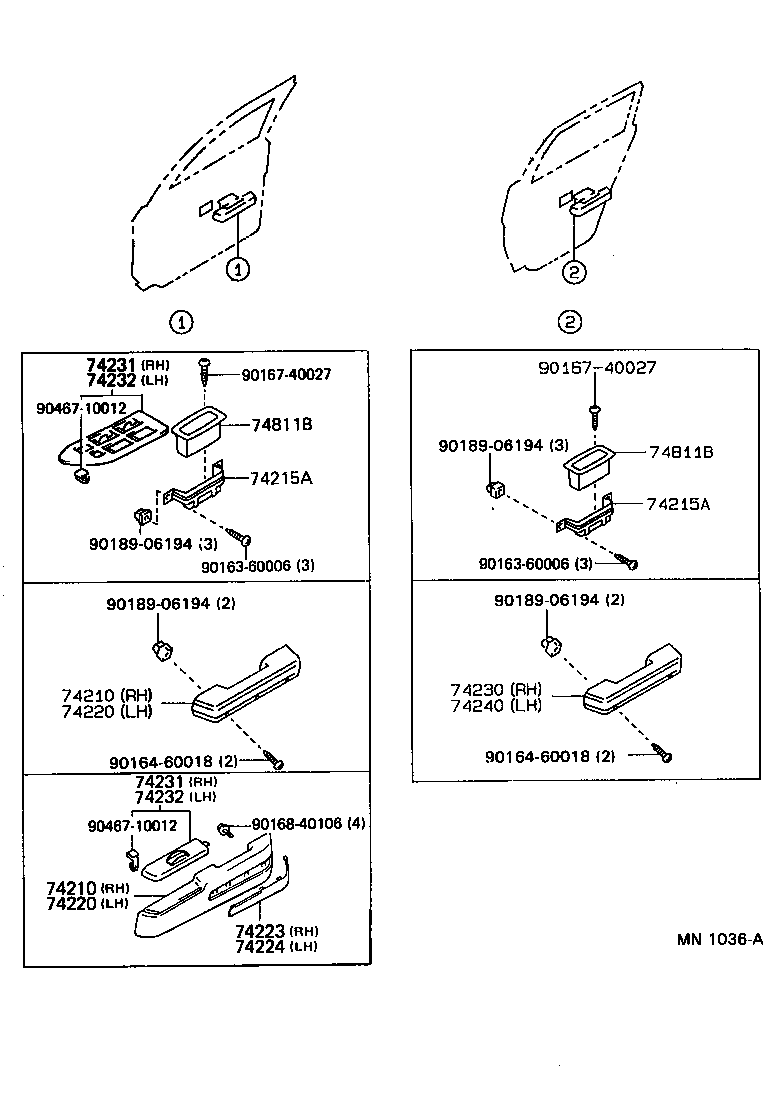

ILLUST NO. 1 OF 2(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-12130B0 |
AE95..LHD W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 74210-12110J0 |
AE95..XL DARK BLUE,TRIM8# |
1 | ||
| 74210-12130J0 |
AE95..LHD W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 74210-12110J0 |
AE95..LHD DARK BLUE,TRIM8# |
1 | ||
| 74210-12130B0 |
AE95..GEN W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 74210-12110B1 |
AE95..XL SHADOW GRAY,TRIM1# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-12130B0 |
AE95..LHD W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 74210-12110J0 |
AE95..XL DARK BLUE,TRIM8# |
1 | ||
| 74210-12130J0 |
AE95..LHD W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 74210-12110J0 |
AE95..LHD DARK BLUE,TRIM8# |
1 | ||
| 74210-12130B0 |
AE95..GEN W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 74210-12110B1 |
AE95..XL SHADOW GRAY,TRIM1# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74210-12110J0 |
AE95..XL DARK BLUE,TRIM8# |
1 | ||
| 74210-12110J0 |
AE95..LHD DARK BLUE,TRIM8# |
1 | ||
| 74210-12110B1 |
AE95..XL SHADOW GRAY,TRIM1# |
1 | ||
| 74220-12070B0 |
AE95..LHD W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 74220-12070B0 |
AE95..GEN W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 74220-12070J0 |
AE95..LHD W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74210-12110J0 |
AE95..XL DARK BLUE,TRIM8# |
1 | ||
| 74210-12110J0 |
AE95..LHD DARK BLUE,TRIM8# |
1 | ||
| 74210-12110B1 |
AE95..XL SHADOW GRAY,TRIM1# |
1 | ||
| 74220-12070B0 |
AE95..LHD W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 74220-12070B0 |
AE95..GEN W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 74220-12070J0 |
AE95..LHD W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 74223 - CAP, DOOR ARMREST, RH | ||||
| 74223-12080B0 |
AE95..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 74223-12080J0 |
AE95..GEN DARK BLUE,TRIM8# |
1 | ||
| 74223-12080J0 |
AE95..LHD DARK BLUE,TRIM8# |
1 | ||
| 74224 - CAP, DOOR ARMREST, LH | ||||
| 74224-12030J0 |
AE95..GEN DARK BLUE,TRIM8# |
1 | ||
| 74224-12030B0 |
AE95..GEN SHADOW GRAY,TRIM1# |
1 | ||
| 74224-12030J0 |
AE95..LHD DARK BLUE,TRIM8# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-12110J0 |
AE95..XL DARK BLUE,TRIM8# |
1 | ||
| 74210-12110B1 |
AE95..XL SHADOW GRAY,TRIM1# |
1 | ||
| 74210-12110J0 |
AE95..LHD DARK BLUE,TRIM8# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74231-12050J0 |
AE95..LHD W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 74231-12050B0 |
AE95..LHD W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 74232-12040B0 |
AE95..LHD W(POWER WINDOW & ELECTRO MAGNETICK LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 74232-12040J0 |
AE95..LHD W(POWER WINDOW & ELECTRO MAGNETICK LOCK),DARK BLUE,TRIM8# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74231-12050J0 |
AE95..LHD W(POWER WINDOW),DARK BLUE,TRIM8# |
1 | ||
| 74231-12050B0 |
AE95..LHD W(POWER WINDOW),SHADOW GRAY,TRIM1# |
1 | ||
| 74232-12040B0 |
AE95..LHD W(POWER WINDOW & ELECTRO MAGNETICK LOCK),SHADOW GRAY,TRIM1# |
1 | ||
| 74232-12040J0 |
AE95..LHD W(POWER WINDOW & ELECTRO MAGNETICK LOCK),DARK BLUE,TRIM8# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74210-12110B1 |
AE95..XL SHADOW GRAY,TRIM1# |
1 | ||
| 74210-12110J0 |
AE95..XL DARK BLUE,TRIM8# |
1 | ||
| 74210-12110J0 |
AE95..LHD DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90163-60006 | ||||
| 90164-60018 | ||||
| 90167-40027 | ||||
| 90168-40106 | ||||
| 90189-06194 | ||||
| 90467-10012 | ||||

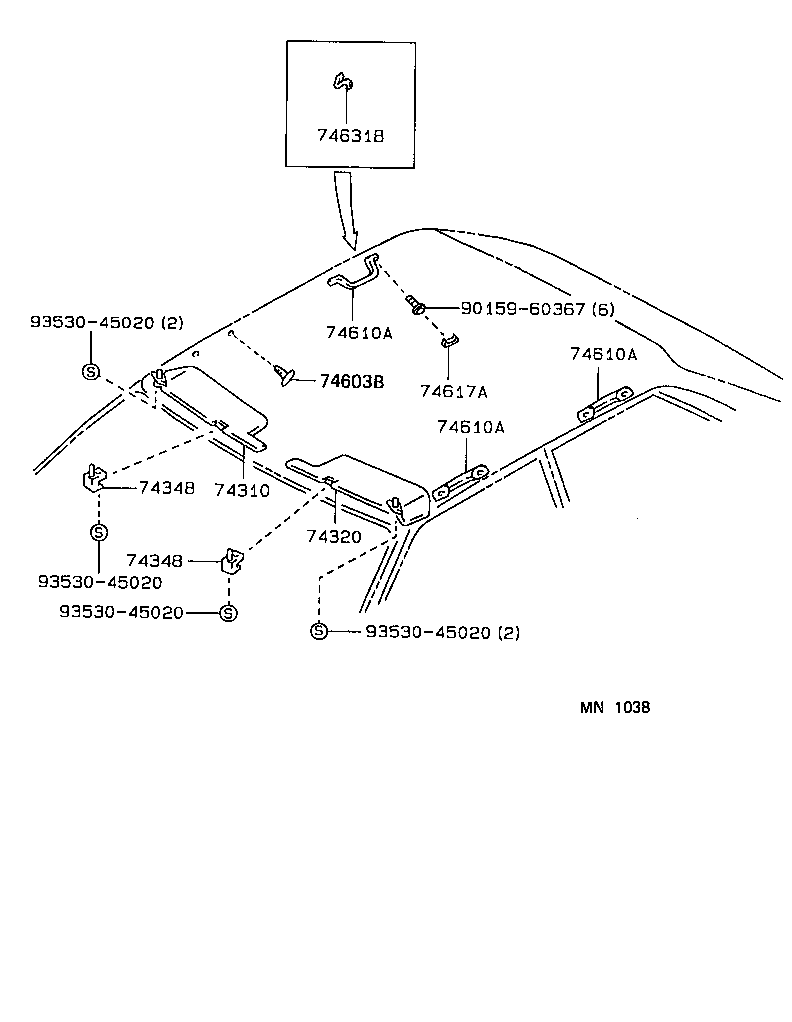

ILLUST NO. 2 OF 2(9009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-1A08004 |
AE95..GEN LIGHT BLUE,TRIM8# |
1 | ||
| 74310-1A08003 |
AE95..GEN LIGHT GRAY,TRIM1# |
1 | ||
| 74310-1A09004 |
AE95..LHD W(VANITY MIRROR),LIGHT BLUE,TRIM8# |
1 | ||
| 74310-1A09003 |
AE95..LHD W(VANITY MIRROR),LIGHT GRAY,TRIM1# |
1 | ||
| 74310-1A08004 |
AE95..LHD LIGHT BLUE,TRIM8# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-1270004 |
AE95..GEN LIGHT BLUE,TRIM8# |
1 | ||
| 74320-1270004 |
AE95..LHD LIGHT BLUE,TRIM8# |
1 | ||
| 74320-1270003 |
AE95..GEN LIGHT GRAY,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-1202004 |
AE95 LIGHT BLUE,TRIM8# |
2 | ||
| 74348-12020R4 |
AE95..LHD BLUE,TRIM8# |
2 | ||
| 74348-12020S3 |
AE95 LI.GRAY,TRIM1# |
2 | ||
| 74348-1202003 |
AE95 LIGHT GRAY,TRIM1# |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-1202004 |
AE95 LIGHT BLUE,TRIM8# |
2 | ||
| 74348-12020R4 |
AE95..LHD BLUE,TRIM8# |
2 | ||
| 74348-12020S3 |
AE95 LI.GRAY,TRIM1# |
2 | ||
| 74348-1202003 |
AE95 LIGHT GRAY,TRIM1# |
2 | ||
| 74603B - CLIP (FOR ASSIST GRIP) | ||||
| 90467-06048J0 |
AE95 LIGHT BLUE,TRIM8# |
2 | ||
| 90467-06048B1 |
AE95 LIGHT GRAY,TRIM1# |
2 | ||
| 90467-06048J0 |
AE95..LHD LIGHT BLUE,TRIM8# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-1601003 |
AE95 LIGHT GRAY,TRIM1# |
3 | ||
| 74610-1601004 |
AE95 LIGHT BLUE,TRIM8# |
3 | ||
| 74610-1601004 |
AE95..LHD LIGHT BLUE,TRIM8# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-1601003 |
AE95 LIGHT GRAY,TRIM1# |
3 | ||
| 74610-1601004 |
AE95 LIGHT BLUE,TRIM8# |
3 | ||
| 74610-1601004 |
AE95..LHD LIGHT BLUE,TRIM8# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-1601003 |
AE95 LIGHT GRAY,TRIM1# |
3 | ||
| 74610-1601004 |
AE95 LIGHT BLUE,TRIM8# |
3 | ||
| 74610-1601004 |
AE95..LHD LIGHT BLUE,TRIM8# |
3 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-1601053 |
AE95 LIGHT GRAY,TRIM1# |
6 | ||
| 74617-1601024 |
AE95 DEEP BLUE,TRIM8# |
6 | ||
| 74617-1601024 |
AE95..LHD DEEP BLUE,TRIM8# |
6 | ||
| 74631B - HOOK, COAT | ||||
| 74631-2004004 |
AE95..LHD BLUE,TRIM8# |
1 | ||
| 74631-2004004 |
AE95 BLUE,TRIM8# |
1 | ||
| 74631-2004013 |
AE95 GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90159-60367 | ||||
| 93530-45020 | ||||
