AE95L-CWMDU (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1995
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

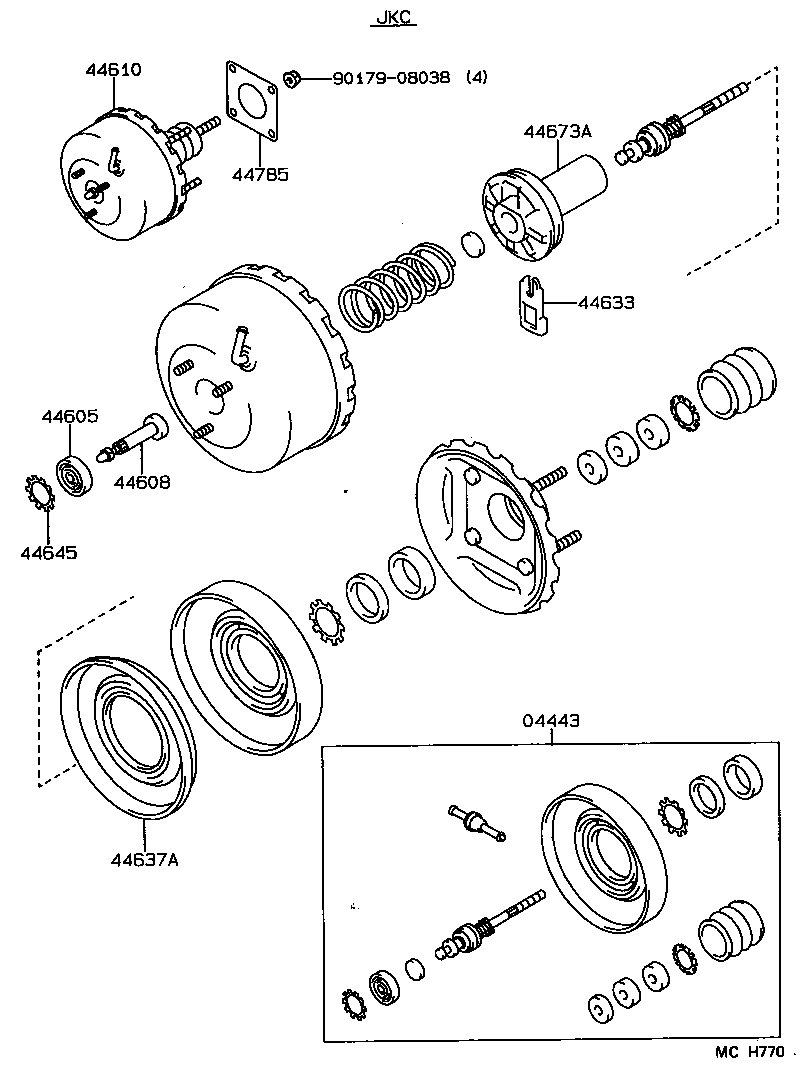

ILLUST NO. 1 OF 2(9009- )GEN

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44673A 44785 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-12630

AE95..LHD

 1
44605 - PLATE & SEAL SUB-ASSY, BOOSTER
44605-10080

AE95..GEN

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44608-32020

AE95..GEN

 1
44610 - BOOSTER ASSY, BRAKE
44610-12700

AE95..LHD

 1
44633 - KEY, BOOSTER VALVE PLUNGER
44633-28130

AE95..GEN

 1
44637A - PLATE, BOOSTER DIAPHRAGM
44637-32040

AE95..GEN

 1
44645 - RETAINER, BOOSTER PUSH ROD SEAL
44645-10080

AE95..GEN

 1
44673A - BODY, BOOSTER VALVE
44673-32040

AE95..GEN

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

AE95

 1
Common parts
90179-08038

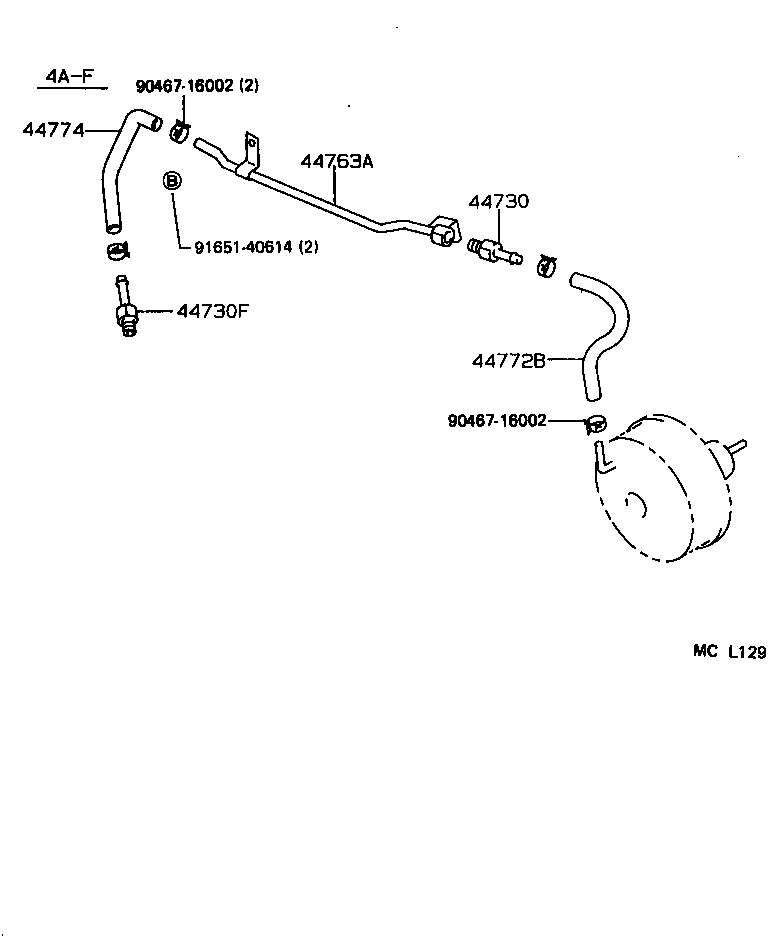

ILLUST NO. 2 OF 2(9009- )LHD

Click highlighted areas on diagram

diagram 44730 44730F 44763A 44772B 44774 9046716002 9046716002 9165140614
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44580-22030

AE95..LHD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51007

AE95..GEN

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-12090

AE95..LHD

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-12330

AE95..LHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-12110

AE95..LHD

 1
Common parts
90467-16002
91651-40614
