AE95L-CWMDU (1990)

Toyota Corolla Wagon

Production Sep 1990 - Aug 1995
Engine 4AF
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9009- )

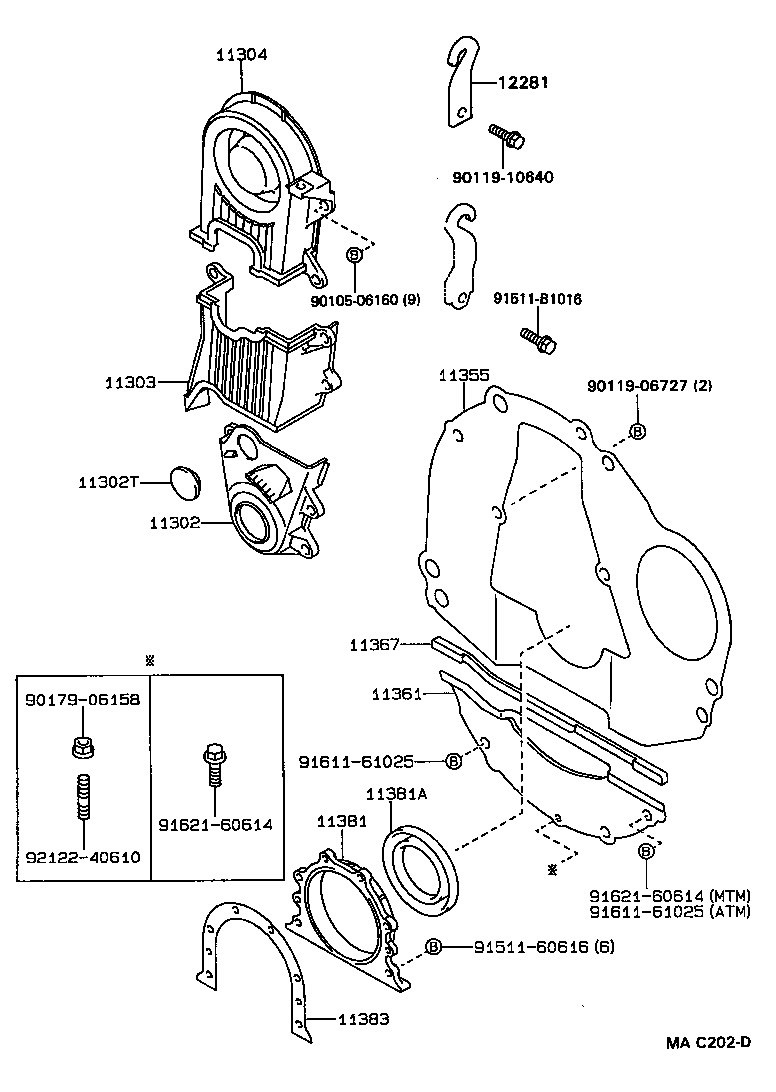

Click highlighted areas on diagram

diagram 11302 11302T 11303 11304 11355 11361 11367 11381 11381A 11383 12281 9010506160 9011906727 9011910640 9017906158 9151160616 91511B1016 9161161025 9161161025 9162160614 9162160614 9212240610
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-15041

4AF#..AE95

 1
11302T - PLUG, HOLE
90950-01391

4AF#..AE95

 1
11303 - COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
11303-15040

4AF#..AE95

 1
11304 - COVER, TIMING CHAIN OR BELT, NO.2
11304-15020

4AF#..AE95

 1
11355 - PLATE, REAR END
11355-16010

4AF#..AE95

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
11361-16040

4AF#..AE95

 1
11367 - GASKET, FLYWHEEL HOUSING UNDER
11367-15030

4AF#..AE95

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-15010

4AF#..AE95

 1
11381A - SEAL, ENGINE REAR OIL
90311-70007

4AF#..AE95

 1
90311-70004

4AF#..AE95

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-15011

4AF#..AE95

 1
11383-16010

4AF#..AE95

 1
12281 - HANGER, ENGINE, NO.1
12281-15050

4AF#..AE95

 1
Common parts
90105-06160
90119-06727
90119-10640
90179-06158
91511-60616
91511-B1016
91611-61025
91621-60614
92122-40610
