ZWE211R-AEXLBQ (2019)
Toyota Corolla Sed (Jpp)

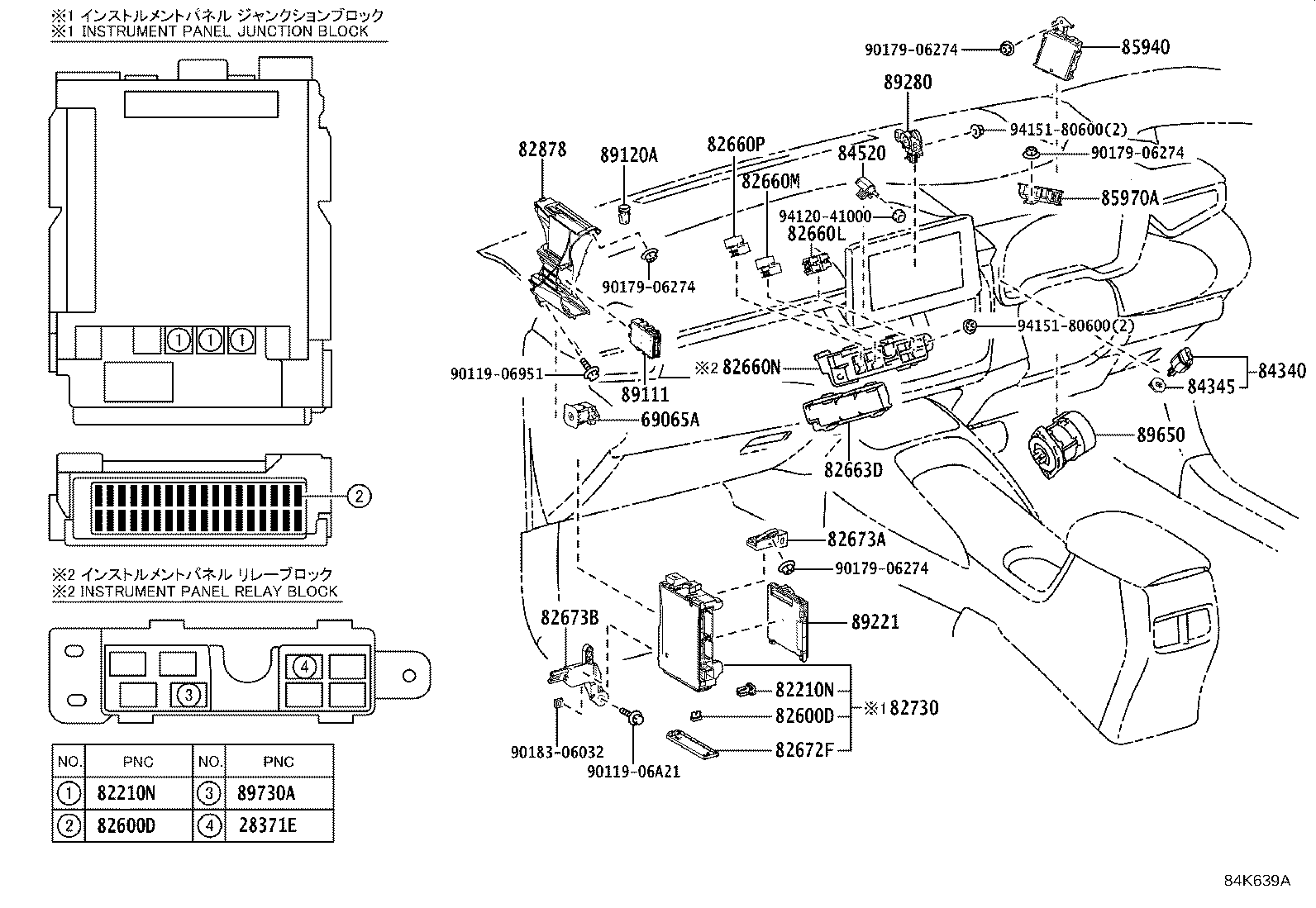

ILLUST NO. 4 OF 9(1909- )RHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
MZEA12,ZRE212,ZWE211 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
MZEA12,ZRE212,ZWE211 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
MZEA12,ZRE212,ZWE211 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
MZEA12,ZRE212,ZWE211 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
MZEA12,ZRE212,ZWE211 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
MZEA12,ZRE212,ZWE211 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
MZEA12,ZRE212,ZWE211 5A,MINI FUSE,TAN |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09021 |
MZEA12,ZRE212,ZWE211 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
MZEA12,ZRE212,ZWE211 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
MZEA12,ZRE212,ZWE211 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09020 |
MZEA12,ZRE212,ZWE211 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09019 |
MZEA12,ZRE212,ZWE211 5A,MINI FUSE,TAN |
1 | ||
| 82660L - BLOCK ASSY, RELAY | ||||
| 82660-08020 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 82660M - BLOCK ASSY, RELAY | ||||
| 82660-0C110 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 82660N - BLOCK ASSY, RELAY | ||||
| 82660-12460 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 82660P - BLOCK ASSY, RELAY | ||||
| 82660-52010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 82663D - COVER, RELAY BLOCK, LOWER, NO.5 | ||||
| 82663-12150 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 82672F - COVER, JUNCTION BLOCK | ||||
| 82672-12610 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-47190 |
MZEA12,ZRE212,ZWE211..RHD |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-47210 |
MZEA12,ZRE212,ZWE211..RHD |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-12N90 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 82878 - BOX, COMPUTER INTEGRATION, LH | ||||
| 82878-47020 |
MZEA12,ZRE212,ZWE211..RHD |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19085 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-12230 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-12040 |
ZWE211 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
ZRE212..L;MZEA12,ZWE211..ARL |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-12J10 |
ZWE211..ARL CENTRAL AMERICA 1 SPEC |
1 | ||
| 89220-12J10 |
ZWE211..ARL CENTRAL AMERICA 2 SPEC |
1 | ||
| 89220-12J50 |
MZEA12,ZWE211..CVT..ARL |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12K20 |
MZEA12,ZWE211 JTEKT/DENSO |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-06A21 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||

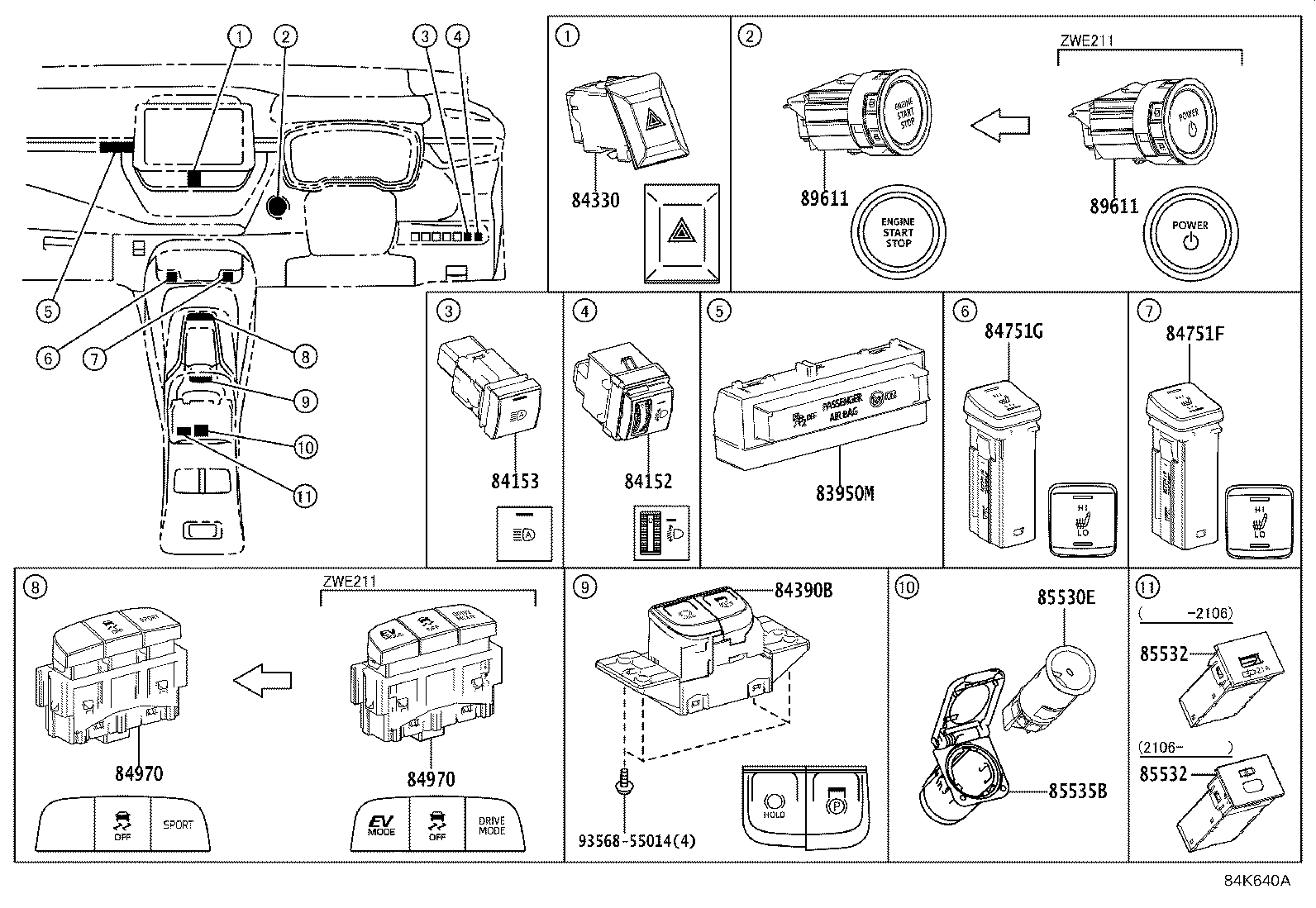

ILLUST NO. 5 OF 9(1909- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-12100 |
MZEA12,ZRE212,ZWE211..RHD |
1 | ||
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-33040 |
ZRE212..CVT;MZEA12,ZWE211..ARL |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12600 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 84390B - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-12030 |
MZEA12,ZRE212,ZWE211..RHD |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-12200 |
ZWE211..ARL |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-12200 |
ZWE211..ARL |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-12020 |
MZEA12,ZRE212,ZWE211..L |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-12020 |
MZEA12,ZRE212,ZWE211..L |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-12090C0 |
MZEA12,ZRE212,ZWE211 BLACK |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-12020 |
ZWE211 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-12020 |
ZWE211 |
1 | ||
| Common parts | ||||
| 93568-55014 | ||||

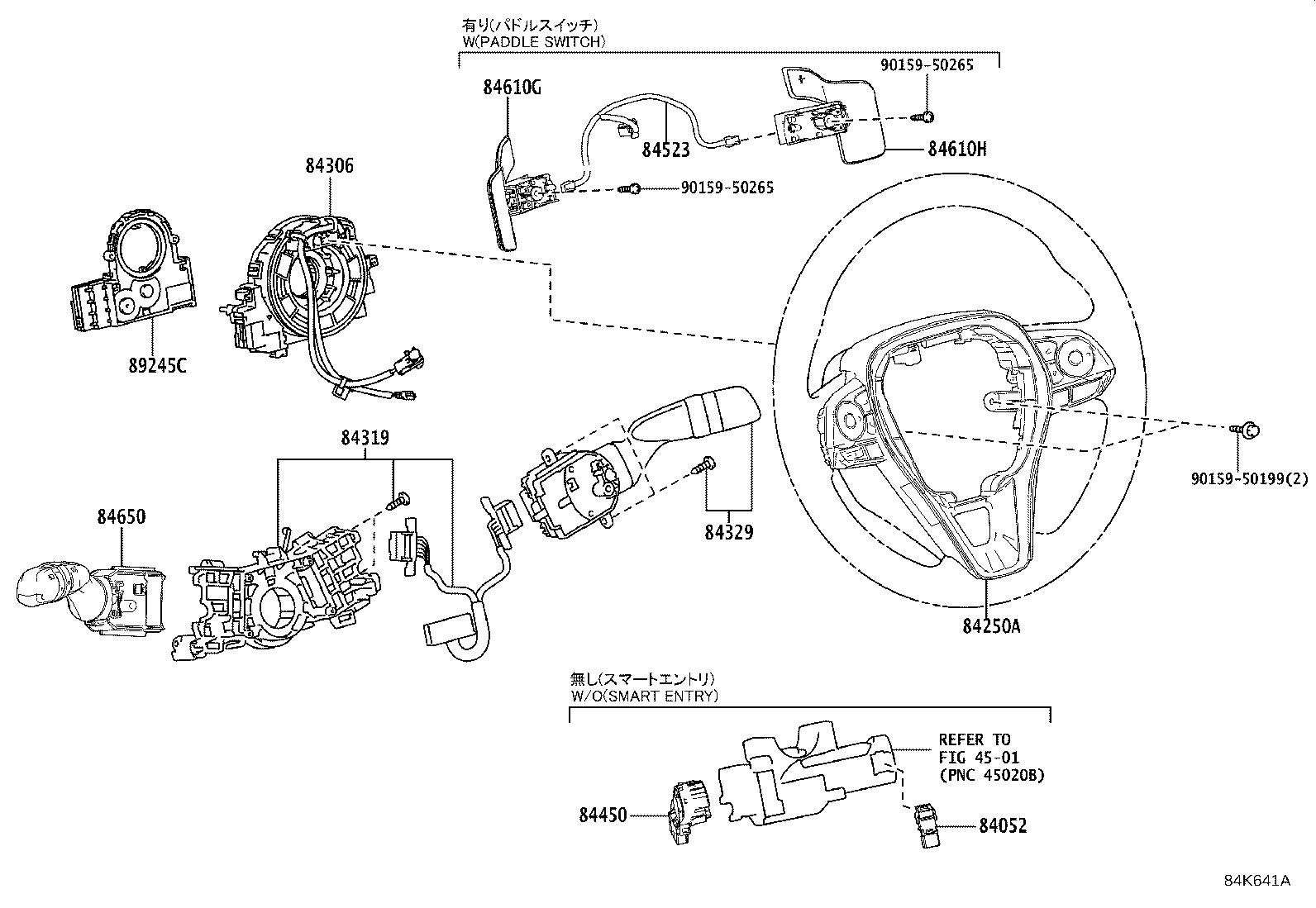

ILLUST NO. 6 OF 9(1909- )RHD
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-12580 |
ZRE212..CVT;MZEA12,ZWE211..ARL |
1 | ||
| 84250-12570 |
ZWE211..ARL CENTRAL AMERICA 2 SPEC&ACTIVE SAFETY PACKAGE-WITHOUT&CRUISE CONTROL-WITH&AUDIO-T1(8INCH) 6SPEAKER |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-12020 |
MZEA12,ZRE212,ZWE211..ARL,GEN |
1 | ||
| 84319 - HOUSING, STEERING WHEEL SWITCH | ||||
| 84319-33030 |
MZEA12,ZRE212,ZWE211..RHD |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-12130 |
ZWE211..ARL CENTRAL AMERICA 1 SPEC |
1 | ||
| 84329-12160 |
MZEA12,ZWE211..ARL |
1 | ||
| 84329-12130 |
ZWE211..ARL CENTRAL AMERICA 2 SPEC |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-33590 |
ZRE212..RHD..L;MZEA12,ZWE211..ARL |
1 | ||
| 89245C - SENSOR, STEERING | ||||
| 8924B-50010 |
ZRE212..L;MZEA12,ZWE211..ARL |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||
| Linked diagrams | ||||
| 4501 | ||||

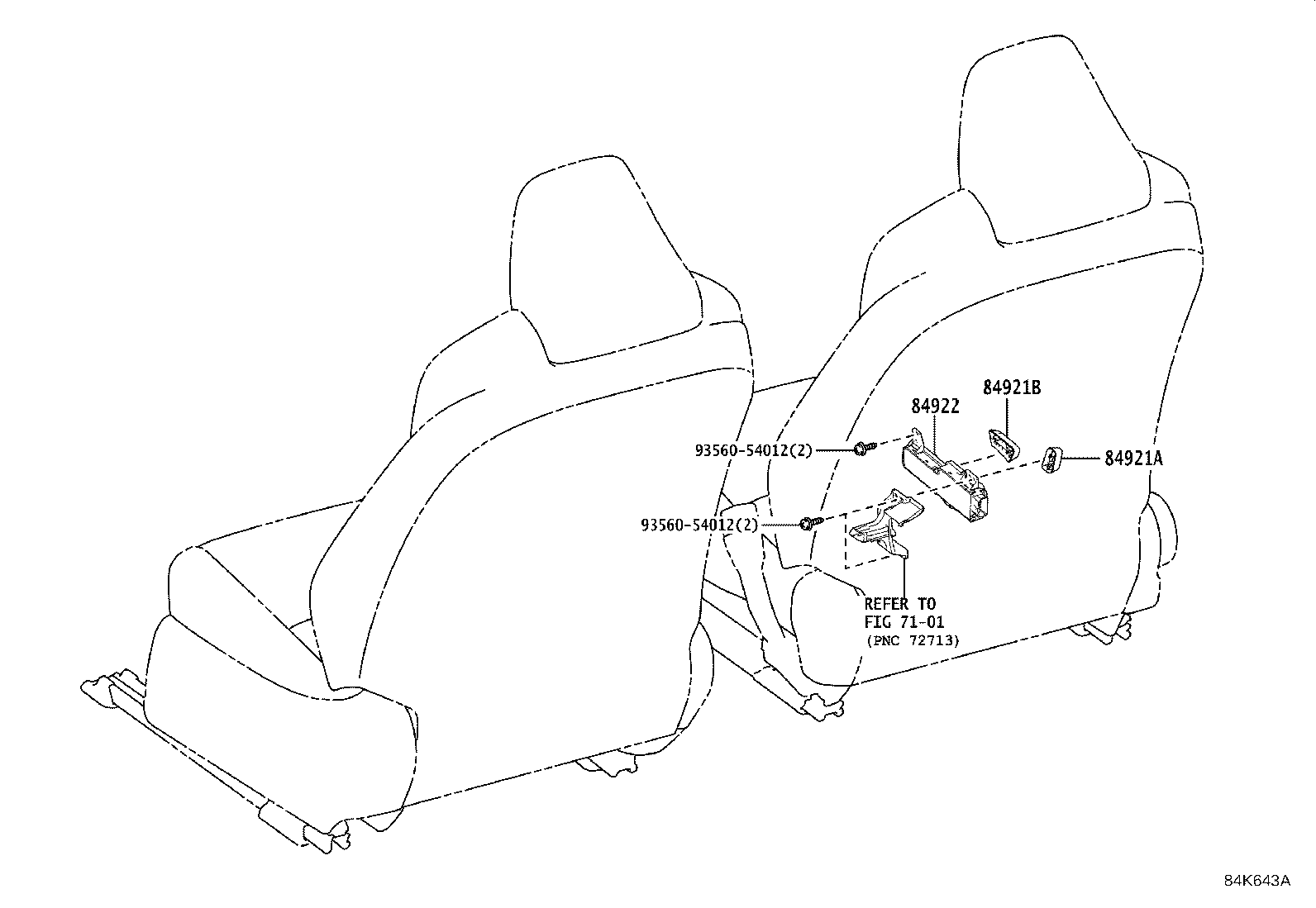

ILLUST NO. 7 OF 9(1909- )RHD
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7101 | ||||
