ZWE211R-AEXLBQ (2019)

Toyota Corolla Sed (Jpp)

Production Sep 2019 - Apr 2020
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 7 OF34(1909- )ZWE211..ARL

Click highlighted areas on diagram

ENGINE ROOM 1/2

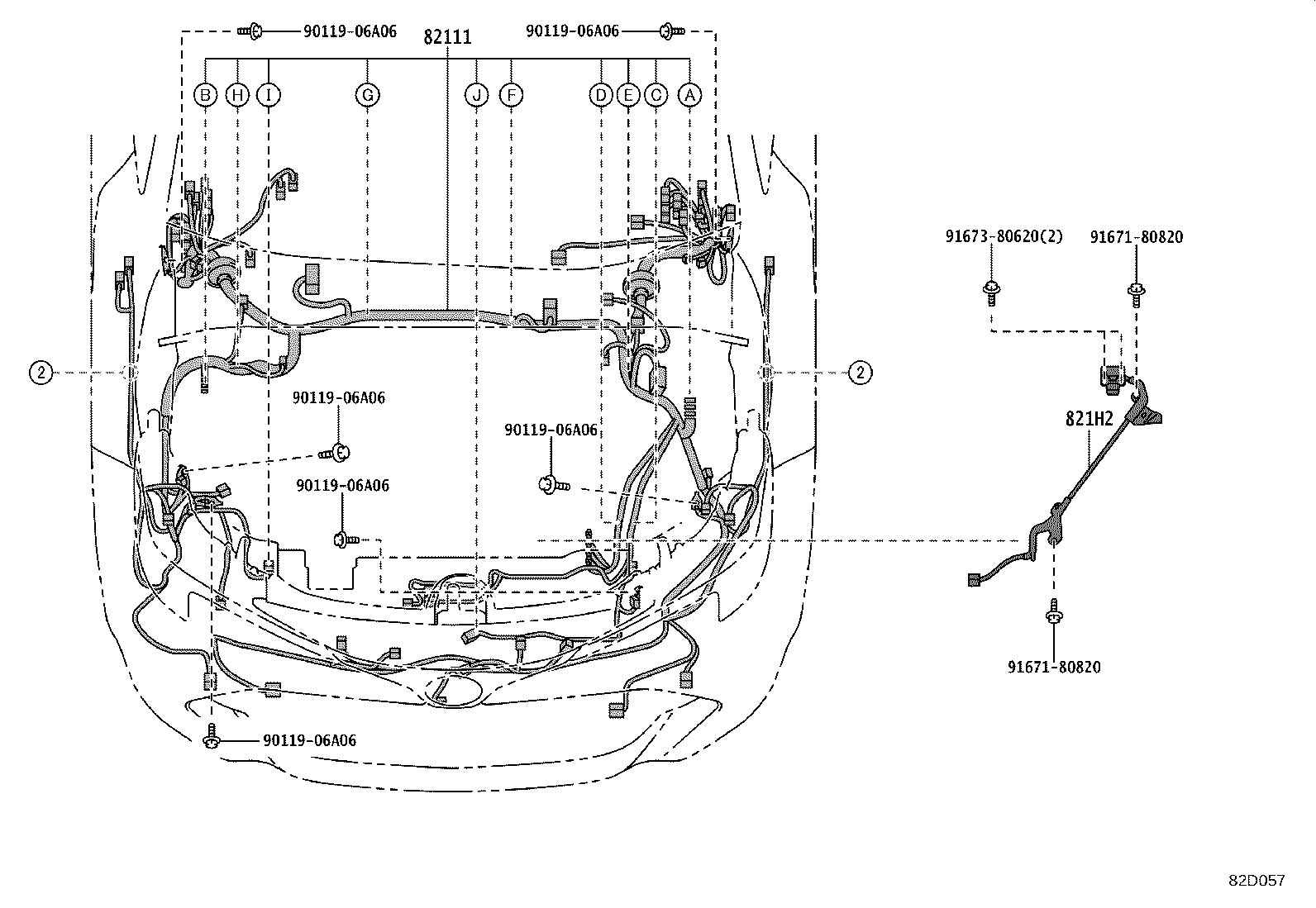

diagram 82111 821H2 9011906A06 9011906A06 9011906A06 9011906A06 9011906A06 9011906A06 9167180820 9167180820 9167380620
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-1KK50

ZWE211..ARL

(DECONTENT)

 1
82111-1KK50

ZWE211..ARL

CENTRAL AMERICA 1 SPEC&AUDIO-T1 (8INCH) 6SPEAKER

 1
82111-1KE50

ZWE211..ARL

 1
82111-1KM40

ZWE211..ARL

CENTRAL AMERICA 2 SPEC&AUDIO-T1 (8INCH) 6SPEAKER

 1
821H2 - WIRE, HV AIR CONDITIONER
821H2-47010

ZWE211

 1
Common parts
90119-06A06
91671-80820
91673-80620

ILLUST NO. 8 OF34(1909- )ZWE211..ARL

Click highlighted areas on diagram

ENGINE ROOM 2/2

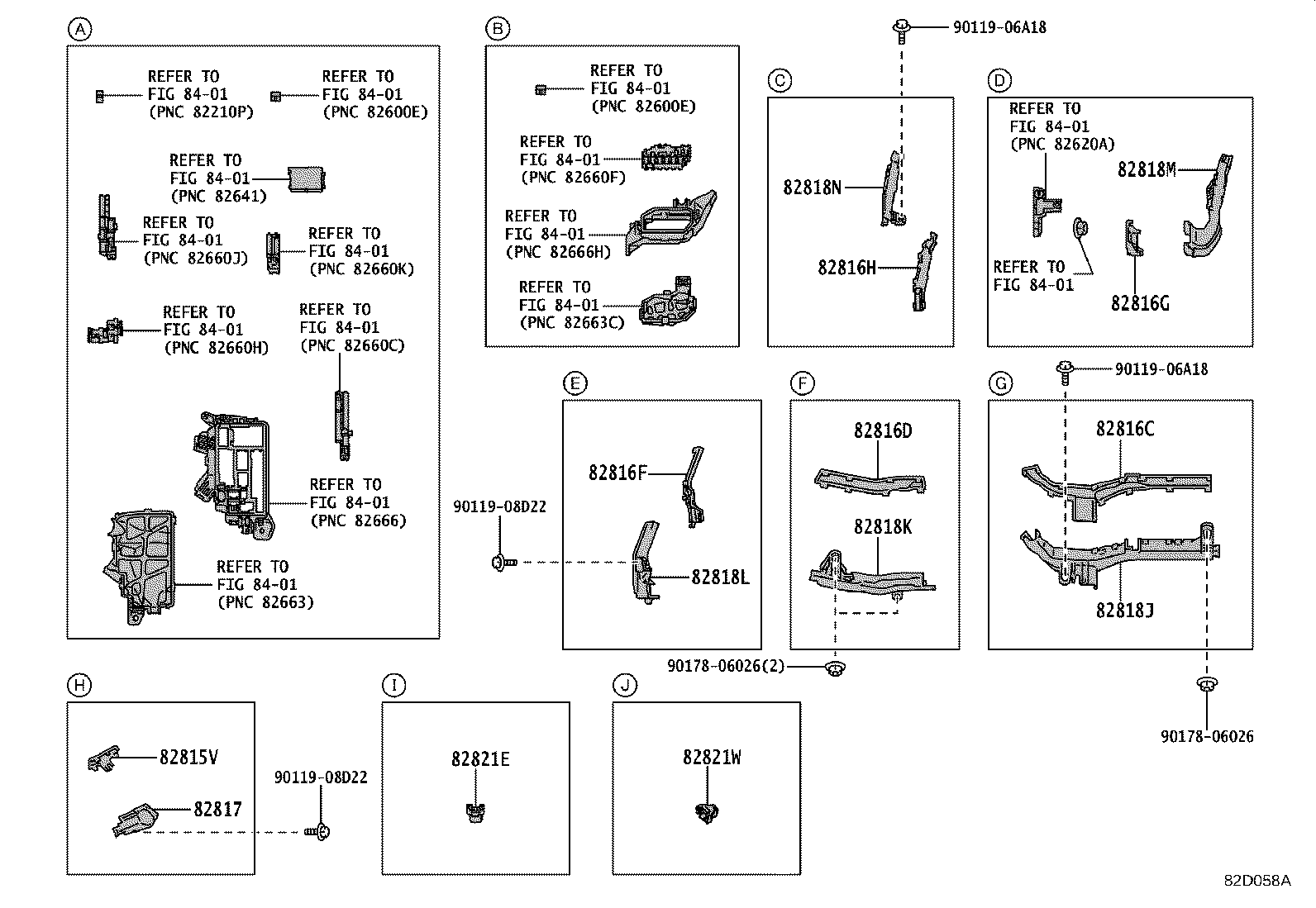

diagram 82815V 82816C 82816D 82816F 82816G 82816H 82817 82818J 82818K 82818L 82818M 82818N 82821E 82821W 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 8401 9011906A18 9011906A18 9011908D22 9011908D22 9017806026 9017806026
Part # Description Qty Price
82815V - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-47D40

ZWE211..ARL

 1
82816C - COVER, WIRING HARNESS PROTECTOR, NO.2
82815-47D30

ZWE211..ARL

 1
82816D - COVER, WIRING HARNESS PROTECTOR, NO.3
82815-47D00

ZWE211..ARL

 1
82816F - COVER, WIRING HARNESS PROTECTOR, NO.4
82815-47C90

ZWE211..ARL

 1
82816G - COVER, WIRING HARNESS PROTECTOR, NO.5
82815-47C20

ZWE211

 1
82816H - COVER, WIRING HARNESS PROTECTOR, NO.6
82815-47880

ZWE211

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-47P10

ZWE211..ARL

 1
82818J - PROTECTOR, WIRING HARNESS, NO.10
82817-47P00

ZWE211..ARL

 1
82818K - PROTECTOR, WIRING HARNESS, NO.11
82817-47N70

ZWE211..ARL

 1
82818L - PROTECTOR, WIRING HARNESS, NO.12
82817-47N60

ZWE211..ARL

 1
82818M - PROTECTOR, WIRING HARNESS, NO.13
82817-47N40

ZWE211

 1
82818N - PROTECTOR, WIRING HARNESS, NO.14
82817-47N30

ZWE211

 1
82821E - COVER, CONNECTOR
82821-30650

ZWE211..ARL

 1
82821W - COVER, CONNECTOR
82821-78050

ZWE211

 1
Common parts
90119-06A18
90119-08D22
90178-06026
Linked diagrams
8401

ILLUST NO.22 OF34(1909- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

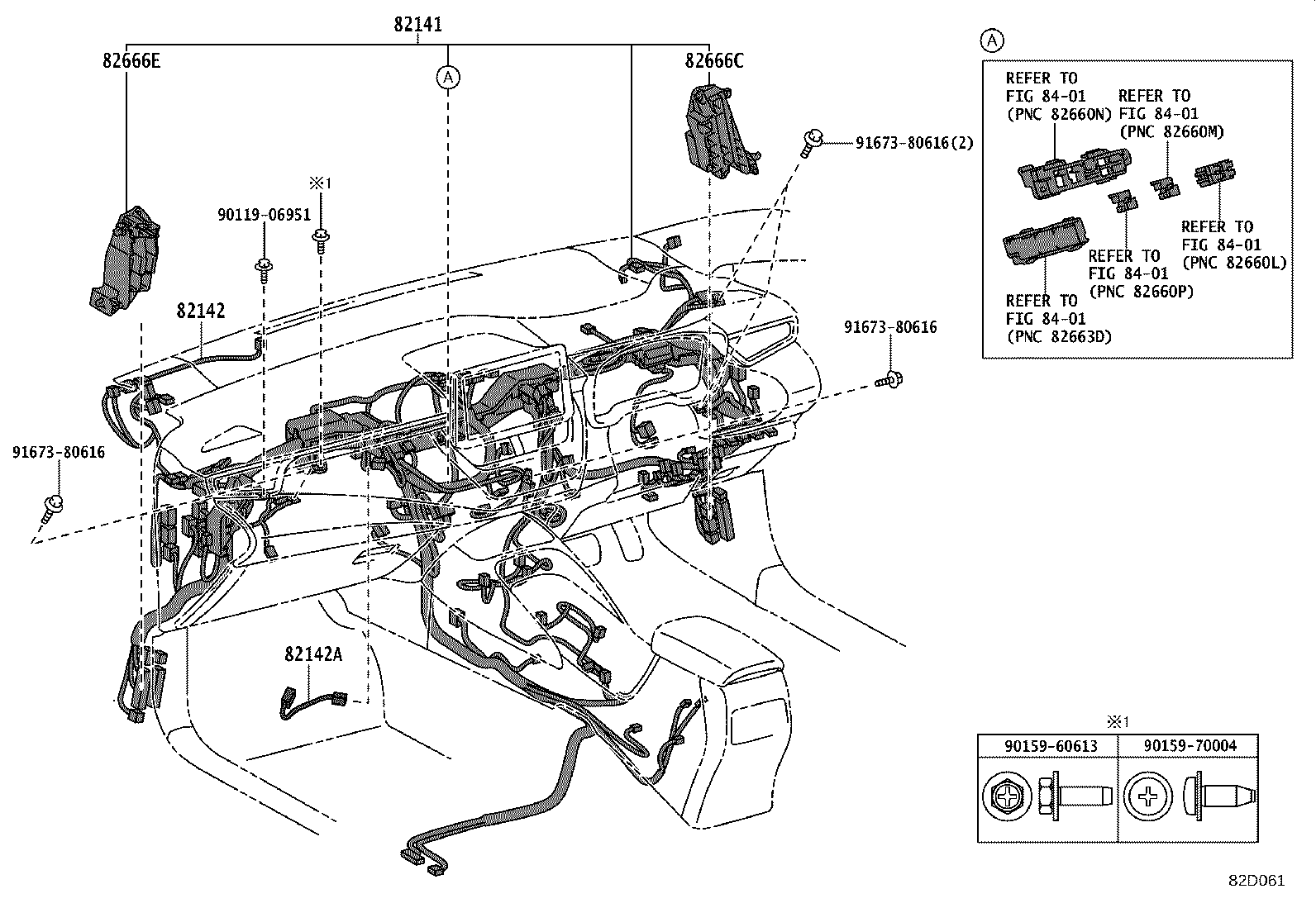

diagram 82141 82142 82142A 82666C 82666E 8401 8401 8401 8401 8401 9011906951 9015960613 9015970004 9167380616 9167380616 9167380616
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-1XD80

ZWE211..ARL

 1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-12680

ZRE212..RHD..L;MZEA12,ZWE211..ARL

 1
82142A - WIRE, INSTRUMENT PANEL, NO.2
82140-12B80

MZEA12,ZRE212,ZWE211..ARL,GEN

 1
82666C - HOLDER, CONNECTOR NO.4
82666-12680

MZEA12,ZRE212,ZWE211

 1
82666E - HOLDER, CONNECTOR NO.6
82666-12670

MZEA12,ZRE212,ZWE211

 1
Common parts
90119-06951
90159-60613
90159-70004
91673-80616
Linked diagrams
8401
