ZWE211R-AEXLBQ (2019)
Toyota Corolla Sed (Jpp)
(1909- )L..ARL ; (1909- )MZEA12..6F

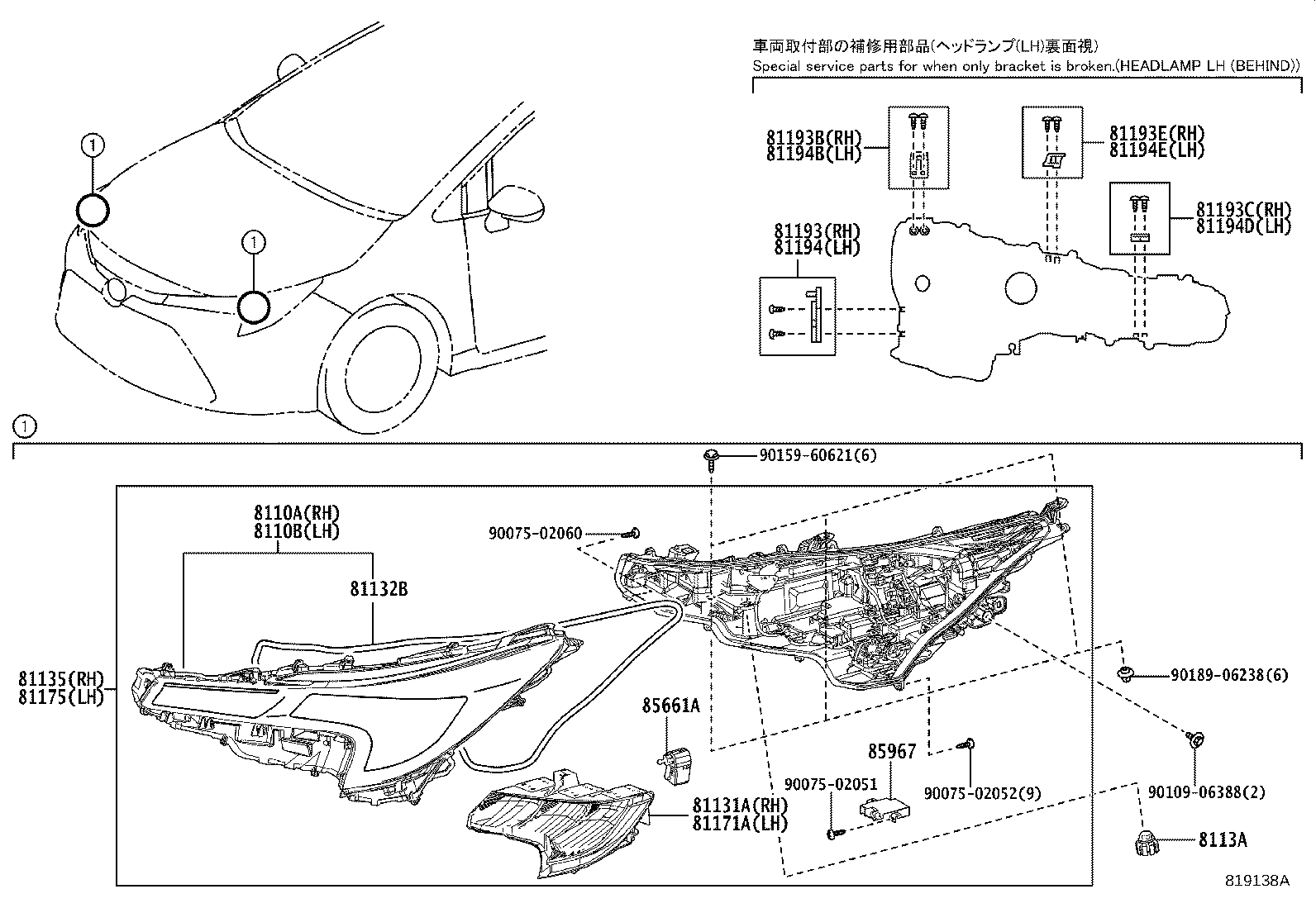

PROJECTOR TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 8110A - LENS SUB-ASSY, HEADLAMP, RH | ||||
| 8110A-12M70 |
ZWE211..ARL |
1 | ||
| 8110A-12M60 |
ZWE211..ARL CENTRAL AMERICA 2 SPEC |
1 | ||
| 8110A-12M60 |
ZWE211..ARL CENTRAL AMERICA 1 SPEC |
1 | ||
| 8110A-12M60 |
ZWE211..ARL (DECONTENT) |
1 | ||
| 8110B - LENS SUB-ASSY, HEADLAMP, LH | ||||
| 8110B-12K20 |
ZWE211..ARL CENTRAL AMERICA 1 SPEC |
1 | ||
| 8110B-12M40 |
ZWE211..ARL |
1 | ||
| 8110B-12K20 |
ZWE211..ARL CENTRAL AMERICA 2 SPEC |
1 | ||
| 8110B-12K20 |
ZWE211..ARL (DECONTENT) |
1 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-12M10 |
ZWE211..ARL CENTRAL AMERICA 2 SPEC |
1 | ||
| 81130-12M10 |
ZWE211..ARL CENTRAL AMERICA 1 SPEC |
1 | ||
| 81130-12M10 |
ZWE211..ARL (DECONTENT) |
1 | ||
| 81130-12L10 |
ZWE211..ARL |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-48C30 |
MZEA12,ZRE212,ZWE211..RHD |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81105-12M60 |
ZWE211..ARL CENTRAL AMERICA 2 SPEC |
1 | ||
| 81105-12M60 |
ZWE211..ARL (DECONTENT) |
1 | ||
| 81105-12M70 |
ZWE211..ARL |
1 | ||
| 81105-12M60 |
ZWE211..ARL CENTRAL AMERICA 1 SPEC |
1 | ||
| 8113A - LED, HEADLAMP FRONT TURN SIGNAL | ||||
| 81536-12D30 |
MZEA12,ZRE212,ZWE211..RHD |
2 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-12M10 |
ZWE211..ARL CENTRAL AMERICA 1 SPEC |
1 | ||
| 81170-12M10 |
ZWE211..ARL (DECONTENT) |
1 | ||
| 81170-12M10 |
ZWE211..ARL CENTRAL AMERICA 2 SPEC |
1 | ||
| 81170-12L10 |
ZWE211..ARL |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81106-12K20 |
ZWE211..ARL CENTRAL AMERICA 1 SPEC |
1 | ||
| 81106-12K20 |
ZWE211..ARL CENTRAL AMERICA 2 SPEC |
1 | ||
| 81106-12M40 |
ZWE211..ARL |
1 | ||
| 81106-12K20 |
ZWE211..ARL (DECONTENT) |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-12250 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-12260 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-12270 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 81193E - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3 | ||||
| 81193-12280 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-12250 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-12260 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-12270 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 81194E - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3 | ||||
| 81194-12280 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 85661A - MOTOR, HEADLAMP LEVELING | ||||
| 85661-48050 |
MZEA12,ZRE212,ZWE211..RHD |
2 | ||
| 85967 - COMPUTER, LIGHT CONTROL | ||||
| 85967-12020 |
ZWE211..ARL (DECONTENT) |
2 | ||
| 85967-12050 |
ZWE211..ARL |
2 | ||
| 85967-12020 |
ZWE211..ARL CENTRAL AMERICA 2 SPEC |
2 | ||
| 85967-12020 |
ZWE211..ARL CENTRAL AMERICA 1 SPEC |
2 | ||
| Common parts | ||||
| 90075-02051 | ||||
| 90075-02052 | ||||
| 90075-02060 | ||||
| 90109-06388 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
(1909- )RHD

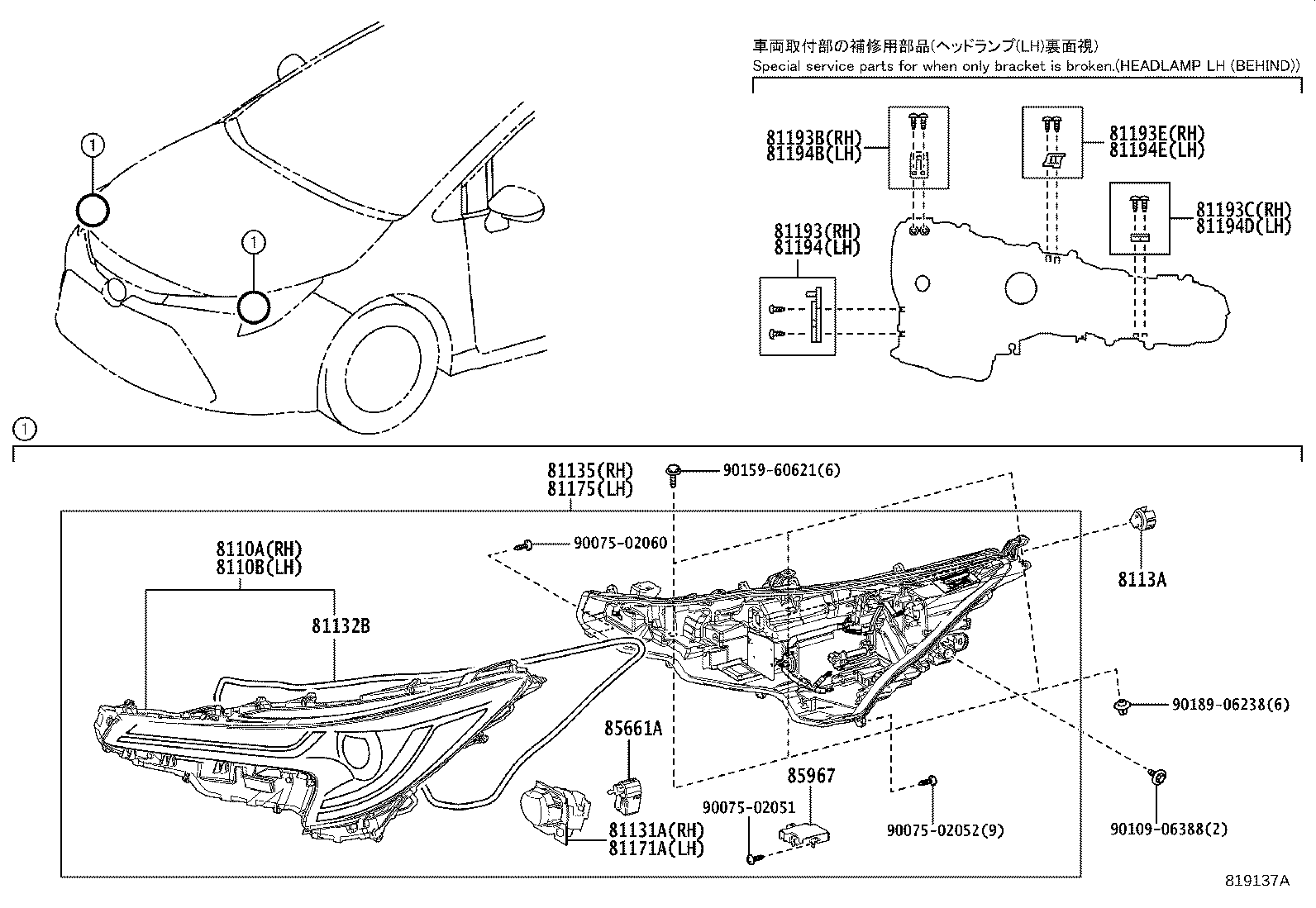

MULTI REFLECTOR TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 8110A - LENS SUB-ASSY, HEADLAMP, RH | ||||
| 8110A-12M70 |
ZWE211..ARL |
1 | ||
| 8110A-12M60 |
ZWE211..ARL CENTRAL AMERICA 2 SPEC |
1 | ||
| 8110A-12M60 |
ZWE211..ARL CENTRAL AMERICA 1 SPEC |
1 | ||
| 8110A-12M60 |
ZWE211..ARL (DECONTENT) |
1 | ||
| 8110B - LENS SUB-ASSY, HEADLAMP, LH | ||||
| 8110B-12K20 |
ZWE211..ARL CENTRAL AMERICA 1 SPEC |
1 | ||
| 8110B-12M40 |
ZWE211..ARL |
1 | ||
| 8110B-12K20 |
ZWE211..ARL CENTRAL AMERICA 2 SPEC |
1 | ||
| 8110B-12K20 |
ZWE211..ARL (DECONTENT) |
1 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81130-12M10 |
ZWE211..ARL CENTRAL AMERICA 2 SPEC |
1 | ||
| 81130-12M10 |
ZWE211..ARL CENTRAL AMERICA 1 SPEC |
1 | ||
| 81130-12M10 |
ZWE211..ARL (DECONTENT) |
1 | ||
| 81130-12L10 |
ZWE211..ARL |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-48C30 |
MZEA12,ZRE212,ZWE211..RHD |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81105-12M60 |
ZWE211..ARL CENTRAL AMERICA 2 SPEC |
1 | ||
| 81105-12M60 |
ZWE211..ARL (DECONTENT) |
1 | ||
| 81105-12M70 |
ZWE211..ARL |
1 | ||
| 81105-12M60 |
ZWE211..ARL CENTRAL AMERICA 1 SPEC |
1 | ||
| 8113A - LED, HEADLAMP FRONT TURN SIGNAL | ||||
| 81536-12D30 |
MZEA12,ZRE212,ZWE211..RHD |
2 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81170-12M10 |
ZWE211..ARL CENTRAL AMERICA 1 SPEC |
1 | ||
| 81170-12M10 |
ZWE211..ARL (DECONTENT) |
1 | ||
| 81170-12M10 |
ZWE211..ARL CENTRAL AMERICA 2 SPEC |
1 | ||
| 81170-12L10 |
ZWE211..ARL |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81106-12K20 |
ZWE211..ARL CENTRAL AMERICA 1 SPEC |
1 | ||
| 81106-12K20 |
ZWE211..ARL CENTRAL AMERICA 2 SPEC |
1 | ||
| 81106-12M40 |
ZWE211..ARL |
1 | ||
| 81106-12K20 |
ZWE211..ARL (DECONTENT) |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-12250 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-12260 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-12270 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 81193E - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3 | ||||
| 81193-12280 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-12250 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-12260 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 81194D - RETAINER, LH HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-12270 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 81194E - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3 | ||||
| 81194-12280 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 85661A - MOTOR, HEADLAMP LEVELING | ||||
| 85661-48050 |
MZEA12,ZRE212,ZWE211..RHD |
2 | ||
| 85967 - COMPUTER, LIGHT CONTROL | ||||
| 85967-12020 |
ZWE211..ARL (DECONTENT) |
2 | ||
| 85967-12050 |
ZWE211..ARL |
2 | ||
| 85967-12020 |
ZWE211..ARL CENTRAL AMERICA 2 SPEC |
2 | ||
| 85967-12020 |
ZWE211..ARL CENTRAL AMERICA 1 SPEC |
2 | ||
| Common parts | ||||
| 90075-02051 | ||||
| 90075-02052 | ||||
| 90075-02060 | ||||
| 90109-06388 | ||||
| 90159-60621 | ||||
| 90189-06238 | ||||
