ZWE211R-AEXLBQ (2019)

Toyota Corolla Sed (Jpp)

Production Sep 2019 - Apr 2020
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 4 OF 4(1909- )RHD

Click highlighted areas on diagram

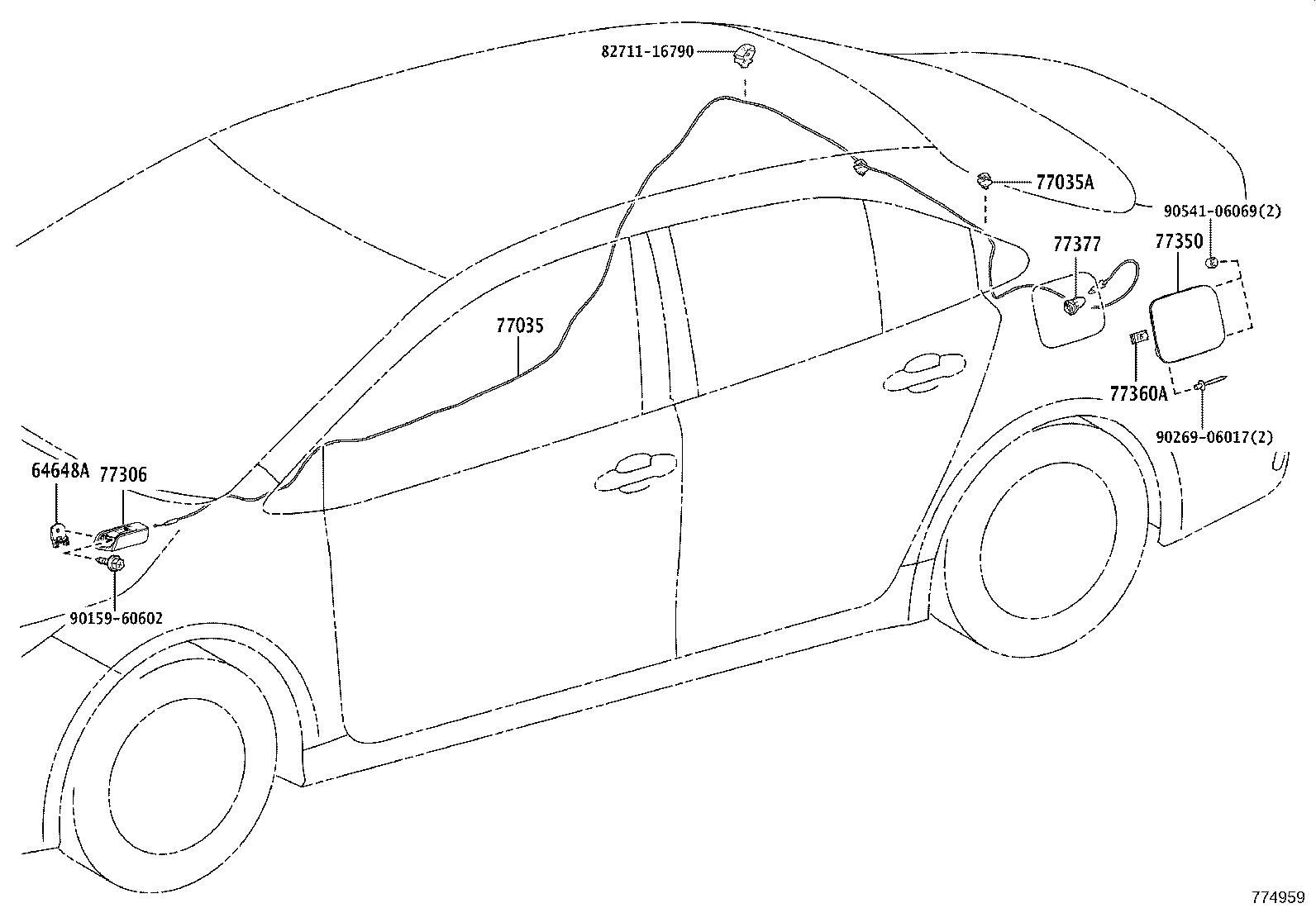

FUEL LID OPENER

diagram 64648A 77035 77035A 77306 77350 77360A 77377 8271116790 9015960602 9026906017 9054106069
Part # Description Qty Price
64648A - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-12020

MZEA12,ZRE212,ZWE211

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-12710

MZEA12,ZRE212,ZWE211..RHD

 1
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90469-06005

MZEA12,ZRE212,ZWE211..RHD

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
64606-12110

MZEA12,ZRE212,ZWE211..RHD

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-12570

MZEA12,ZRE212,ZWE211

 1
77360A - SPRING ASSY, FUEL FILLER OPENING LID
77360-30080

MZEA12,ZRE212,ZWE211

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-12100

MZEA12,ZRE212,ZWE211..ARL,GEN

 1
Common parts
82711-16790
90159-60602
90269-06017
90541-06069
