ZWE211R-AEXLBQ (2019)
Toyota Corolla Sed (Jpp)

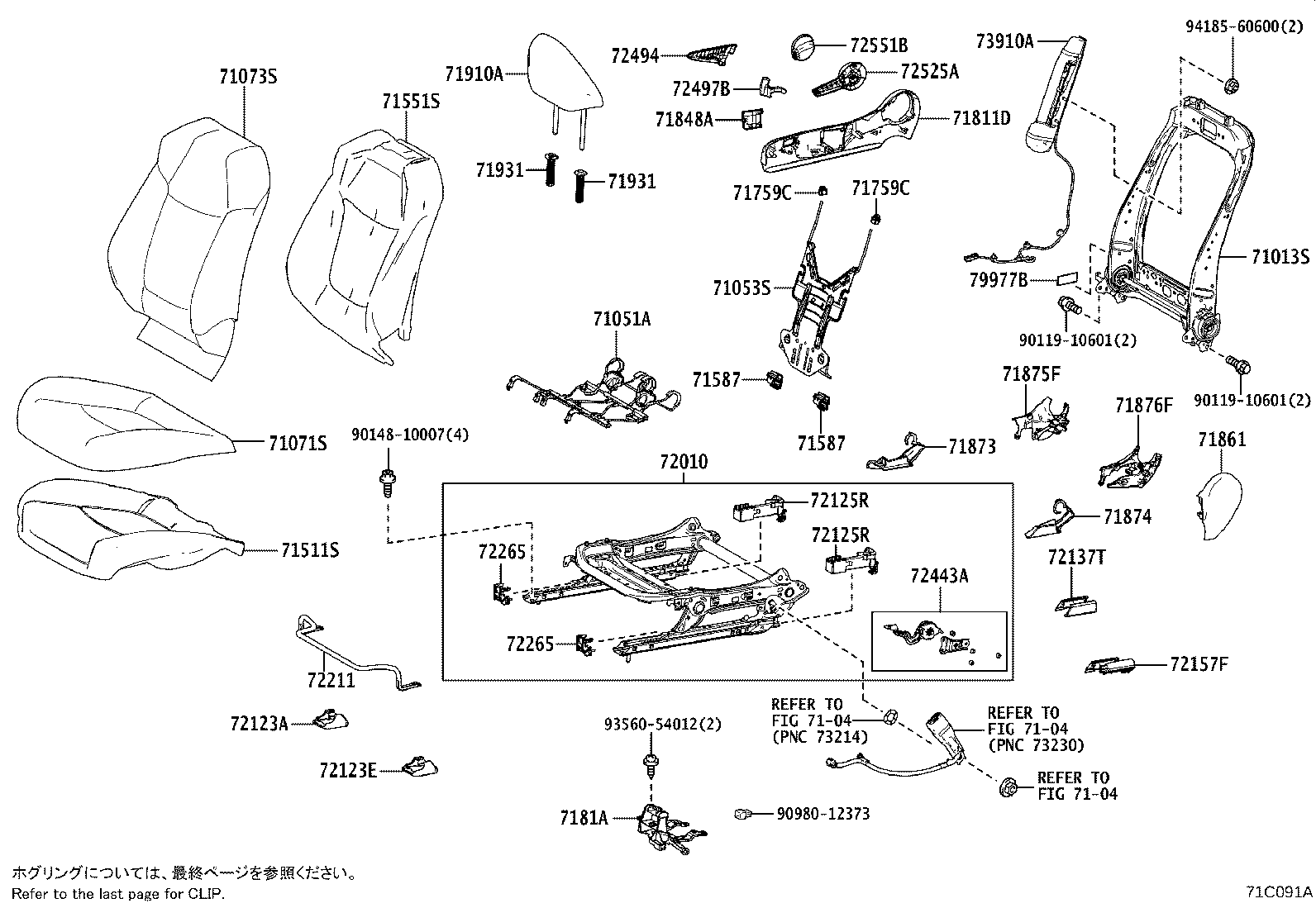

ILLUST NO. 1 OF 3(1909- )RHD
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-42210 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-47090 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-47050 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1AB80C5 |
ZRE212..RHD..L;MZEA12,ZWE211..ARL LT. GRAY,TRIM1# |
1 | ||
| 71071-1AB80C4 |
ZRE212..RHD..L;MZEA12,ZWE211..ARL BLACK,TRIM2# |
1 | ||
| 71071-1AB80B2 |
ZRE212..RHD..L;MZEA12,ZWE211..ARL LT.GRAY/BLACK,TRIM1# |
1 | ||
| 71071-1AB80C1 |
ZRE212..RHD..L;MZEA12,ZWE211..ARL BLACK/GRAY DOT/BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1AG30C4 |
ZRE212..RHD..L;MZEA12,ZWE211..ARL BLACK,TRIM2# |
1 | ||
| 71073-1AG30B4 |
ZRE212..RHD..L;MZEA12,ZWE211..ARL LT. GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-12C50 |
MZEA12,ZRE212,ZWE211..RHD |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-12D40 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-47010 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-50040 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-50040 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-47140C1 |
MZEA12,ZRE212,ZWE211..RHD..L BLACK,TRIM0#,1#,2# |
1 | ||
| 7181A - HOLDER, FRONT SEAT CUSHION WIRE HARNESS, RH | ||||
| 7181A-47010 |
MZEA12,ZRE212,ZWE211..ARL,GEN |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-47040C1 |
MZEA12,ZRE212,ZWE211..RHD..L BLACK,TRIM0#,1#,2# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47070C1 |
MZEA12,ZRE212,ZWE211..RHD..L BLACK,TRIM0#,1#,2# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47070 |
MZEA12,ZRE212,ZWE211..RHD |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-47080 |
MZEA12,ZRE212,ZWE211..RHD |
1 | ||
| 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) | ||||
| 71875-47040C1 |
MZEA12,ZRE212,ZWE211..RHD..L BLACK,TRIM0#,1#,2# |
1 | ||
| 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) | ||||
| 71875-47070C1 |
MZEA12,ZRE212,ZWE211..RHD..L BLACK,TRIM0#,1#,2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-12K00B2 |
ZRE212..L;MZEA12,ZWE211..ARL GRAY,TRIM1# |
2 | ||
| 71910-12K00C2 |
ZRE212..L;MZEA12,ZWE211..ARL BLACK,TRIM2# |
2 | ||
| 71910-12K00C2 |
ZRE212..RHD..L;MZEA12,ZWE211..ARL BLACK,TRIM20 |
2 | ||
| 71910-12K00B3 |
ZRE212..RHD..L;MZEA12,ZWE211..ARL GRAY,TRIM10 |
2 | ||
| 71910-12K00C4 |
ZRE212..RHD..L;MZEA12,ZWE211..ARL BALCK,TRIM20 |
2 | ||
| 71910-12K00B2 |
ZRE212..RHD..L;MZEA12,ZWE211..ARL GRAY,TRIM10 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030C4 |
MZEA12,ZRE212,ZWE211..ARL,GEN W/O(LOCK),BLACK,TRIM1#,2# |
2 | ||
| 71930-47050C5 |
MZEA12,ZRE212,ZWE211..ARL,GEN W(LOCK),BLACK,TRIM1#,2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47030C4 |
MZEA12,ZRE212,ZWE211..ARL,GEN W/O(LOCK),BLACK,TRIM1#,2# |
2 | ||
| 71930-47050C5 |
MZEA12,ZRE212,ZWE211..ARL,GEN W(LOCK),BLACK,TRIM1#,2# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-47361 |
MZEA12,ZRE212,ZWE211..RHD |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-10100 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 72123E - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72123-10100 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-47010 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 72125R - COVER, SEAT TRACK, UPPER REAR NO.1 | ||||
| 72125-47010 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 72137T - COVER, SEAT TRACK BRACKET, OUTER REAR RH | ||||
| 72137-47060 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 72157F - COVER, SEAT TRACK BRACKET, INNER REAR RH | ||||
| 72157-47080 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47050 |
MZEA12,ZRE212,ZWE211..ARL,GEN |
1 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47010 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-47010 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 72443A - GEAR, VERTICAL ADJUSTER, RH | ||||
| 72443-47011 |
MZEA12,ZRE212,ZWE211..RHD |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-47030C1 |
MZEA12,ZRE212,ZWE211..RHD..L BLACK,TRIM0#,1#,2# |
1 | ||
| 72497B - COVER, VERTICAL ADJUSTER BRACKET, RH | ||||
| 72498-47010 |
MZEA12,ZRE212,ZWE211..RHD |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-33050C0 |
ZRE212,ZWE211..L..(ARL,GEN) BLACK,TRIM0#,1#,2# |
1 | ||
| 72551B - COVER, RECLINING HINGE, RH | ||||
| 72551-33010C0 |
ZRE212,ZWE211..L..(ARL,GEN) BLACK,TRIM0#,1#,2# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-12100 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90148-10007 | ||||
| 90980-12373 | ||||
| 93560-54012 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
