ZWE211R-AEXLBQ (2019)

Toyota Corolla Sed (Jpp)

Production Sep 2019 - Apr 2020
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1909- )ZWE211..ARL

Click highlighted areas on diagram

NORMAL ROOF

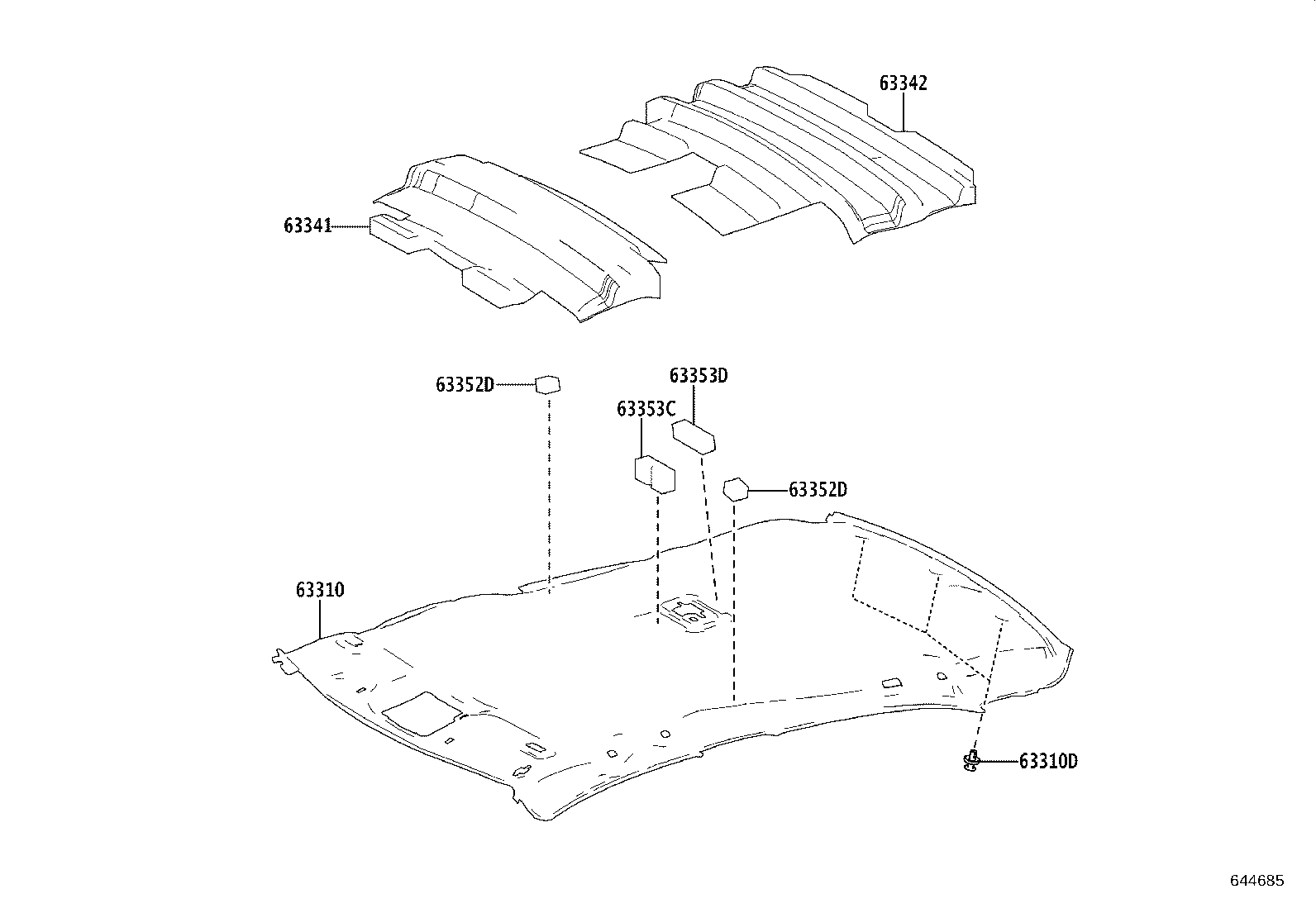

diagram 63310 63310D 63341 63342 63352D 63352D 63353C 63353D
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-12N40A0

ZWE211..ARL;MZEA12..CVT..D

FROMAGE,TRIM1#,2#

 1
63310D - CLIP, ROOF HEADLINING
90467-05168A0

ZRE212..D;ZWE211..ARL;MZEA12..CVT..D

FROMAGE,TRIM1#,2#

 3
63341 - PAD, ROOF SILENCER, NO.1
63341-12370

ZWE211

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-12370

ZWE211

 1
63352D - PAD, ROOF HEADLINING, NO.2
63352-12120

MZEA12,ZRE212,ZWE211..ARL,GEN

 2
63352D - PAD, ROOF HEADLINING, NO.2
63352-12120

MZEA12,ZRE212,ZWE211..ARL,GEN

 2
63353C - PAD, ROOF HEADLINING, CENTER
63353-12030

MZEA12,ZRE212,ZWE211

 1
63353D - PAD, ROOF HEADLINING, CENTER
63353-12040

MZEA12,ZRE212,ZWE211

 1
