ZWE211R-AEXLBQ (2019)

Toyota Corolla Sed (Jpp)

Production Sep 2019 - Apr 2020
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1909- )RHD

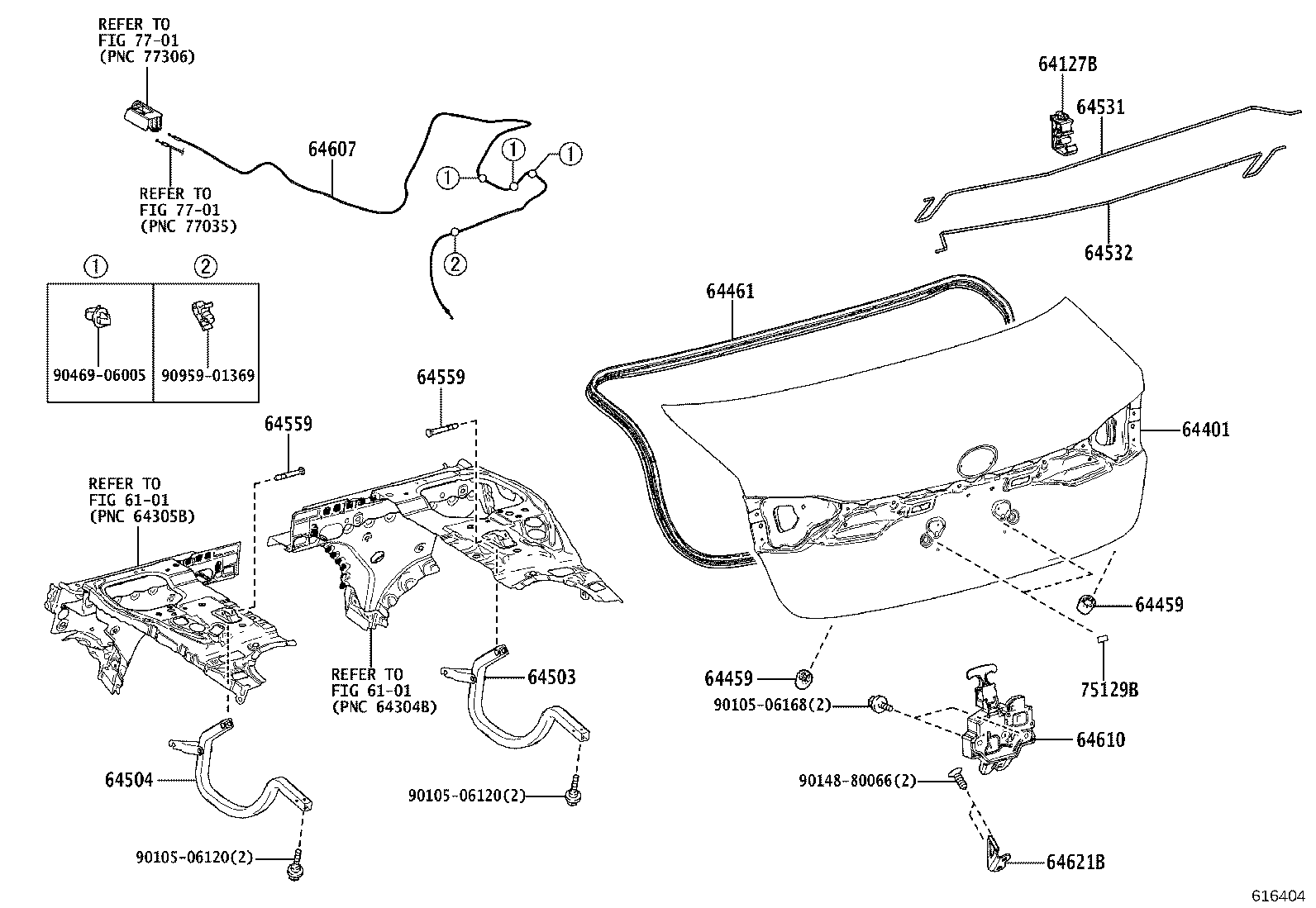

Click highlighted areas on diagram

diagram 6101 6101 64127B 64401 64459 64459 64461 64503 64504 64531 64532 64559 64559 64607 64610 64621B 75129B 7701 7701 9010506120 9010506120 9010506168 9014880066 9046906005 9095901369
Part # Description Qty Price
64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR
64127-33071

MZEA12,ZRE212,ZWE211

 1
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-12E60

MZEA12,ZWE211..L..ARL

 1
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
90541-09069

MZEA12,ZRE212,ZWE211

 2
64459 - CUSHION, LUGGAGE COMPARTMENT DOOR
90541-09069

MZEA12,ZRE212,ZWE211

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-12610

MZEA12,ZRE212,ZWE211

 1
64503 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64503-12200

MZEA12,ZRE212,ZWE211

 1
64504 - ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64503-12200

MZEA12,ZRE212,ZWE211

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-12890

ZRE212..LHD;MZEA12,ZWE211;ZRE212..RHD..D

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-12880

ZRE212..LHD;MZEA12,ZWE211;ZRE212..RHD..D

 1
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040

MZEA12,ZRE212,ZWE211

 2
64559 - PIN, LUGGAGE DOOR HINGE
64559-12040

MZEA12,ZRE212,ZWE211

 2
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-12A71

MZEA12,ZRE212,ZWE211..RHD

 1
64607-12A70

MZEA12,ZRE212,ZWE211..RHD

 1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64600-12090

MZEA12,ZRE212,ZWE211

 1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64621-33030

MZEA12,ZRE212,ZWE211

 1
75129B - CUSHION, REAR LICENCE PLATE
75129-30010

MZEA12,ZRE212,ZWE211

 2
Common parts
90105-06120
90105-06168
90148-80066
90469-06005
90959-01369
Linked diagrams
6101
7701
