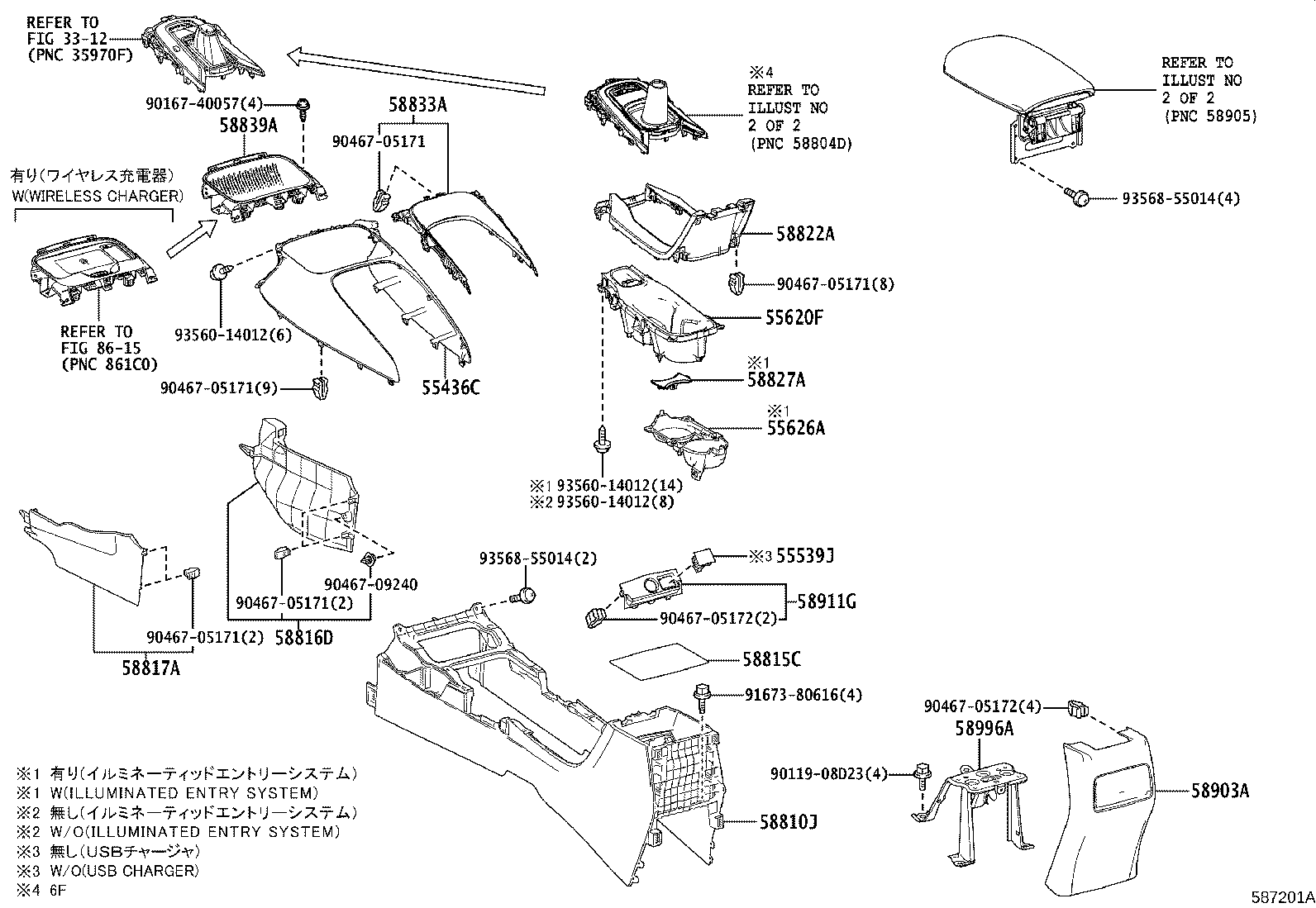

Toyota Corolla sed (jpp) ZWE211 CONSOLE BOX & BRACKET

Part #	Description	Period	Qty
55436C - PANEL, INSTRUMENT PANEL FINISH, END LH
55436-12200C0	MZEA12,ZRE212,ZWE211..L..(ARL,GEN) BLACK,TRIM0#,1#,2#	01/2019 - 04/2020	1
55539J - COVER, SPARE SWITCH HOLE
55539-12260C0	ZWE211..ARL (DECONTENT),BLACK,TRIM1#,2#	09/2019 - 04/2020	1
55620F - HOLDER ASSY, CONSOLE BOX CUP
55620-12330	MZEA12,ZRE212,ZWE211..RHD	09/2019 - 04/2020	1
58810J - BOX ASSY, CONSOLE
58810-12520C0	MZEA12,ZRE212,ZWE211..L..(ARL,GEN) BLACK,TRIM0#,1#,2#	01/2019 - 04/2020	1
58815C - CARPET, CONSOLE BOX
58815-12240	MZEA12,ZRE212,ZWE211	01/2019 - 04/2020	1
58816D - INSERT, CONSOLE BOX, FRONT NO.1
58816-12160C0	MZEA12,ZRE212,ZWE211..RHD..L BLACK,TRIM0#,1#,2#	09/2019 - 04/2020	1
58817A - INSERT, CONSOLE BOX, FRONT NO.2
58817-12170C0	MZEA12,ZRE212,ZWE211..RHD..L BLACK,TRIM0#,1#,2#	09/2019 - 04/2020	1
58822A - PANEL, CONSOLE, UPPER REAR
58822-12340	ZWE211;MZEA12,ZRE212..RHD	01/2019 - 04/2020	1
58833A - COVER, CONSOLE, UPPER
58833-12150A0	MZEA12,ZRE212,ZWE211..L..(ARL,GEN) FROMAGE,TRIM0#	01/2019 - 04/2020	1
58833-12150C0	MZEA12,ZRE212,ZWE211..ARL,GEN BLACK,TRIM2#	01/2019 - 04/2020	1
58833-12150B0	MZEA12,ZRE212,ZWE211..ARL,GEN LT.GRAY,TRIM1#	01/2019 - 04/2020	1
58839A - COVER, CONSOLE BOX HOLE
58839-12090C0	MZEA12,ZRE212,ZWE211..L..(ARL,GEN) BLACK,TRIM0#,1#,2#	01/2019 - 04/2020	1
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-12100C0	MZEA12,ZRE212,ZWE211..L BLACK,TRIM0#,1#,2#	01/2019 - 04/2020	1
58911G - PANEL, BOX, NO.1
58911-12540C0	ZRE212..D;MZEA12,ZWE211..ARL BLACK,TRIM1#,2#	01/2019 - 04/2020	1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-12240	MZEA12,ZRE212,ZWE211	01/2019 - 04/2020	1
Common parts
90119-08D23
90167-40057
90467-05171
90467-05172
90467-09240
91673-80616
93560-14012
93568-55014
Linked diagrams
3312
8615

ZWE211R-AEXLBQ (2019)

ILLUST NO. 1 OF 2(1909- )RHD
