ZWE211R-AEXLBQ (2019)

Toyota Corolla Sed (Jpp)

Production Sep 2019 - Apr 2020
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1909- )ZWE211..ARL

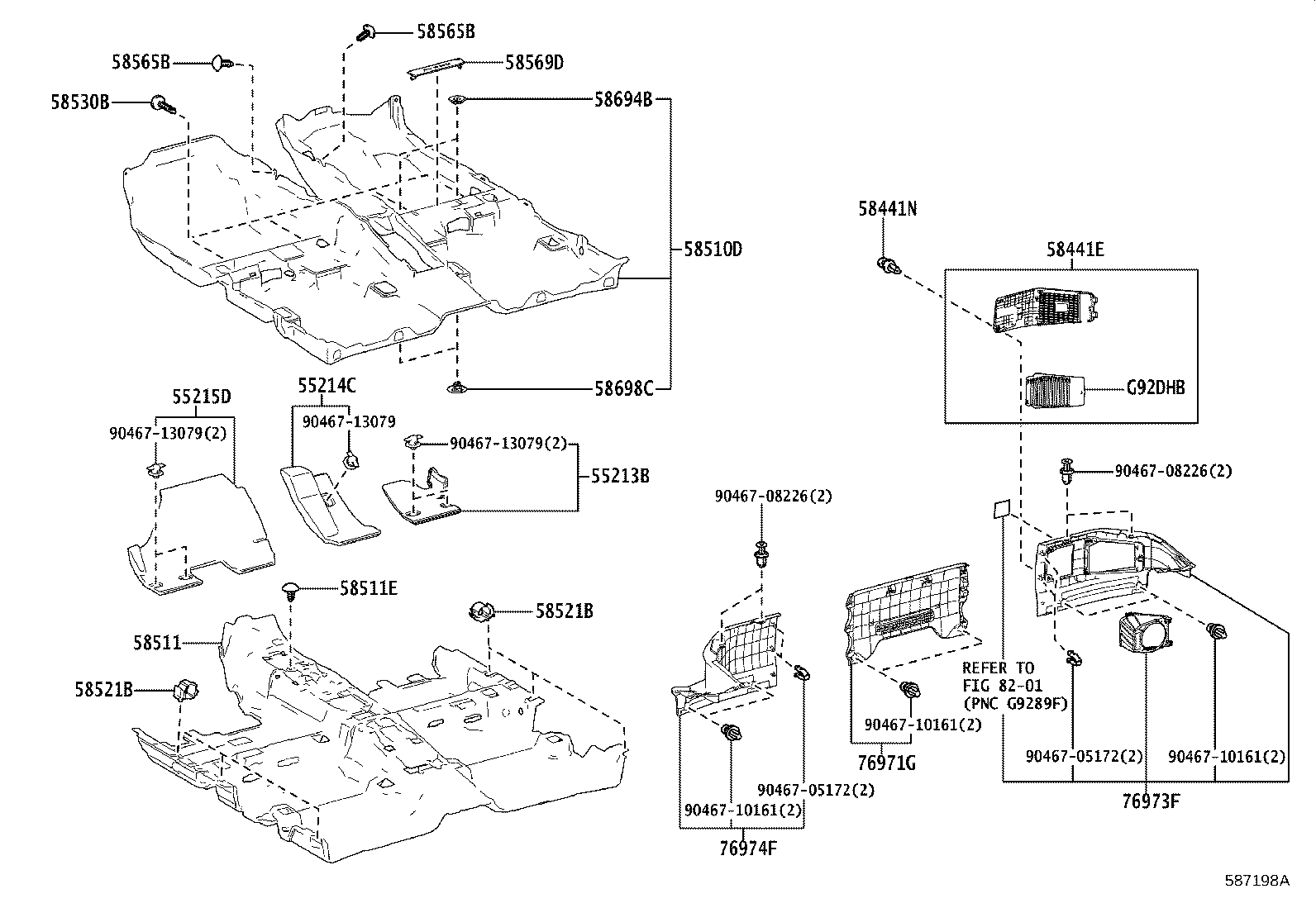

Click highlighted areas on diagram

diagram 55213B 55214C 55215D 58441E 58441N 58510D 58511 58511E 58521B 58521B 58530B 58565B 58565B 58569D 58694B 58698C 76971G 76973F 76974F 8201 9046705172 9046705172 9046708226 9046708226 9046710161 9046710161 9046710161 9046713079 9046713079 9046713079 G92DHB
Part # Description Qty Price
55213B - PAD, DASH PANEL INSULATOR, NO.1
55213-47150

MZEA12,ZRE212,ZWE211..RHD

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-47070

MZEA12,ZRE212,ZWE211..RHD..CVT

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-47070

MZEA12,ZRE212,ZWE211..RHD

 1
58441E - COVER, BATTERY SERVICE HOLE
58441-12080C0

ZWE211

BLACK,TRIM0#,1#,2#

 1
58441N - CLIP(FOR BATTERY SERVICE HOLE COVER)
90467-06165C3

ZWE211

BLACK,TRIM0#,1#,2#

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-12N70C0

ZWE211..ARL

CENTRAL AMERICA 1 SPEC,BLACK,TRIM1#,2#

 1
58510-12N70C0

ZWE211..ARL

CENTRAL AMERICA 2 SPEC,BLACK,TRIM1#,2#

 1
58510-12R20C0

ZWE211..ARL

BLACK,TRIM0#,1#,2#

 1
58511 - MAT, FLOOR, FRONT
58511-12760

ZWE211

 1
58511E - CLIP(FOR FRONT FLOOR MAT)
90467-07042C4

MZEA12,ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 1
58521B - HOOK, FLOOR CARPET
58521-33060

MZEA12,ZRE212,ZWE211

 6
58521B - HOOK, FLOOR CARPET
58521-33060

MZEA12,ZRE212,ZWE211

 6
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-0704923

MZEA12,ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 4
58565B - CLIP
90467-05164C7

MZEA12,ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 2
58565B - CLIP
90467-05164C7

MZEA12,ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 2
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-47020C1

MZEA12,ZRE212,ZWE211..L

BLACK,TRIM0#,1#,2#

 1
58694B - PLATE, MAT SET, UPPER
58694-78010

MZEA12,ZRE212,ZWE211

 2
58698C - PLATE, MAT SET, LOWER
58698-78010

MZEA12,ZRE212,ZWE211

 2
76971G - COVER, REAR UNDER
76971-47010C1

ZWE211..ARL

BLACK,TRIM0#,1#,2#

 1
76973F - COVER, REAR UNDER SIDE, RH
76973-12020C0

ZWE211

BLACK,TRIM0#,1#,2#

 1
76974F - COVER, REAR UNDER SIDE, LH
76974-12020C0

ZWE211

BLACK,TRIM0#,1#,2#

 1
G92DHB - FILTER, HV BATTERY INTAKE, NO.1
G92DH-12050

ZWE211

 1
Common parts
90467-05172
90467-08226
90467-10161
90467-13079
Linked diagrams
8201
