ZWE211R-AEXLBQ (2019)

Toyota Corolla Sed (Jpp)

Production Sep 2019 - Apr 2020
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1909- )RHD

Click highlighted areas on diagram

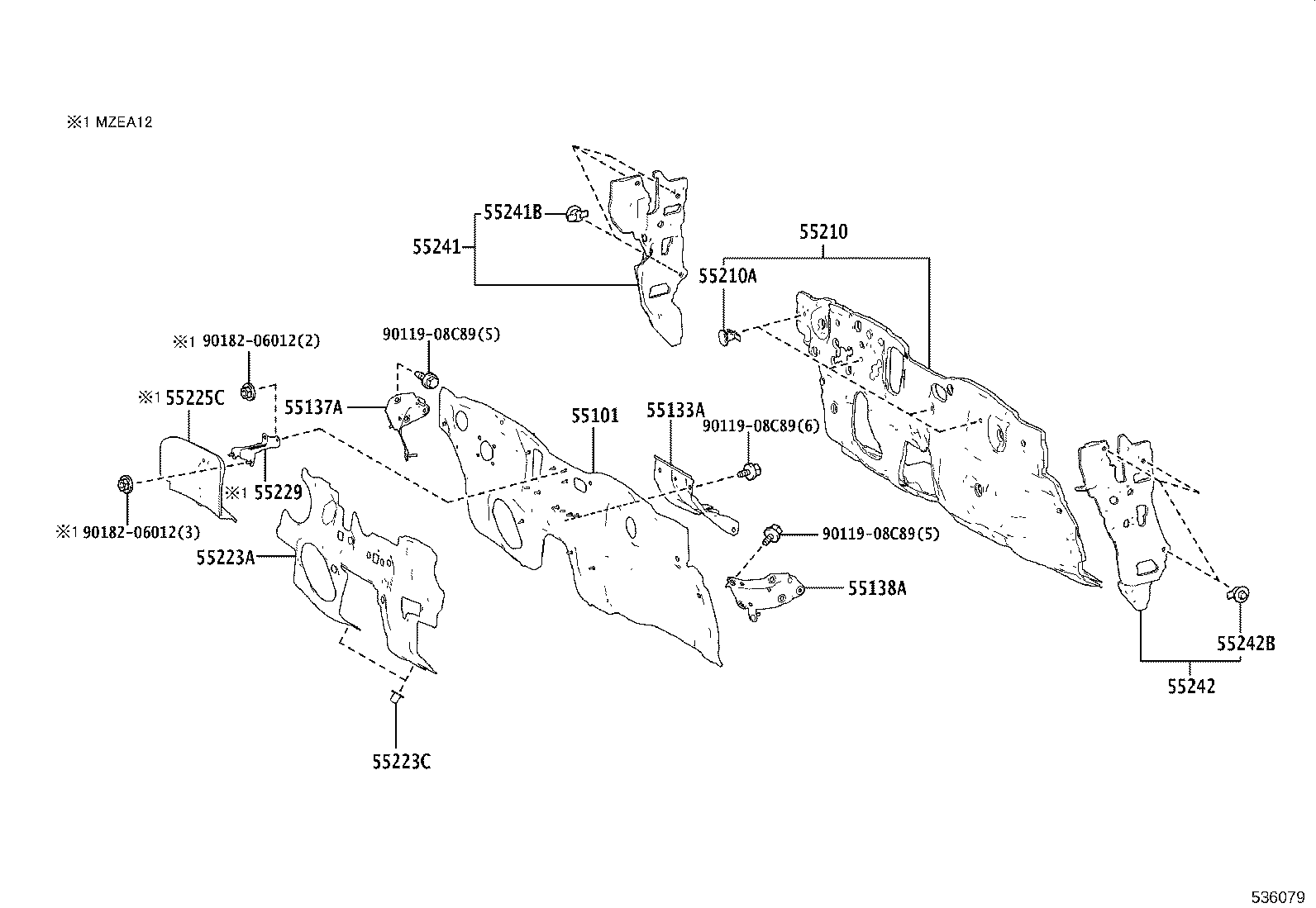

DASH PANEL

diagram 55101 55133A 55137A 55138A 55210 55210A 55223A 55223C 55225C 55229 55241 55241B 55242 55242B 9011908C89 9011908C89 9011908C89 9018206012 9018206012
Part # Description Qty Price
55101 - PANEL SUB-ASSY, DASH
55101-10A01

MZEA12,ZRE212,ZWE211..RHD..CVT

 1
55133A - REINFORCEMENT, DASH TO FLOOR, RH
55133-47010

MZEA12,ZRE212,ZWE211

 1
55137A - BRACE, DASH TO FRAME, RH
55137-47040

MZEA12,ZRE212,ZWE211

 1
55138A - BRACE, DASH TO FRAME, LH
55138-47070

MZEA12,ZRE212,ZWE211

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-12700

MZEA12,ZWE211..ARL

 1
55210A - CLIP
90467-11122

MZEA12,ZRE212,ZWE211

 4
55223A - INSULATOR, DASH PANEL, OUTER
55223-47100

MZEA12,ZRE212,ZWE211..RHD

 1
55223C - CLIP
90467-06197

MZEA12,ZRE212,ZWE211

 2
55241 - SILENCER, FRONT PANEL SIDE, NO.1 RH
55241-12030

MZEA12,ZRE212,ZWE211

 1
55241B - CLIP, FRONT PANEL SIDE SILENCER
90467-13079

MZEA12,ZRE212,ZWE211

 3
55242 - SILENCER, FRONT PANEL SIDE, NO.1 LH
55242-12010

MZEA12,ZRE212,ZWE211

 1
55242B - CLIP, FRONT PANEL SIDE SILENCER
90467-13079

MZEA12,ZRE212,ZWE211

 3
Common parts
90119-08C89
90182-06012
