ZWE211R-AEXLBQ (2019)

Toyota Corolla Sed (Jpp)

Production Sep 2019 - Apr 2020
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1909-2004)ZWE211..ARL ; (2004- )ZWE211

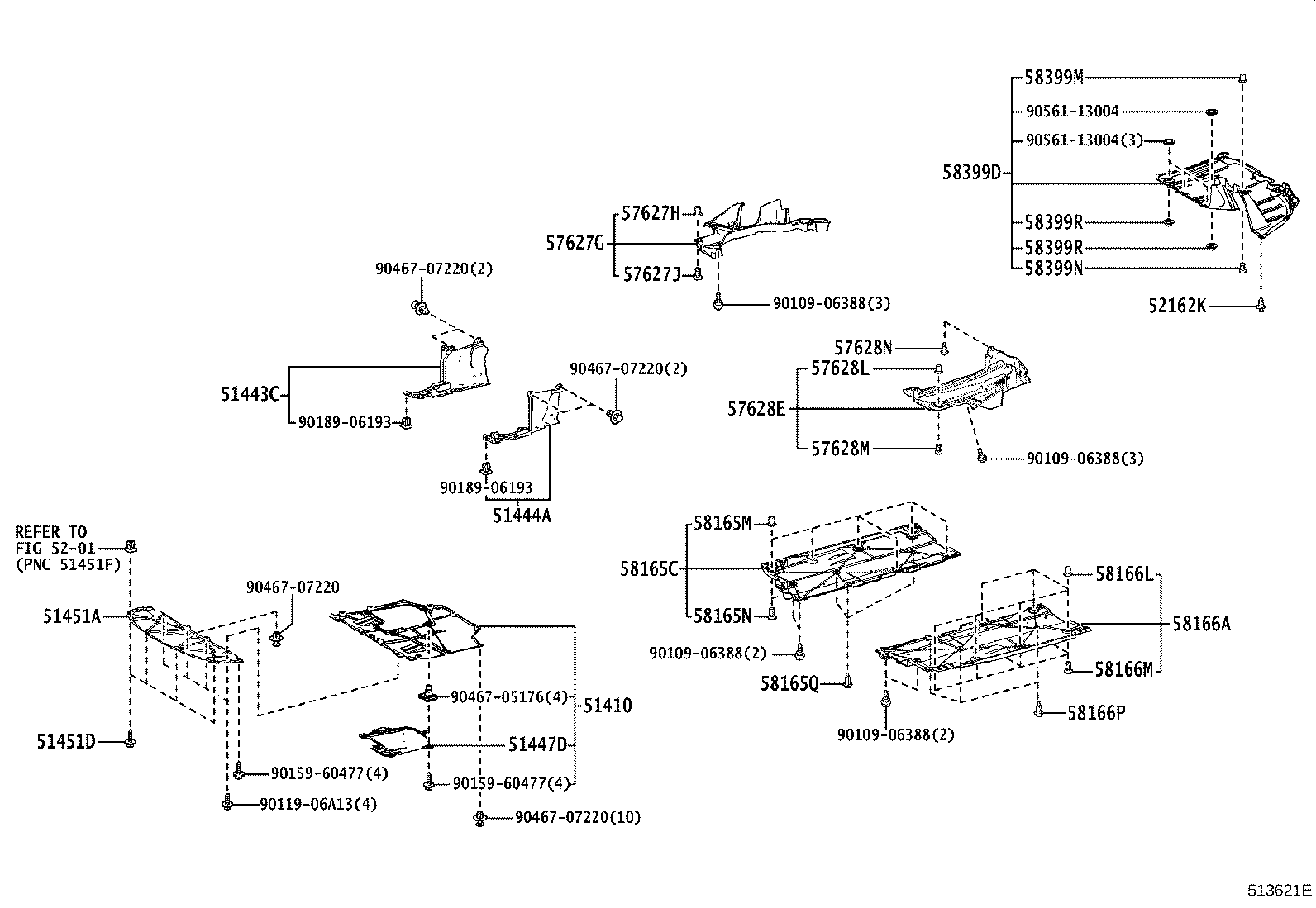

Click highlighted areas on diagram

UNDER COVER

diagram 51410 51443C 51444A 51447D 51451A 51451D 5201 52162K 57627G 57627H 57627J 57628E 57628L 57628M 57628N 58165C 58165M 58165N 58165Q 58166A 58166L 58166M 58166P 58399D 58399M 58399N 58399R 58399R 9010906388 9010906388 9010906388 9010906388 9011906A13 9015960477 9015960477 9018906193 9018906193 9046705176 9046707220 9046707220 9046707220 9046707220 9056113004 9056113004
Part # Description Qty Price
51410 - COVER ASSY, ENGINE UNDER, NO.1
51410-12181

MZEA12,ZRE212,ZWE211

 1
51443C - COVER, ENGINE UNDER, REAR RH
51443-12110

MZEA12,ZRE212,ZWE211

 1
51444A - COVER, ENGINE UNDER, REAR LH
51444-12080

MZEA12,ZRE212,ZWE211..CVT

 1
51447D - COVER, ENGINE UNDER, NO.4 CENTER
51447-12121

MZEA12,ZRE212,ZWE211

 1
51451A - COVER, ENGINE UNDER, CENTER
51451-12120

MZEA12,ZRE212,ZWE211

 1
51451D - SCREW, NO.1
90159-60477

MZEA12,ZRE212,ZWE211

 4
52162K - PIECE, REAR BUMPER
52161-16010

MZEA12,ZRE212,ZWE211

 5
57627G - COVER, REAR FLOOR SIDE MEMBER, RH
58390-12010

ZWE211

 1
57627H - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1
90467-17026A0

ZWE211

SUPER WHITE 2

 1
57627J - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.2
90467-17027C0

ZWE211

BLACK

 1
57628E - COVER, REAR FLOOR SIDE MEMBER, LH
57628-12160

ZWE211..ARL

 1
57628L - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.1
90467-17026A0

ZWE211

SUPER WHITE 2

 1
57628M - CLIP, REAR FLOOR SIDE MEMBER COVER, NO.2
90467-17027C0

ZWE211

BLACK

 1
57628N - CLIP, REAR FLOOR SIDE MEMBER COVER
90467-07220

ZWE211

 1
58165C - COVER, FRONT FLOOR, RH
58165-12210

ZWE211

 1
58165M - CLIP, FRONT FLOOR COVER, NO.1
90467-17026A0

ZWE211

SUPER WHITE 2

 6
58165N - CLIP, FRONT FLOOR COVER, NO.2
90467-17027C0

ZWE211

BLACK

 6
58165Q - CLIP, FRONT FLOOR COVER
90467-07220

ZWE211

 3
58166A - COVER, FRONT FLOOR, LH
58166-12040

ZWE211

 1
58166L - CLIP, FRONT FLOOR COVER, NO.1
90467-17026A0

ZWE211

SUPER WHITE 2

 6
58166M - CLIP, FRONT FLOOR COVER, NO.2
90467-17027C0

ZWE211

BLACK

 6
58166P - CLIP, FRONT FLOOR COVER
90467-07220

ZWE211

 3
58399D - COVER, FLOOR UNDER, NO.2
58399-12050

MZEA12,ZRE212,ZWE211

 1
58399M - CLIP, FLOOR UNDER COVER, NO.1
90467-17026A0

MZEA12,ZRE212,ZWE211

SUPER WHITE 2

 1
58399N - CLIP, FLOOR UNDER COVER, NO.2
90467-17027C0

MZEA12,ZRE212,ZWE211

BLACK

 1
58399R - CLIP, FLOOR UNDER COVER, NO.3
90467-14053

MZEA12,ZRE212,ZWE211

 4
90467-14054

MZEA12,ZRE212,ZWE211

 4
58399R - CLIP, FLOOR UNDER COVER, NO.3
90467-14053

MZEA12,ZRE212,ZWE211

 4
90467-14054

MZEA12,ZRE212,ZWE211

 4
Common parts
90109-06388
90119-06A13
90159-60477
90189-06193
90467-05176
90467-07220
90561-13004
Linked diagrams
5201
