ZWE211R-AEXLBQ (2019)
Toyota Corolla Sed (Jpp)

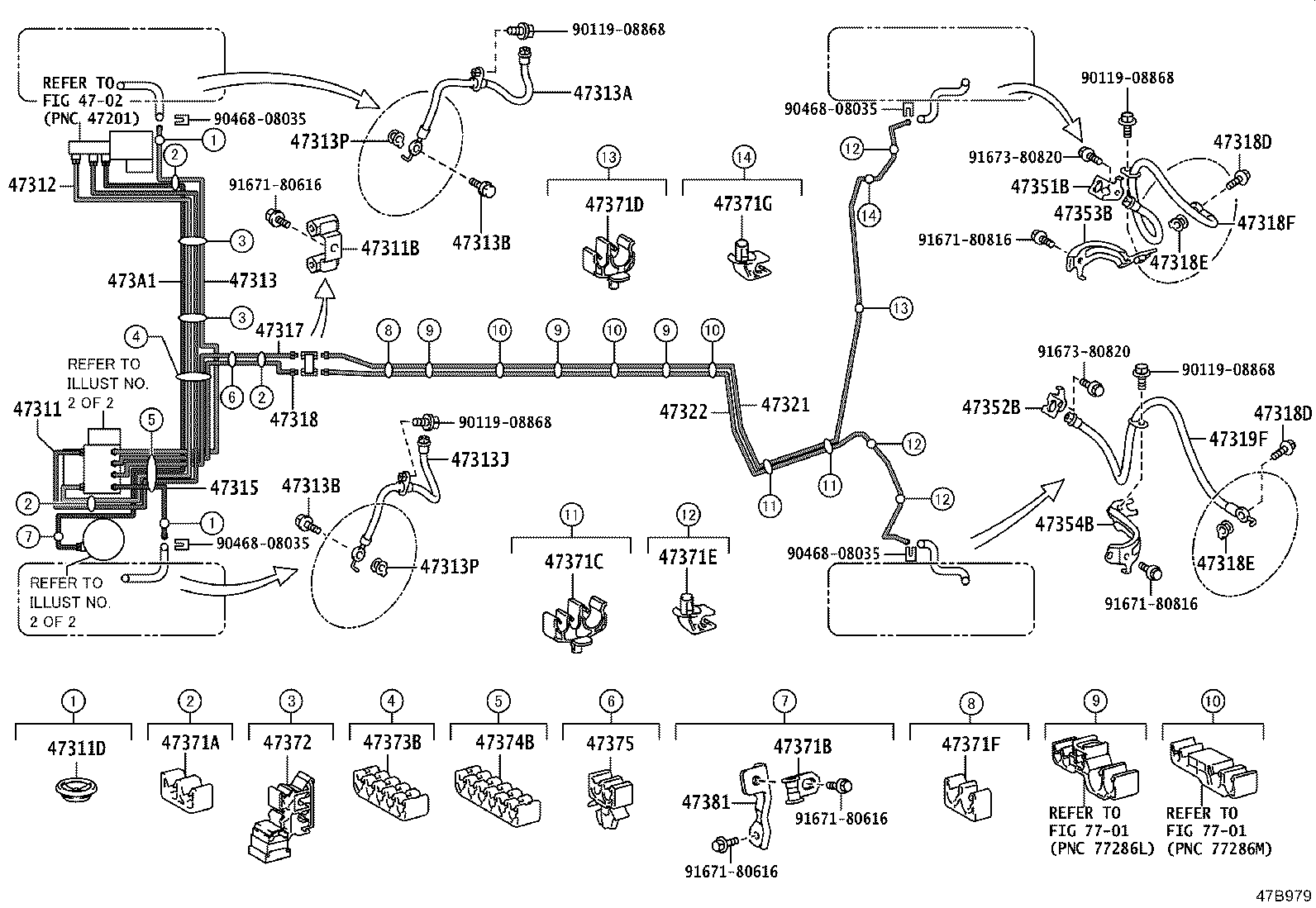

ILLUST NO. 1 OF 2(1909- )ZWE211..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12C90 |
ZWE211..ARL |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10285 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 47311D - GROMMET(FOR FRONT BRAKE TUBE) | ||||
| 90480-25037 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-12820 |
ZWE211..ARL |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12A70 |
ZWE211..ARL |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02H46 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02H47 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50021 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12660 |
ZWE211..ARL |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12640 |
ZWE211..ARL |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12770 |
ZWE211..ARL |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50021 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02H95 |
ZWE211;MZEA12,ZRE212..RHD |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02H98 |
ZWE211;MZEA12,ZRE212..RHD |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12470 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12640 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-47030 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-47030 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47351-12270 |
ZWE211;MZEA12,ZRE212..RHD |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47352-12240 |
ZWE211;MZEA12,ZRE212..RHD |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01D91 |
ZWE211..ARL |
3 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90461-10854 |
ZWE211 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 77286-12230 |
MZEA12,ZRE212,ZWE211..ARL,GEN |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 77285-12170 |
MZEA12,ZRE212,ZWE211..ARL,GEN |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 90949-01E10 |
MZEA12,ZRE212,ZWE211 |
3 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 90464-00904 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 47371G - CLAMP, BRAKE TUBE, NO.11 | ||||
| 90949-01E10 |
MZEA12,ZRE212,ZWE211..ARL,GEN |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01E49 |
ZWE211..ARL |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01E15 |
ZWE211..ARL |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01E17 |
ZWE211..ARL |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01E34 |
ZWE211..ARL |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-47060 |
ZWE211..ARL |
1 | ||
| 473A1 - TUBE, ACCUMULATOR TO BRAKE MASTER CYLINDER | ||||
| 473A1-12010 |
ZWE211..ARL |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90468-08035 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||

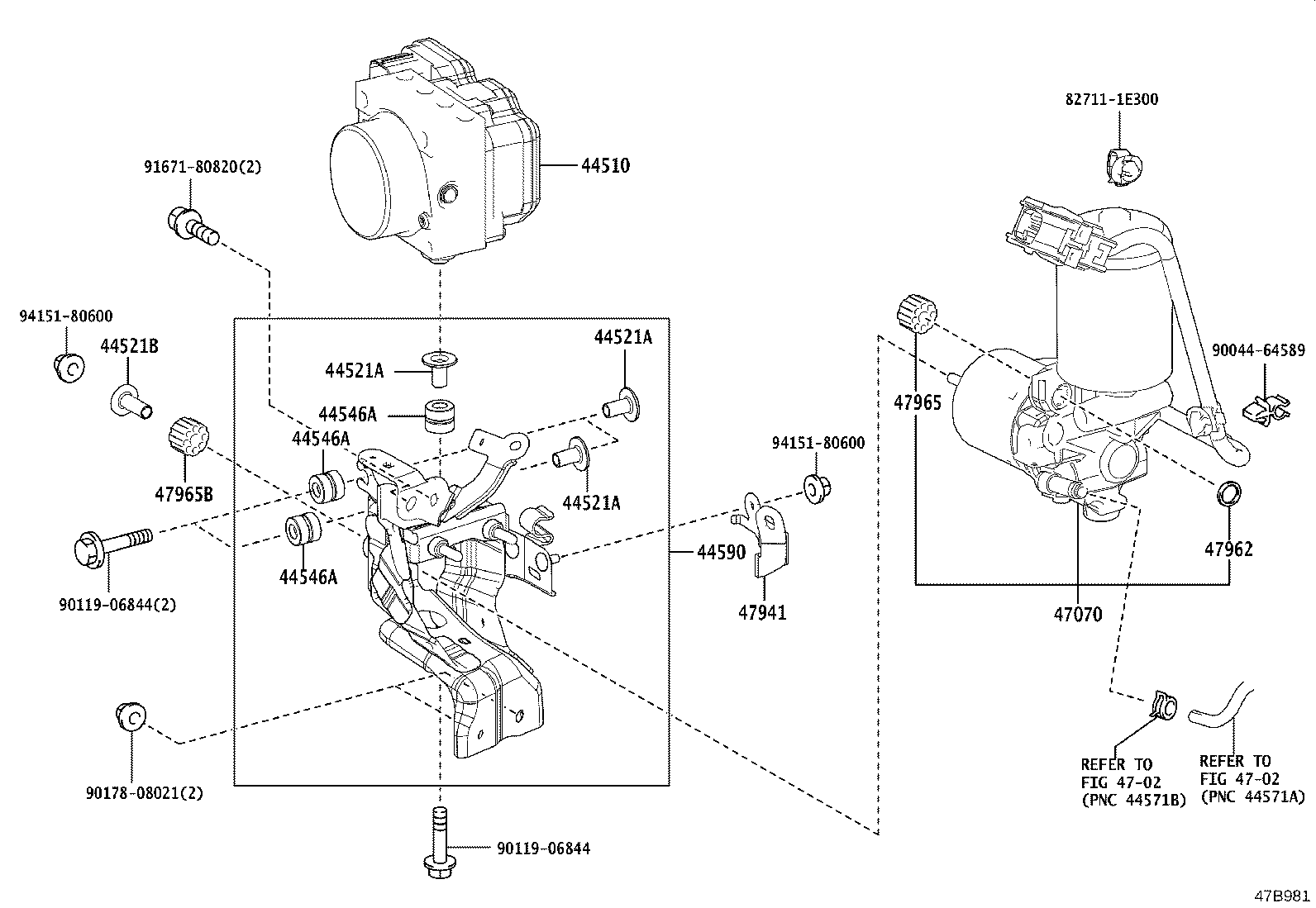

ILLUST NO. 2 OF 2(1909- )ZWE211..ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-12G10 |
ZWE211 |
1 | ||
| 44050-12D90 |
ZWE211 |
1 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
ZWE211 |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
ZWE211 |
3 | ||
| 44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1 | ||||
| 44521-12050 |
ZWE211 |
3 | ||
| 44521B - COLLAR, BRAKE ACTUATOR CASE, NO.2 | ||||
| 44521-47010 |
ZWE211 |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
ZWE211 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
ZWE211 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12120 |
ZWE211 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-47082 |
ZWE211..ARL |
1 | ||
| 47070 - PUMP ASSY, BRAKE BOOSTER | ||||
| 47070-47100 |
ZWE211..ARL |
1 | ||
| 47941 - BRACKET, BRAKE POWER SUPPLY, NO.1 | ||||
| 47941-47020 |
ZWE211..ARL |
1 | ||
| 47962 - COLLAR, BRAKE BOOSTER PUMP | ||||
| 47962-60090 |
ZWE211 |
2 | ||
| 47965 - BUSH, BRAKE BOOSTER PUMP | ||||
| 47965-30010 |
ZWE211 |
2 | ||
| 47965B - BUSH, BRAKE BOOSTER PUMP, NO.2 | ||||
| 47965-30010 |
ZWE211 |
1 | ||
| Common parts | ||||
| 82711-1E300 | ||||
| 90044-64589 | ||||
| 90119-06844 | ||||
| 90178-08021 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4702 | ||||
