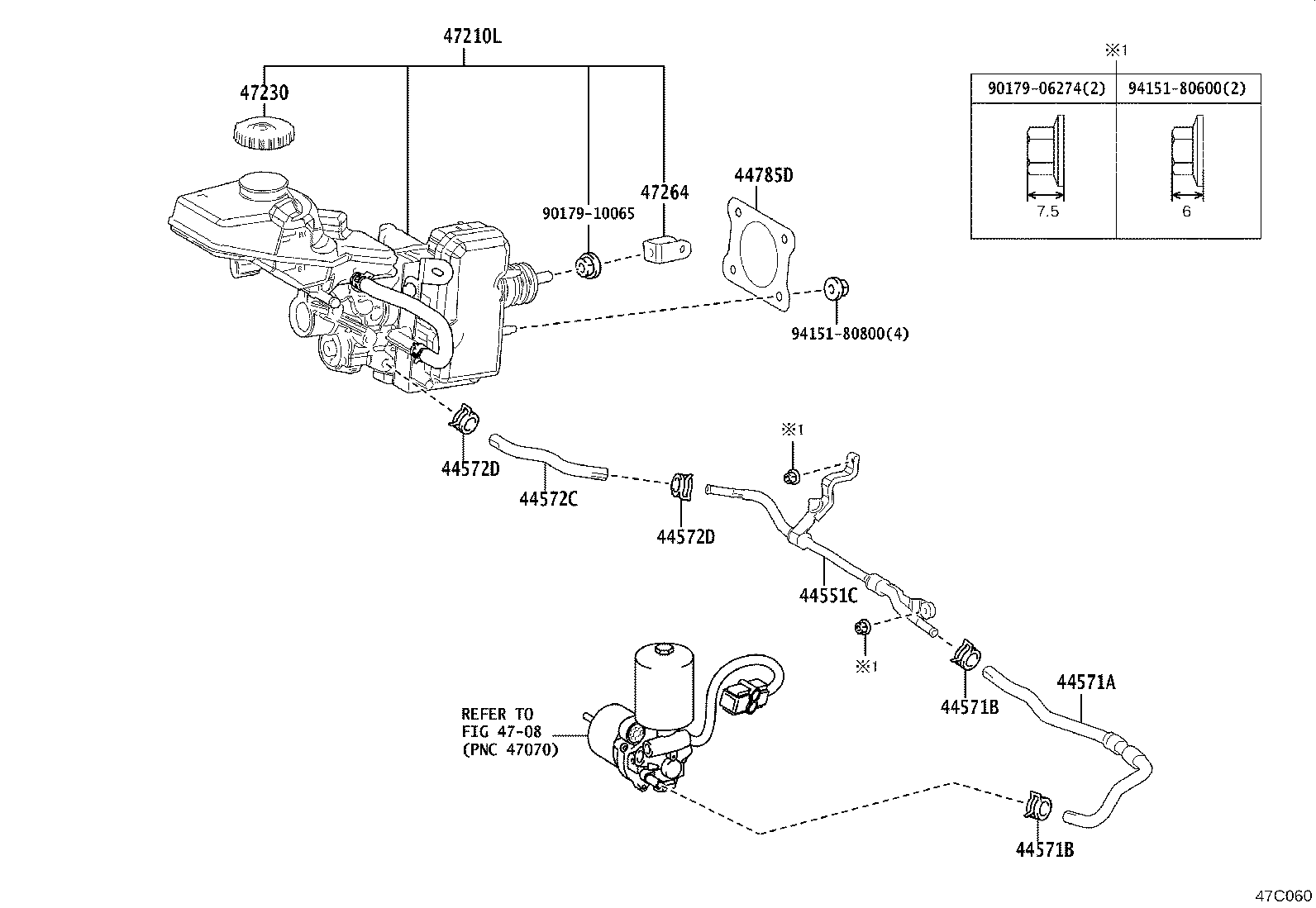

Toyota Corolla sed (jpp) ZWE211 BRAKE MASTER CYLINDER

Part #	Description	Period	Qty
44551C - TUBE, BRAKE ACTUATOR, NO.1
44551-47060	ZWE211..ARL	09/2019 - 04/2020	1
44571A - HOSE, BRAKE ACTUATOR, NO.1
44571-47080	ZWE211..ARL	09/2019 - 04/2020	1
44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)
96137-41501	ZWE211	01/2019 - 04/2020	2
44571B - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.1)
96137-41501	ZWE211	01/2019 - 04/2020	2
44572C - HOSE, BRAKE ACTUATOR, NO.2
44572-47060	ZWE211..ARL	09/2019 - 04/2020	1
44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)
96137-41501	ZWE211	01/2019 - 04/2020	2
44572D - CLIP, HOSE(FOR BRAKE ACTUATOR HOSE NO.2)
96137-41501	ZWE211	01/2019 - 04/2020	2
47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER
47050-12C80	ZWE211..ARL	09/2019 - 04/2020	1
47050-12D00	ZWE211..ARL CENTRAL AMERICA 1 SPEC	09/2019 - 04/2020	1
47050-12D00	ZWE211..ARL CENTRAL AMERICA 2 SPEC	09/2019 - 04/2020	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-47090	ZWE211	01/2019 - 02/2020	1
47230-33330	ZWE211	02/2020 - 04/2020	1
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-47010	ZWE211	01/2019 - 04/2020	1
Common parts
90179-06274
90179-10065
94151-80600
94151-80800
Linked diagrams
4708

ZWE211R-AEXLBQ (2019)
