ZWE211L-AEXLBJ (2019)
Toyota Corolla Sed (Jpp)
(1901- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-12420 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-12960 |
MZEA12,ZRE212,ZWE211 PAINT REQ. |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-12050 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,ZRE212,ZWE211 |
6 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,ZRE212,ZWE211 |
6 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,ZRE212,ZWE211 |
6 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,ZRE212,ZWE211 |
6 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,ZRE212,ZWE211 |
6 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-16010 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-12150 |
MZEA12,ZRE212,ZWE211 NO PAINT REQ. |
1 | ||
| 52171C - REINFORCEMENT, REAR BUMPER | ||||
| 52171-12270 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 52182 - ARM, REAR BUMPER, LH | ||||
| 52182-12460 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 52188B - SPACER, REAR BUMPER MOUNTING | ||||
| 52188-33040 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 52188B - SPACER, REAR BUMPER MOUNTING | ||||
| 52188-33040 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 52461F - PAD, REAR BUMPER | ||||
| 52461-12040 |
MZEA12,ZRE212,ZWE211 |
3 | ||
| 52462B - PAD, REAR BUMPER | ||||
| 52462-12140 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 52462B - PAD, REAR BUMPER | ||||
| 52462-12140 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 52562A - RETAINER, REAR BUMPER FILLER, NO.2 | ||||
| 52562-12230 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 52563 - RETAINER, REAR BUMPER FILLER, NO.3 | ||||
| 52563-12230 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-12210 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 52575C - CLIP, REAR BUMPER SIDE RETAINER | ||||
| 90467-05170 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 52575C - CLIP, REAR BUMPER SIDE RETAINER | ||||
| 90467-05170 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-12210 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-12300 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 52591C - CLIP, REAR BUMPER SIDE SEAL | ||||
| 90467-06206C0 |
MZEA12,ZRE212,ZWE211 BLACK |
2 | ||
| 52591C - CLIP, REAR BUMPER SIDE SEAL | ||||
| 90467-06206C0 |
MZEA12,ZRE212,ZWE211 BLACK |
2 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-12300 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 52754 - MOULDING, REAR BUMPER, NO.2 | ||||
| 52754-12902 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 90119-08C64 | ||||
| 90159-60621 | ||||
| 90167-50063 | ||||
| 90189-06228 | ||||
| 91674-A1028 | ||||

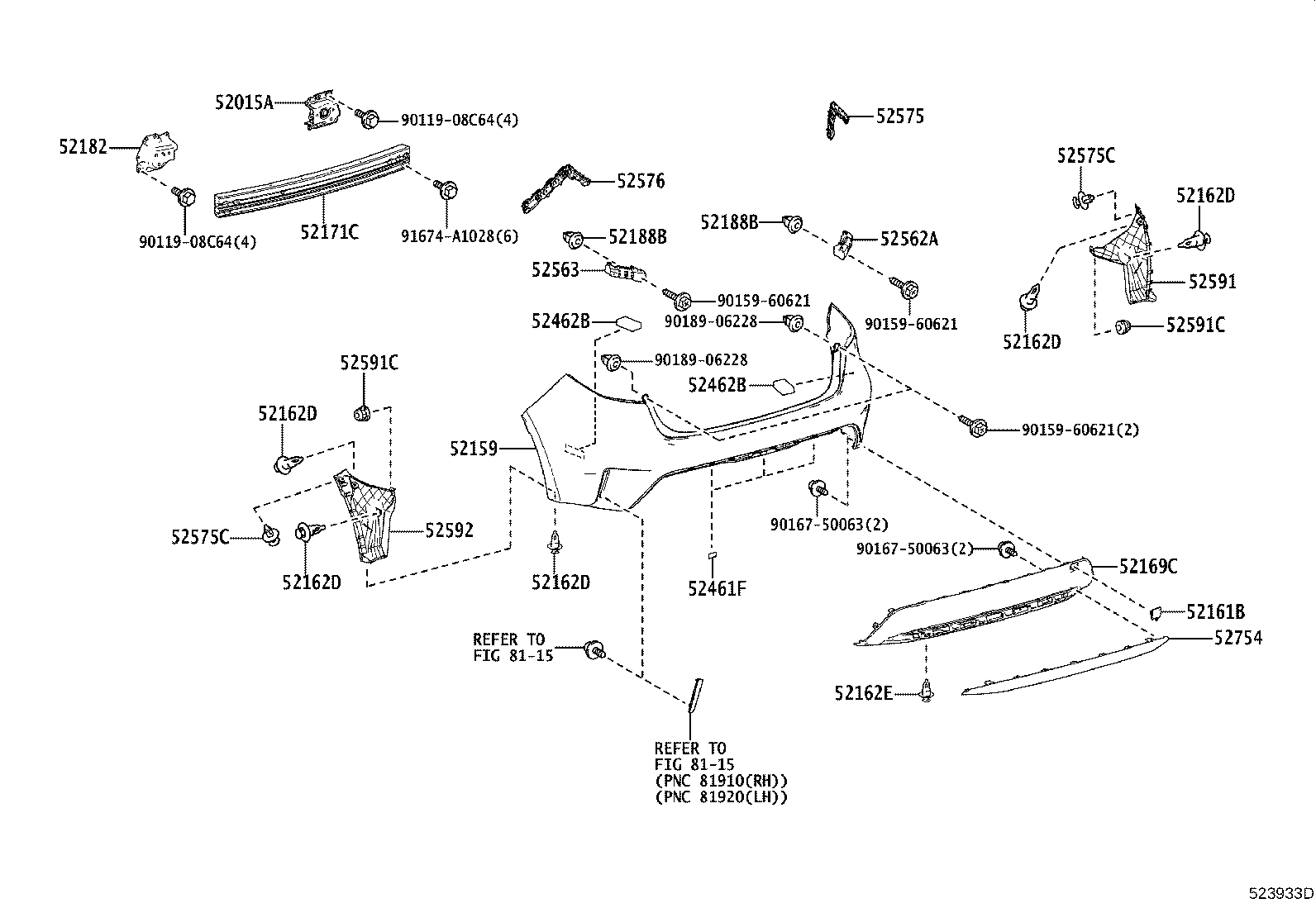

| Linked diagrams | ||||
| 8115 | ||||
