ZWE211L-AEXLBJ (2019)
Toyota Corolla Sed (Jpp)
(1901- )MXC ; (1909- )RHD

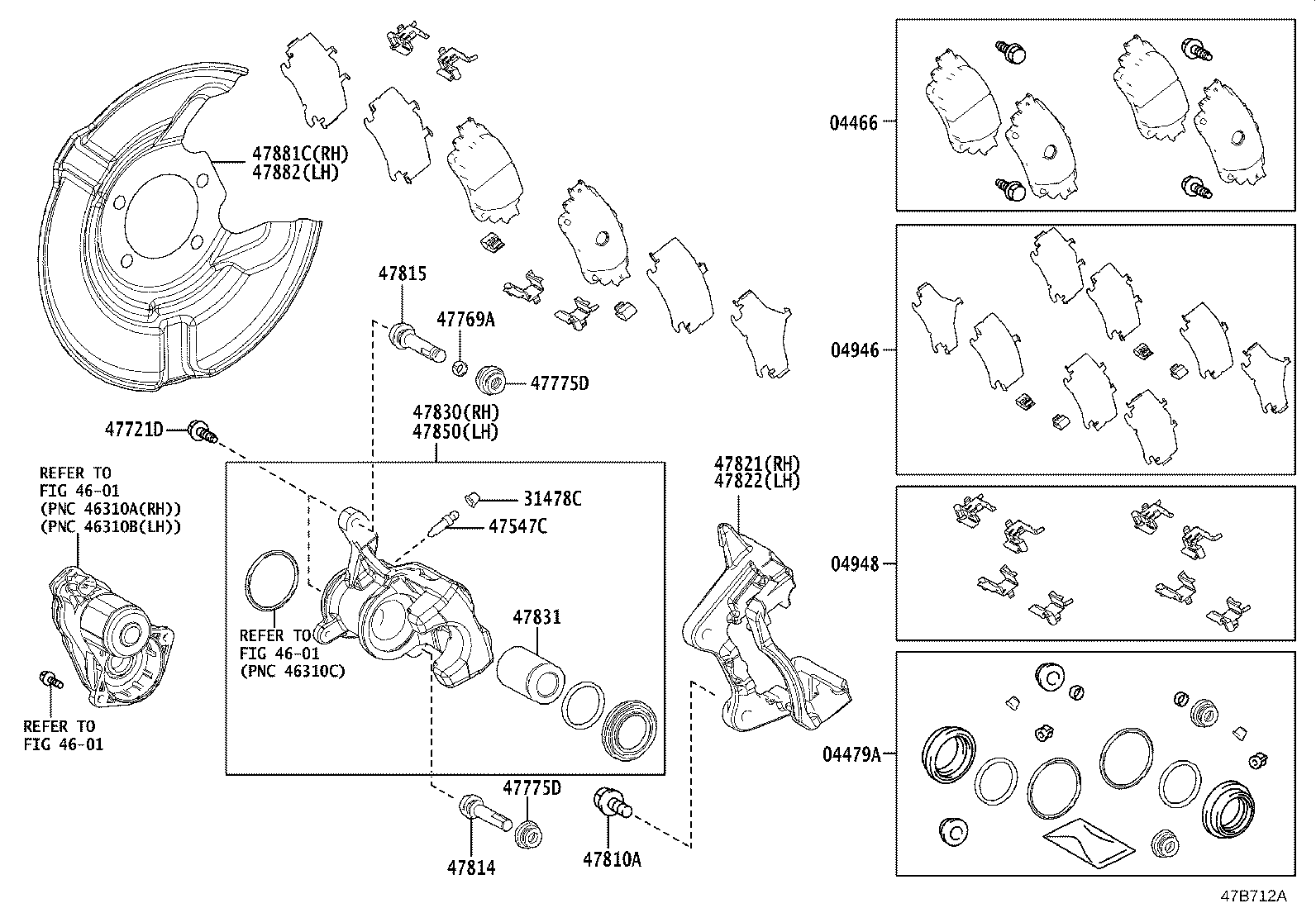

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04466 - PAD KIT, DISC BRAKE, REAR | ||||
| 04466-12162 |
ZWE211;MZEA12,ZRE212..RHD MARK NBK D6360-FF |
1 | ||
| 04479A - CYLINDER KIT, DISC BRAKE, REAR | ||||
| 04479-10091 |
ZWE211;MZEA12,ZRE212..RHD |
1 | ||
| 04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE) | ||||
| 04946-12130 |
ZWE211;MZEA12,ZRE212..RHD |
1 | ||
| 04948 - FITTING KIT, DISC BRAKE, REAR | ||||
| 04948-12070 |
ZWE211 |
1 | ||
| 04948-12071 |
ZWE211;MZEA12,ZRE212..RHD |
1 | ||
| 31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE) | ||||
| 31478-30010 |
ZWE211;MZEA12,ZRE212..RHD |
2 | ||
| 47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE) | ||||
| 47547-20010 |
ZWE211;MZEA12,ZRE212..RHD |
2 | ||
| 47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90015-AA603 |
ZWE211;MZEA12,ZRE212..RHD *8-1.00PX23-12.5 |
4 | ||
| 47769A - BUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47769-50010 |
ZWE211;MZEA12,ZRE212..RHD |
2 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-33270 |
ZWE211;MZEA12,ZRE212..RHD |
4 | ||
| 47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE) | ||||
| 47875-33270 |
ZWE211;MZEA12,ZRE212..RHD |
4 | ||
| 47810A - BOLT, HEXAGON(FOR REAR CALIPER) | ||||
| 90105-12174 |
MZEA12,ZRE212,ZWE211 |
4 | ||
| 47814 - PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) | ||||
| 47814-78010 |
ZWE211;MZEA12,ZRE212..RHD |
2 | ||
| 47815 - PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE) | ||||
| 47815-78010 |
ZWE211;MZEA12,ZRE212..RHD |
2 | ||
| 47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH | ||||
| 47821-12280 |
ZWE211;MZEA12,ZRE212..RHD |
1 | ||
| 47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH | ||||
| 47822-12280 |
ZWE211;MZEA12,ZRE212..RHD |
1 | ||
| 47830 - CYLINDER ASSY, DISC BRAKE, REAR RH | ||||
| 47830-12280 |
ZWE211;MZEA12,ZRE212..RHD |
1 | ||
| 47831 - PISTON, REAR DISC BRAKE | ||||
| 47831-10030 |
ZWE211;MZEA12,ZRE212..RHD |
2 | ||
| 47850 - CYLINDER ASSY, DISC BRAKE, REAR LH | ||||
| 47850-12280 |
ZWE211;MZEA12,ZRE212..RHD |
1 | ||
| 47881C - COVER, DISC BRAKE DUST, REAR RH | ||||
| 47881-12130 |
ZWE211;MZEA12,ZRE212..RHD |
1 | ||
| 47882 - COVER, DISC BRAKE DUST, REAR LH | ||||
| 47882-12130 |
ZWE211;MZEA12,ZRE212..RHD |
1 | ||
| Linked diagrams | ||||
| 4601 | ||||
