ZRE212L-AEXLP (2019)
Toyota Corolla Sed (Jpp)
Production
Jan 2019
-
Apr 2020
Engine
2ZRFAE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1901-2004)ZRE212..LHD ; (2004- )ZRE212..LHD

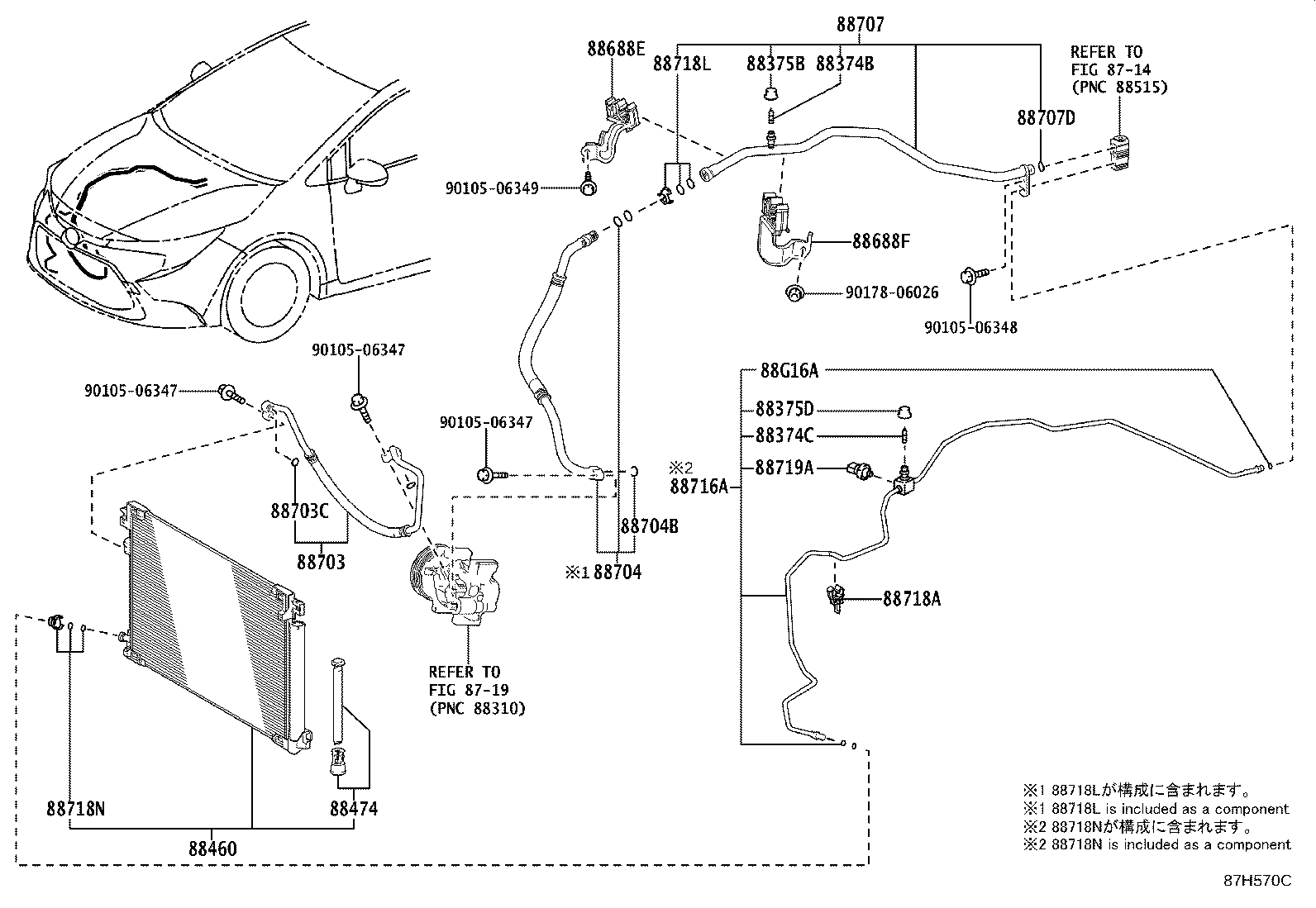

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 884A0-12040 |
ZRE212 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12020 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-12A20 |
MZEA12,ZRE212 |
1 | ||
| 88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88688-10560 |
MZEA12,ZRE212 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-12A80 |
ZRE212 |
1 | ||
| 88703C - RING, O(FOR DISCHARGE HOSE) | ||||
| 90099-14120 |
MZEA12,ZRE212,ZWE211 ID=10.8,OD=15.6 |
2 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-12B10 |
ZRE212..LHD |
1 | ||
| 88704B - RING, O(FOR SUCTION HOSE) | ||||
| 90099-14121 |
MZEA12,ZRE212,ZWE211 ID=13.4,OD=18.2 |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-12370 |
ZRE212..LHD |
1 | ||
| 88707D - RING, O(FOR SUCTION TUBE) | ||||
| 90099-14121 |
MZEA12,ZRE212,ZWE211 ID=13.4,OD=18.2 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-12B60 |
ZRE212..LHD |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-47110 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-52280 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 88718N - CLAMP, PIPING | ||||
| 88718-1E150 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-11010 |
ZWE211..MXC;MZEA12,ZRE212 |
1 | ||
| 88G16A - RING, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE) | ||||
| 90099-14119 |
MZEA12,ZRE212,ZWE211 ID=6.7,OD=10.3 |
1 | ||
| Common parts | ||||
| 90105-06347 | ||||
| 90105-06348 | ||||
| 90105-06349 | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
