ZRE212L-AEXDP (2019)

Toyota Corolla Sed (Jpp)

Production Jan 2019 - Apr 2020
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901-2004)ZRE212..CVT ; (2004- )ZRE212..CVT

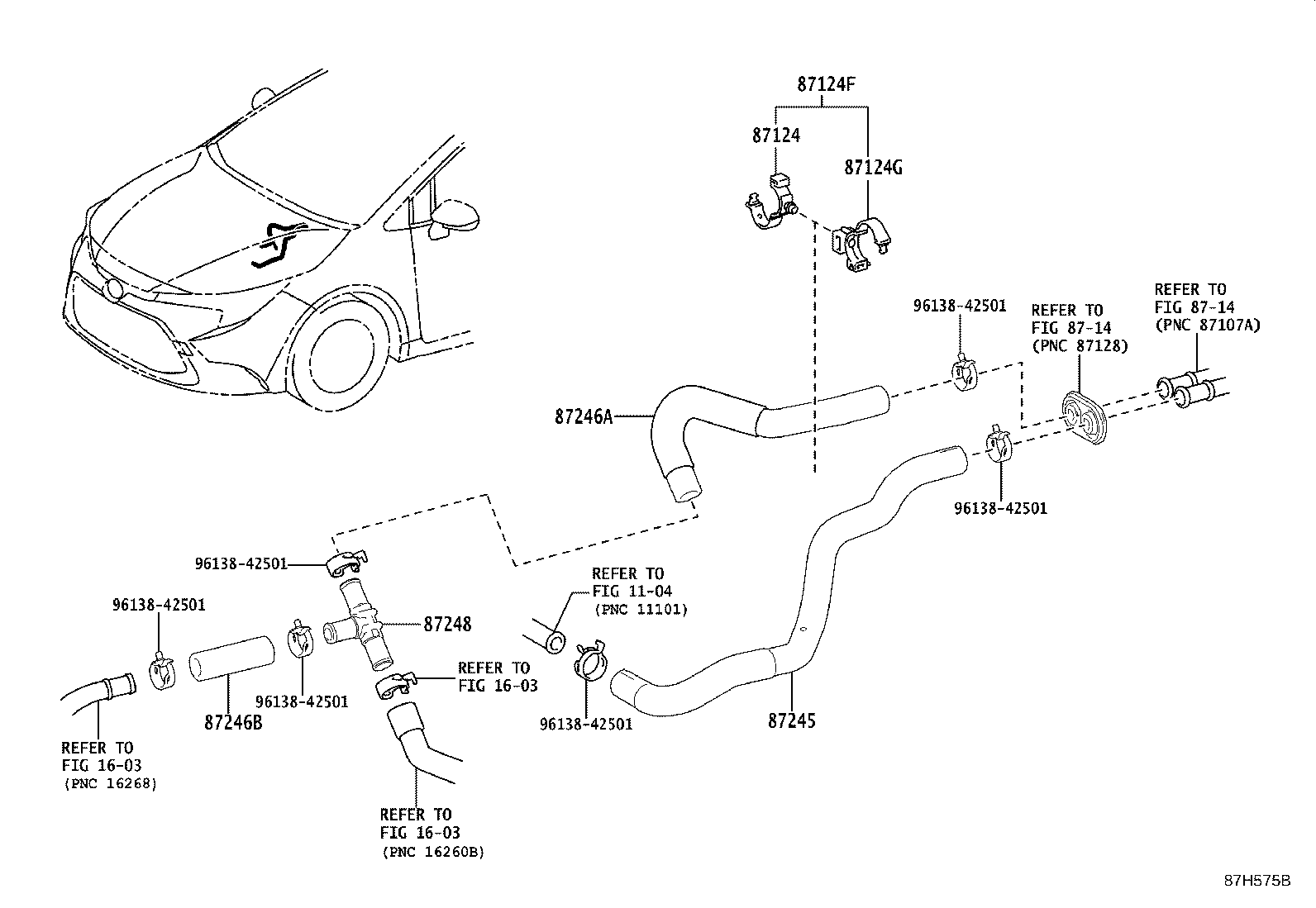

Click highlighted areas on diagram

diagram 1104 1603 1603 1603 87124 87124F 87124G 8714 8714 87245 87246A 87246B 87248 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501
Part # Description Qty Price
87124 - CLAMP, HEATER
87124-11030

ZRE212..CVT

 1
87124F - CLAMP, HEATER HOSE, NO.1
16581-70060

ZRE212..CVT

 1
87124G - CLAMP, HEATER HOSE, NO.2
87124-50060

ZRE212..CVT

 1
87245 - HOSE, HEATER WATER, INLET
87245-12D60

ZRE212..CVT

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-12G40

ZRE212..CVT

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-12G50

ZRE212..CVT

L=58.5

 1
87248 - PIPE SUB-ASSY, WATER
87248-12330

ZRE212..CVT

 1
Common parts
96138-42501
Linked diagrams
1104
1603
8714
