ZRE212L-AEXDP (2019)
Toyota Corolla Sed (Jpp)
ILLUST NO. 3 OF 3(1901- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

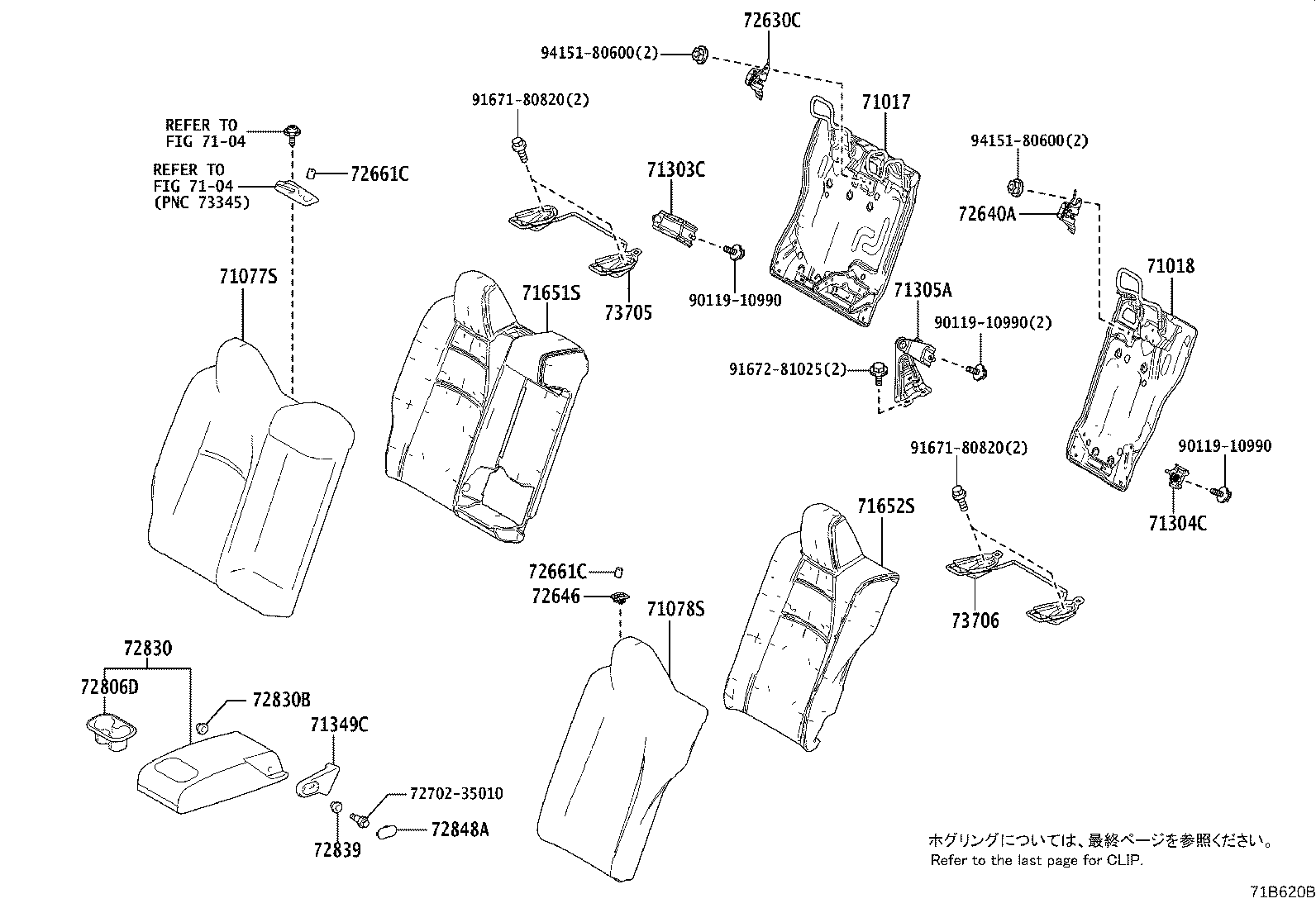

ILLUST NO. 1 OF 3(1901- )ZRE212..D
SEAT BACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-12B60 |
ZRE212..D |
1 | ||
| 71017-12B70 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER |
1 | ||
| 71017-12B50 |
ZRE212..L;MZEA12,ZWE211..ARL |
1 | ||
| 71017-12B70 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71017-12B70 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-12490 |
MZEA12,ZRE212,ZWE211..ARL,GEN |
1 | ||
| 71018-12510 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER |
1 | ||
| 71018-12510 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71018-12510 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-12T40C4 |
ZRE212..D DK. GRAY,TRIM2# |
1 | ||
| 71077-12X30C4 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
1 | ||
| 71077-12T50C5 |
ZRE212..L;MZEA12,ZWE211..ARL BALCK,TRIM2# |
1 | ||
| 71077-12T50E3 |
ZRE212..L FROMAGE,TRIM0# |
1 | ||
| 71077-12T50B4 |
ZRE212..L;MZEA12,ZWE211..ARL LT. GRAY,TRIM1# |
1 | ||
| 71077-12X30J3 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLUE,TRIM21 |
1 | ||
| 71077-12X30C4 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
1 | ||
| 71077-12X30C4 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLACK,TRIM20 |
1 | ||
| 71077-12X30J3 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
1 | ||
| 71077-12T40B3 |
ZRE212..D LT. GRAY,TRIM1# |
1 | ||
| 71077-12X30J3 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-12P10B3 |
ZRE212..D LT. GRAY,TRIM1# |
1 | ||
| 71078-12P20E2 |
ZRE212..L FROMAGE,TRIM0# |
1 | ||
| 71078-12P20C4 |
ZRE212..L;MZEA12,ZWE211..ARL BALCK,TRIM2# |
1 | ||
| 71078-12P10C4 |
ZRE212..D DK. GRAY,TRIM2# |
1 | ||
| 71078-12R90C4 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLACK,TRIM20 |
1 | ||
| 71078-12R90J3 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
1 | ||
| 71078-12R90C4 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
1 | ||
| 71078-12P20B3 |
ZRE212..L;MZEA12,ZWE211..ARL LT. GRAY,TRIM1# |
1 | ||
| 71078-12R90J3 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLUE,TRIM21 |
1 | ||
| 71078-12R90C4 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
1 | ||
| 71078-12R90J3 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-12200 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-12070 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12250 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-12B50 |
ZRE212..D |
1 | ||
| 71651-12B10 |
ZRE212..L;MZEA12,ZWE211..ARL |
1 | ||
| 71651-12B60 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER |
1 | ||
| 71651-12B60 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71651-12B60 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-12870 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER |
1 | ||
| 71652-12870 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71652-12860 |
MZEA12,ZRE212,ZWE211..ARL,GEN |
1 | ||
| 71652-12870 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-12380 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-12350 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-12100C0 |
MZEA12,ZRE212,ZWE211..L..(ARL,GEN) BLACK,TRIM0#,1#,2# |
1 | ||
| 72646-12100C0 |
MZEA12,ZRE212..D BLACK,TRIM1#,2# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-35010C1 |
MZEA12,ZRE212,ZWE211..L..(ARL,GEN) BLACK,TRIM0#,1#,2# |
2 | ||
| 72661-35010C1 |
MZEA12,ZRE212..D BLACK,TRIM1#,2# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-35010C1 |
MZEA12,ZRE212,ZWE211..L..(ARL,GEN) BLACK,TRIM0#,1#,2# |
2 | ||
| 72661-35010C1 |
MZEA12,ZRE212..D BLACK,TRIM1#,2# |
2 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-12170 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73705-12180 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 90119-10990 | ||||
| 91671-80820 | ||||
| 91672-81025 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 7104 | ||||

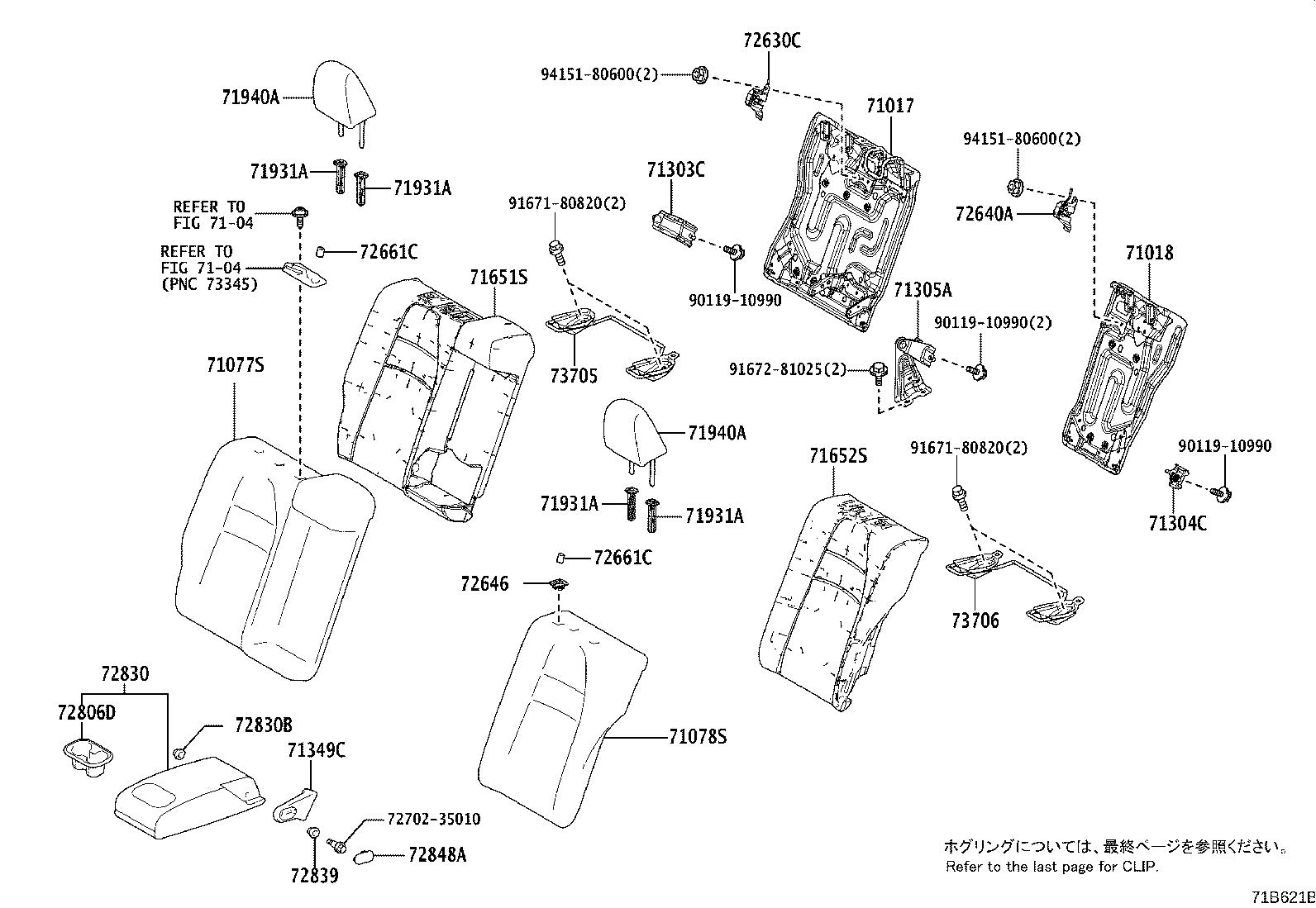

ILLUST NO. 1 OF 3(1901- )ARL ; (1901- )ZRE212..LHD..L ; (1901- )ZRE212..RHD..D
SEAT BACK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-12B60 |
ZRE212..D |
1 | ||
| 71017-12B70 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER |
1 | ||
| 71017-12B50 |
ZRE212..L;MZEA12,ZWE211..ARL |
1 | ||
| 71017-12B70 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71017-12B70 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-12490 |
MZEA12,ZRE212,ZWE211..ARL,GEN |
1 | ||
| 71018-12510 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER |
1 | ||
| 71018-12510 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71018-12510 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-12T40C4 |
ZRE212..D DK. GRAY,TRIM2# |
1 | ||
| 71077-12X30C4 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
1 | ||
| 71077-12T50C5 |
ZRE212..L;MZEA12,ZWE211..ARL BALCK,TRIM2# |
1 | ||
| 71077-12T50E3 |
ZRE212..L FROMAGE,TRIM0# |
1 | ||
| 71077-12T50B4 |
ZRE212..L;MZEA12,ZWE211..ARL LT. GRAY,TRIM1# |
1 | ||
| 71077-12X30J3 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLUE,TRIM21 |
1 | ||
| 71077-12X30C4 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
1 | ||
| 71077-12X30C4 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLACK,TRIM20 |
1 | ||
| 71077-12X30J3 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
1 | ||
| 71077-12T40B3 |
ZRE212..D LT. GRAY,TRIM1# |
1 | ||
| 71077-12X30J3 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-12P10B3 |
ZRE212..D LT. GRAY,TRIM1# |
1 | ||
| 71078-12P20E2 |
ZRE212..L FROMAGE,TRIM0# |
1 | ||
| 71078-12P20C4 |
ZRE212..L;MZEA12,ZWE211..ARL BALCK,TRIM2# |
1 | ||
| 71078-12P10C4 |
ZRE212..D DK. GRAY,TRIM2# |
1 | ||
| 71078-12R90C4 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLACK,TRIM20 |
1 | ||
| 71078-12R90J3 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
1 | ||
| 71078-12R90C4 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
1 | ||
| 71078-12P20B3 |
ZRE212..L;MZEA12,ZWE211..ARL LT. GRAY,TRIM1# |
1 | ||
| 71078-12R90J3 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLUE,TRIM21 |
1 | ||
| 71078-12R90C4 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
1 | ||
| 71078-12R90J3 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-12200 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-12070 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12250 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-12020C0 |
MZEA12;ZRE212,ZWE211..L..(GEN,MXC) BLACK,TRIM2# |
1 | ||
| 71349-12020A0 |
ZRE212,ZWE211..L..(GEN,MXC) FROMAGE,TRIM0# |
1 | ||
| 71349-12020B0 |
MZEA12;ZRE212..L LT.GRAY,TRIM1# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-12B50 |
ZRE212..D |
1 | ||
| 71651-12B10 |
ZRE212..L;MZEA12,ZWE211..ARL |
1 | ||
| 71651-12B60 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER |
1 | ||
| 71651-12B60 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71651-12B60 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-12870 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER |
1 | ||
| 71652-12870 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71652-12860 |
MZEA12,ZRE212,ZWE211..ARL,GEN |
1 | ||
| 71652-12870 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-12380 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-12350 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-12100C0 |
MZEA12,ZRE212,ZWE211..L..(ARL,GEN) BLACK,TRIM0#,1#,2# |
1 | ||
| 72646-12100C0 |
MZEA12,ZRE212..D BLACK,TRIM1#,2# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-35010C1 |
MZEA12,ZRE212,ZWE211..L..(ARL,GEN) BLACK,TRIM0#,1#,2# |
2 | ||
| 72661-35010C1 |
MZEA12,ZRE212..D BLACK,TRIM1#,2# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-35010C1 |
MZEA12,ZRE212,ZWE211..L..(ARL,GEN) BLACK,TRIM0#,1#,2# |
2 | ||
| 72661-35010C1 |
MZEA12,ZRE212..D BLACK,TRIM1#,2# |
2 | ||
| 72806D - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-33100A0 |
ZRE212,ZWE211..L..(GEN,MXC) FROMAGE,TRIM0# |
1 | ||
| 72806-33100C2 |
MZEA12..D;ZRE212,ZWE211..L..(GEN,MXC) BLACK,TRIM2# |
1 | ||
| 72806-33100B4 |
MZEA12..D;ZRE212..L LT.GRAY,TRIM1# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-12A60A4 |
ZRE212..L FROMAGE,TRIM0# |
1 | ||
| 72830-12A60C6 |
ZRE212..L;MZEA12,ZWE211..ARL BALCK,TRIM2# |
1 | ||
| 72830-12A60B7 |
ZRE212..L;MZEA12,ZWE211..ARL LT.GRAY,TRIM1# |
1 | ||
| 72830-12A80C6 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK,TRIM2# |
1 | ||
| 72830-12A80C6 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72830-12A80C6 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06009 |
ZRE212..L;MZEA12,ZWE211 |
1 | ||
| 72839 - SHIM, REAR SEAT ARMREST HINGE | ||||
| 72839-12010 |
ZRE212..L;MZEA12,ZWE211 |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-12010B0 |
MZEA12;ZRE212..L LT.GRAY,TRIM1# |
1 | ||
| 72848-12010A0 |
ZRE212,ZWE211..L..(GEN,MXC) FROMAGE,TRIM0# |
1 | ||
| 72848-12010C0 |
MZEA12;ZRE212,ZWE211..L..(GEN,MXC) BLACK,TRIM2# |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-12170 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73705-12180 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 72702-35010 | ||||
| 90119-10990 | ||||
| 91671-80820 | ||||
| 91672-81025 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 1 OF 3(1901- )MZEA12..L ; (1901- )MZEA12..6F ; (1901- )CVT..L..GEN,MXC
SEAT BACK, W(SPLIT TYPE HEADREST)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-12B60 |
ZRE212..D |
1 | ||
| 71017-12B70 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER |
1 | ||
| 71017-12B50 |
ZRE212..L;MZEA12,ZWE211..ARL |
1 | ||
| 71017-12B70 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71017-12B70 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-12490 |
MZEA12,ZRE212,ZWE211..ARL,GEN |
1 | ||
| 71018-12510 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER |
1 | ||
| 71018-12510 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71018-12510 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-12T40C4 |
ZRE212..D DK. GRAY,TRIM2# |
1 | ||
| 71077-12X30C4 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
1 | ||
| 71077-12T50C5 |
ZRE212..L;MZEA12,ZWE211..ARL BALCK,TRIM2# |
1 | ||
| 71077-12T50E3 |
ZRE212..L FROMAGE,TRIM0# |
1 | ||
| 71077-12T50B4 |
ZRE212..L;MZEA12,ZWE211..ARL LT. GRAY,TRIM1# |
1 | ||
| 71077-12X30J3 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLUE,TRIM21 |
1 | ||
| 71077-12X30C4 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
1 | ||
| 71077-12X30C4 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLACK,TRIM20 |
1 | ||
| 71077-12X30J3 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
1 | ||
| 71077-12T40B3 |
ZRE212..D LT. GRAY,TRIM1# |
1 | ||
| 71077-12X30J3 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-12P10B3 |
ZRE212..D LT. GRAY,TRIM1# |
1 | ||
| 71078-12P20E2 |
ZRE212..L FROMAGE,TRIM0# |
1 | ||
| 71078-12P20C4 |
ZRE212..L;MZEA12,ZWE211..ARL BALCK,TRIM2# |
1 | ||
| 71078-12P10C4 |
ZRE212..D DK. GRAY,TRIM2# |
1 | ||
| 71078-12R90C4 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLACK,TRIM20 |
1 | ||
| 71078-12R90J3 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
1 | ||
| 71078-12R90C4 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
1 | ||
| 71078-12P20B3 |
ZRE212..L;MZEA12,ZWE211..ARL LT. GRAY,TRIM1# |
1 | ||
| 71078-12R90J3 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLUE,TRIM21 |
1 | ||
| 71078-12R90C4 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
1 | ||
| 71078-12R90J3 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-12200 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-12070 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-12250 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-12020C0 |
MZEA12;ZRE212,ZWE211..L..(GEN,MXC) BLACK,TRIM2# |
1 | ||
| 71349-12020A0 |
ZRE212,ZWE211..L..(GEN,MXC) FROMAGE,TRIM0# |
1 | ||
| 71349-12020B0 |
MZEA12;ZRE212..L LT.GRAY,TRIM1# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-12B50 |
ZRE212..D |
1 | ||
| 71651-12B10 |
ZRE212..L;MZEA12,ZWE211..ARL |
1 | ||
| 71651-12B60 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER |
1 | ||
| 71651-12B60 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71651-12B60 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-12870 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER |
1 | ||
| 71652-12870 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71652-12860 |
MZEA12,ZRE212,ZWE211..ARL,GEN |
1 | ||
| 71652-12870 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
2 | ||
| 71930-47050C5 |
ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
2 | ||
| 71930-47050C5 |
MZEA12..L;ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK,TRIM1#,2# |
2 | ||
| 71931-47030C4 |
ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
2 | ||
| 71931-47030E8 |
ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),ORCHID BROWN,TRIM0# |
2 | ||
| 71930-47050E8 |
ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),ORCHID BROWN,TRIM0# |
2 | ||
| 71930-47050E8 |
ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,ORCHID BROWN,TRIM0# |
2 | ||
| 71931-47030C4 |
MZEA12..L;ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK,TRIM1#,2# |
2 | ||
| 71931-47030E8 |
ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,ORCHID BROWN,TRIM0# |
2 | ||
| 71931-47030E8 |
ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),ORCHID BROWN,TRIM0# |
2 | ||
| 71930-47050E8 |
ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-47030C4 |
ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
2 | ||
| 71930-47050C5 |
ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
2 | ||
| 71930-47050C5 |
MZEA12..L;ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK,TRIM1#,2# |
2 | ||
| 71931-47030C4 |
ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
2 | ||
| 71931-47030E8 |
ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),ORCHID BROWN,TRIM0# |
2 | ||
| 71930-47050E8 |
ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),ORCHID BROWN,TRIM0# |
2 | ||
| 71930-47050E8 |
ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,ORCHID BROWN,TRIM0# |
2 | ||
| 71931-47030C4 |
MZEA12..L;ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK,TRIM1#,2# |
2 | ||
| 71931-47030E8 |
ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,ORCHID BROWN,TRIM0# |
2 | ||
| 71931-47030E8 |
ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),ORCHID BROWN,TRIM0# |
2 | ||
| 71930-47050E8 |
ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-47030C4 |
ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
2 | ||
| 71930-47050C5 |
ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
2 | ||
| 71930-47050C5 |
MZEA12..L;ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK,TRIM1#,2# |
2 | ||
| 71931-47030C4 |
ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
2 | ||
| 71931-47030E8 |
ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),ORCHID BROWN,TRIM0# |
2 | ||
| 71930-47050E8 |
ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),ORCHID BROWN,TRIM0# |
2 | ||
| 71930-47050E8 |
ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,ORCHID BROWN,TRIM0# |
2 | ||
| 71931-47030C4 |
MZEA12..L;ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK,TRIM1#,2# |
2 | ||
| 71931-47030E8 |
ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,ORCHID BROWN,TRIM0# |
2 | ||
| 71931-47030E8 |
ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),ORCHID BROWN,TRIM0# |
2 | ||
| 71930-47050E8 |
ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-47030C4 |
ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-47050C5 |
ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
2 | ||
| 71930-47050C5 |
ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
2 | ||
| 71930-47050C5 |
MZEA12..L;ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK,TRIM1#,2# |
2 | ||
| 71931-47030C4 |
ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
2 | ||
| 71931-47030E8 |
ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),ORCHID BROWN,TRIM0# |
2 | ||
| 71930-47050E8 |
ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),ORCHID BROWN,TRIM0# |
2 | ||
| 71930-47050E8 |
ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,ORCHID BROWN,TRIM0# |
2 | ||
| 71931-47030C4 |
MZEA12..L;ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK,TRIM1#,2# |
2 | ||
| 71931-47030E8 |
ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,ORCHID BROWN,TRIM0# |
2 | ||
| 71931-47030E8 |
ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),ORCHID BROWN,TRIM0# |
2 | ||
| 71930-47050E8 |
ZRE212..LHD..CVT..L W(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),ORCHID BROWN,TRIM0# |
2 | ||
| 71931-47030C4 |
ZRE212..LHD..CVT..L W/O(LOCK),HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM1#,2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-12E80C6 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
2 | ||
| 71940-12E80C6 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLACK,TRIM20 |
2 | ||
| 71940-12E80C7 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
2 | ||
| 71940-12E81C6 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLACK,TRIM20 |
2 | ||
| 71940-12E80C6 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
2 | ||
| 71940-12E80C7 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
2 | ||
| 71940-12E80C7 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLUE,TRIM21 |
2 | ||
| 71940-12E8123 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
2 | ||
| 71940-12E81C6 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
2 | ||
| 71940-12E81C7 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLUE,TRIM21 |
2 | ||
| 71940-12E81C6 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
2 | ||
| 71940-12E8123 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLACK,TRIM20 |
2 | ||
| 71940-12E8124 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLUE,TRIM21 |
2 | ||
| 71940-12E8124 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
2 | ||
| 71940-12E81C7 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
2 | ||
| 71940-12E8123 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
2 | ||
| 71940-12E81C7 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
2 | ||
| 71940-12E8124 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-12E80C6 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
2 | ||
| 71940-12E80C6 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLACK,TRIM20 |
2 | ||
| 71940-12E80C7 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
2 | ||
| 71940-12E81C6 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLACK,TRIM20 |
2 | ||
| 71940-12E80C6 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
2 | ||
| 71940-12E80C7 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
2 | ||
| 71940-12E80C7 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLUE,TRIM21 |
2 | ||
| 71940-12E8123 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
2 | ||
| 71940-12E81C6 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
2 | ||
| 71940-12E81C7 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLUE,TRIM21 |
2 | ||
| 71940-12E81C6 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
2 | ||
| 71940-12E8123 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLACK,TRIM20 |
2 | ||
| 71940-12E8124 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLUE,TRIM21 |
2 | ||
| 71940-12E8124 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
2 | ||
| 71940-12E81C7 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
2 | ||
| 71940-12E8123 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
2 | ||
| 71940-12E81C7 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
2 | ||
| 71940-12E8124 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
2 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-12380 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-12350 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-12100C0 |
MZEA12,ZRE212,ZWE211..L..(ARL,GEN) BLACK,TRIM0#,1#,2# |
1 | ||
| 72646-12100C0 |
MZEA12,ZRE212..D BLACK,TRIM1#,2# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-35010C1 |
MZEA12,ZRE212,ZWE211..L..(ARL,GEN) BLACK,TRIM0#,1#,2# |
2 | ||
| 72661-35010C1 |
MZEA12,ZRE212..D BLACK,TRIM1#,2# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-35010C1 |
MZEA12,ZRE212,ZWE211..L..(ARL,GEN) BLACK,TRIM0#,1#,2# |
2 | ||
| 72661-35010C1 |
MZEA12,ZRE212..D BLACK,TRIM1#,2# |
2 | ||
| 72806D - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-33100A0 |
ZRE212,ZWE211..L..(GEN,MXC) FROMAGE,TRIM0# |
1 | ||
| 72806-33100C2 |
MZEA12..D;ZRE212,ZWE211..L..(GEN,MXC) BLACK,TRIM2# |
1 | ||
| 72806-33100B4 |
MZEA12..D;ZRE212..L LT.GRAY,TRIM1# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-12A60A4 |
ZRE212..L FROMAGE,TRIM0# |
1 | ||
| 72830-12A60C6 |
ZRE212..L;MZEA12,ZWE211..ARL BALCK,TRIM2# |
1 | ||
| 72830-12A60B7 |
ZRE212..L;MZEA12,ZWE211..ARL LT.GRAY,TRIM1# |
1 | ||
| 72830-12A80C6 |
MZEA12..L;ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK,TRIM2# |
1 | ||
| 72830-12A80C6 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72830-12A80C6 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2# |
1 | ||
| 72830B - BUSH(FOR REAR SEAT CENTER ARMREST) | ||||
| 90386-06009 |
ZRE212..L;MZEA12,ZWE211 |
1 | ||
| 72839 - SHIM, REAR SEAT ARMREST HINGE | ||||
| 72839-12010 |
ZRE212..L;MZEA12,ZWE211 |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-12010B0 |
MZEA12;ZRE212..L LT.GRAY,TRIM1# |
1 | ||
| 72848-12010A0 |
ZRE212,ZWE211..L..(GEN,MXC) FROMAGE,TRIM0# |
1 | ||
| 72848-12010C0 |
MZEA12;ZRE212,ZWE211..L..(GEN,MXC) BLACK,TRIM2# |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-12170 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73705-12180 |
MZEA12,ZRE212,ZWE211 |
1 | ||
| Common parts | ||||
| 72702-35010 | ||||
| 90119-10990 | ||||
| 91671-80820 | ||||
| 91672-81025 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
ILLUST NO. 2 OF 3(1901- )MZEA12,ZRE212
SEAT CUSHION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-12V90C6 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
1 | ||
| 71075-12V90C6 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLUE,TRIM21 |
1 | ||
| 71075-12V90C5 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER,BLACK/BLACK,TRIM20 |
1 | ||
| 71075-12V90C5 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
1 | ||
| 71075-12V90C5 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK,TRIM20 |
1 | ||
| 71075-12P70B5 |
ZRE212..D LT. GRAY,TRIM1# |
1 | ||
| 71075-12W10C0 |
ZRE212..L BALCK,TRIM2# |
1 | ||
| 71075-12W10A0 |
ZRE212..L FROMAGE,TRIM0# |
1 | ||
| 71075-12P70B6 |
ZRE212..D DK. GRAY,TRIM2# |
1 | ||
| 71075-12V90C6 |
ZRE212..LHD..CVT..L HIGH GRADE PACKAGE&SEAT COVER MATERIAL-SPORT LEATHER&SEAT LUMBAR SUPPORT-ELECTRICAL&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLUE,TRIM21 |
1 | ||
| 71075-12W10B0 |
ZRE212..L LT. GRAY,TRIM1# |
1 | ||
| 71503A - PAD SUB-ASSY, REAR SEAT CUSHION | ||||
| 71503-12310 |
ZRE212 |
1 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
MZEA12,ZRE212,ZWE211 |
2 | ||
| 73731 - COVER, CHILD RESTRAINT SEAT | ||||
| 73731-47022B1 |
ZRE212;MZEA12..D LT.GRAY,TRIM1# |
4 | ||
| 73731-47022A0 |
ZRE212..L FROMAGE,TRIM0# |
4 | ||
| 73731-47022C1 |
ZRE212;MZEA12..D BLACK,TRIM2# |
4 | ||
| 73733 - COVER, CHILD RESTRAINT SEAT BASE | ||||
| 73733-47011C1 |
ZRE212;MZEA12..D BLACK,TRIM2# |
4 | ||
| 73733-47011B1 |
ZRE212;MZEA12..D LT.GRAY,TRIM1# |
4 | ||
| 73733-47011A0 |
ZRE212..L FROMAGE,TRIM0# |
4 | ||
| 73735A - CUP, CHILD RESTRAINT SEAT GUIDE | ||||
| 73735-12030 |
ZRE212..LHD;MZEA12,ZWE211..ARL |
4 | ||
| 73735-12030C0 |
ZRE212 BLACK,TRIM2# |
4 | ||
Part Price Details
Loading price information...
Part Number:
Price:
