ZRE212L-AEXDP (2019)

Toyota Corolla Sed (Jpp)

Production Jan 2019 - Apr 2020
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )ZRE212..CVT

Click highlighted areas on diagram

K313

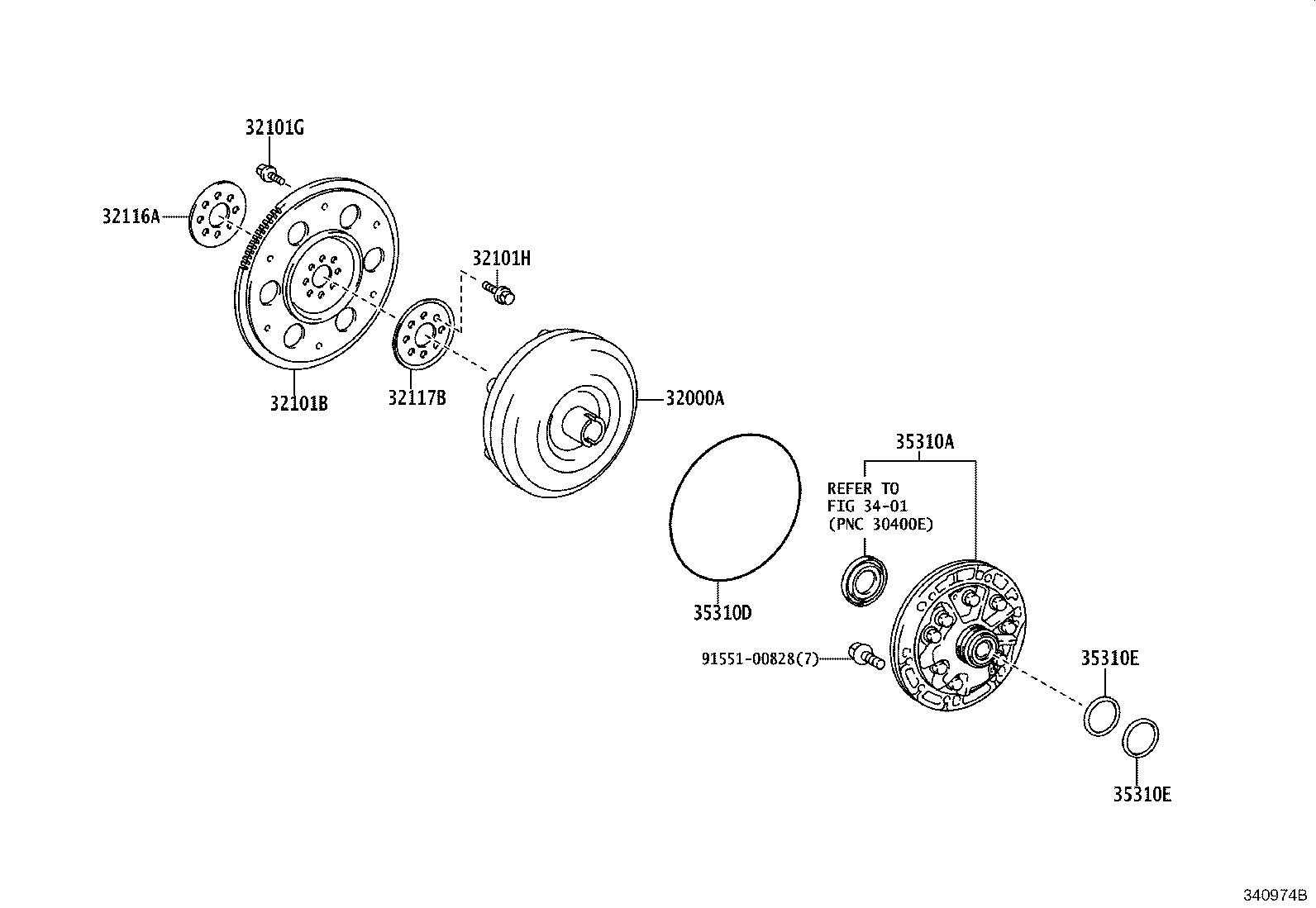

diagram 32000A 32101B 32101G 32101H 32116A 32117B 3401 35310A 35310D 35310E 35310E 9155100828
Part # Description Qty Price
32000A - CONVERTER ASSY, TORQUE
32000-12490

ZRE212..CVT

AISIN AW:REFER 34-01

 1
32101B - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-12100

ZRE212..CVT

 1
32101G - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-08498

ZRE212..CVT

*8-1.25PX12-8,SILVER WHITE

 5
90109-08113

ZRE212..CVT

*8-1.25PX12-8.4,BLACK

 1
32101H - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10048

ZRE212..CVT

 8
32116A - SPACER, DRIVE PLATE, FRONT
32116-12030

ZRE212..CVT

 1
32117B - SPACER, DRIVE PLATE, REAR
32117-12040

ZRE212..CVT

 1
35310A - PUMP ASSY, FRONT OIL
35310-12160

ZRE212..CVT

 1
35310D - RING, O (FOR FRONT OIL PUMP)
90301-99202

ZRE212..CVT

 1
35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP)
35617-52060

ZRE212..CVT

 2
35310E - SEAL, TYPE T OIL (FOR FRONT OIL PUMP)
35617-52060

ZRE212..CVT

 2
Common parts
91551-00828
Linked diagrams
3401
