ZRE212L-AEXDP (2019)

Toyota Corolla Sed (Jpp)

Production Jan 2019 - Apr 2020
Engine 2ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )ZRE212..LHD..CVT

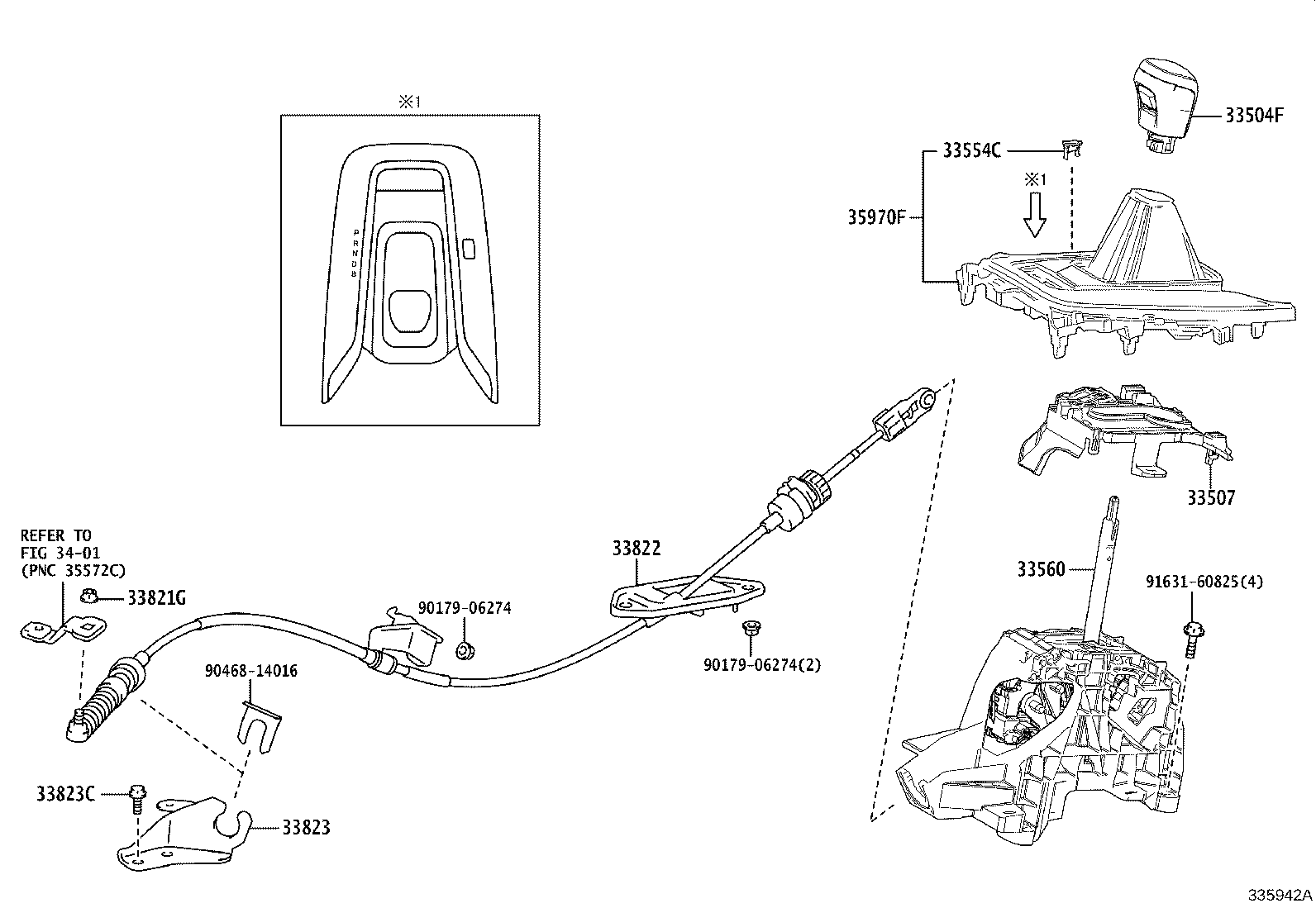

Click highlighted areas on diagram

diagram 33504F 33507 33554C 33560 33821G 33822 33823 33823C 3401 35970F 9017906274 9017906274 9046814016 9163160825
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12800C0

ZRE212..LHD..CVT..L

SHIFT LEVER & KNOB-CVT LEATHER,BLACK,TRIM0#,1#,2#

 1
33504-12740C0

ZRE212,ZWE211..CVT..L..(GEN,MXC)

BLACK,TRIM0#,1#,2#

 1
33504-33170C0

MZEA12,ZRE212..CVT..D

BLACK,TRIM1#,2#

 1
33507 - BRACKET SUB-ASSY, SHIFT LEVER HOUSING
33507-12030

ZRE212,ZWE211..LHD..CVT

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-12210

ZRE212,ZWE211..LHD..CVT

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-12670

ZRE212,ZWE211..LHD..CVT..L

 1
33560-12660

ZRE212..LHD..CVT..D

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

ZRE212,ZWE211..CVT

 1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33820-12J50

ZRE212..CVT

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-12340

ZRE212..CVT

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91671-80820

MZEA12,ZRE212..CVT

 2
35970F - HOUSING ASSY, POSITION INDICATOR
35970-12420C1

ZRE212..LHD..CVT..L

BLACK & SILVER,TRIM0#,1#,2#

 1
35970-12420C1

ZRE212..LHD..CVT..D

BLACK & SILVER,TRIM1#,2#

 1
Common parts
90179-06274
90468-14016
91631-60825
Linked diagrams
3401
