ZRE212L-AEFDP (2019)

Toyota Corolla Sed (Jpp)

Production Jan 2019 - Apr 2020
Engine 2ZRFAE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1901- )MZEA12,ZRE212

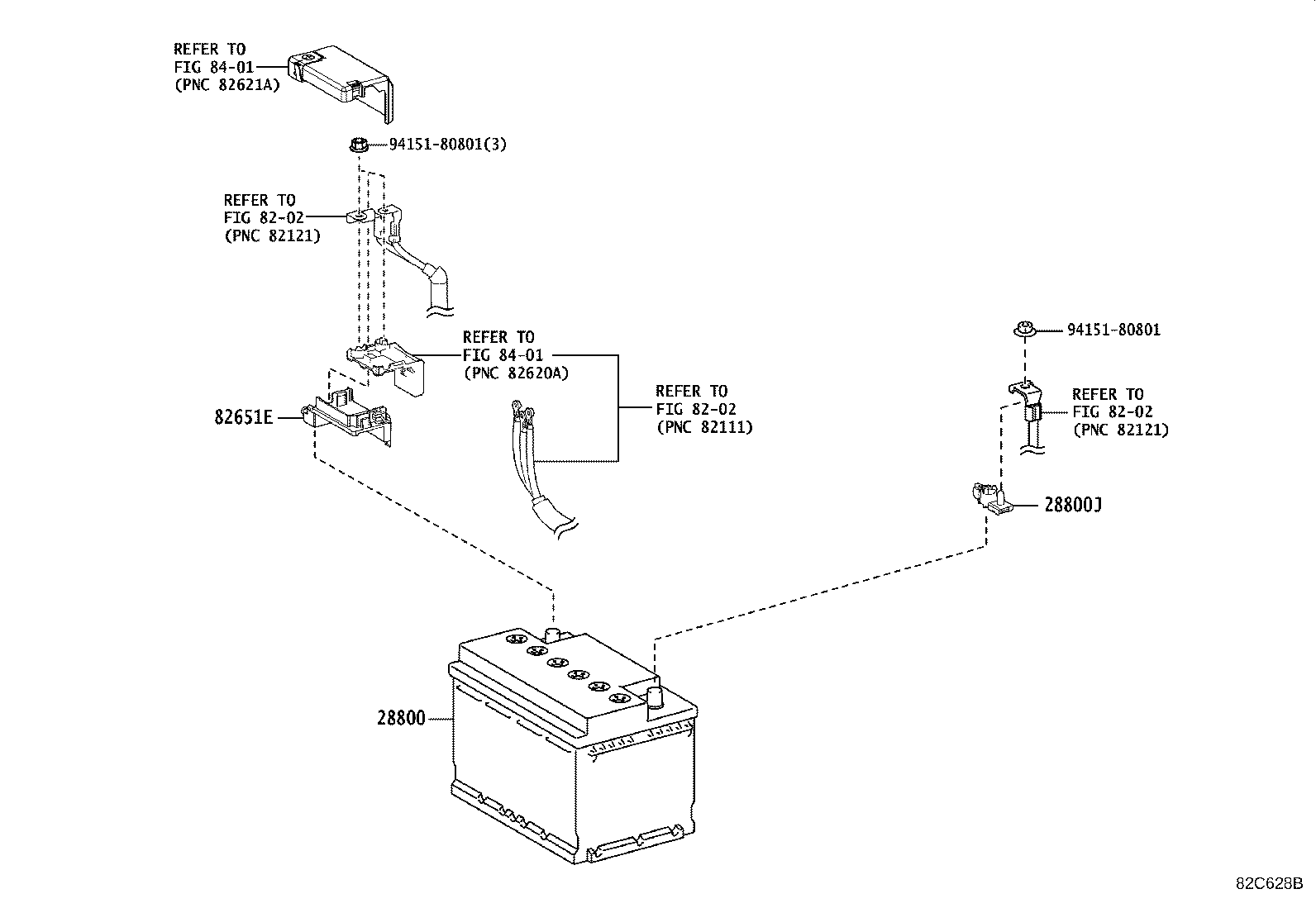

Click highlighted areas on diagram

diagram 28800 28800J 8202 8202 8202 82651E 8401 8401 9415180801 9415180801
Part # Description Qty Price
28800 - BATTERY
28800-37130

2ZR#..ZRE212,ZWE211

LN1

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06070

M20AFKS,2ZRFAE..MZEA12,ZRE212

 1
82651E - BLOCK, TERMINAL
82651-10010

MZEA12,ZRE212

 1
Common parts
94151-80801
Linked diagrams
8202
8401
