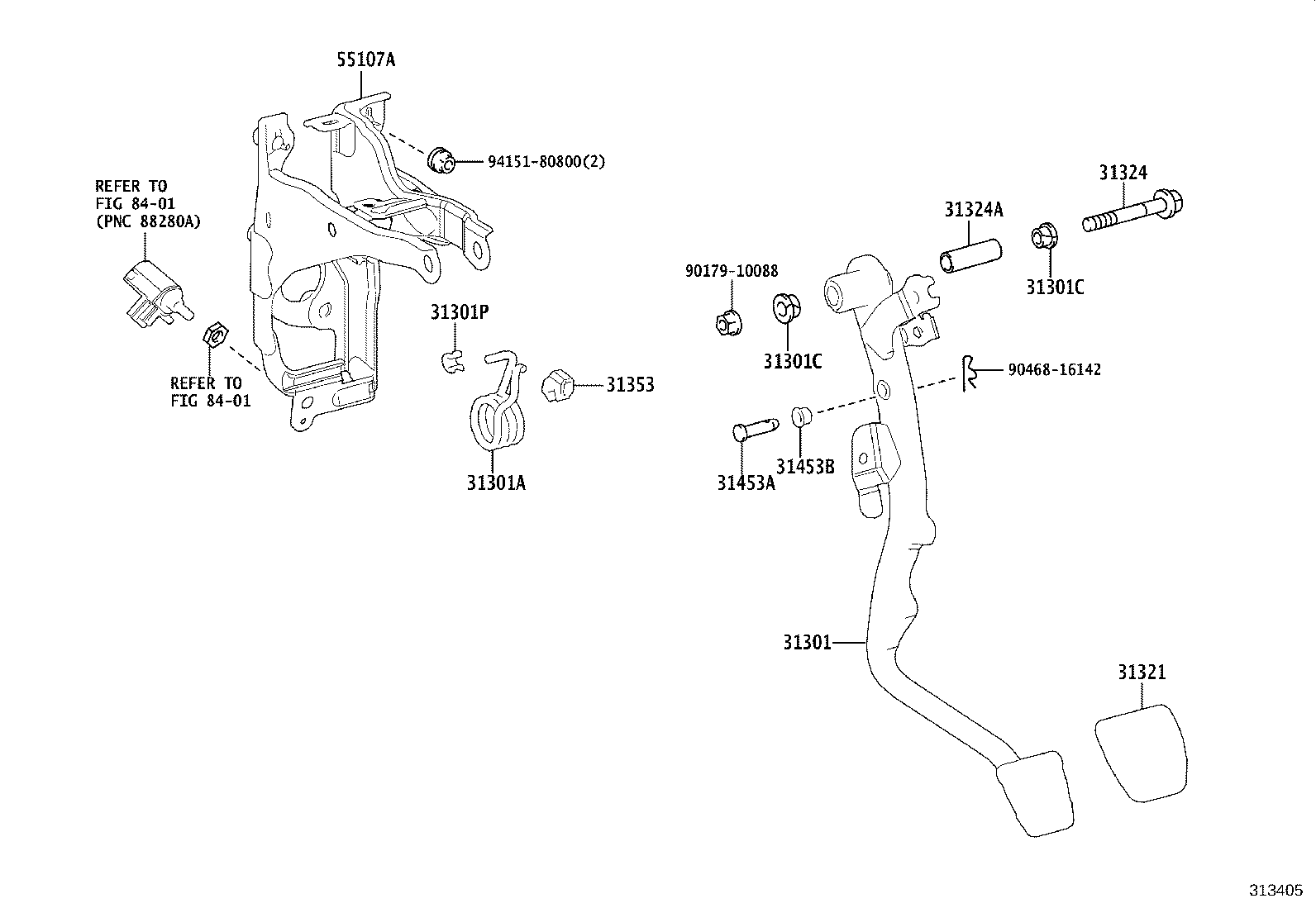

Toyota Corolla sed (jpp) MZEA12 CLUTCH PEDAL & FLEXIBLE HOSE

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-02600	MZEA12..6F	09/2019 - 04/2020	1
31301A - SPRING(FOR CLUTCH PEDAL)
90949-03068	MZEA12,ZRE212..6F	01/2019 - 04/2020	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	MZEA12,ZRE212..6F	01/2019 - 04/2020	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	MZEA12,ZRE212..6F	01/2019 - 04/2020	2
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90389-06055	MZEA12,ZRE212..6F	01/2019 - 04/2020	1
31321 - PAD, CLUTCH PEDAL
31321-42010	MZEA12,ZRE212..6F	01/2019 - 04/2020	1
31324 - SHAFT, CLUTCH PEDAL
90105-10524	MZEA12,ZRE212..6F	01/2019 - 04/2020	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003	MZEA12,ZRE212..6F	01/2019 - 04/2020	1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-26010	MZEA12,ZRE212..6F	01/2019 - 04/2020	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08084	MZEA12,ZRE212..6F L=28.3	01/2019 - 04/2020	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033	MZEA12,ZRE212..6F	01/2019 - 04/2020	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-02510	MZEA12..6F	09/2019 - 04/2020	1
Common parts
90179-10088
90468-16142
94151-80800
Linked diagrams
8401

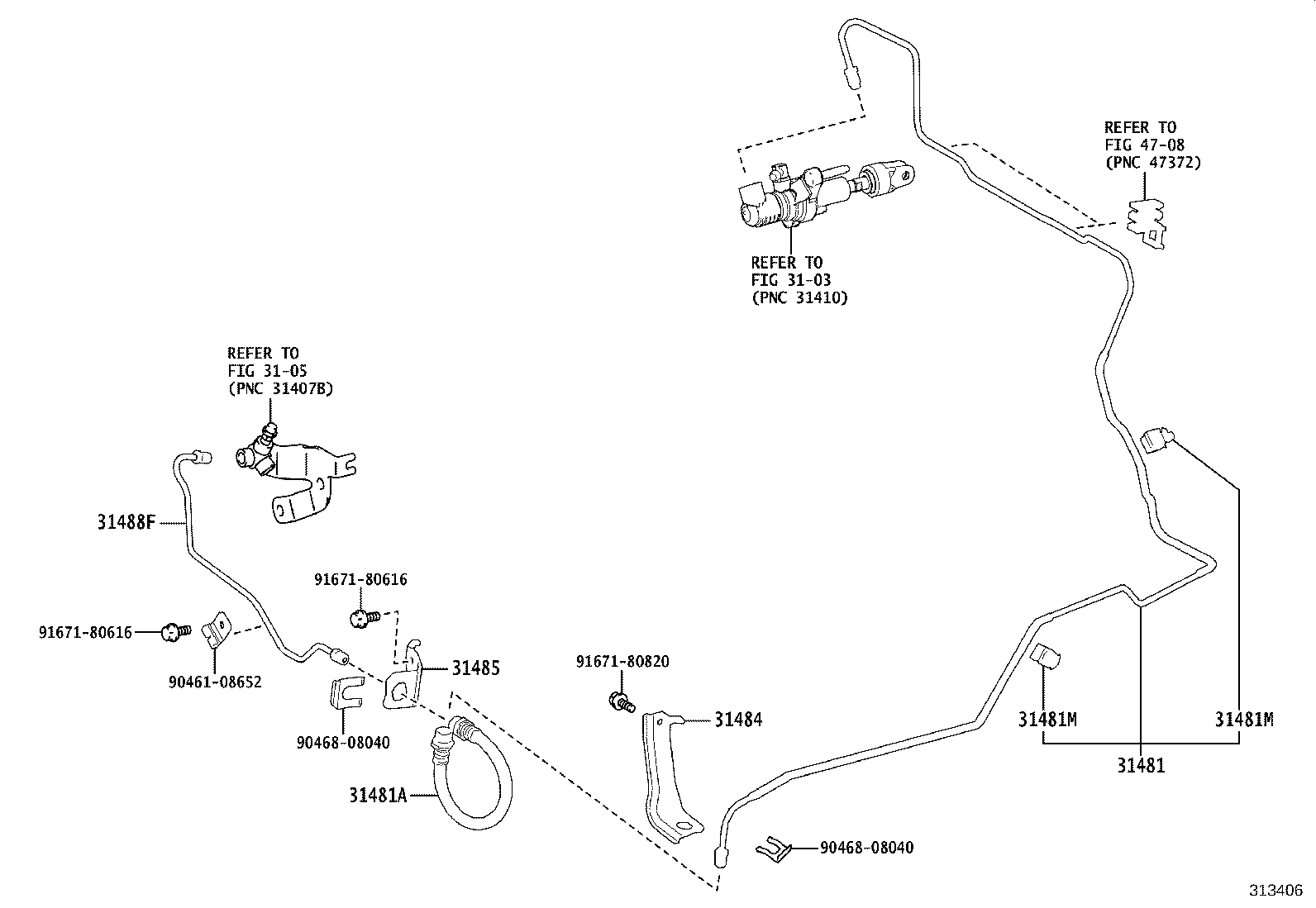

Part #	Description	Period	Qty
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12460	MZEA12..6F	09/2019 - 04/2020	1
31481A - HOSE, CLUTCH, NO.1
90947-02H31	MZEA12,ZRE212..6F	01/2019 - 04/2020	1
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01E01	MZEA12,ZRE212..6F	01/2019 - 04/2020	2
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01E01	MZEA12,ZRE212..6F	01/2019 - 04/2020	2
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-10060	MZEA12,ZRE212..6F	01/2019 - 04/2020	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12560	MZEA12..6F	09/2019 - 04/2020	1
31488F - TUBE, BLEEDER TO FLEXIBLE HOSE
31488-12030	MZEA12..6F	09/2019 - 04/2020	1
Common parts
90461-08652
90468-08040
91671-80616
91671-80820
Linked diagrams
3103
3105
4708

MZEA12R-AEFDBQ (2019)
