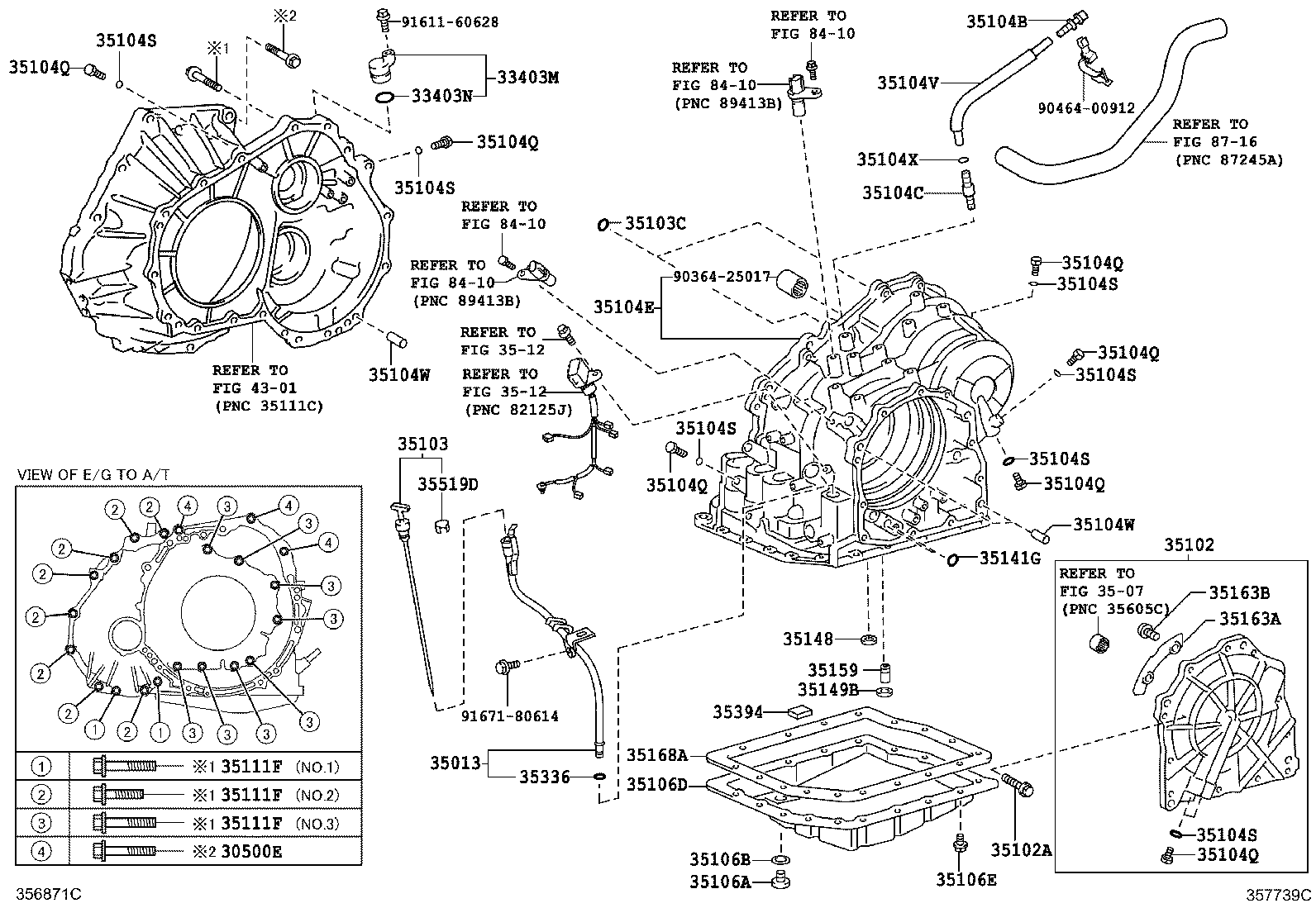

ZRE153R-AEPEKQ (2010)
Toyota Corolla Sed
(1004- )ZRE153
U241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91512-61045 |
ZRE153 *10-1.25PX45-30 |
3 | ||
| 33403M - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM) | ||||
| 33403-20230 |
ZRE15#..4FC |
1 | ||
| 33403N - RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER) | ||||
| 96711-24018 |
ZRE15#..4FC |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-20890 |
ZRE153 |
1 | ||
| 35102 - COVER SUB-ASSY, TRANSAXLE REAR | ||||
| 35102-44010 |
ZRE153 |
1 | ||
| 35102A - BOLT (FOR TRANSAXLE REAR COVER SETTING) | ||||
| 90105-08071 |
ZRE153 *8-1.25PX30-25 |
11 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-20530 |
ZRE153 |
1 | ||
| 35103C - RING, O | ||||
| 90301-06008 |
ZRE15#..4FC |
2 | ||
| 90301-06024 |
ZRE15#..4FC |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03149 |
ZRE153 |
1 | ||
| 35104C - PLUG, BREATHER, NO.2 (ATM) | ||||
| 90930-03157 |
ZRE153 |
1 | ||
| 35104E - CASE SUB-ASSY, AUTOMATIC TRANSAXLE | ||||
| 35104-33092 |
ZRE153 |
1 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ZRE153 |
8 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ZRE153 |
8 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ZRE153 |
8 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ZRE153 |
8 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ZRE153 |
8 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ZRE153 |
8 | ||
| 35104Q - PLUG, NO.1 (FOR TRANSAXLE CASE) | ||||
| 90341-08001 |
ZRE153 |
8 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ZRE153 |
8 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ZRE153 |
8 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ZRE153 |
8 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ZRE153 |
8 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ZRE153 |
8 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ZRE153 |
8 | ||
| 35104S - RING, O (FOR TRANSAXLE CASE PLUG NO.1) | ||||
| 90301-06196 |
ZRE153 |
8 | ||
| 35104V - HOSE (FOR BREATHER PLUG) | ||||
| 35121-21020 |
ZRE153 |
1 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10036 |
ZRE153 |
4 | ||
| 90250-10232 |
ZRE153 |
4 | ||
| 35104W - PIN, STRAIGHT (FOR TRANSAXLE CASE) | ||||
| 90250-10036 |
ZRE153 |
4 | ||
| 90250-10232 |
ZRE153 |
4 | ||
| 35104X - RING, O (FOR BREATHER PLUG) | ||||
| 90301-06005 |
ZRE15#..4FC |
1 | ||
| 90301-06021 |
ZRE15#..4FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-18016 |
ZRE15#..4FC |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 90430-18008 |
ZRE15#..4FC |
1 | ||
| 35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL | ||||
| 35106-33030 |
ZRE153 |
1 | ||
| 35106E - BOLT (FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
ZRE153 |
18 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-06320 |
ZRE153 *6-1.00PX50-25,NO.1 |
2 | ||
| 90105-08233 |
ZRE153 *8-1.25PX42-30,NO.2 |
8 | ||
| 90105-08353 |
ZRE153 *8-1.25PX50-30,NO.3 |
8 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-06320 |
ZRE153 *6-1.00PX50-25,NO.1 |
2 | ||
| 90105-08233 |
ZRE153 *8-1.25PX42-30,NO.2 |
8 | ||
| 90105-08353 |
ZRE153 *8-1.25PX50-30,NO.3 |
8 | ||
| 35111F - BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) | ||||
| 90105-06320 |
ZRE153 *6-1.00PX50-25,NO.1 |
2 | ||
| 90105-08233 |
ZRE153 *8-1.25PX42-30,NO.2 |
8 | ||
| 90105-08353 |
ZRE153 *8-1.25PX50-30,NO.3 |
8 | ||
| 35141G - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-10189 |
ZRE153 |
2 | ||
| 90301-10018 |
ZRE153 |
2 | ||
| 35148 - GASKET, GOVERNOR APPLY, NO.1 | ||||
| 35145-21010 |
ZRE153 |
1 | ||
| 35149B - GASKET, TRANSAXLE CASE 2ND BRAKE | ||||
| 35149-21010 |
ZRE15#..4FC |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-21010 |
ZRE15#..4FC |
1 | ||
| 35163A - PLATE, TRANSAXLE REAR COVER | ||||
| 35163-28010 |
ZRE153 |
1 | ||
| 35163B - SCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE) | ||||
| 90148-60055 |
ZRE153 |
2 | ||
| 35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN | ||||
| 35168-21020 |
ZRE153 |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
ZRE15#..4FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
ZRE15#..4FC |
2 | ||
| 35519D - LABEL, AUTOMATIC TRANSMISSION INFORMATION | ||||
| 35519-41010 |
ZRE15#..4FC |
1 | ||
| Common parts | ||||
| 90364-25017 | ||||
| 90464-00912 | ||||
| 91611-60628 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 3507 | ||||
| 3512 | ||||
| 4301 | ||||
| 8410 | ||||
| 8716 | ||||
