8718 - HEATING & AIR CONDITIONING - COOLER PIPING

ZRE152R-AEPNKQ (2010)

Toyota Corolla Sed

Production Apr 2010 - Nov 2013

Engine 2ZRFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

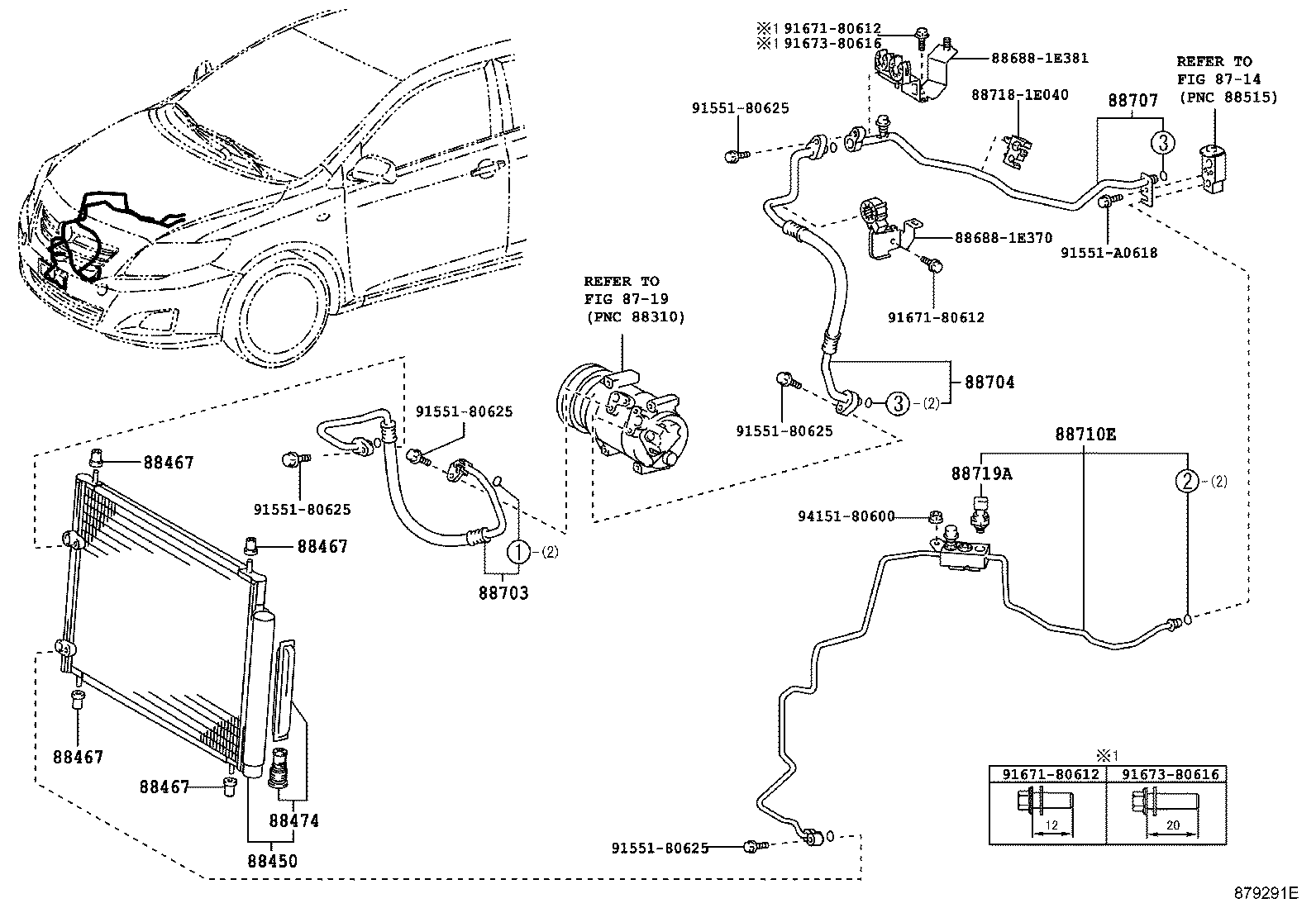

ILLUST NO. 1 OF 2(0703- )

Click highlighted areas on diagram

MAKER OPTION

Part #	Description	Period	Qty
88450 - CONDENSER ASSY, W/RECEIVER
88450-12280	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
88450-12280	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
88450-12280	ZRE152..N	03/2007 - 12/2008	1
88450-12280	ZRE15#	04/2010 - 11/2013	1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	4
16716-28010	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	4
16716-28010	ZRE152..N	03/2007 - 12/2008	4
16716-28010	ZRE15#	04/2010 - 11/2013	4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	4
16716-28010	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	4
16716-28010	ZRE152..N	03/2007 - 12/2008	4
16716-28010	ZRE15#	04/2010 - 11/2013	4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	4
16716-28010	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	4
16716-28010	ZRE152..N	03/2007 - 12/2008	4
16716-28010	ZRE15#	04/2010 - 11/2013	4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	4
16716-28010	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	4
16716-28010	ZRE152..N	03/2007 - 12/2008	4
16716-28010	ZRE15#	04/2010 - 11/2013	4
88474 - DRYER, COOLER
88474-12030	ZRE152..N	03/2007 - 12/2008	1
88474-12030	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
88474-12030	ZRE15#	04/2010 - 11/2013	1
88474-12030	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-12830	ZRE152..N	03/2007 - 12/2008	1
88703-12830	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
88703-02570	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
88703-12830	ZRE15#	04/2010 - 12/2999	1
88704 - HOSE SUB-ASSY, SUCTION
88704-1A181	ZRE152..N	03/2007 - 12/2008	1
88704-02820	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
88704-1A181	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
88704-1A181	ZRE15#	04/2010 - 12/2999	1
88707 - PIPE SUB-ASSY, SUCTION
88707-12250	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
88707-12250	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
88707-12250	ZRE152..N	03/2007 - 12/2008	1
88707-12250	ZRE15#	04/2010 - 12/2999	1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-12760	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
88710-12760	ZRE152..N	03/2007 - 12/2008	1
88710-12760	ZRE15#	04/2010 - 12/2999	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020	ZRE152..N	03/2007 - 12/2008	1
88719-33020	ZRE15#	04/2010 - 12/2999	1
88719-33020	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
Common parts
88688-1E370
88688-1E381
88718-1E040
91551-80625
91551-A0618
91671-80612
91673-80616
94151-80600
Linked diagrams
8714
8719

ILLUST NO. 1 OF 2(0703- )

Click highlighted areas on diagram

DEALER OPTION

Part #	Description	Period	Qty
88450 - CONDENSER ASSY, W/RECEIVER
88450-12280	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
88450-12280	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
88450-12280	ZRE152..N	03/2007 - 12/2008	1
88450-12280	ZRE15#	04/2010 - 11/2013	1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	4
16716-28010	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	4
16716-28010	ZRE152..N	03/2007 - 12/2008	4
16716-28010	ZRE15#	04/2010 - 11/2013	4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	4
16716-28010	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	4
16716-28010	ZRE152..N	03/2007 - 12/2008	4
16716-28010	ZRE15#	04/2010 - 11/2013	4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	4
16716-28010	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	4
16716-28010	ZRE152..N	03/2007 - 12/2008	4
16716-28010	ZRE15#	04/2010 - 11/2013	4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	4
16716-28010	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	4
16716-28010	ZRE152..N	03/2007 - 12/2008	4
16716-28010	ZRE15#	04/2010 - 11/2013	4
88474 - DRYER, COOLER
88474-12030	ZRE152..N	03/2007 - 12/2008	1
88474-12030	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
88474-12030	ZRE15#	04/2010 - 11/2013	1
88474-12030	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-12830	ZRE152..N	03/2007 - 12/2008	1
88703-12830	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
88703-02570	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
88703-12830	ZRE15#	04/2010 - 12/2999	1
88704 - HOSE SUB-ASSY, SUCTION
88704-1A181	ZRE152..N	03/2007 - 12/2008	1
88704-02820	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
88704-1A181	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
88704-1A181	ZRE15#	04/2010 - 12/2999	1
88707 - PIPE SUB-ASSY, SUCTION
88707-12250	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
88707-12250	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
88707-12250	ZRE152..N	03/2007 - 12/2008	1
88707-12250	ZRE15#	04/2010 - 12/2999	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-1A020	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-1A850	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
Common parts
88688-1E370
88688-1E380
88718-1E030
88718-1E040
88718-1E050
91551-80625
91551-A0618
91671-80612
91673-80616
94151-80600
Linked diagrams
8714
8719

ILLUST NO. 2 OF 2(0703- )

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
