Toyota Corolla sed ZRE152 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
GR
COROLLA SED
ZRE152R-AEPNKQ (2010)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

ZRE152R-AEPNKQ (2010)

Toyota Corolla Sed

Production Apr 2010 - Nov 2013

Engine 2ZRFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

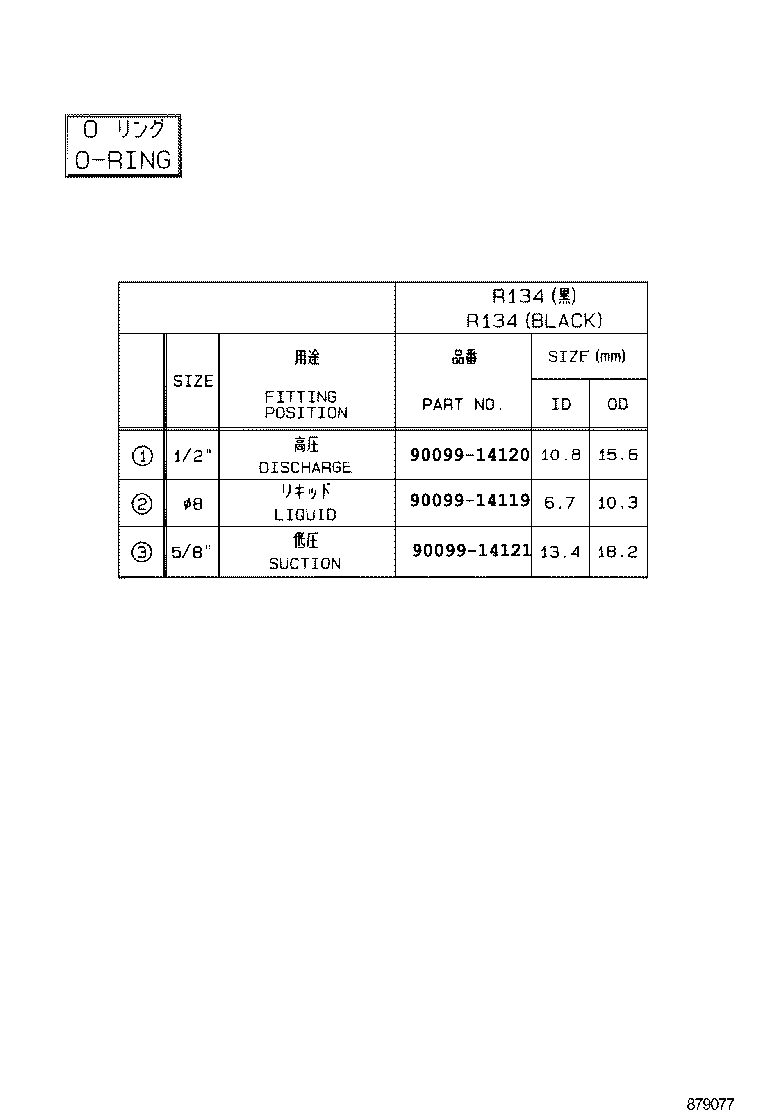

ILLUST NO. 2 OF 2(0703- )

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121

ILLUST NO. 1 OF 2(0703- )

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-12310	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
87050-12310	ZRE152..N	03/2007 - 12/2008	1
87050-12370	ZRE152..D	03/2007 - 12/2008	1
87050-12350	ZRE152..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)	03/2007 - 12/2008	1
87050-12310	ZRE152	04/2010 - 05/2010	1
87050-12311	ZRE152	05/2010 - 11/2013	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-42070	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
87103-12060	ZRE152..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)	03/2007 - 12/2008	1
87103-42070	ZRE152	04/2010 - 12/2999	1
87103-42070	ZRE152	03/2007 - 12/2008	1
87103-42070	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	04/2010 - 12/2999	1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-42110	ZRE152	03/2007 - 12/2008	1
87106-42110	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	04/2010 - 12/2999	1
87106-42120	ZRE152..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)	03/2007 - 12/2008	1
87106-42110	ZRE152	04/2010 - 12/2999	1
87106-42110	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-42170	ZRE152	03/2007 - 12/2008	1
87107-42170	ZRE15#	04/2010 - 11/2013	1
87107-42170	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
87107-42170	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	04/2010 - 11/2013	1
87114B - COVER, HEATER
87114-12080	ZRE15#	04/2010 - 12/2999	1
87114-12080	ZRE152	03/2007 - 12/2008	1
87130D - BLOWER ASSY
87130-12430	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 05/2008	1
87130-12430	ZRE152..N	03/2007 - 06/2008	1
87130-12430	ZRE152..D	03/2007 - 05/2008	1
87130-12430	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 06/2008	1
87130-12431	ZRE152	04/2010 - 12/2999	1
87130-12530	ZRE152..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)	03/2007 - 05/2008	1
87130-12431	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	04/2010 - 12/2999	1
87138C - RESISTOR, BLOWER
87138-26150	ZRE152	03/2007 - 12/2008	1
87138-26150	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
87138-26150	ZRE152	04/2010 - 12/2999	1
87138-26150	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	04/2010 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-30040	ZRE15# POLLEN FILTER	04/2010 - 12/2999	1
87139-30040	ZRE152	03/2007 - 12/2008	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-26210	ZRE152..N	03/2007 - 05/2008	1
88501-26210	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 05/2008	1
88501-26211	ZRE152	04/2010 - 09/2010	1
88501-0K090	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
88501-72020	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	10/2010 - 12/2999	1
88501-26211	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	04/2010 - 09/2010	1
88501-72020	ZRE152	10/2010 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-26070	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
88515-42090	ZRE152..N	03/2007 - 12/2008	1
88515-12100	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	05/2010 - 11/2013	1
88515-26070	ZRE152	04/2010 - 05/2010	1
88515-42090	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
88515-12100	ZRE152	05/2010 - 11/2013	1
88515-26070	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	04/2010 - 05/2010	1
88539J - HOSE, DRAIN COOLER
88539-12210	ZRE15#	05/2012 - 12/2999	1
88539-12190	ZRE15#	04/2010 - 04/2012	1
88539-12190	ZRE152	03/2007 - 12/2008	1
88539J - HOSE, DRAIN COOLER
88539-12210	ZRE15#	05/2012 - 12/2999	1
88539-12190	ZRE15#	04/2010 - 04/2012	1
88539-12190	ZRE152	03/2007 - 12/2008	1
88548B - CASE, AIR FILTER
88548-42010	ZRE152	03/2007 - 12/2008	1
88548-42010	ZRE15#	04/2010 - 12/2999	1
88578B - PACKING, COOLING UNIT, NO.1
88578-12550	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
88625 - THERMISTOR, COOLER, NO.1
88625-26090	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
88625-26090	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
88625-26090	ZRE152..N	03/2007 - 12/2008	1
88625-26090	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	04/2010 - 12/2999	1
88625-26090	ZRE15#	04/2010 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-12B40	ZRE152..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)	03/2007 - 12/2008	1
88650-12A80	ZRE152..N	03/2007 - 12/2008	1
88650-12A80	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
88650-12E20	ZRE152	04/2010 - 12/2999	1
88650-12A80	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
Common parts
87128-42010
90091-40645
90099-00318
90099-04542
90119-06942
90119-06952
90159-60303
90159-60383
90179-06282
90480-26030
Linked diagrams
8715

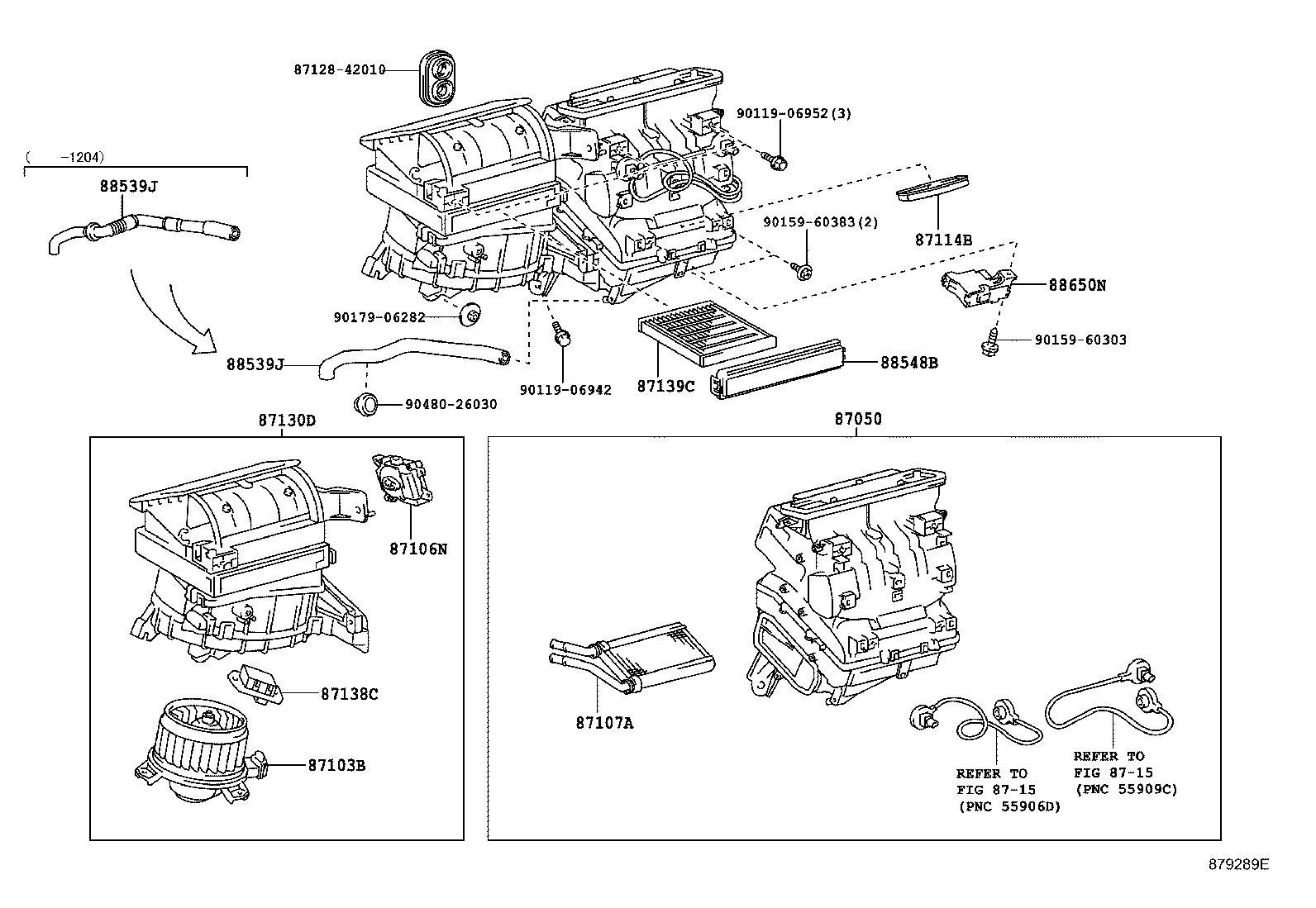

ILLUST NO. 1 OF 2(0703- )

Click highlighted areas on diagram

MANUAL W/O(AIR CONDITIONER)

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-12310	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
87050-12310	ZRE152..N	03/2007 - 12/2008	1
87050-12370	ZRE152..D	03/2007 - 12/2008	1
87050-12350	ZRE152..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)	03/2007 - 12/2008	1
87050-12310	ZRE152	04/2010 - 05/2010	1
87050-12311	ZRE152	05/2010 - 11/2013	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-42070	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
87103-12060	ZRE152..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)	03/2007 - 12/2008	1
87103-42070	ZRE152	04/2010 - 12/2999	1
87103-42070	ZRE152	03/2007 - 12/2008	1
87103-42070	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	04/2010 - 12/2999	1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-42110	ZRE152	03/2007 - 12/2008	1
87106-42110	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	04/2010 - 12/2999	1
87106-42120	ZRE152..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)	03/2007 - 12/2008	1
87106-42110	ZRE152	04/2010 - 12/2999	1
87106-42110	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-42170	ZRE152	03/2007 - 12/2008	1
87107-42170	ZRE15#	04/2010 - 11/2013	1
87107-42170	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
87107-42170	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	04/2010 - 11/2013	1
87114B - COVER, HEATER
87114-12080	ZRE15#	04/2010 - 12/2999	1
87114-12080	ZRE152	03/2007 - 12/2008	1
87130D - BLOWER ASSY
87130-12430	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 05/2008	1
87130-12430	ZRE152..N	03/2007 - 06/2008	1
87130-12430	ZRE152..D	03/2007 - 05/2008	1
87130-12430	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 06/2008	1
87130-12431	ZRE152	04/2010 - 12/2999	1
87130-12530	ZRE152..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)	03/2007 - 05/2008	1
87130-12431	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	04/2010 - 12/2999	1
87138C - RESISTOR, BLOWER
87138-26150	ZRE152	03/2007 - 12/2008	1
87138-26150	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
87138-26150	ZRE152	04/2010 - 12/2999	1
87138-26150	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	04/2010 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-30040	ZRE15# POLLEN FILTER	04/2010 - 12/2999	1
87139-30040	ZRE152	03/2007 - 12/2008	1
88539J - HOSE, DRAIN COOLER
88539-12210	ZRE15#	05/2012 - 12/2999	1
88539-12190	ZRE15#	04/2010 - 04/2012	1
88539-12190	ZRE152	03/2007 - 12/2008	1
88539J - HOSE, DRAIN COOLER
88539-12210	ZRE15#	05/2012 - 12/2999	1
88539-12190	ZRE15#	04/2010 - 04/2012	1
88539-12190	ZRE152	03/2007 - 12/2008	1
88548B - CASE, AIR FILTER
88548-42010	ZRE152	03/2007 - 12/2008	1
88548-42010	ZRE15#	04/2010 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-12B40	ZRE152..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)	03/2007 - 12/2008	1
88650-12A80	ZRE152..N	03/2007 - 12/2008	1
88650-12A80	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
88650-12E20	ZRE152	04/2010 - 12/2999	1
88650-12A80	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
Common parts
87128-42010
90119-06942
90119-06952
90159-60303
90159-60383
90179-06282
90480-26030
Linked diagrams
8715

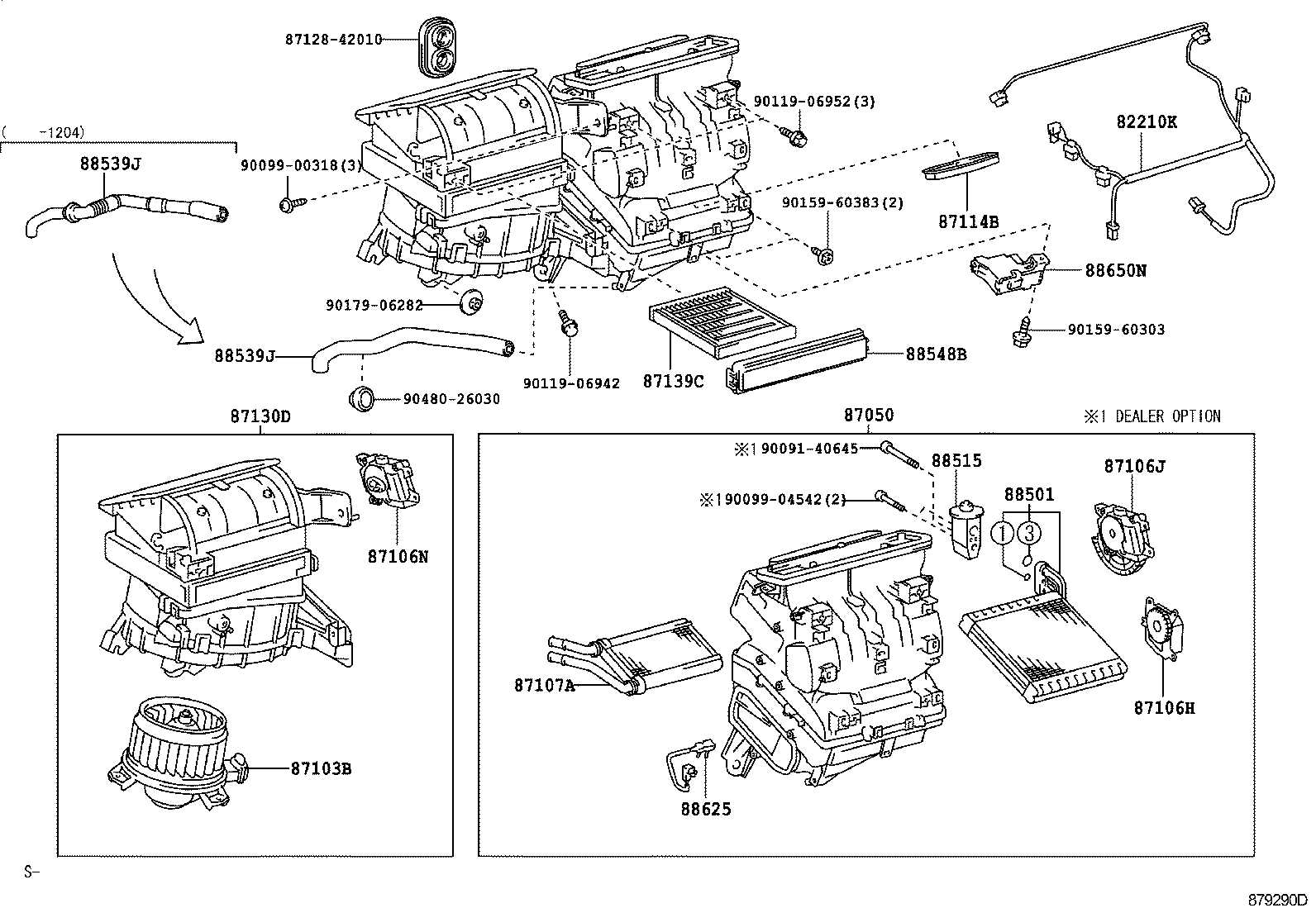

ILLUST NO. 1 OF 2(0703- )

Click highlighted areas on diagram

AUTO AIR CONDITIONER

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-12020	ZRE152..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)	03/2007 - 12/2008	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-12310	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
87050-12310	ZRE152..N	03/2007 - 12/2008	1
87050-12370	ZRE152..D	03/2007 - 12/2008	1
87050-12350	ZRE152..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)	03/2007 - 12/2008	1
87050-12310	ZRE152	04/2010 - 05/2010	1
87050-12311	ZRE152	05/2010 - 11/2013	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-42070	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
87103-12060	ZRE152..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)	03/2007 - 12/2008	1
87103-42070	ZRE152	04/2010 - 12/2999	1
87103-42070	ZRE152	03/2007 - 12/2008	1
87103-42070	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	04/2010 - 12/2999	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-12170	ZRE152..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)	03/2007 - 12/2008	1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-42100	ZRE152..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)	03/2007 - 12/2008	1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-42110	ZRE152	03/2007 - 12/2008	1
87106-42110	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	04/2010 - 12/2999	1
87106-42120	ZRE152..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)	03/2007 - 12/2008	1
87106-42110	ZRE152	04/2010 - 12/2999	1
87106-42110	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-42170	ZRE152	03/2007 - 12/2008	1
87107-42170	ZRE15#	04/2010 - 11/2013	1
87107-42170	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
87107-42170	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	04/2010 - 11/2013	1
87114B - COVER, HEATER
87114-12080	ZRE15#	04/2010 - 12/2999	1
87114-12080	ZRE152	03/2007 - 12/2008	1
87130D - BLOWER ASSY
87130-12430	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 05/2008	1
87130-12430	ZRE152..N	03/2007 - 06/2008	1
87130-12430	ZRE152..D	03/2007 - 05/2008	1
87130-12430	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 06/2008	1
87130-12431	ZRE152	04/2010 - 12/2999	1
87130-12530	ZRE152..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)	03/2007 - 05/2008	1
87130-12431	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	04/2010 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-30040	ZRE15# POLLEN FILTER	04/2010 - 12/2999	1
87139-30040	ZRE152	03/2007 - 12/2008	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-26210	ZRE152..N	03/2007 - 05/2008	1
88501-26210	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 05/2008	1
88501-26211	ZRE152	04/2010 - 09/2010	1
88501-0K090	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
88501-72020	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	10/2010 - 12/2999	1
88501-26211	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	04/2010 - 09/2010	1
88501-72020	ZRE152	10/2010 - 12/2999	1
88515 - VALVE, COOLER EXPANSION
88515-26070	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
88515-42090	ZRE152..N	03/2007 - 12/2008	1
88515-12100	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	05/2010 - 11/2013	1
88515-26070	ZRE152	04/2010 - 05/2010	1
88515-42090	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
88515-12100	ZRE152	05/2010 - 11/2013	1
88515-26070	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	04/2010 - 05/2010	1
88539J - HOSE, DRAIN COOLER
88539-12210	ZRE15#	05/2012 - 12/2999	1
88539-12190	ZRE15#	04/2010 - 04/2012	1
88539-12190	ZRE152	03/2007 - 12/2008	1
88539J - HOSE, DRAIN COOLER
88539-12210	ZRE15#	05/2012 - 12/2999	1
88539-12190	ZRE15#	04/2010 - 04/2012	1
88539-12190	ZRE152	03/2007 - 12/2008	1
88548B - CASE, AIR FILTER
88548-42010	ZRE152	03/2007 - 12/2008	1
88548-42010	ZRE15#	04/2010 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88625-26090	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
88625-26090	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
88625-26090	ZRE152..N	03/2007 - 12/2008	1
88625-26090	ZRE152..D AIR CONDITIONER-MANUAL(DEALER OPTION)	04/2010 - 12/2999	1
88625-26090	ZRE15#	04/2010 - 12/2999	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-12B40	ZRE152..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)	03/2007 - 12/2008	1
88650-12A80	ZRE152..N	03/2007 - 12/2008	1
88650-12A80	ZRE152..D MANUAL AIR CONDITIONER(DEALER OPTION)	03/2007 - 12/2008	1
88650-12E20	ZRE152	04/2010 - 12/2999	1
88650-12A80	ZRE152..D MANUAL AIR CONDITIONER(MAKER OPTION)	03/2007 - 12/2008	1
Common parts
87128-42010
90091-40645
90099-00318
90099-04542
90119-06942
90119-06952
90159-60303
90159-60383
90179-06282
90480-26030

ZRE152R-AEPNKQ (2010)

ILLUST NO. 2 OF 2(0703- )

ILLUST NO. 1 OF 2(0703- )

ILLUST NO. 1 OF 2(0703- )

ILLUST NO. 1 OF 2(0703- )

Part Price Details
