ZRE152R-AEPNKQ (2010)
Toyota Corolla Sed
ILLUST NO. 1 OF 8(0703- )

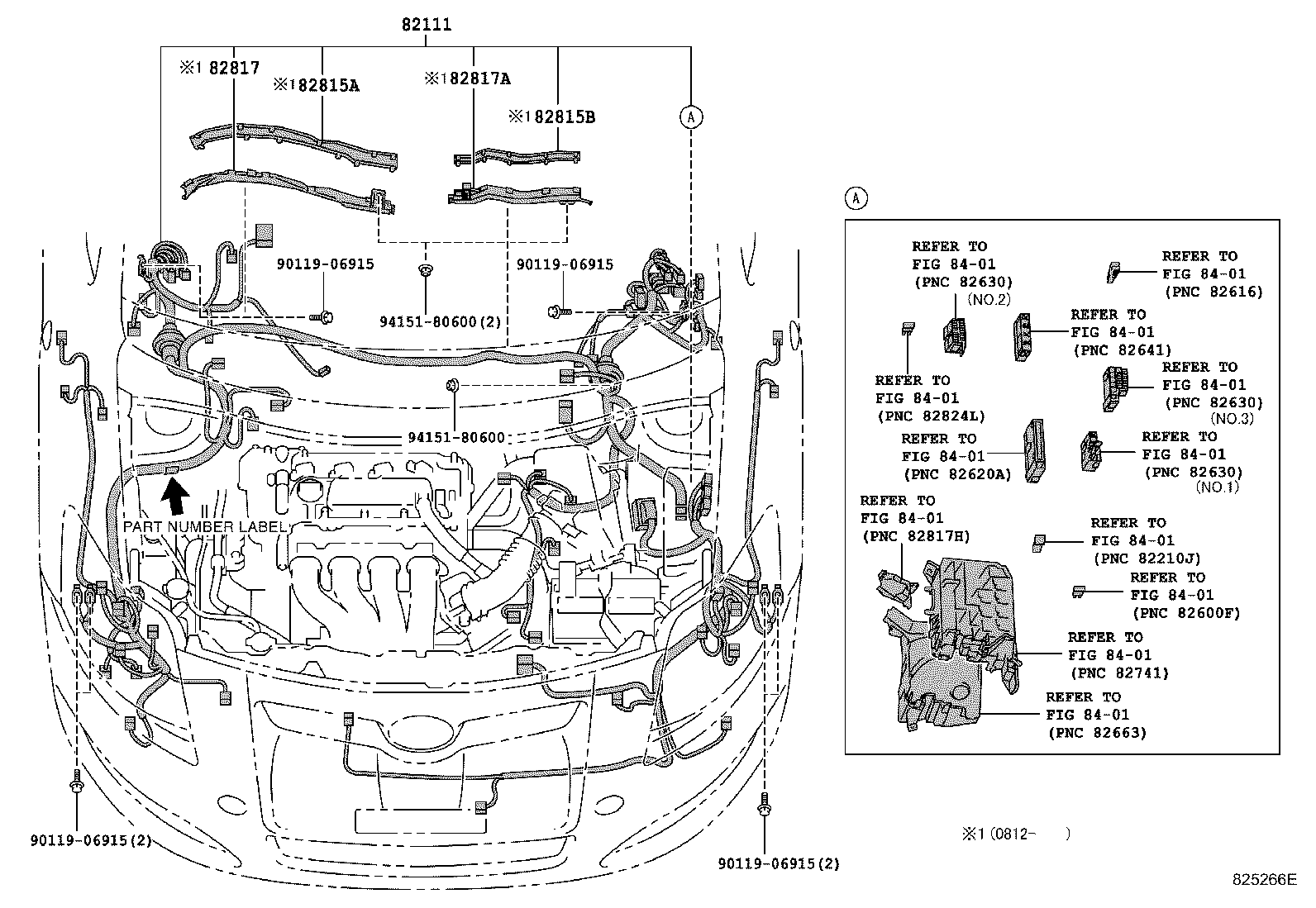

ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1EX81 |
ZRE152..4FC |
1 | ||
| 82111-1AC00 |
ZRE152..4FC..N HEADLAMP-DISCHARGE |
1 | ||
| 82111-1AB90 |
ZRE152..4FC |
1 | ||
| 82111-1EX81 |
ZRE152..4FC VSC-WITH |
1 | ||
| 82111-1EX80 |
ZRE152..4FC VSC-WITH |
1 | ||
| 82111-1EX61 |
ZRE152..4FC |
1 | ||
| 82111-1EX60 |
ZRE152..4FC |
1 | ||
| 82111-1AB90 |
ZRE152..4FC PART NUMBER LABEL=82111-1AB90 |
1 | ||
| 82111-1AC00 |
ZRE152..4FC..N PART NUMBER LABEL=82111-1AC00 |
1 | ||
| 82111-1EX80 |
ZRE152..4FC PART NUMBER LABEL=82111-1EX80 |
1 | ||
| 82111-1EX60 |
ZRE152..4FC PART NUMBER LABEL=82111-1EX60 |
1 | ||
| 82111-1EX61 |
ZRE152..4FC PART NUMBER LABEL=82111-1EX61 |
1 | ||
| 82111-1EX81 |
ZRE152..4FC PART NUMBER LABEL=82111-1EX81 |
1 | ||
| 82111-1EX81 |
ZRE152..4FC PART NUMBER LABEL=82111-1EX81 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12150 |
ZRE15# |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12160 |
ZRE15# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12B10 |
ZRE15# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12B20 |
ZRE15# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF 8(0703- )

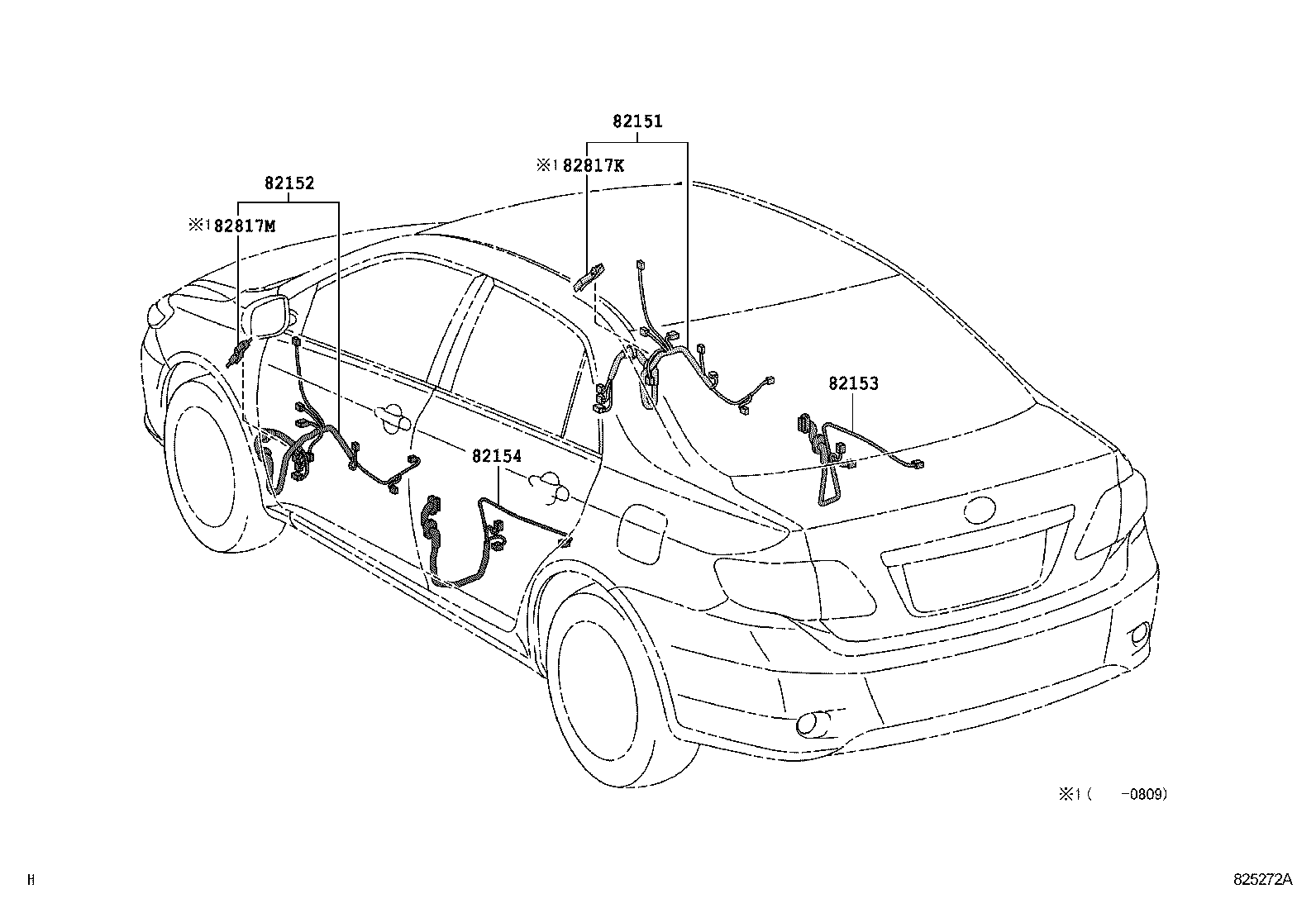

DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12E80 |
ZRE152..N STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82151-12E50 |
ZRE152..D |
1 | ||
| 82151-12E70 |
ZRE152..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 82151-12F50 |
ZRE152..N ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82151-12E70 |
ZRE152..N |
1 | ||
| 82151-12F40 |
ZRE152..N ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
1 | ||
| 82151-12V50 |
ZRE152..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 82151-12V50 |
ZRE152..N |
1 | ||
| 82151-12T00 |
ZRE152..D |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-12E70 |
ZRE152..N STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82152-12F10 |
ZRE152..N ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
1 | ||
| 82152-12F20 |
ZRE152..N ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82152-12E60 |
ZRE152 |
1 | ||
| 82152-12S20 |
ZRE152 |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12590 |
ZRE152..N |
1 | ||
| 82153-12610 |
ZRE152..N ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
1 | ||
| 82153-12830 |
ZRE152..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 82153-12830 |
ZRE152..N |
1 | ||
| 82153-12820 |
ZRE152..D |
1 | ||
| 82153-12590 |
ZRE152..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 82153-12580 |
ZRE152..D |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-12530 |
ZRE152..D |
1 | ||
| 82154-12540 |
ZRE152..N |
1 | ||
| 82154-12540 |
ZRE152..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 82154-12780 |
ZRE152..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 82154-12780 |
ZRE152..N |
1 | ||
| 82154-12770 |
ZRE152..D |
1 | ||
| 82154-12560 |
ZRE152..N ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-12F30 |
ZRE152 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-12F40 |
ZRE152 |
1 | ||
ILLUST NO. 5 OF 8(0703- )

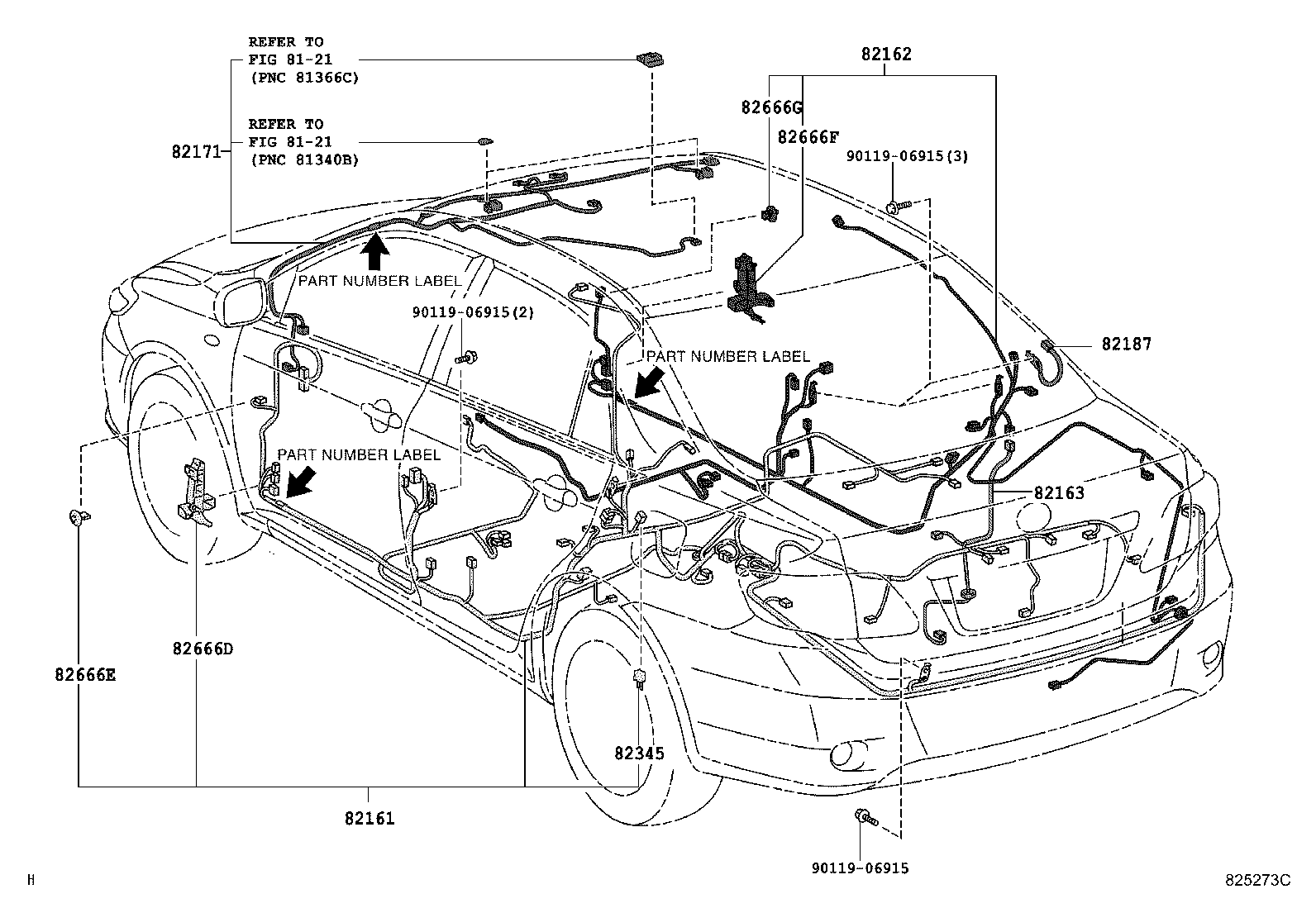

FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-12F30 |
ZRE152..N |
1 | ||
| 82161-12F30 |
ZRE152..D PART NUMBER LABEL=82161-12F30 |
1 | ||
| 82161-12F30 |
ZRE152..D SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&KNEE) |
1 | ||
| 82161-12F40 |
ZRE152 PART NUMBER LABEL=82161-12F40 |
1 | ||
| 82161-12F30 |
ZRE152..N PART NUMBER LABEL=82161-12F30 |
1 | ||
| 82161-12J30 |
ZRE152..D PART NUMBER LABEL=82161-12J30 |
1 | ||
| 82161-12T30 |
ZRE152 SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE) |
1 | ||
| 82161-12F40 |
ZRE152 SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE) |
1 | ||
| 82161-12T30 |
ZRE152 PART NUMBER LABEL=82161-12T30 |
1 | ||
| 82161-12T40 |
ZRE152 |
1 | ||
| 82161-12T40 |
ZRE152 PART NUMBER LABEL=82161-12T40 |
1 | ||
| 82161-12J30 |
ZRE152..D |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-12A30 |
ZRE152..N SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82162-12A00 |
ZRE152..D SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&KNEE) |
1 | ||
| 82162-12A10 |
ZRE152 SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE) |
1 | ||
| 82162-12C50 |
ZRE152..D |
1 | ||
| 82162-12A00 |
ZRE152..N |
1 | ||
| 82162-12A00 |
ZRE152..D PART NUMBER LABEL=82162-12A00 |
1 | ||
| 82162-12A30 |
ZRE152..N PART NUMBER LABEL=82162-12A30 |
1 | ||
| 82162-12A10 |
ZRE152 PART NUMBER LABEL=82162-12A10 |
1 | ||
| 82162-12P80 |
ZRE152 |
1 | ||
| 82162-12P60 |
ZRE152 SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE) |
1 | ||
| 82162-12C50 |
ZRE152..D PART NUMBER LABEL=82162-12C50 |
1 | ||
| 82162-12A00 |
ZRE152..N PART NUMBER LABEL=82162-12A00 |
1 | ||
| 82162-12P60 |
ZRE152 PART NUMBER LABEL=82162-12P60 |
1 | ||
| 82162-12P80 |
ZRE152 PART NUMBER LABEL=82162-12P80 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-12200 |
ZRE152..N STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82163-12170 |
ZRE152..N HEADLAMP-DISCHARGE&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12F30 |
ZRE152 |
1 | ||
| 82171-12F30 |
ZRE152 PART NUMBER LABEL=82171-12F30 |
1 | ||
| 82171-12N40 |
ZRE152 |
1 | ||
| 82171-12N50 |
ZRE152 MOON ROOF-WITH |
1 | ||
| 82171-12F50 |
ZRE152..N INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82171-12N40 |
ZRE152 PART NUMBER LABEL=82171-12N40 |
1 | ||
| 82171-12F50 |
ZRE152..N PART NUMBER LABEL=82171-12F50 |
1 | ||
| 82171-12N50 |
ZRE152 PART NUMBER LABEL=82171-12N50 |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-12210 |
ZRE152 |
1 | ||
| 82187-12210 |
ZRE15# |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
ZRE152 |
1 | ||
| 82345-12050 |
ZRE15# |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-12400 |
ZRE152 |
1 | ||
| 82666-12400 |
ZRE15# |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-20280 |
ZRE152 |
1 | ||
| 82666-20280 |
ZRE15# |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-12370 |
ZRE15# |
1 | ||
| 82666-12370 |
ZRE152 |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-20280 |
ZRE152 |
1 | ||
| 82666-20280 |
ZRE15# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 2 OF 8(0703- )

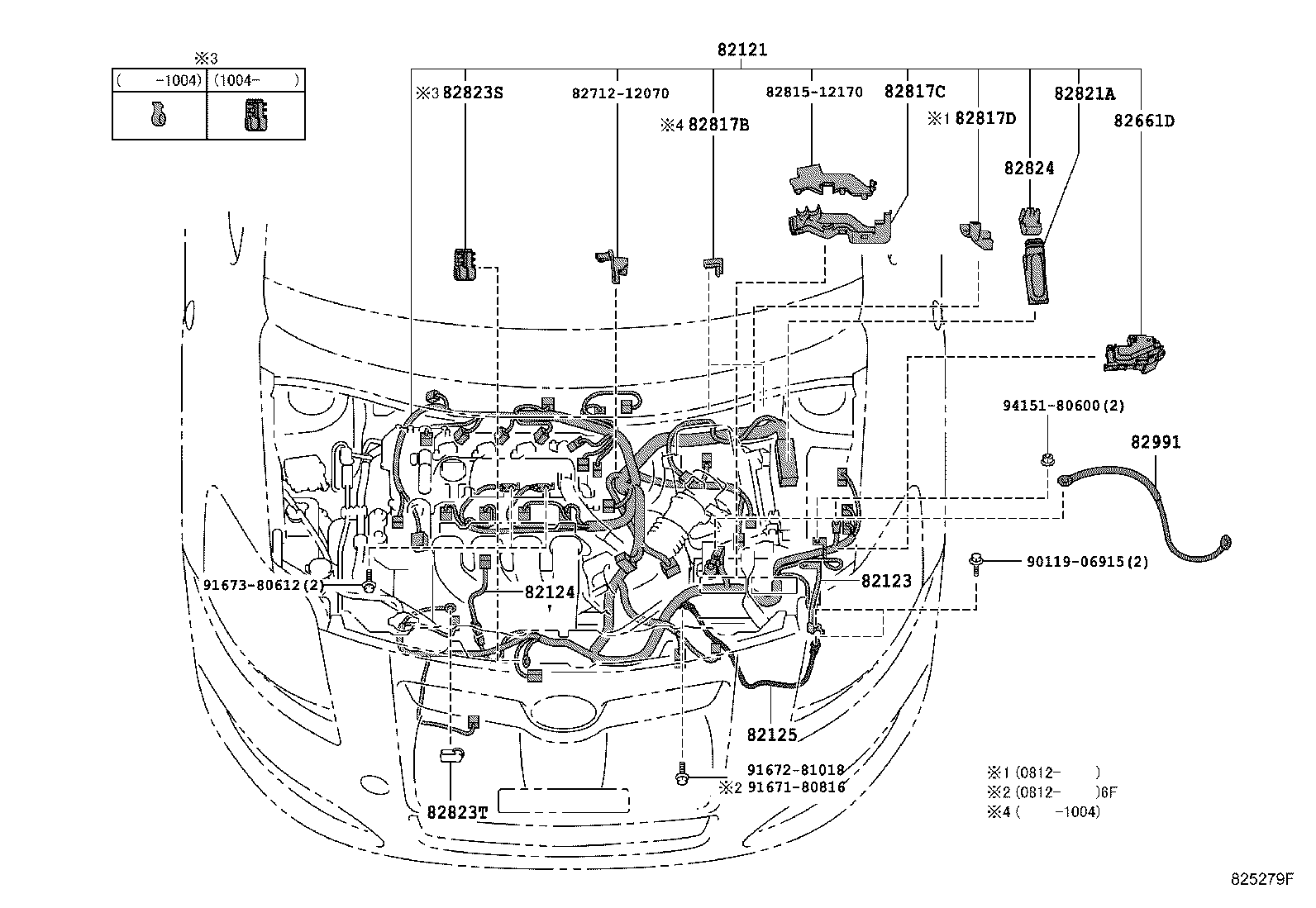

ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-12J80 |
ZRE152..4FC |
1 | ||
| 82121-12D90 |
ZRE152..4FC |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-12460 |
ZRE15# |
1 | ||
| 82123-12460 |
ZRE152 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-02090 |
ZRE152 |
1 | ||
| 82124-12160 |
ZRE15# |
1 | ||
| 82124-02090 |
ZRE15# |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-12460 |
ZRE152..4FC |
1 | ||
| 82125-12460 |
ZRE152..4FC |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-12280 |
ZRE152 |
1 | ||
| 82661-12280 |
ZRE15# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-12860 |
ZRE152 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-12B90 |
ZRE15# |
1 | ||
| 82817-12B90 |
ZRE152 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-12J10 |
ZRE15# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12560 |
ZRE152 |
1 | ||
| 82821-12560 |
ZRE15# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-12110 |
ZRE15# |
1 | ||
| 82823-12090 |
ZRE152 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ZRE152 |
1 | ||
| 82823-22050 |
ZRE15# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-34100 |
ZRE15# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12110 |
ZRE15# |
1 | ||
| 82991-12110 |
ZRE152 |
1 | ||
| Common parts | ||||
| 82712-12070 | ||||
| 82815-12170 | ||||
| 90119-06915 | ||||
| 91671-80816 | ||||
| 91672-81018 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||
ILLUST NO. 3 OF 8(0703- )

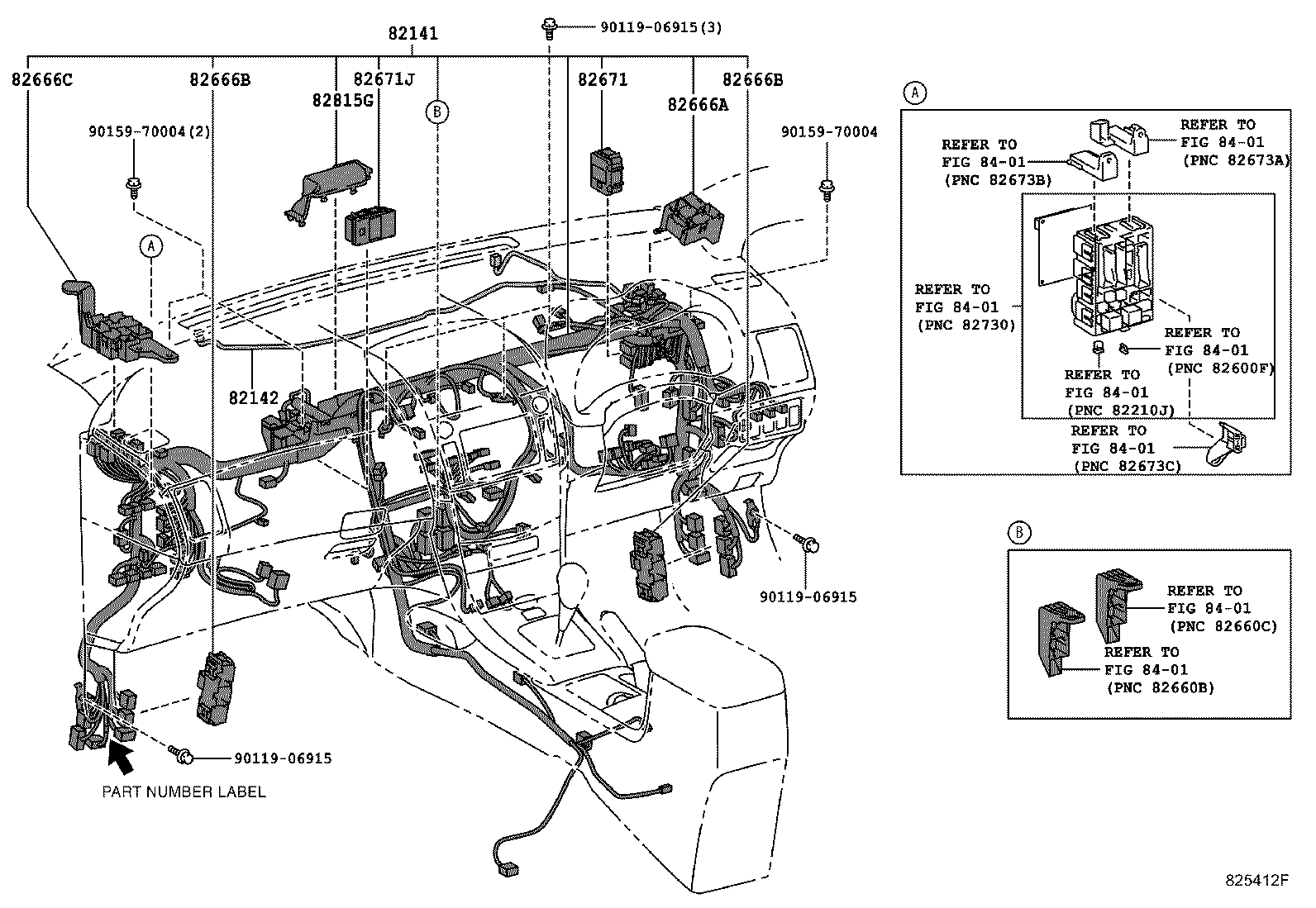

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-1HL60 |
ZRE152 |
1 | ||
| 82141-1HL80 |
ZRE152..N INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82141-1HM00 |
ZRE152..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AUTO AIR CONDITIONER(SINGLE MODE)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82141-1HL90 |
ZRE152..N ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82141-1HM10 |
ZRE152..N ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-AUTO(RAIN SENSOR)&AUTO AIR CONDITIONER(SINGLE MODE)&STARTING SYSTEM-PUSH BUTTON |
1 | ||
| 82141-1LZ31 |
ZRE152 AUDIO (OVERSEAS MARKET)-WITH(M/UW, CD) & 6SPEAKER |
1 | ||
| 82141-1HL60 |
ZRE152 PART NUMBER LABEL=82141-1AW60 OR -1HL60 |
1 | ||
| 82141-1HL70 |
ZRE152..N ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM) |
1 | ||
| 82141-1LZ31 |
ZRE152..N AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER,W(BLUETOOTH) |
1 | ||
| 82141-1LZ30 |
ZRE152 |
1 | ||
| 82141-1TE90 |
ZRE152 |
1 | ||
| 82141-1HL70 |
ZRE152..N PART NUMBER LABEL=82141-1AW70 OR -1HL70 |
1 | ||
| 82141-1HL80 |
ZRE152..N PART NUMBER LABEL=82141-1AX20 OR -1HL80 |
1 | ||
| 82141-1TE91 |
ZRE152 |
1 | ||
| 82141-1LZ32 |
ZRE152 AUDIO (OVERSEAS MARKET)-WITH(M/UW, CD) & 6SPEAKER |
1 | ||
| 82141-1HL90 |
ZRE152..N PART NUMBER LABEL=82141-1AX30 OR -1HL90 |
1 | ||
| 82141-1HM10 |
ZRE152..N PART NUMBER LABEL=82141-1AX70 OR -1HM10 |
1 | ||
| 82141-1LZ32 |
ZRE152..4FC..N AUDIO (OVERSEAS MARKET)-WITH(L/M/UW, CD) & 6SPEAKER,W(BLUETOOTH) |
1 | ||
| 82141-1LZ31 |
ZRE152..N PART NUMBER LABEL=82141-1LW61 OR -1LZ31 |
1 | ||
| 82141-1LZ32 |
ZRE152 PART NUMBER LABEL=82141-1LW62 OR -1LZ32 |
1 | ||
| 82141-1HM00 |
ZRE152..N PART NUMBER LABEL=82141-1AX60 OR -1HM00 |
1 | ||
| 82141-1LZ31 |
ZRE152 PART NUMBER LABEL=82141-1LW61 OR -1LZ31 |
1 | ||
| 82141-1TE91 |
ZRE152 PART NUMBER LABEL=82141-1TE71 OR -1TE91 |
1 | ||
| 82141-1LZ30 |
ZRE152 PART NUMBER LABEL=82141-1LW60 OR -1LZ30 |
1 | ||
| 82141-1TE90 |
ZRE152 PART NUMBER LABEL=82141-1TE70 OR -1TE90 |
1 | ||
| 82141-1LZ32 |
ZRE152..4FC..N PART NUMBER LABEL=82141-1LW62 OR -1LZ32 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-12400 |
ZRE152..N WIRELESS DOOR LOCK-WITH(SMART ENTRY)&INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82142-12380 |
ZRE152..N INTERMITTENT WIPER-AUTO(RAIN SENSOR) |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-12350 |
ZRE152 |
1 | ||
| 82666-12350 |
ZRE15# |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12360 |
ZRE15# |
2 | ||
| 82666-12360 |
ZRE152 |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12360 |
ZRE15# |
2 | ||
| 82666-12360 |
ZRE152 |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-12430 |
ZRE152 |
1 | ||
| 82666-12430 |
ZRE15# |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-12270 |
ZRE152 |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-12280 |
ZRE152 |
1 | ||
| 82671-12330 |
ZRE15# |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-12310 |
ZRE152 |
1 | ||
| 82815-12310 |
ZRE15# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-70004 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 6 OF 8(0703- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 53614-12040 | ||||
| 82711-1E350 | ||||
| 82711-35470 | ||||
| 82715-12870 | ||||
| 82715-12890 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12A40 | ||||
| 82715-12A50 | ||||
| 82715-12F20 | ||||
| 82715-12F30 | ||||
| 82715-12K70 | ||||
| 82715-12N40 | ||||
| 82715-12R00 | ||||
| 82715-12R10 | ||||
| 82715-6A460 | ||||
| 82729-20150 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91672-81018 | ||||
| 91673-80612 | ||||
| 91673-80616 | ||||
| 91673-80820 | ||||

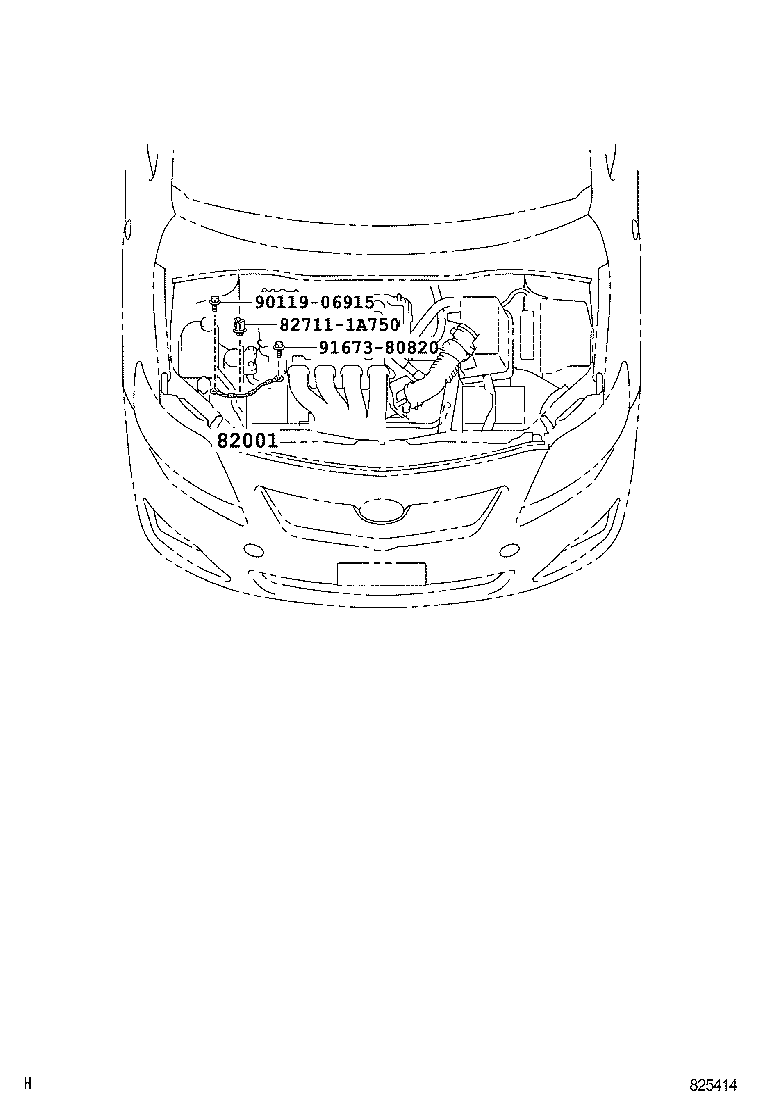

ILLUST NO. 7 OF 8(0703- )
CABLE BOND
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07431 |
ZRE15# |
1 | ||
| 90980-07431 |
ZRE152 |
1 | ||
| Common parts | ||||
| 82711-1A750 | ||||
| 90119-06915 | ||||
| 91673-80820 | ||||
ILLUST NO. 7 OF 8(0703- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10795 | ||||
| 90980-10860 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11070 | ||||
| 90980-11148 | ||||
| 90980-11156 | ||||
| 90980-11162 | ||||
| 90980-11255 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
| 90980-11856 | ||||
| 90980-11967 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||

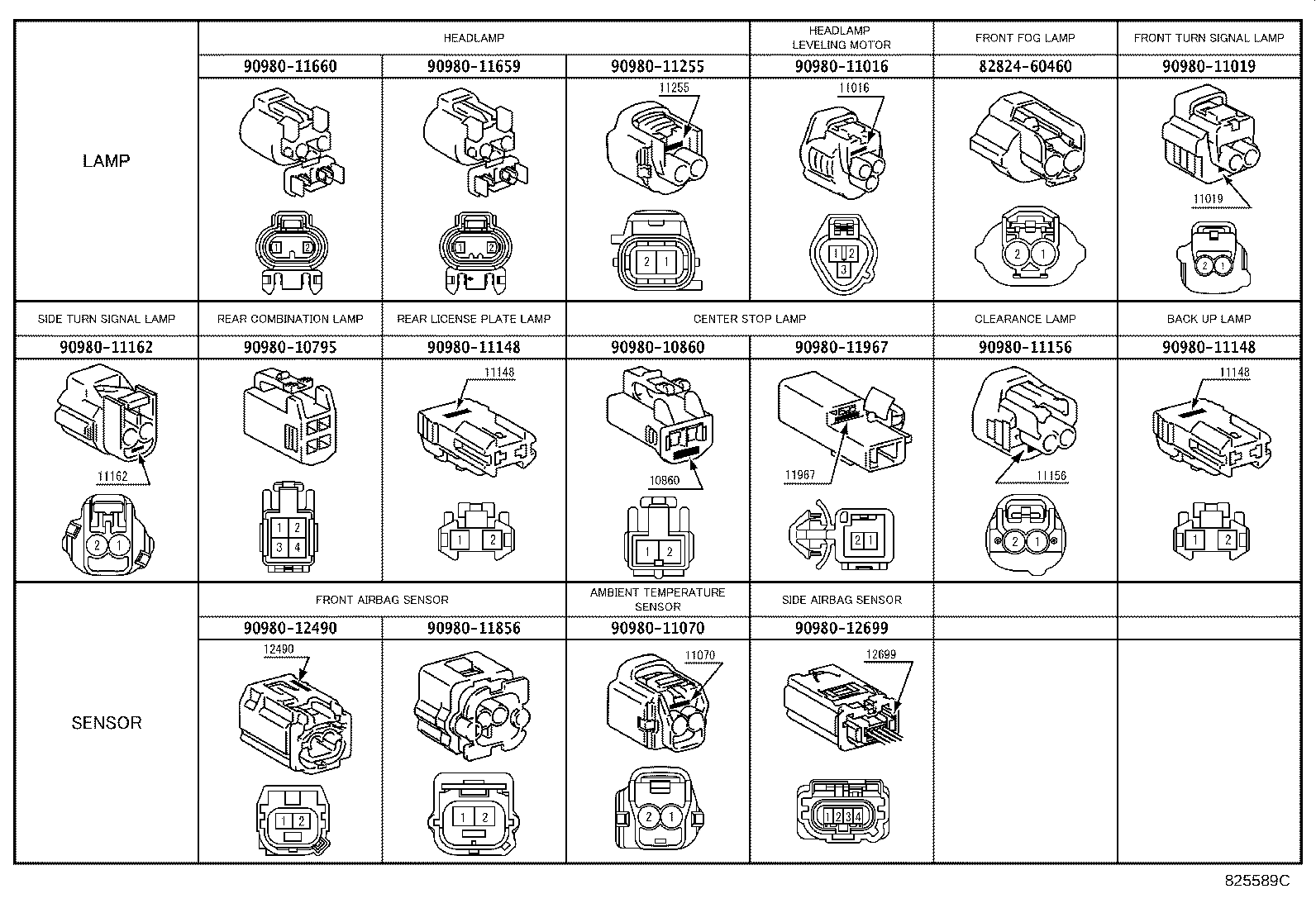

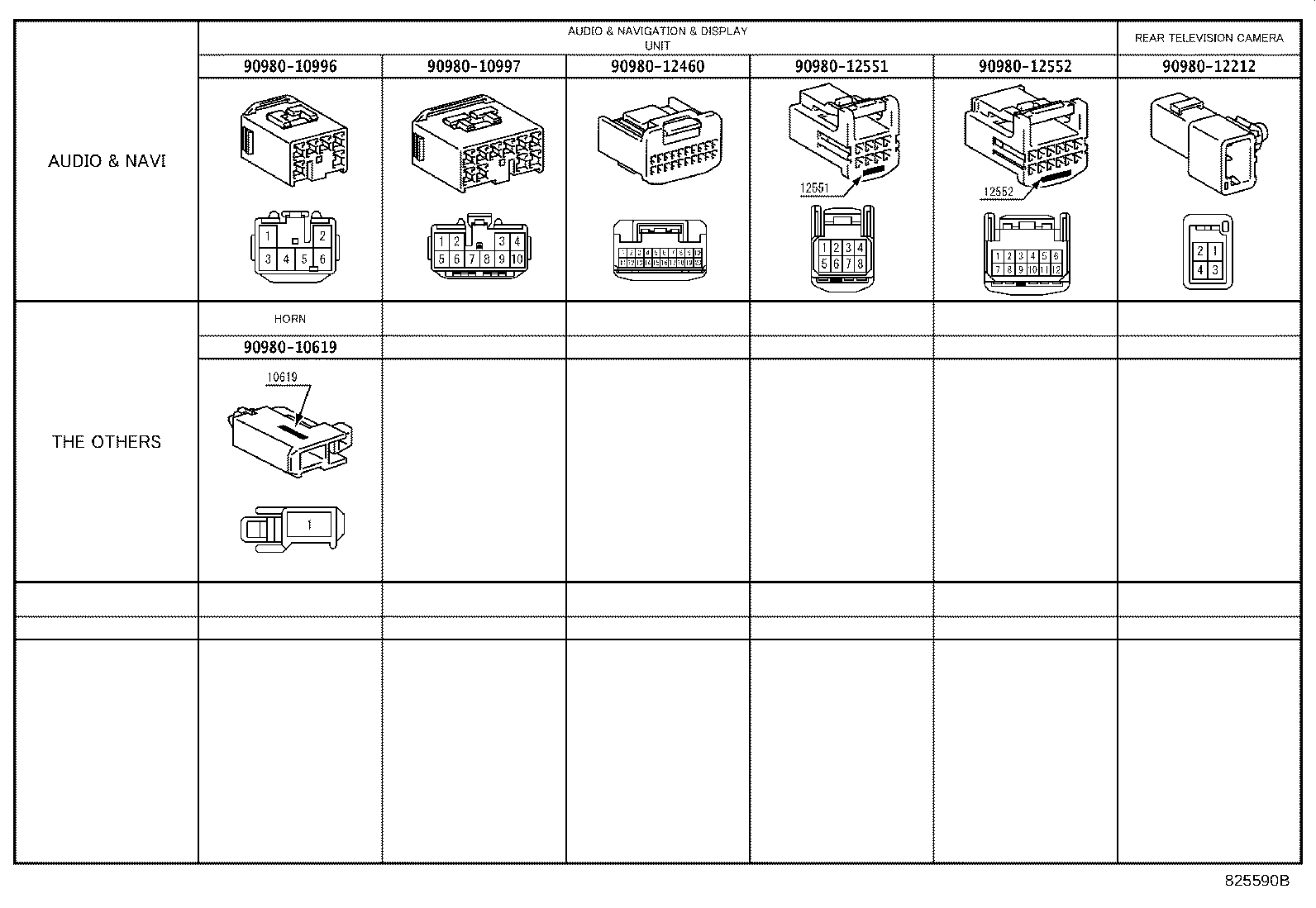

ILLUST NO. 8 OF 8(0703- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-12212 | ||||
| 90980-12460 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
