ZRE152R-AEPNKQ (2010)
Toyota Corolla Sed
(1004- )

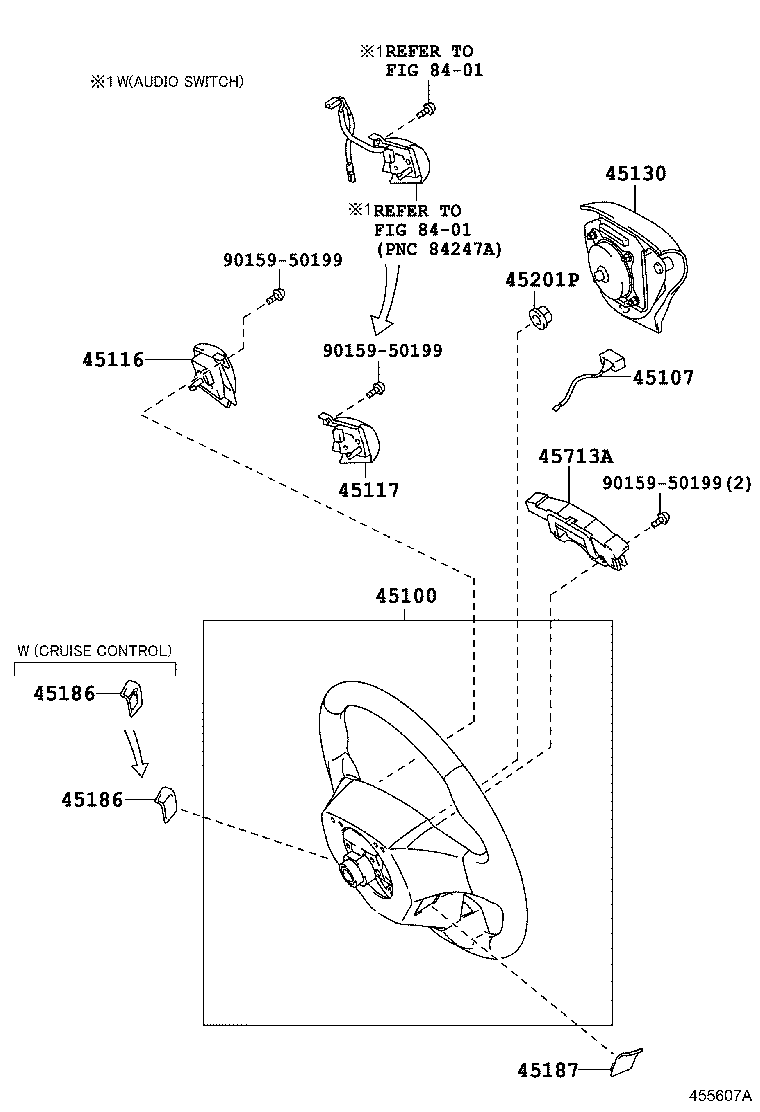

3-SPOKE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45100 - WHEEL ASSY, STEERING | ||||
| 45100-12D50B0 |
ZRE152..D 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45100-12D60B0 |
ZRE152..N 3-SPOKE,LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 45100-12E90B0 |
ZRE152..D 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),DK.GRAY,TRIM1# |
1 | ||
| 45100-12D60B0 |
ZRE152..D 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 45100-12D60E0 |
ZRE152..N 3-SPOKE,LEATHER,ASH BROWN,TRIM4# |
1 | ||
| 45100-12D60B0 |
ZRE152..D 3-SPOKE,LEATHER,STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),DK.GRAY,TRIM1# |
1 | ||
| 45100-12E90B0 |
ZRE15#..E,N 3-SPOKE,LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 45100-68130B0 |
ZRE152..D 3-SPOKE,URETHANE,DK.GRAY,TRIM1# |
1 | ||
| 45107 - WIRE SUB-ASSY, HORN BUTTON | ||||
| 45107-48010 |
ZRE152 STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW) |
1 | ||
| 45107-48010 |
ZRE152 |
1 | ||
| 45107-48010 |
ZRE152..D CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW) |
1 | ||
| 45107-48010 |
ZRE152..D STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW) |
1 | ||
| 45107-48010 |
ZRE152..D |
1 | ||
| 45107-48010 |
ZRE152..D CRUISE CONTROL-WITH |
1 | ||
| 45116 - ORNAMENT, STEERING WHEEL, NO.1 | ||||
| 45116-52030 |
ZRE152 STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW) |
1 | ||
| 45116-12120 |
ZRE15# |
1 | ||
| 45117 - ORNAMENT, STEERING WHEEL, NO.2 | ||||
| 45117-12020 |
ZRE152..D |
1 | ||
| 45130 - BUTTON ASSY, HORN | ||||
| 45130-12B40B0 |
ZRE152 DK.GRAY,TRIM1# |
1 | ||
| 45130-12B40E0 |
ZRE152..N ASH BROWN,TRIM4# |
1 | ||
| 45130-12C40B0 |
ZRE152..D DK.GRAY,TRIM1# |
1 | ||
| 45130-12B50B0 |
ZRE152 STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),DK.GRAY,TRIM1# |
1 | ||
| 45130-12C40B0 |
ZRE15#..E,N DK.GRAY,TRIM1#,4# |
1 | ||
| 45130-12B50E0 |
ZRE152..N STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),ASH BROWN,TRIM4# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-12010E0 |
ZRE152..N CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),ASH BROWN,TRIM4# |
1 | ||
| 45186-12020B0 |
ZRE152 DK.GRAY,TRIM1# |
1 | ||
| 45186-12020E0 |
ZRE152..N ASH BROWN,TRIM4# |
1 | ||
| 45186-12010B0 |
ZRE152 CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),DK.GRAY,TRIM1# |
1 | ||
| 45186-42040B0 |
ZRE152..N CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45186-42030B0 |
ZRE152..N DK.GRAY,TRIM1#,4# |
1 | ||
| 45186-42030B0 |
ZRE152..D DK.GRAY,TRIM1# |
1 | ||
| 45186-42040B0 |
ZRE152..D CRUISE CONTROL-WITH,DK.GRAY,TRIM1# |
1 | ||
| 45186 - COVER, STEERING WHEEL, LOWER NO.2 | ||||
| 45186-12010E0 |
ZRE152..N CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),ASH BROWN,TRIM4# |
1 | ||
| 45186-12020B0 |
ZRE152 DK.GRAY,TRIM1# |
1 | ||
| 45186-12020E0 |
ZRE152..N ASH BROWN,TRIM4# |
1 | ||
| 45186-12010B0 |
ZRE152 CRUISE CONTROL-WITH&STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW),DK.GRAY,TRIM1# |
1 | ||
| 45186-42040B0 |
ZRE152..N CRUISE CONTROL-WITH,DK.GRAY,TRIM1#,4# |
1 | ||
| 45186-42030B0 |
ZRE152..N DK.GRAY,TRIM1#,4# |
1 | ||
| 45186-42030B0 |
ZRE152..D DK.GRAY,TRIM1# |
1 | ||
| 45186-42040B0 |
ZRE152..D CRUISE CONTROL-WITH,DK.GRAY,TRIM1# |
1 | ||
| 45187 - COVER, STEERING WHEEL, LOWER NO.3 | ||||
| 45187-12020B0 |
ZRE152 DK.GRAY,TRIM1# |
1 | ||
| 45187-12020E0 |
ZRE152..N ASH BROWN,TRIM4# |
1 | ||
| 45187-42020B0 |
ZRE152..D DK.GRAY,TRIM1# |
1 | ||
| 45187-42020B0 |
ZRE15#..E,N DK.GRAY,TRIM1#,4# |
1 | ||
| 45201P - NUT, STEERING WHEEL SET | ||||
| 90179-12071 |
ZRE152 |
1 | ||
| 90179-12071 |
ZRE15# |
1 | ||
| 45713A - DAMPER, STEERING SHAKE | ||||
| 45713-12080 |
ZRE152 |
1 | ||
| 45713-12110 |
ZRE15# |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| Linked diagrams | ||||
| 8401 | ||||
