ZRE152R-AEFNKQ (2008)

Toyota Corolla Sed

Production Dec 2008 - Feb 2010
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 6 OF 7(0703-1004)

Click highlighted areas on diagram

STEERING

diagram 4501 82291D 84052 84140 84247A 84306 84450 84650 85432 89245B 9015950199 9016840129 9016840129
Part # Description Qty Price
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-71010

ZRE152..N

STARTING SYSTEM-PUSH BUTTON

 1
84052-71010

ZRE152

 1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-12590

ZRE152

 1
84140-12590

ZRE152..6F..N

 1
84140-12570

ZRE152..N

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
84140-52100

ZRE152

FRONT FOG LAMP-WITH(FOG LAMP)

 1
84140-52100

ZRE152..6F..N

FRONT FOG LAMP-WITH

 1
84140-42070

ZRE152..6F..N

INTERMITTENT WIPER-AUTO(RAIN SENSOR)&FRONT FOG LAMP-WITH

 1
84140-42070

ZRE152..N

INTERMITTENT WIPER-AUTO(RAIN SENSOR)&FRONT FOG LAMP-WITH(FOG LAMP)

 1
84140-12570

ZRE152..6F..N

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
84247A - SWITCH, STEERING PAD, LH
84247-12040

ZRE152

STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW)

 1
84306 - CABLE SUB-ASSY, SPIRAL
84306-12100

ZRE152..N

 1
84306-12100

ZRE152

 1
84306-12110

ZRE152..N

STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SW)&VSC-WITH(CANCEL SWITCH)

 1
84306-12110

ZRE152..N

STEERING WHEEL-3-SPOKE,LEATHER,WITH(STEERING SW)

 1
84306-12110

ZRE152

STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW)

 1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-12200

ZRE152

 1
84450-12200

ZRE152..N

STARTING SYSTEM-PUSH BUTTON

 1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-52260

ZRE152

 1
84652-52260

ZRE152..6F..N

 1
84652-33450

ZRE152..6F..N

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
84652-33450

ZRE152..N

INTERMITTENT WIPER-AUTO(RAIN SENSOR)

 1
Common parts
90159-50199
90168-40129
Linked diagrams
4501

ILLUST NO. 1 OF 7(0812- )

Click highlighted areas on diagram

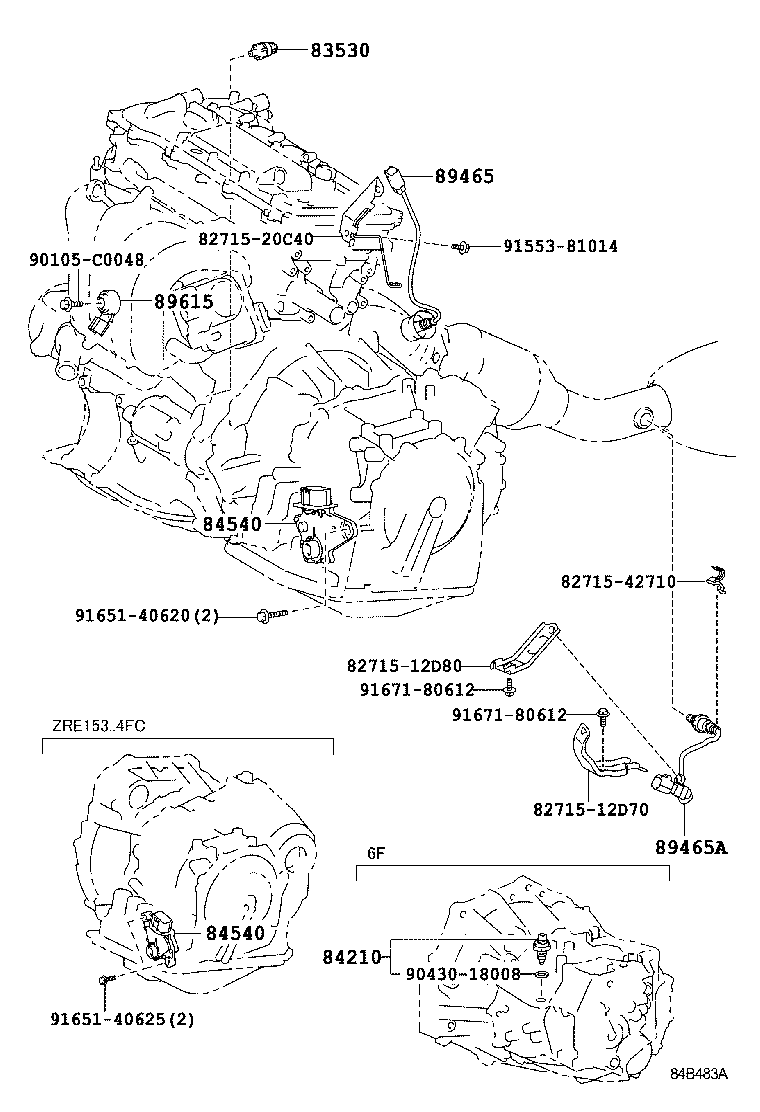

ENGINE & TRANSMISSION

diagram 8271512D70 8271512D80 8271520C40 8271542710 83530 84210 84540 84540 89465 89465A 89615 90105C0048 9043018008 9155381014 9165140620 9165140625 9167180612 9167180612
Part # Description Qty Price
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28020

ZRE152

DENSO

 1
83530-05010

ZRE152

VALEO

 1
83530-60020

ZRE152

YAZAKI

 1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-52010

ZRE152..6F

 1
89465 - SENSOR, OXYGEN
89467-12030

ZRE152

 1
89465A - SENSOR, OXYGEN NO.2
89465-12800

ZRE152

 1
89615 - SENSOR, KNOCK CONTROL
89615-20090

ZRE152

 1
89615-02020

ZRE152..6F..N

 1
Common parts
82715-12D70
82715-12D80
82715-20C40
82715-42710
90105-C0048
90430-18008
91553-81014
91651-40620
91651-40625
91671-80612
