ZRE152R-AEFNKQ (2008)

Toyota Corolla Sed

Production Dec 2008 - Feb 2010
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

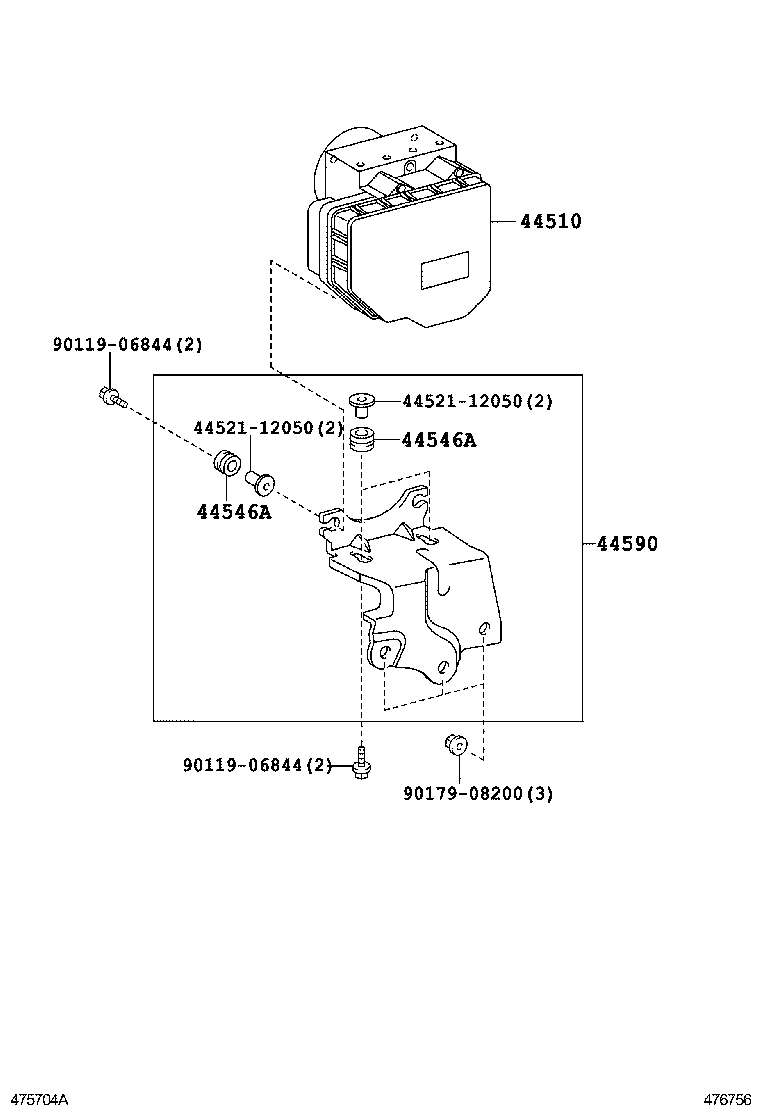

ILLUST NO. 2 OF 2(0812- )

Click highlighted areas on diagram

W(VSC)

diagram 44510 4452112050 4452112050 44546A 44546A 44590 9011906844 9011906844 9017908200
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-12210

ZRE152

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

ZRE152..6F..N

VSC-WITH(CANCEL SWITCH)

 4
44546-12110

ZRE152

 3
44546-12110

ZRE152..6F..N

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

ZRE152..6F..N

VSC-WITH(CANCEL SWITCH)

 4
44546-12110

ZRE152

 3
44546-12110

ZRE152..6F..N

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-12080

ZRE152

 1
Common parts
44521-12050
90119-06844
90179-08200
