ZRE152R-AEFNKQ (2008)
Toyota Corolla Sed
(0812- )6F
EC60
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-25030 |
ZRE152..6F..N *201,*206 |
1 | ||
| 90311-25028 |
ZRE152..6F |
1 | ||
| 31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE) | ||||
| 90311-35057 |
ZRE152..6F |
1 | ||
| 90311-35062 |
ZRE152..6F..N *201,*206 |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31105-12220 |
ZRE152..6F |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-40097 |
ZRE152..6F |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-42009 |
ZRE152..6F..N *201,*206 |
1 | ||
| 90366-40094 |
ZRE152..6F |
1 | ||
| 41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90560-41003 |
ZRE152..6F T=2.1 |
1 | ||
| 90560-41003 |
ZRE152..6F..N T=2.1,*201,*206 |
1 | ||
| 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-41015 |
ZRE152..6F T=2.15,MARK BB |
1 | ||
| 90564-41014 |
ZRE152..6F T=2.10,MARK AA |
1 | ||
| 90564-41016 |
ZRE152..6F T=2.20,MARK CC |
1 | ||
| 90564-41017 |
ZRE152..6F T=2.25,MARK DD |
1 | ||
| 90564-41019 |
ZRE152..6F T=2.35,MARK FF |
1 | ||
| 90564-41023 |
ZRE152..6F T=2.55,MARK KK |
1 | ||
| 90564-41024 |
ZRE152..6F T=2.60,MARK LL |
1 | ||
| 90564-41020 |
ZRE152..6F T=2.40,MARK GG |
1 | ||
| 90564-41022 |
ZRE152..6F T=2.50,MARK JJ |
1 | ||
| 90564-41025 |
ZRE152..6F T=2.65,MARK MM |
1 | ||
| 90564-41029 |
ZRE152..6F T=2.85,MARK RR |
1 | ||
| 90564-41028 |
ZRE152..6F T=2.80,MARK QQ |
1 | ||
| 90564-41021 |
ZRE152..6F T=2.45,MARK HH |
1 | ||
| 90564-41030 |
ZRE152..6F T=2.90,MARK SS |
1 | ||
| 90564-41031 |
ZRE152..6F T=2.95,MARK TT |
1 | ||
| 90564-41027 |
ZRE152..6F T=2.75,MARK PP |
1 | ||
| 90564-41018 |
ZRE152..6F T=2.30,MARK EE |
1 | ||
| 90564-41032 |
ZRE152..6F T=3.00,MARK UU |
1 | ||
| 90564-41026 |
ZRE152..6F T=2.70,MARK NN |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-20130 |
ZRE152..6F..N *201 |
2 | ||
| 41331-32010 |
ZRE152..6F |
2 | ||
| 41331-12150 |
ZRE152..6F..N *206 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-20130 |
ZRE152..6F..N *201 |
2 | ||
| 41331-32010 |
ZRE152..6F |
2 | ||
| 41331-12150 |
ZRE152..6F..N *206 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30011 |
ZRE152..6F |
2 | ||
| 41341-12100 |
ZRE152..6F..N *206 |
2 | ||
| 41341-20050 |
ZRE152..6F..N *201 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-30011 |
ZRE152..6F |
2 | ||
| 41341-12100 |
ZRE152..6F..N *206 |
2 | ||
| 41341-20050 |
ZRE152..6F..N *201 |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ZRE152 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-32020 |
ZRE152 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
ZRE152 |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-32010 |
ZRE152 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22040 |
ZRE152..6F T=1.20,MARK 04 |
2 | ||
| 41361-22020 |
ZRE152..6F T=1.00,MARK 02 |
2 | ||
| 41361-22140 |
ZRE152..6F T=0.95,MARK 14 |
2 | ||
| 41361-22150 |
ZRE152..6F T=1.05,MARK 15 |
2 | ||
| 41361-22030 |
ZRE152..6F T=1.10,MARK 03 |
2 | ||
| 41361-22160 |
ZRE152..6F T=1.15,MARK 16 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-22040 |
ZRE152..6F T=1.20,MARK 04 |
2 | ||
| 41361-22020 |
ZRE152..6F T=1.00,MARK 02 |
2 | ||
| 41361-22140 |
ZRE152..6F T=0.95,MARK 14 |
2 | ||
| 41361-22150 |
ZRE152..6F T=1.05,MARK 15 |
2 | ||
| 41361-22030 |
ZRE152..6F T=1.10,MARK 03 |
2 | ||
| 41361-22160 |
ZRE152..6F T=1.15,MARK 16 |
2 | ||
| Linked diagrams | ||||

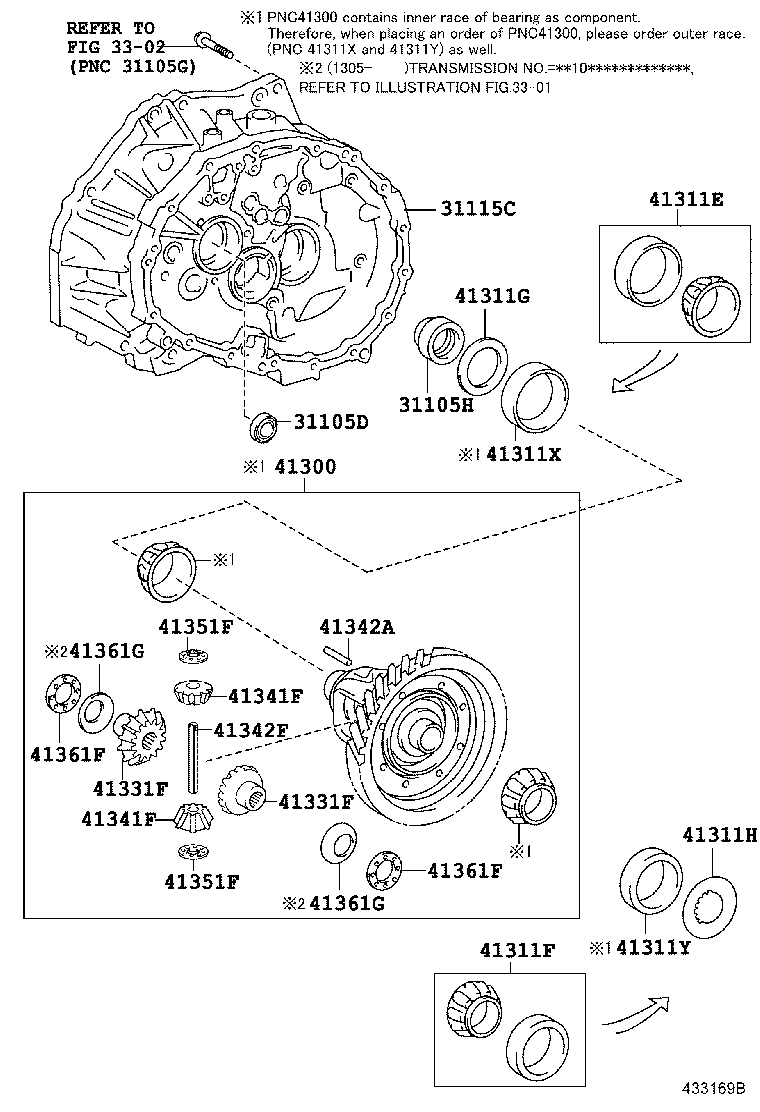

| 3302 | ||||
