ZRE152R-AEFNKQ (2008)

Toyota Corolla Sed

Production Dec 2008 - Feb 2010
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )6F

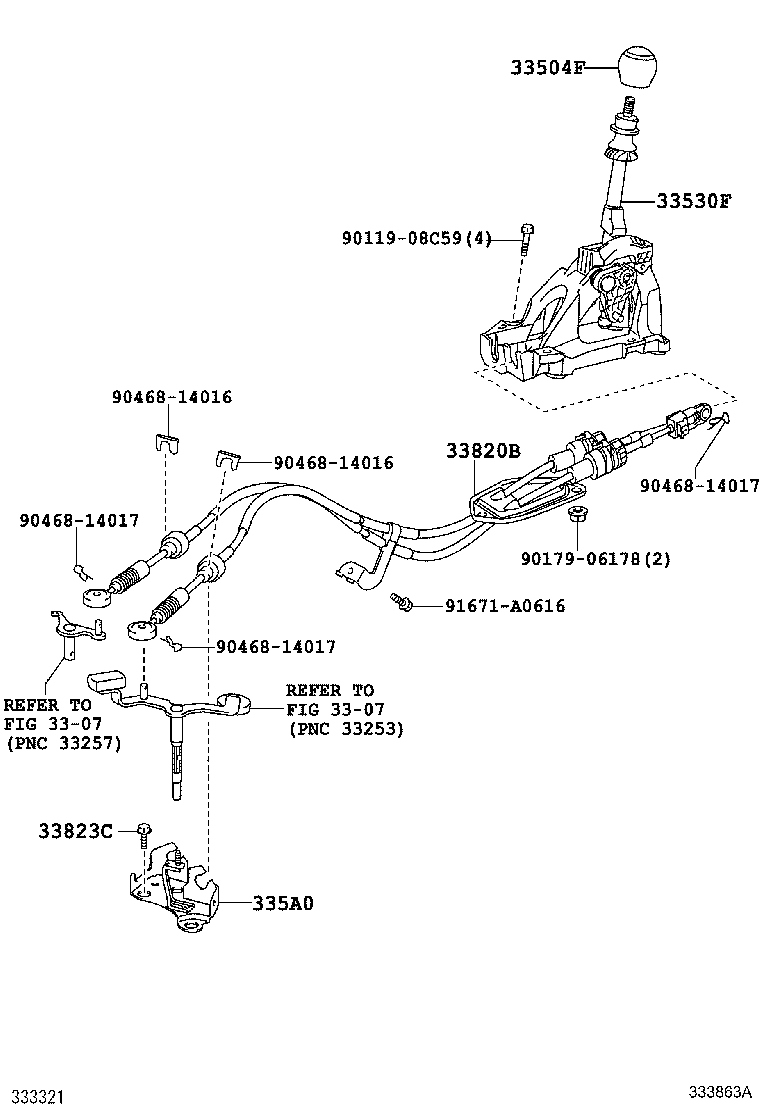

Click highlighted areas on diagram

diagram 3307 3307 33504F 33530F 335A0 33820B 33823C 9011908C59 9017906178 9046814016 9046814016 9046814017 9046814017 9046814017 91671A0616
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-12330B1

ZRE152..6F..D

SHIFT LEVER & KNOB-LEATHER,DK.GRAY,TRIM1#

 1
33504-12330E0

ZRE152..6F..N

ASH BROWN,TRIM4#

 1
33504-12330B1

ZRE152..6F..N

DK.GRAY,TRIM1#

 1
33504-12330E0

ZRE152..6F..N

ASH BROWN,TRIM4#

 1
33504-12320B1

ZRE152..6F..D

DK.GRAY,TRIM1#

 1
33504-12330B1

ZRE152..6F..N

DK.GRAY,TRIM1#

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-12A70

ZRE152..6F

 1
335A0 - BRACKET ASSY, CONTROL CABLE
335A0-20010

ZRE152..6F..N

*201,*206

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-12E70

ZRE152..6F..N

 1
33820-12C10

ZRE152..6F

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91612-61030

ZRE152..6F

 2
90119-08C60

ZRE152..6F..N

*201,*206

 3
Common parts
90119-08C59
90179-06178
90468-14016
90468-14017
91671-A0616
Linked diagrams
3307
