ZRE152R-AEFNKQ (2008)

Toyota Corolla Sed

Production Dec 2008 - Feb 2010
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )6F

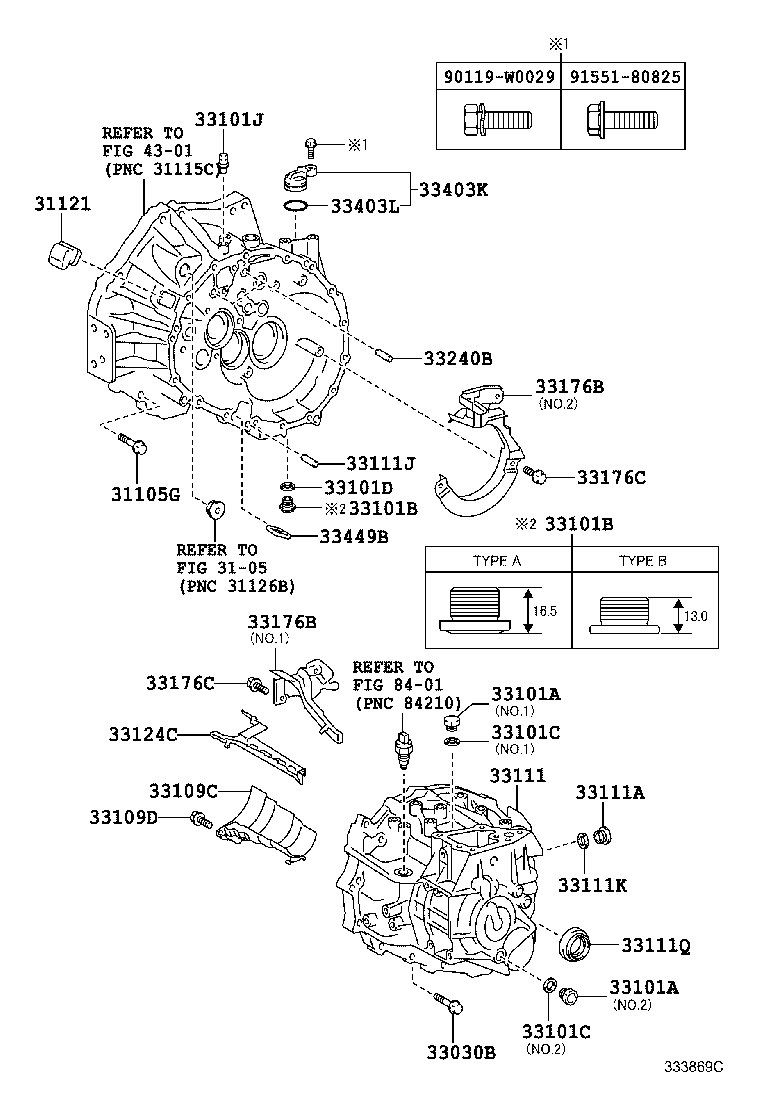

Click highlighted areas on diagram

EC60

diagram 3105 31105G 31121 33030B 33101A 33101A 33101B 33101B 33101C 33101C 33101D 33101J 33109C 33109D 33111 33111A 33111J 33111K 33111Q 33124C 33176B 33176B 33176C 33176C 33240B 33403K 33403L 33449B 4301 8401 90119W0029 9155180825
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
91612-61045

ZRE152..6F

*10-1.25PX45-30

 7
31121 - COVER, CLUTCH HOUSING, NO.1
31121-52020

ZRE152..6F..N

*201,*206

 1
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08353

ZRE152..6F

*8-1.25PX50-30,NO.1

 13
91551-10840

ZRE152..6F..N

*8-1.25PX40-22,*201,*206

 16
90105-08430

ZRE152..6F

*8-1.25PX45-27.5,NO.2

 3
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-14032

ZRE152..6F..N

*201,NO.1,*206,NO.1

 1
90341-18033

ZRE152..6F..N

*201,NO.2,*206,NO.2

 1
90341-18038

ZRE152..6F

 1
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-14032

ZRE152..6F..N

*201,NO.1,*206,NO.1

 1
90341-18033

ZRE152..6F..N

*201,NO.2,*206,NO.2

 1
90341-18038

ZRE152..6F

 1
33101B - PLUG(FOR MANUAL TRANSMISSION DRAIN)
90341-18016

ZRE152..6F..N

*201,*206

 1
33101B - PLUG(FOR MANUAL TRANSMISSION DRAIN)
90341-18016

ZRE152..6F..N

*201,*206

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

ZRE152..6F..N

*201,NO.2,*206,NO.2

 1
90430-18008

ZRE152..6F

 1
90430-14003

ZRE152..6F..N

*201,NO.1,*206,NO.1

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

ZRE152..6F..N

*201,NO.2,*206,NO.2

 1
90430-18008

ZRE152..6F

 1
90430-14003

ZRE152..6F..N

*201,NO.1,*206,NO.1

 1
33101D - GASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)
90430-18008

ZRE152..6F..N

*201,*206

 1
33101J - PLUG, BREATHER
90930-03133

ZRE152..6F..N

*201,*206

 1
33109C - SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL
33109-20020

ZRE152..6F..N

*201,*206

 1
33109D - BOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)
91551-80816

ZRE152..6F..N

*201,*206

 4
33111 - CASE, MANUAL TRANSMISSION
33111-12240

ZRE152..6F

 1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18023

ZRE152..6F

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

ZRE152..6F..N

L=23,OD=8,*201,*206

 3
90250-08054

ZRE152..6F

L=23,OD=8

 4
33111K - GASKET(FOR TRANSMISSION CASE)
90430-18008

ZRE152..6F..N

*201,*206

 1
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90311-35061

ZRE152..6F..N

*201,*206

 1
90311-35058

ZRE152..6F

 1
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-20050

ZRE152..6F

 1
33124-20080

ZRE152..6F..N

*201,*206

 1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-20080

ZRE152..6F..N

*201,NO.1,*206,NO.1

 1
33176-20090

ZRE152..6F..N

*201,NO.2,*206,NO.2

 1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-20080

ZRE152..6F..N

*201,NO.1,*206,NO.1

 1
33176-20090

ZRE152..6F..N

*201,NO.2,*206,NO.2

 1
33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR)
91551-80816

ZRE152..6F..N

*201,*206

 6
33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR)
91551-80816

ZRE152..6F..N

*201,*206

 6
33240B - PIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)
90250-08054

ZRE152..6F..N

*201,*206

 2
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230

ZRE152..6F..N

 1
33403-35230

ZRE152..6F

 1
33403L - RING, O
96711-24030

ZRE152..6F

 1
96711-24030

ZRE152..6F..N

 1
33449B - MAGNET, TRANSMISSION
33449-20010

ZRE152..6F..N

*201,*206

 1
Common parts
90119-W0029
91551-80825
Linked diagrams
3105
4301
8401
