ZRE152R-AEFNKQ (2008)

Toyota Corolla Sed

Production Dec 2008 - Feb 2010
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0812- )6F

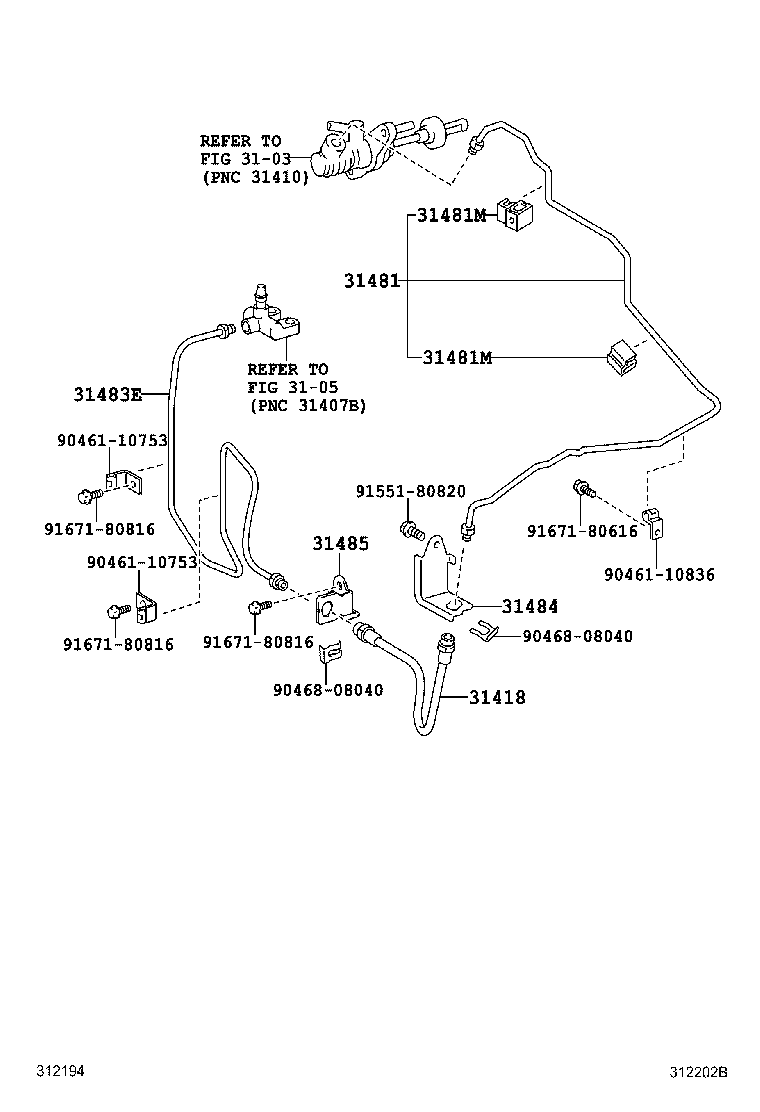

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31481M 31481M 31483E 31484 31485 9046110753 9046110753 9046110836 9046808040 9046808040 9155180820 9167180616 9167180816 9167180816 9167180816
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-02E28

ZRE152..6F..N

 1
90947-02E28

ZRE152..6F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-12370

ZRE152..6F

 1
31481-12370

ZRE152..6F..N

 1
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01C82

ZRE152..6F

 2
90949-01C82

ZRE152..6F..N

 2
31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE)
90949-01C82

ZRE152..6F

 2
90949-01C82

ZRE152..6F..N

 2
31483E - TUBE, BLEEDER CLUTCH RELEASE
31483-12150

ZRE152..6F..N

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-12500

ZRE152..6F

 1
31484-12500

ZRE152..6F..N

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-12510

ZRE152..6F

 1
31484-12440

ZRE152..6F..N

 1
Common parts
90461-10753
90461-10836
90468-08040
91551-80820
91671-80616
91671-80816
Linked diagrams
3103
3105
