ZRE152R-AEFNKQ (2008)
Toyota Corolla Sed
Production
Dec 2008
-
Feb 2010
Engine
2ZRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0703-0909)

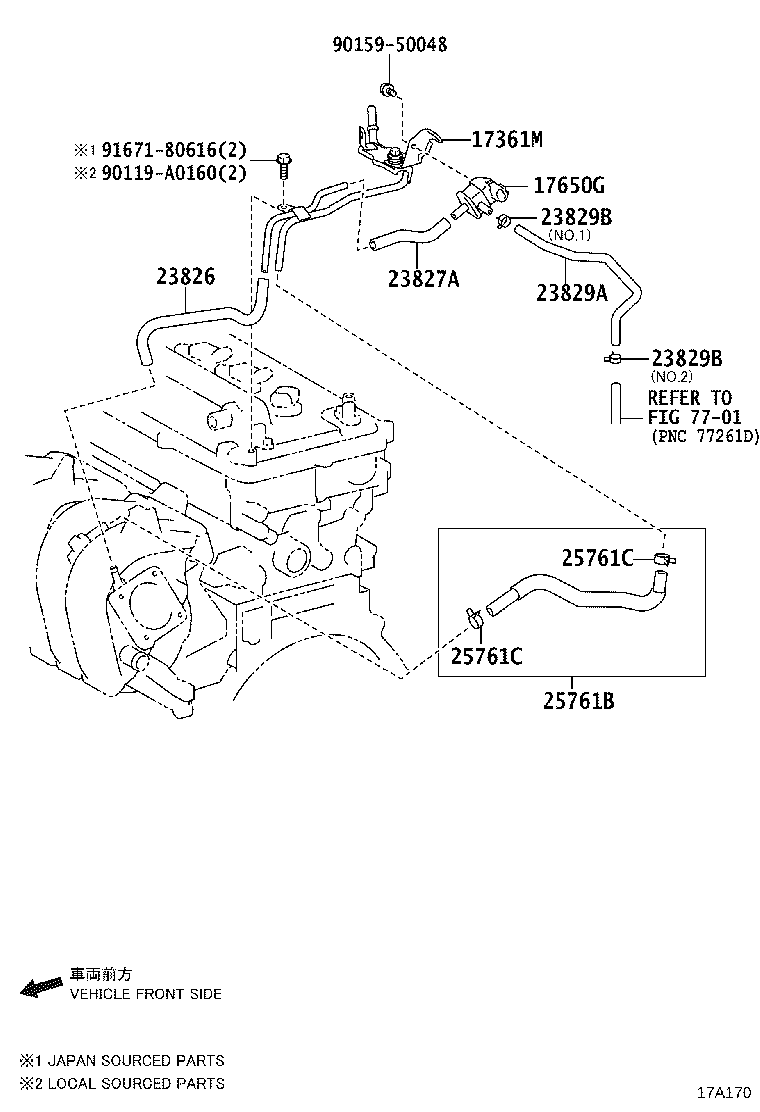

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17361M - TUBE, AIR | ||||
| 17361-37010 |
2ZRFE..ZRE152 |
1 | ||
| 17361-37010 |
2ZRFE..ZRE152 |
1 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12276 |
2ZRFE..ZRE152 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-37020 |
2ZRFE..ZRE152 |
1 | ||
| 23826-37020 |
2ZRFE..ZRE152 |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-37020 |
2ZRFE..ZRE152 |
1 | ||
| 23829A - HOSE, FUEL VAPOR FEED | ||||
| 23826-22160 |
2ZRFE..ZRE152 |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96136-41501 |
2ZRFE..ZRE152 NO.2 |
1 | ||
| 96132-51300 |
2ZRFE..ZRE152 NO.1 |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96136-41501 |
2ZRFE..ZRE152 NO.2 |
1 | ||
| 96132-51300 |
2ZRFE..ZRE152 NO.1 |
1 | ||
| 25761B - HOSE, VACCUM TRANSMITTING, NO.1 | ||||
| 25761-37010 |
2ZRFE..ZRE152 |
1 | ||
| 25761-37010 |
2ZRFE..ZRE152 |
1 | ||
| 25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1) | ||||
| 96136-41801 |
2ZRFE..ZRE152 |
2 | ||
| 96136-41801 |
2ZRFE..ZRE152 |
2 | ||
| 25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1) | ||||
| 96136-41801 |
2ZRFE..ZRE152 |
2 | ||
| 96136-41801 |
2ZRFE..ZRE152 |
2 | ||
| Common parts | ||||
| 90159-50048 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 7701 | ||||
(0910- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17361M - TUBE, AIR | ||||
| 17361-37010 |
2ZRFE..ZRE152 |
1 | ||
| 17361-37010 |
2ZRFE..ZRE152 |
1 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12276 |
2ZRFE..ZRE152 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-37020 |
2ZRFE..ZRE152 |
1 | ||
| 23826-37020 |
2ZRFE..ZRE152 |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-37020 |
2ZRFE..ZRE152 |
1 | ||
| 23829A - HOSE, FUEL VAPOR FEED | ||||
| 23826-22160 |
2ZRFE..ZRE152 |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96136-41501 |
2ZRFE..ZRE152 NO.2 |
1 | ||
| 96132-51300 |
2ZRFE..ZRE152 NO.1 |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96136-41501 |
2ZRFE..ZRE152 NO.2 |
1 | ||
| 96132-51300 |
2ZRFE..ZRE152 NO.1 |
1 | ||
| 25761B - HOSE, VACCUM TRANSMITTING, NO.1 | ||||
| 25761-37010 |
2ZRFE..ZRE152 |
1 | ||
| 25761-37010 |
2ZRFE..ZRE152 |
1 | ||
| 25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1) | ||||
| 96136-41801 |
2ZRFE..ZRE152 |
2 | ||
| 96136-41801 |
2ZRFE..ZRE152 |
2 | ||
| 25761C - CLIP(VACCUM TRANSMITTING HOSE NO.1) | ||||
| 96136-41801 |
2ZRFE..ZRE152 |
2 | ||
| 96136-41801 |
2ZRFE..ZRE152 |
2 | ||
| Common parts | ||||
| 90119-A0160 | ||||
| 90159-50048 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 7701 | ||||
