ZRE152R-AEFDKQ (2007)

Toyota Corolla Sed

Production Mar 2007 - Dec 2008
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

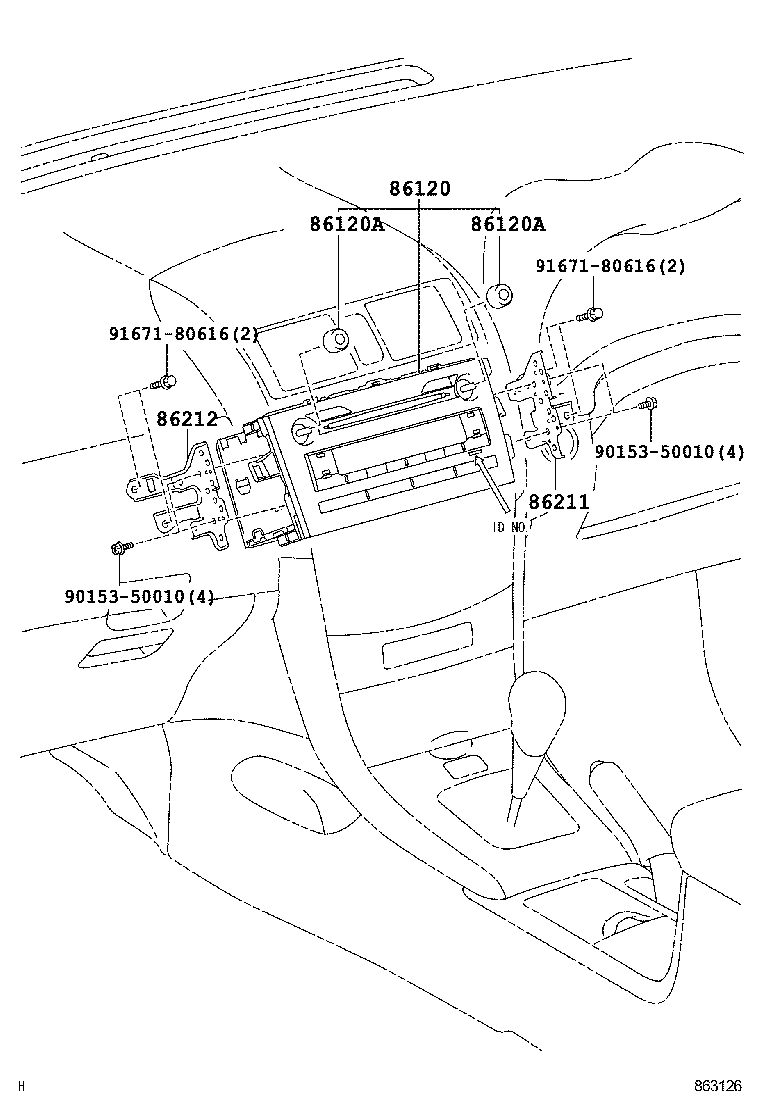

ILLUST NO. 1 OF 2(0703-1004)

Click highlighted areas on diagram

diagram 86120 86120A 86120A 86211 86212 9015350010 9015350010 9167180616 9167180616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-12A30

ZRE152..D

MATSUSHITA, ID=53816

 1
86120-12A30

ZRE152..D

MATSUSHITA, ID=53816,AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER

 1
86120A - KNOB, RADIO RECEIVER SWITCH
90010-24124

ZRE152..D

AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER

 2
90010-24124

ZRE152..D

 2
86120A - KNOB, RADIO RECEIVER SWITCH
90010-24124

ZRE152..D

AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER

 2
90010-24124

ZRE152..D

 2
86211 - BRACKET, RADIO, NO.1
86211-12400

ZRE152

 1
86212 - BRACKET, RADIO, NO.2
86212-12380

ZRE152

 1
Common parts
90153-50010
91671-80616

ILLUST NO. 2 OF 2(0703- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 86011Q 86011V 9011906915 9011906915 9167380612
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04194

ZRE152

 1
86011Q - CONDENSER, RADIO SETTING
90980-04199

ZRE152

 1
86011V - CONDENSER, RADIO SETTING
90980-04179

ZRE152

 1
Common parts
90119-06915
91673-80612
