ZRE152R-AEFDKQ (2007)
Toyota Corolla Sed

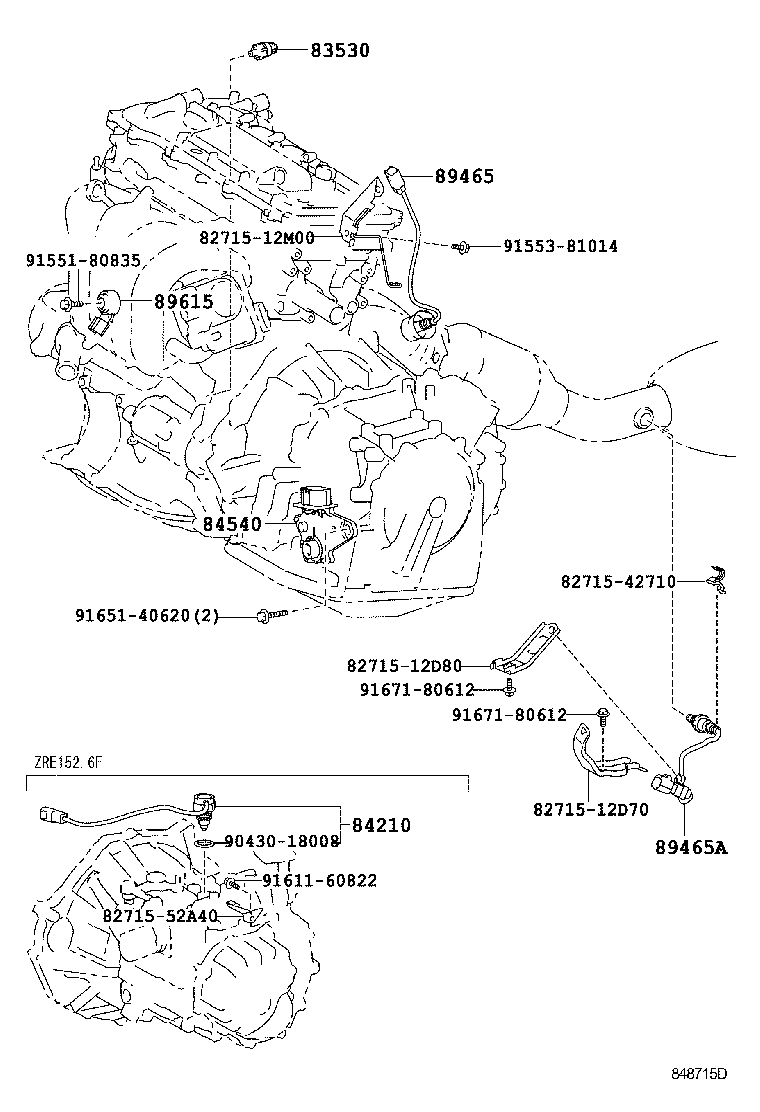

ILLUST NO. 1 OF 7(0703-0812)
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
ZRE152 DENSO |
1 | ||
| 83530-05010 |
ZRE152 VALEO |
1 | ||
| 83530-60020 |
ZRE152 YAZAKI |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-52010 |
ZRE152..6F |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89467-12030 |
ZRE152 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-12800 |
ZRE152 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZRE152 |
1 | ||
| Common parts | ||||
| 82715-12D70 | ||||
| 82715-12D80 | ||||
| 82715-12M00 | ||||
| 82715-42710 | ||||
| 82715-52A40 | ||||
| 90430-18008 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91611-60822 | ||||
| 91651-40620 | ||||
| 91671-80612 | ||||
ILLUST NO. 2 OF 7(0703- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89257 - COMPUTER, COOLING FAN | ||||
| 89257-12010 |
ZRE152 |
1 | ||
| Common parts | ||||
| 93315-14010 | ||||
ILLUST NO. 4 OF 7(0703- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2ZRFE..ZRE152 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02030 |
2ZRFE..ZRE152 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-46010 |
ZRE152 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
ZRE152 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
ZRE152 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
ZRE152 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
ZRE152 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
ZRE152 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
ZRE152 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
ZRE152 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
ZRE152 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ZRE152 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
ZRE152 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ZRE152 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ZRE152 20A,MINI FUSE,YELLOW |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
ZRE152 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
ZRE152 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ZRE152 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
ZRE152 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ZRE152 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ZRE152 20A,MINI FUSE,YELLOW |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82755-12010 |
ZRE152 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82755-12020 |
ZRE152 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-12200 |
ZRE152 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-12210 |
ZRE152 |
1 | ||
| 82673C - BRACKET, JUNCTION BLOCK | ||||
| 82673-12230 |
ZRE152 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-12B70 |
ZRE152 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19025 |
ZRE152 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ZRE152 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
ZRE152..6F |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
ZRE152..6F |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
ZRE152 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
ZRE152 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ZRE152 FRONT FOG LAMP-WITH(FOG LAMP) |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
ZRE152 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-12380 |
ZRE152 |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90159-60431 | ||||
| 90159-70004 | ||||
| 90179-06110 | ||||
| 91631-B0618 | ||||
| 91671-80616 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
ILLUST NO. 5 OF 7(0703- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-12070 |
ZRE152 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-12520 |
ZRE152 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
ZRE152 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12260 |
ZRE152 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12260 |
ZRE152 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01163 |
ZRE152 12V 1.2W,W(CAP) |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01163 |
ZRE152 12V 1.2W,W(CAP) |
1 | ||
| Linked diagrams | ||||
| 8302 | ||||

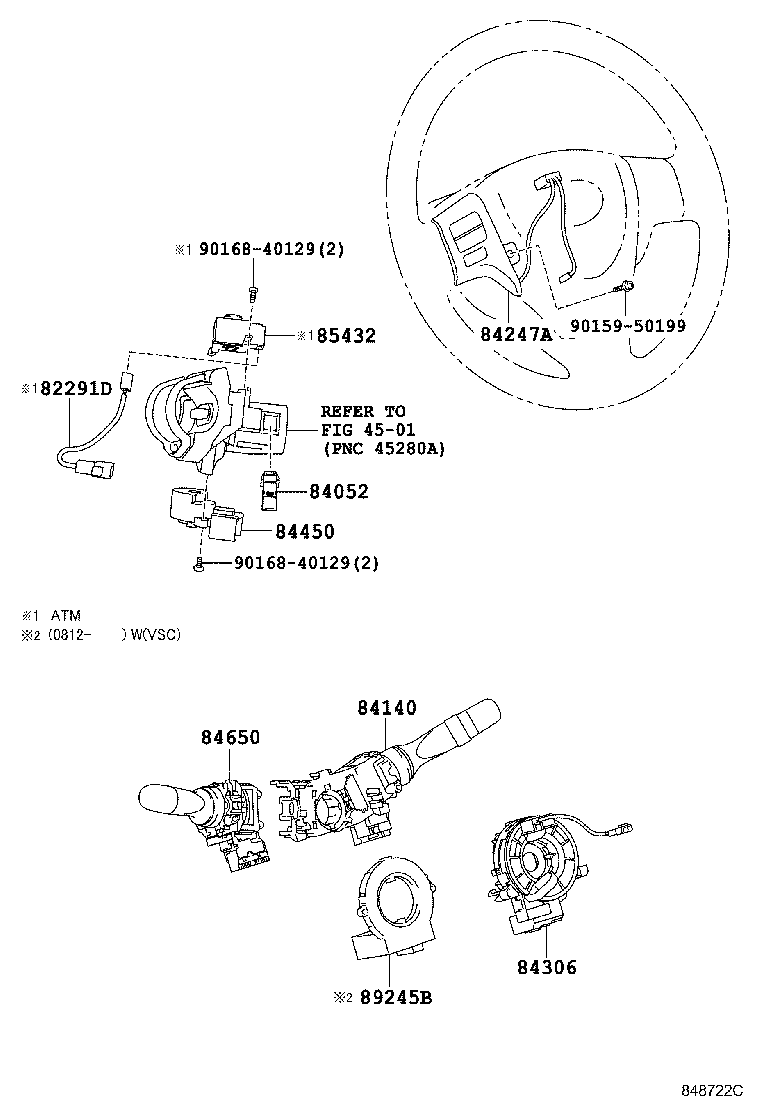

ILLUST NO. 6 OF 7(0703-1004)
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
ZRE152 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-12590 |
ZRE152 |
1 | ||
| 84140-52100 |
ZRE152 FRONT FOG LAMP-WITH(FOG LAMP) |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-12040 |
ZRE152 STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-12100 |
ZRE152 |
1 | ||
| 84306-12110 |
ZRE152 STEERING WHEEL-3-SPOKE,LEATHER,W(STEERING SW) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
ZRE152 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-52260 |
ZRE152 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF 7(0703- )
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-12730 |
ZRE152 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZRE152 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZRE152 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZRE152 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZRE152 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
ZRE152 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
ZRE152..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
ZRE152..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-12530 |
ZRE152..D POWER WINDOW-FRONT & REAR(DRIVER ONE TOUCH UP/DOWN) |
1 | ||
| 84820-12500 |
ZRE152..D |
1 | ||
| Common parts | ||||
| 90159-40085 | ||||
| 90164-40103 | ||||
| 90166-70001 | ||||
| 91671-80616 | ||||
ILLUST NO. 3 OF 7(0703- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
ZRE152 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08296 |
ZRE152 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08295 |
ZRE152 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09020 |
ZRE152 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09021 |
ZRE152 10A,MINI FUSE,RED |
1 | ||
| 90982-09022 |
ZRE152 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09024 |
ZRE152 25A,MINI FUSE |
1 | ||
| 90982-09025 |
ZRE152 30A,MINI FUSE,GRN |
1 | ||
| 90982-09023 |
ZRE152 20A,MINI FUSE,YELLOW |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZRE152 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-12280 |
ZRE152 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12010 |
ZRE152 NO.1 |
1 | ||
| 82631-12020 |
ZRE152 NO.2 |
1 | ||
| 82631-12030 |
ZRE152 NO.3 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12010 |
ZRE152 NO.1 |
1 | ||
| 82631-12020 |
ZRE152 NO.2 |
1 | ||
| 82631-12030 |
ZRE152 NO.3 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-12010 |
ZRE152 NO.1 |
1 | ||
| 82631-12020 |
ZRE152 NO.2 |
1 | ||
| 82631-12030 |
ZRE152 NO.3 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47020 |
ZRE152 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-12270 |
ZRE152 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-12060 |
ZRE152 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-12070 |
ZRE152 |
1 | ||
| 82817H - PROTECTOR, WIRING HARNESS | ||||
| 82817-12A80 |
ZRE152 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
ZRE152 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ZRE152 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
ZRE152 |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
ZRE152 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ZRE152 |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
