ZRE152R-AEFDKQ (2007)
Toyota Corolla Sed
Production
Mar 2007
-
Dec 2008
Engine
2ZRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0703-1004)

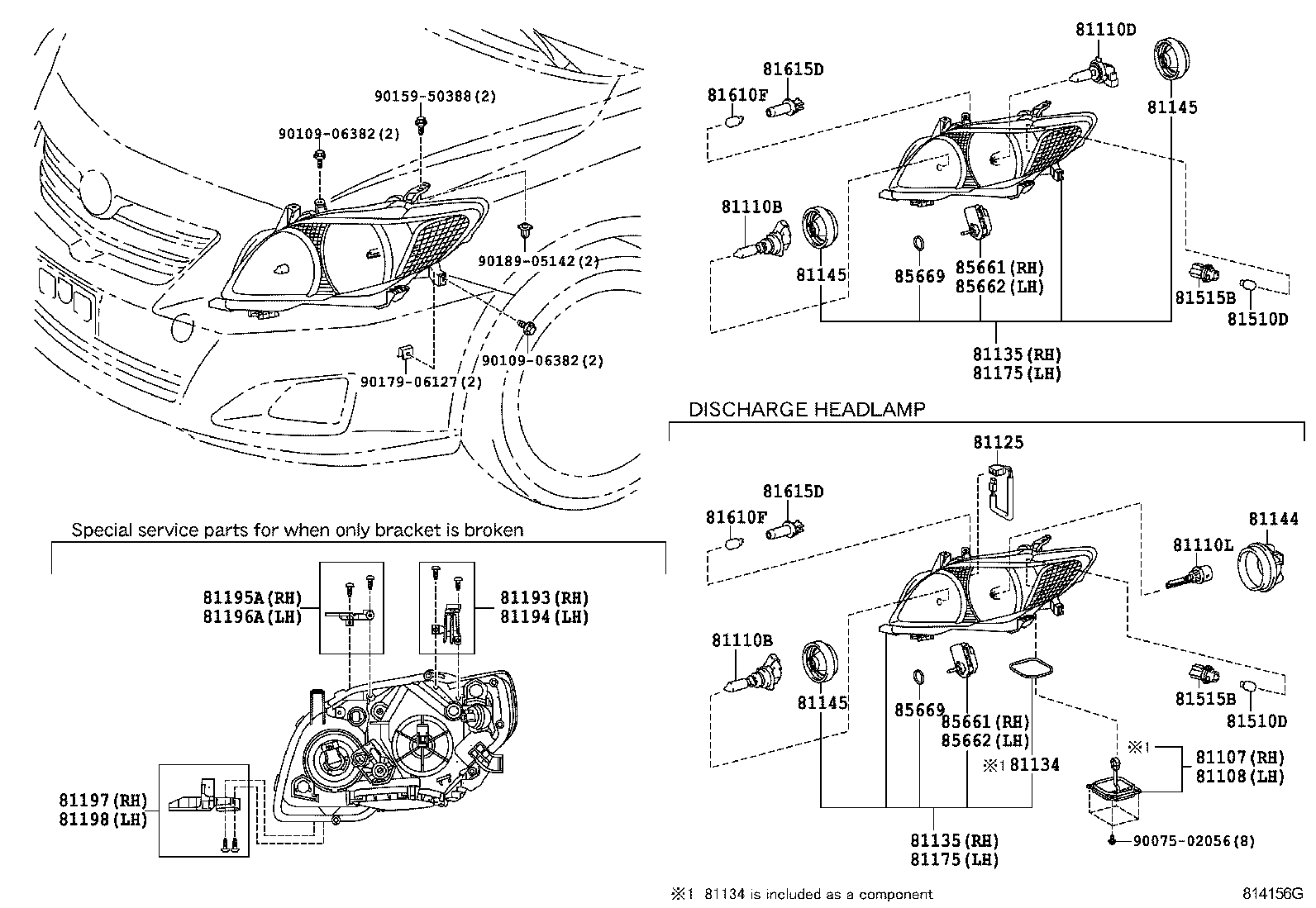

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90080-81041 |
ZRE152 12V 65W |
2 | ||
| 90981-13046 |
ZRE152 12V65W(SAE),60W(ECE) |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90080-81041 |
ZRE152 12V 65W |
2 | ||
| 90981-13046 |
ZRE152 12V65W(SAE),60W(ECE) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13047 |
ZRE152 12V 51W,HALOGEN |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-12A70 |
ZRE152 |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-12A70 |
ZRE152 |
1 | ||
| 81145 - COVER, HEADLAMP, NO.2 | ||||
| 90075-65006 |
ZRE152 |
4 | ||
| 81145 - COVER, HEADLAMP, NO.2 | ||||
| 90075-65006 |
ZRE152 |
4 | ||
| 81145 - COVER, HEADLAMP, NO.2 | ||||
| 90075-65006 |
ZRE152 |
4 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-12A70 |
ZRE152 |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-12A70 |
ZRE152 |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-12050 |
ZRE152 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-12050 |
ZRE152 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-12050 |
ZRE152 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-12050 |
ZRE152 |
1 | ||
| 81197 - BRACKET, HEADLAMP, LOWER RH | ||||
| 81197-12050 |
ZRE152 |
1 | ||
| 81198 - BRACKET, HEADLAMP, LWR LH | ||||
| 81198-12050 |
ZRE152 |
1 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
ZRE152 12V 21W,AMBER |
2 | ||
| 81510D - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
ZRE152 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ZRE152 |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ZRE152 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ZRE152 12V 5W |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ZRE152 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
ZRE152 |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
ZRE152 |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
ZRE152 |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-12010 |
ZRE152 |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
ZRE152 |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-12010 |
ZRE152 |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
ZRE152 |
2 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
ZRE152 |
2 | ||
| Common parts | ||||
| 90075-02056 | ||||
| 90109-06382 | ||||
| 90159-50388 | ||||
| 90179-06127 | ||||
| 90189-05142 | ||||
