ZRE152R-AEFDKQ (2007)

Toyota Corolla Sed

Production Mar 2007 - Dec 2008
Engine 2ZRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

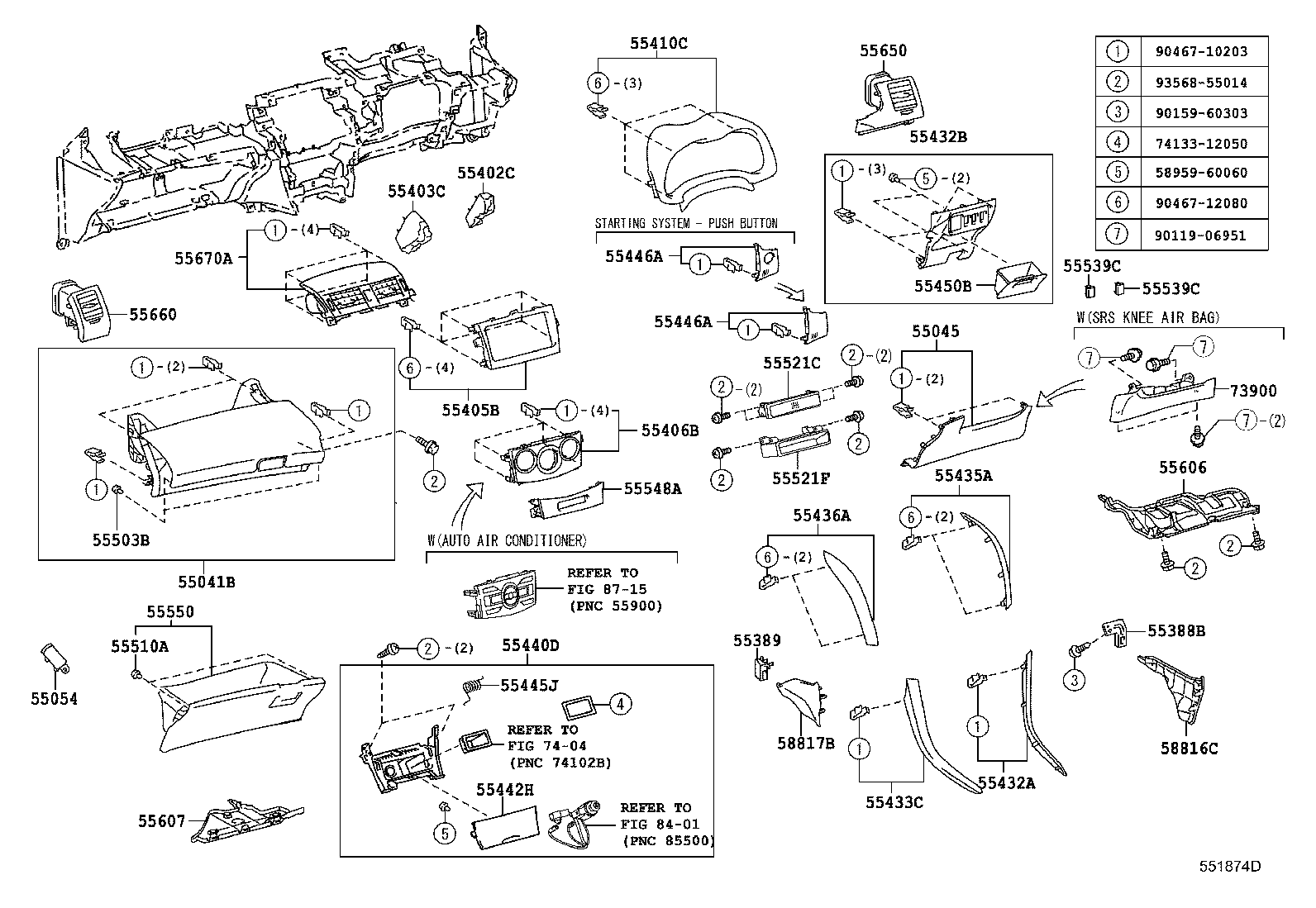

ILLUST NO. 2 OF 2(0703-1004)

Click highlighted areas on diagram

diagram 55041B 55045 55054 55388B 55389 55402C 55403C 55405B 55406B 55410C 55432A 55432B 55433C 55435A 55436A 55440D 55442H 55445J 55446A 55446A 55450B 55503B 55510A 55521C 55521F 55539C 55539C 55548A 55550 55606 55607 55650 55660 55670A 58816C 58817B 5895960060 73900 7404 7413312050 8401 8715 9011906951 9015960303 9046710203 9046712080 9356855014
Part # Description Qty Price
55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1
55041-12060B0

ZRE152

DK.GRAY,TRIM1#

 1
55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER
55045-12370B0

ZRE152

DK.GRAY,TRIM1#

 1
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-12030

ZRE152

 1
55388B - BRACKET, CONSOLE MOUNTING, RH
55389-42020

ZRE152

 1
55389 - BRACKET, CONSOLE MOUNTING, LH
55388-42020

ZRE152

 1
55402C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH
55402-12020

ZRE152..D

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

 1
55402-12020

ZRE152

 1
55403C - PAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH
55403-12070

ZRE152

 1
55403-12070

ZRE152..D

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-12A71

ZRE152..D

AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER

 1
55405-12A70

ZRE152..D

AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER

 1
55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER
55406-12480

ZRE152..D

 1
55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH
55410-12A30B0

ZRE152

DK.GRAY,TRIM1#

 1
55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH
55432-12480

ZRE152

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55480-12020B0

ZRE152

DK.GRAY,TRIM1#

 1
55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH
55433-12220

ZRE152

 1
55435A - PANEL, INSTRUMENT PANEL FINISH, END RH
55435-12120

ZRE152

 1
55436A - PANEL, INSTRUMENT PANEL FINISH, END LH
55436-12090

ZRE152

 1
55440D - BOX ASSY, INSTRUMENT PANEL
55440-12150

ZRE152..D

 1
55442H - DOOR, INSTRUMENT PANEL
55442-12160

ZRE152..D

 1
55445J - SPRING, INSTRUMENT PANEL BOX
55445-12100

ZRE152

 1
55446A - BASE, SWITCH HOLE, NO.1
55446-12150B0

ZRE152

DK.GRAY,TRIM1#

 1
55446A - BASE, SWITCH HOLE, NO.1
55446-12150B0

ZRE152

DK.GRAY,TRIM1#

 1
55450B - BOX ASSY, COIN
55450-12020B0

ZRE152

DK.GRAY,TRIM1#

 1
55503B - CUSHION(FOR GLOVE COMPARTMENT)
58959-60060

ZRE152

 2
55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR)
55557-53030

ZRE152

 2
55521C - COVER, STEREO OPENING
55521-12190

ZRE152

AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER

 1
55521F - COVER, STEREO OPENING, NO.2
55521-52020

ZRE152

AUDIO (OVERSEAS MARKET)-RADIOLESS 6SPEAKER

 1
55539C - COVER, SPARE SWITCH HOLE
55539-52060B0

ZRE152

DK.GRAY,TRIM1#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-52060B0

ZRE152

DK.GRAY,TRIM1#

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-12170

ZRE152..D

 1
55550 - DOOR ASSY, GLOVE COMPARTMENT
55550-12470B0

ZRE152

DK.GRAY,TRIM1#

 1
55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1
55606-12090

ZRE152

 1
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-12060

ZRE152

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-12350B0

ZRE152..D

DK.GRAY,TRIM1#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-12400B0

ZRE152..D

DK.GRAY,TRIM1#

 1
55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER
55670-12380

ZRE152..D

 1
58816C - INSERT, CONSOLE BOX, FRONT NO.1
58816-12100B0

ZRE152

DK.GRAY,TRIM1#

 1
58816-12101B0

ZRE152

DK.GRAY,TRIM1#

 1
58817B - INSERT, CONSOLE BOX, FRONT NO.2
58817-12081B0

ZRE152

DK.GRAY,TRIM1#

 1
58817-12080B0

ZRE152

DK.GRAY,TRIM1#

 1
73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1
73900-12040B0

ZRE152

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE),DK.GRAY,TRIM1#

 1
Common parts
58959-60060
74133-12050
90119-06951
90159-60303
90467-10203
90467-12080
93568-55014
Linked diagrams
7404
8401
8715

ILLUST NO. 1 OF 2(0703- )

Click highlighted areas on diagram

diagram 55302A 55303B 55306A 55307C 55317A 55318C 55330B 55343B 55355 55356C 55357B 55358K 55416A 55961 55962 55981 73960A 82140 9010508120 9015960431 9015960613 9015970004 9018305094 9018306025 9046710201 9046712080 9167380616 9356855014 9415180800
Part # Description Qty Price
55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER
55302-12130B0

ZRE152

DK.GRAY,TRIM1#

 1
55302-12131B0

ZRE152

DK.GRAY,TRIM1#

 1
55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER
55303-12360B0

ZRE152

DK.GRAY,TRIM1#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-12370

ZRE152

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-12320

ZRE152

 1
55307-12330

ZRE152

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

 1
55317A - PANEL, INSTRUMENT SIDE, RH
55317-12100B0

ZRE152

DK.GRAY,TRIM1#

 1
55318C - PANEL, INSTRUMENT SIDE, LH
55318-12090B0

ZRE152

DK.GRAY,TRIM1#

 1
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-12710

ZRE152

 1
55330-12720

ZRE152

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN&KNEE)

 1
55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER
55343-12070

ZRE152

 1
55355 - CUSHION, INSTRUMENT PANEL, NO.1
55355-12110

ZRE152

 1
55356C - CUSHION, INSTRUMENT PANEL, NO.2
55356-12150

ZRE152

 1
55357B - CUSHION, INSTRUMENT PANEL, NO.3
55357-12090

ZRE152

 1
55358K - CUSHION, INSTRUMENT PANEL, NO.4
55358-12080

ZRE152

 1
55416A - RETAINER, METER HOOD, NO.1
55416-12080

ZRE152

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-12230B0

ZRE152

DK.GRAY,TRIM1#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-12200B0

ZRE152

DK.GRAY,TRIM1#

 1
55981 - GARNISH, DEFROSTER NOZZLE, NO.1
55981-12170

ZRE152

 1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-12140

ZRE152

 1
82140 - WIRE ASSY, INSTRUMENT PANEL
82140-1A200

ZRE152

 1
Common parts
90105-08120
90159-60431
90159-60613
90159-70004
90183-05094
90183-06025
90467-10201
90467-12080
91673-80616
93568-55014
94151-80800
