ZRE152R-AEFDKQ (2007)
Toyota Corolla Sed
Production
Mar 2007
-
Dec 2008
Engine
2ZRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0703-0812)6F

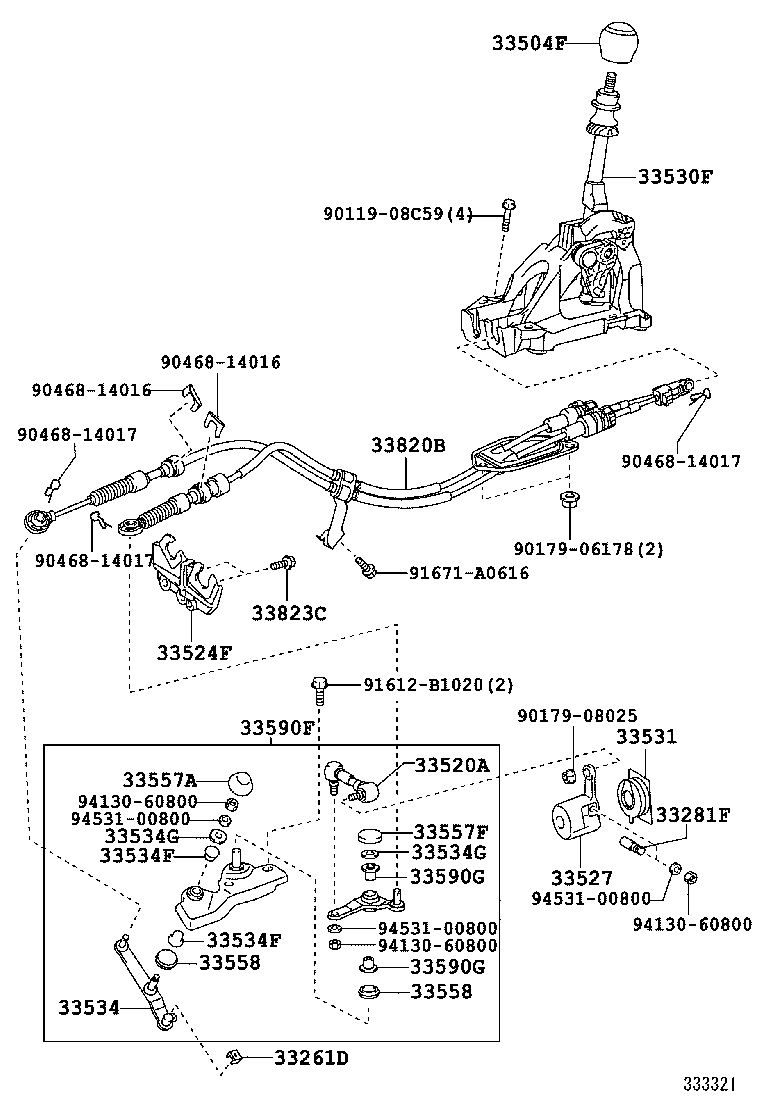

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33261D - BUSH (FOR SHIFT & SELECT LEVER) | ||||
| 33557-33010 |
ZRE152..6F |
1 | ||
| 33281F - PIN, LEVER LOCK (FOR FLOOR SHIFT) | ||||
| 33281-16020 |
ZRE152..6F |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-12330B1 |
ZRE152..6F..D SHIFT LEVER & KNOB-LEATHER,DK.GRAY,TRIM1# |
1 | ||
| 33504-12320B1 |
ZRE152..6F..D DK.GRAY,TRIM1# |
1 | ||
| 33520A - SHAFT ASSY, FLOOR SHIFT CONTROL | ||||
| 33520-52050 |
ZRE152..6F |
1 | ||
| 33524F - BRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT | ||||
| 33524-52050 |
ZRE152..6F |
1 | ||
| 33527 - LEVER, CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33527-52011 |
ZRE152..6F |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33530-12A70 |
ZRE152..6F |
1 | ||
| 33530-12A71 |
ZRE152..6F |
1 | ||
| 33531 - BOOT, DUST (FOR CONTROL SHIFT LEVER) | ||||
| 33531-17010 |
ZRE152..6F |
1 | ||
| 33534 - BELLCRANK, SELECTING | ||||
| 33534-12120 |
ZRE152..6F |
1 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
ZRE152..6F |
2 | ||
| 33534F - BUSH (FOR SELECTING BELLCRANK NO.2) | ||||
| 90386-12022 |
ZRE152..6F |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
ZRE152..6F |
2 | ||
| 33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2) | ||||
| 90201-08028 |
ZRE152..6F |
2 | ||
| 33557A - COVER, SELECTING BELLCRANK DUST, NO.1 | ||||
| 33557-32010 |
ZRE152..6F |
1 | ||
| 33557F - COVER, CONTROL BELLCRANK DUST (FOR FLOOR SHIFT) | ||||
| 33557-20010 |
ZRE152..6F |
1 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
ZRE152..6F |
2 | ||
| 33558 - COVER, SELECTING BELLCRANK DUST, NO.2 | ||||
| 33558-10030 |
ZRE152..6F |
2 | ||
| 33590F - CRANK ASSY, SELECTING BELL (FOR FLOOR SHIFT) | ||||
| 33590-12070 |
ZRE152..6F |
1 | ||
| 33590G - BUSH (FOR SELECTING BELL CRANK) | ||||
| 33546-20020 |
ZRE152..6F |
2 | ||
| 33590G - BUSH (FOR SELECTING BELL CRANK) | ||||
| 33546-20020 |
ZRE152..6F |
2 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-12C10 |
ZRE152..6F |
1 | ||
| 33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 91612-61030 |
ZRE152..6F |
2 | ||
| Common parts | ||||
| 90119-08C59 | ||||
| 90179-06178 | ||||
| 90179-08025 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 91612-B1020 | ||||
| 91671-A0616 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||
